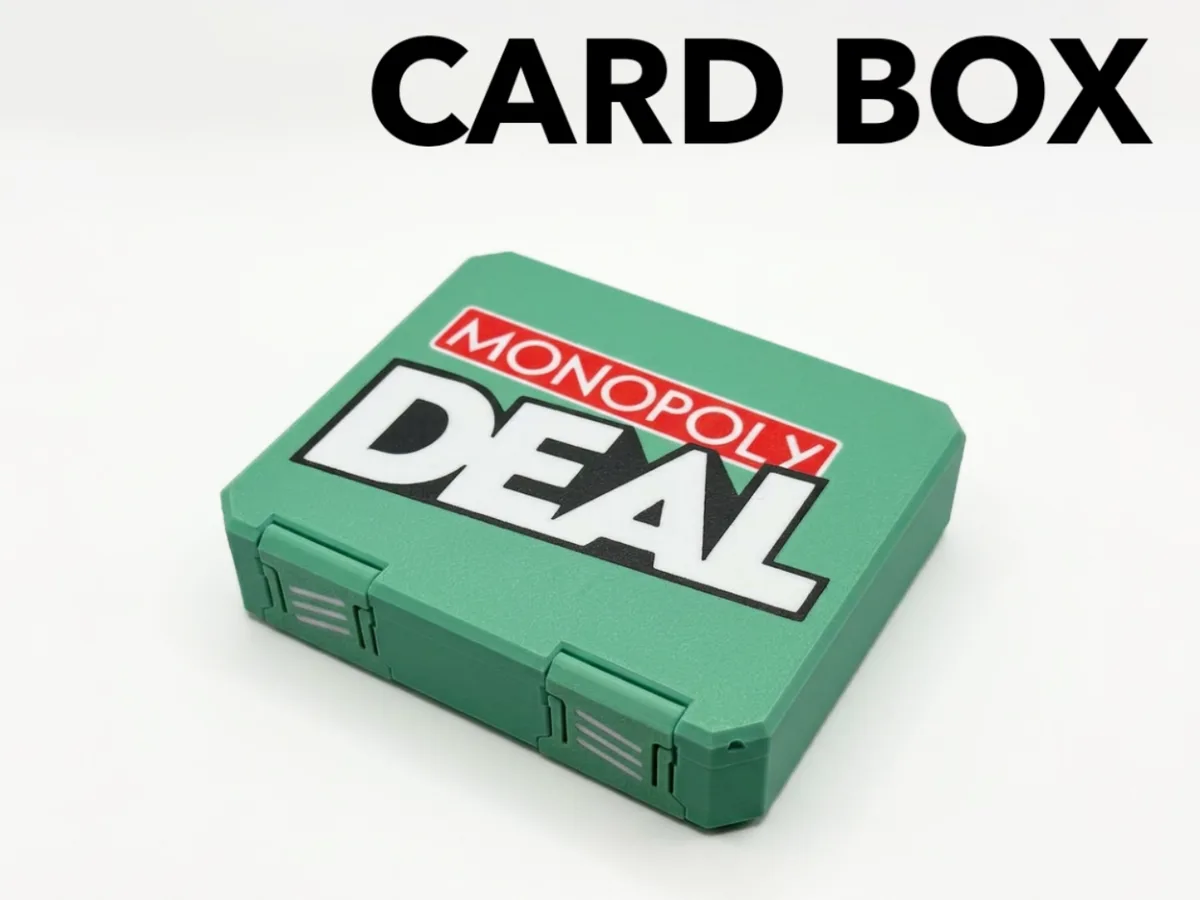

Monopoly Deal Card Box - Compact Travel Case

for Monopoly Deal (2014) Layer by Layer

Lukas

Card & Tile Holders Free

View on MakerWorld 167 396 Added Mar 28, 26 | Updated Sep 2, 26 Support Lukas by Liking and Boosting their model.

Plan Your Print

✓ Optional multicolor profile The designer also offers a multicolor way to print this (an MMU/AMS profile or per-color parts)

About 120 g of filament From the designer's print profile

Print Profile (2) Card Box Standard 5h 10m 120 g PLA

Card Box Standard

1 plate 5h 10m 120 g PLA

A1, H2D, H2C, H2S, X1 Carbon, X2D, X1E, P2S, P1P, X1, P1S, H2D Pro, A2L

Version for the A1 or larger. The colors can still be adjusted in Bambu Studio. If you want to print the box in a single color, you can simply remove the other colors and the logo will no longer be visible.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

5h 10m 120 g PLA · 3 g PLA · 5 g PLA · 3 g PLA · 109 g

0.16mm layer, 2 walls, 15% infill

2 plates 5h 38m 123 g PLA

A1 mini, P2S, X2D, P1P, P1S, X1 Carbon, H2D, X1, A1, H2S, X1E, H2D Pro, H2C, A2L

Version for the A1 Mini. The colors can still be adjusted in Bambu Studio. If you want to print the box in a single color, you can simply remove the other colors and the logo will no longer be visible.

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1

3h 4m 69 g PLA · 2 g PLA · 67 g

Plate 2

2h 34m 54 g PLA · 3 g PLA · 5 g PLA · 3 g PLA · 43 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

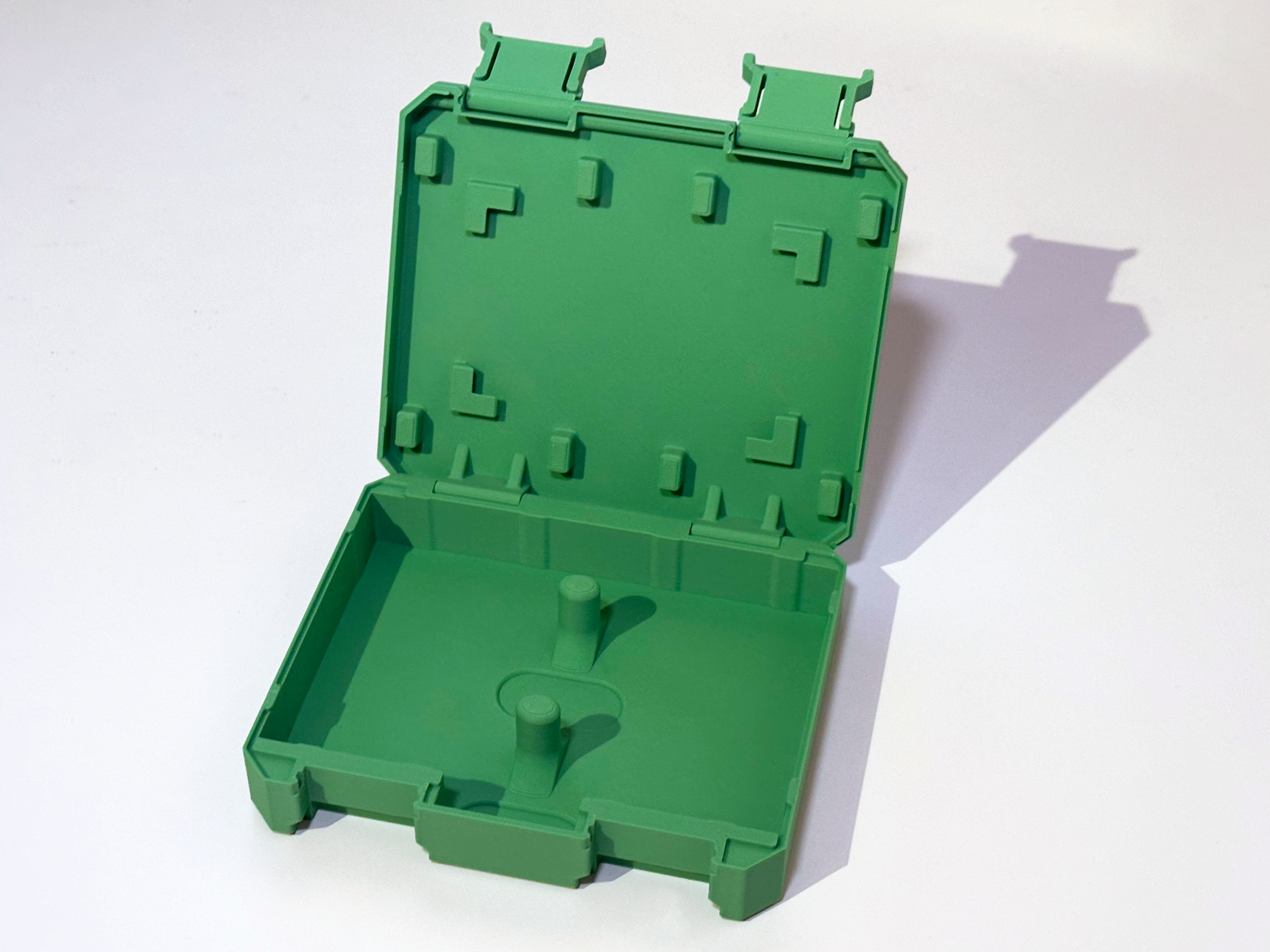

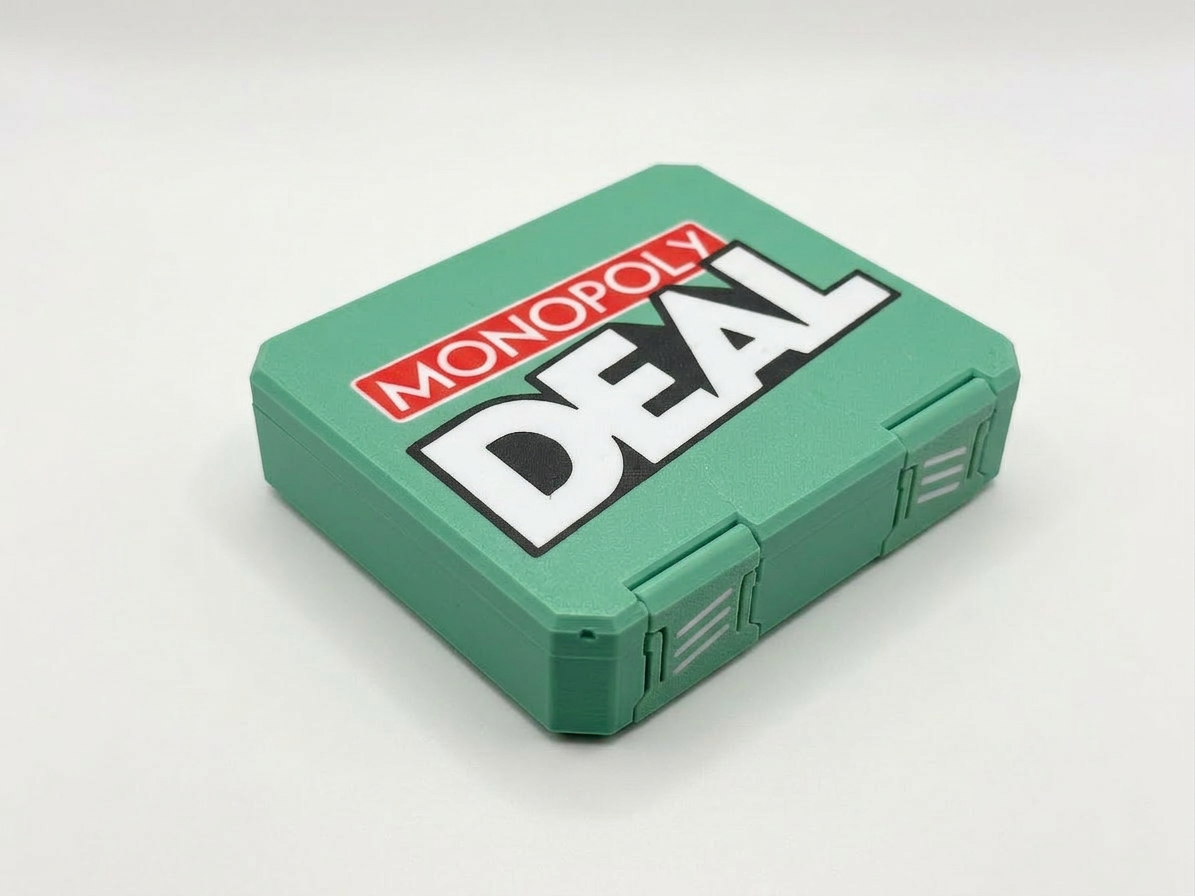

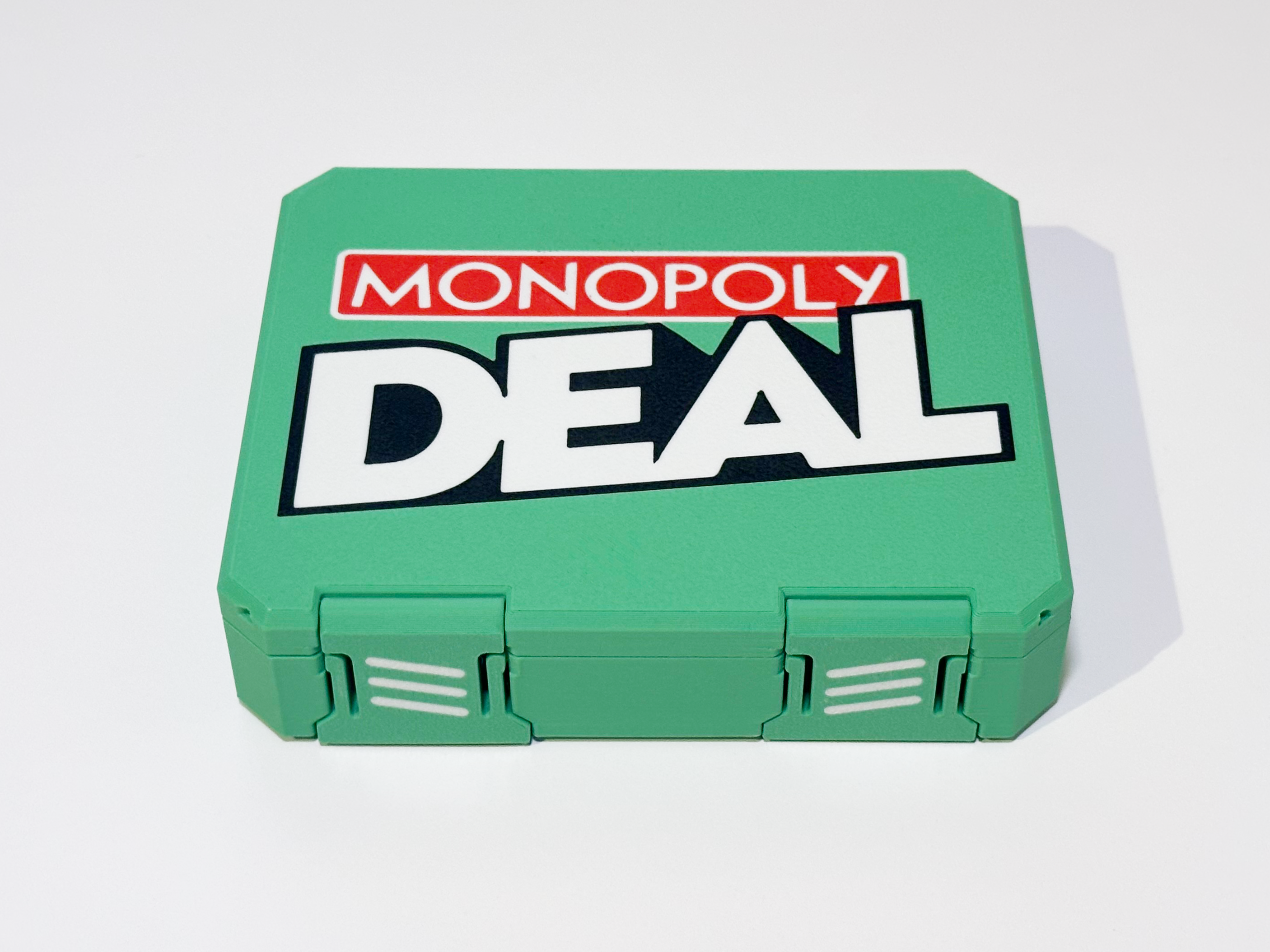

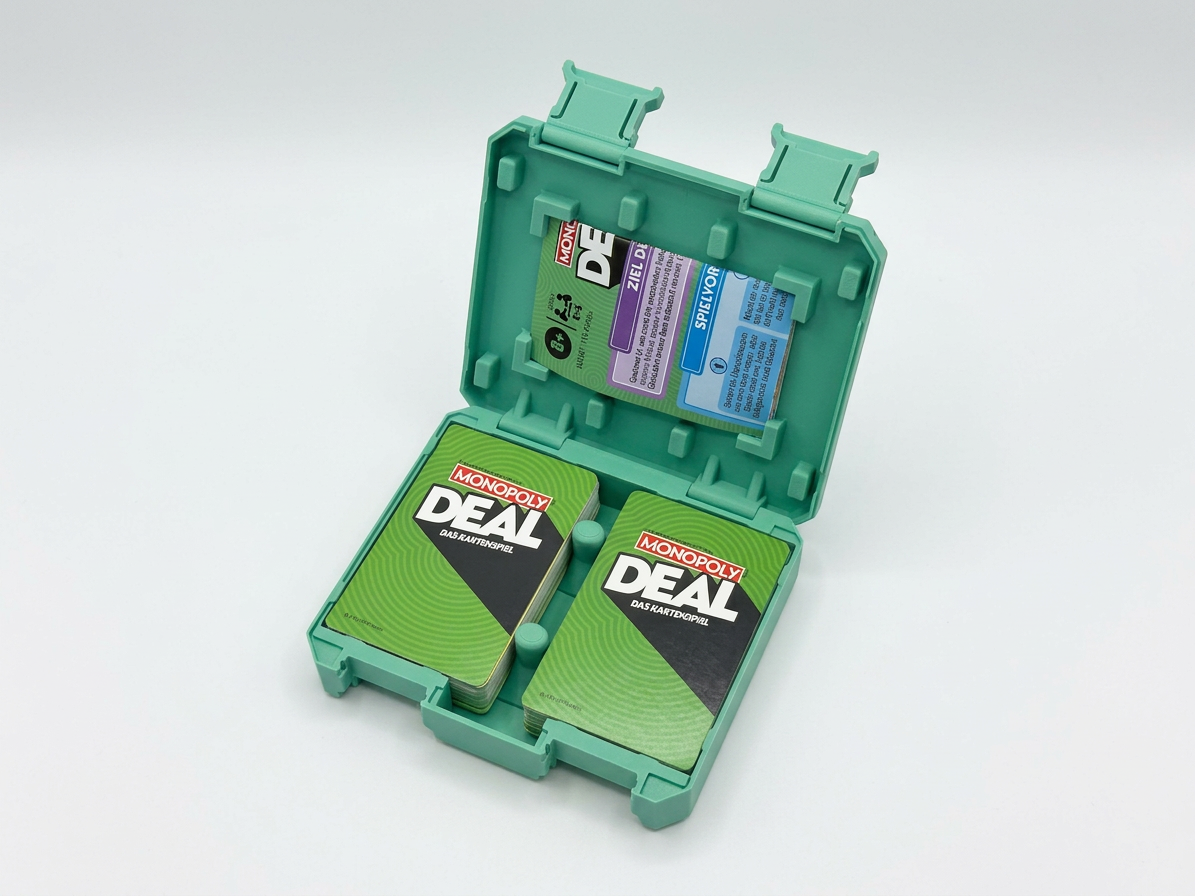

This compact card box is a sturdy, 3D-printed replacement for the flimsy original cardboard packaging of Monopoly Deal by Mattel. Designed with portability in mind, its small footprint fits easily into any bag or pocket. The box closes with two snap latches that are easy to open and close with one hand, keeping the lid firmly shut during transport. The lid features the iconic Monopoly Deal logo, which can be printed in full color using a multimaterial setup (AMS). A dedicated slot inside the lid lets you store the original rulebook right alongside your cards, so everything stays together. This box works just as well as a generic travel case for other similarly sized card games.

Setting Recommendation
Material PLA (recommended) or PETG for added durability
Layer Height 0.2 mm
Infill 15-20% (Gyroid or Grid)
Supports Not needed
Bed Adhesion Smooth or textured PEI plate is recommended. Adhesive is recommended to make it easier to remove the print from the plate.
Orientation Print base and lid flat on the build plate

Multimaterial Note : You can adjust the colors in the slicer, use only two colors if desired, or simply print everything in a single color. In the latter case, the logo will no longer be visible.

Assembly

No screws or hardware required - just a short piece of spare filament and a drop of glue.

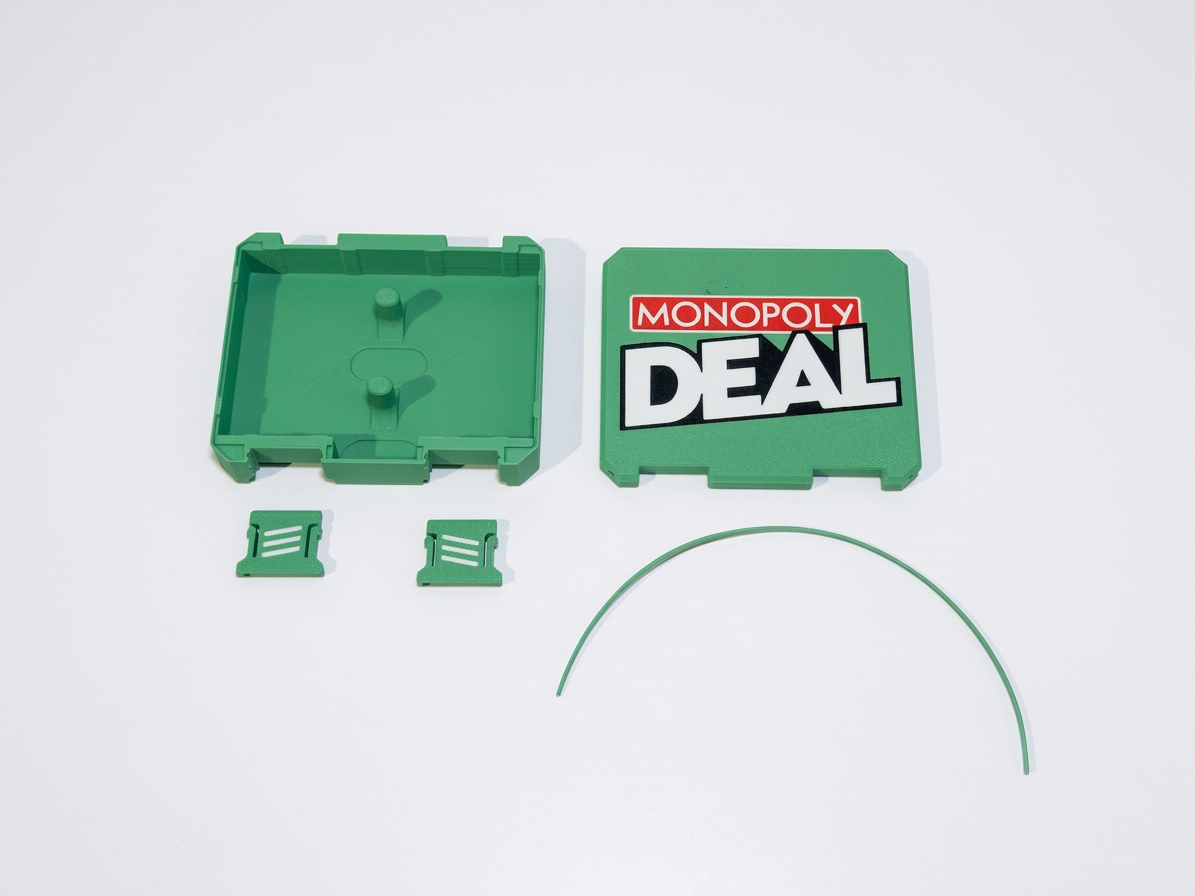

Print all parts - print the base, lid, latches, and hinge components flat on the build plate as described above.

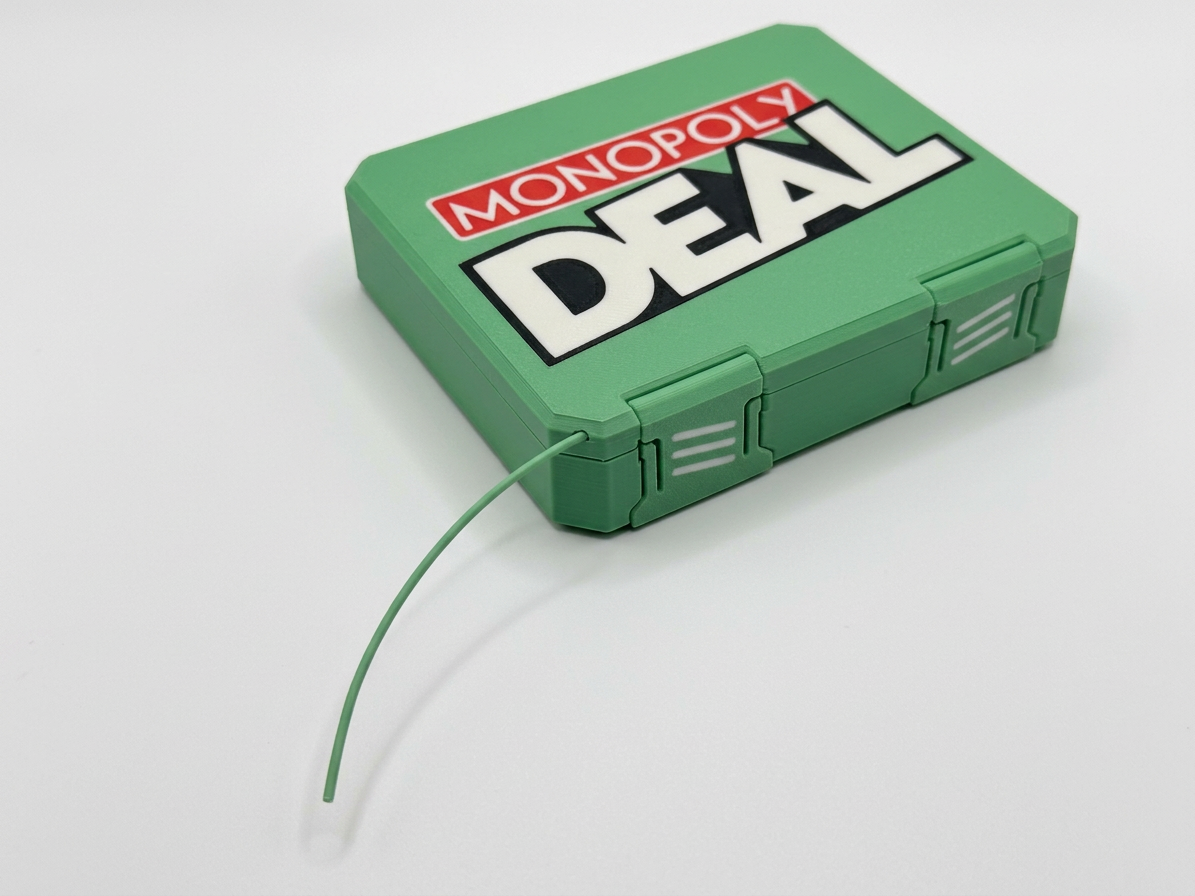

Insert filament axles - the hinges on the lid and the snap latches each use a short piece of filament as a pivot axle. Push a piece of filament through the corresponding hole, trim it flush to the correct length with flush cutters, and secure it with a tiny drop of super glue on each end to prevent it from sliding out.

Tip: Any 1.75 mm filament works as an axle - use a leftover scrap piece.

Boost Me If you enjoy this model, a free Boost on MakerWorld would mean the world and helps more makers discover it - thank you so much! 🙌
