Menara Organizer

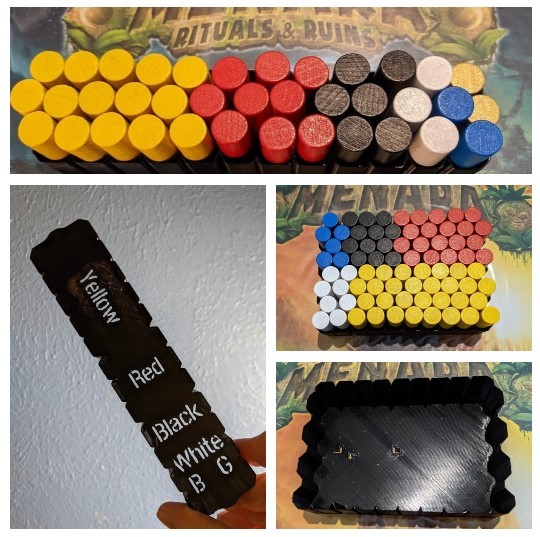

This is a vase mode print. The Menara game organizer holds Rituals and Ruins and fits everything in the expansion box. The expansion box can fit in the original box. It separates out the expansion columns and sorts them. It works with sleeved cards and vertical storage.

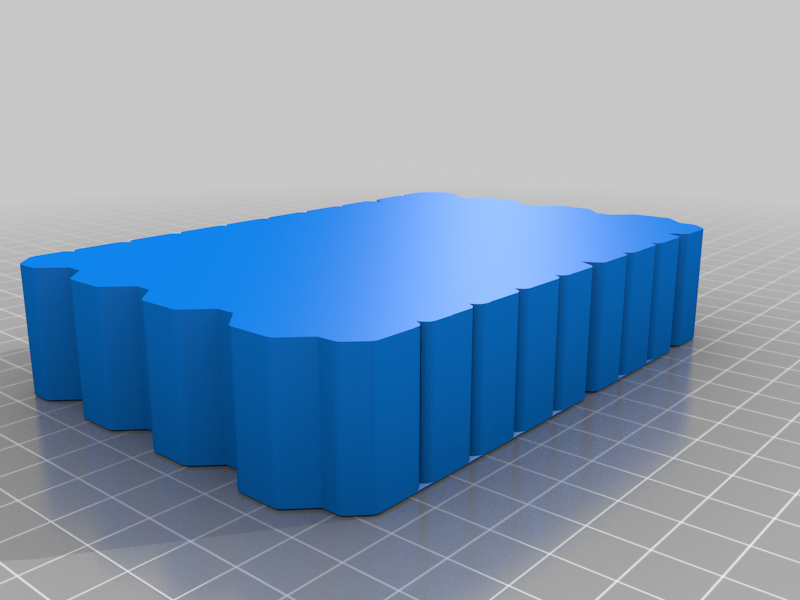

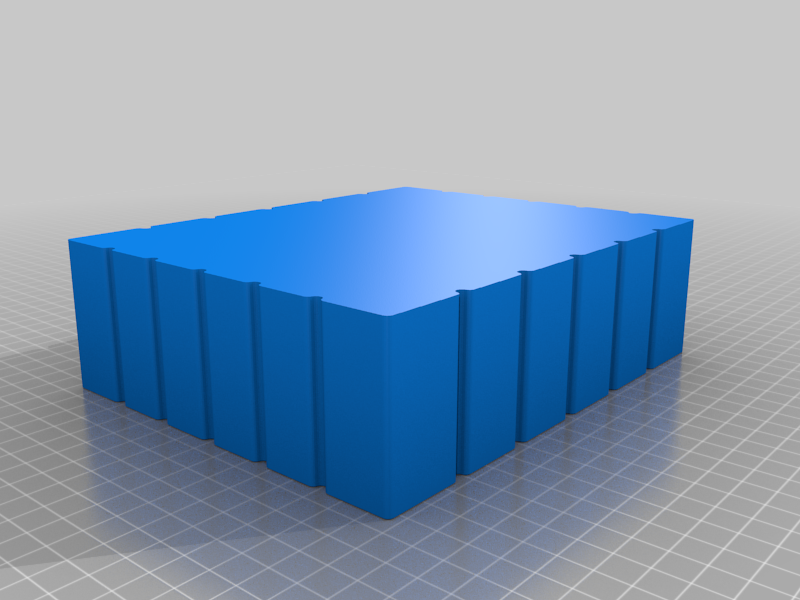

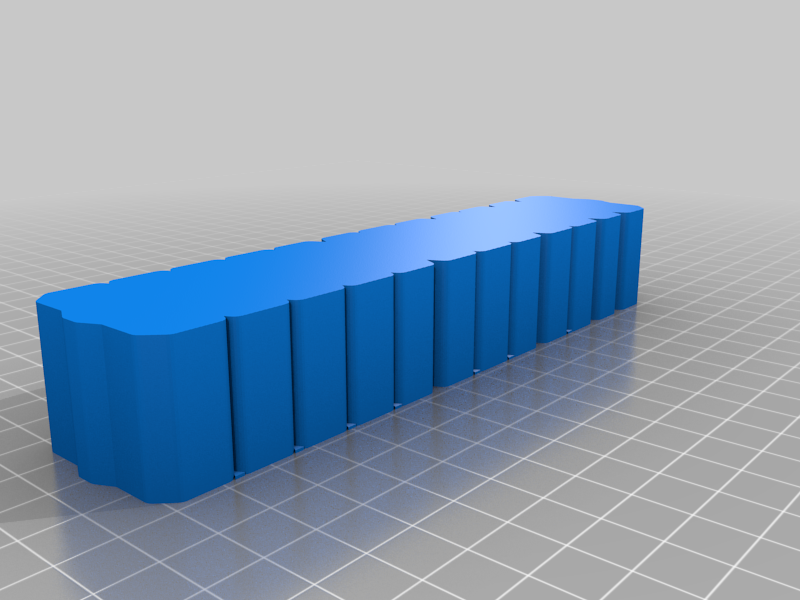

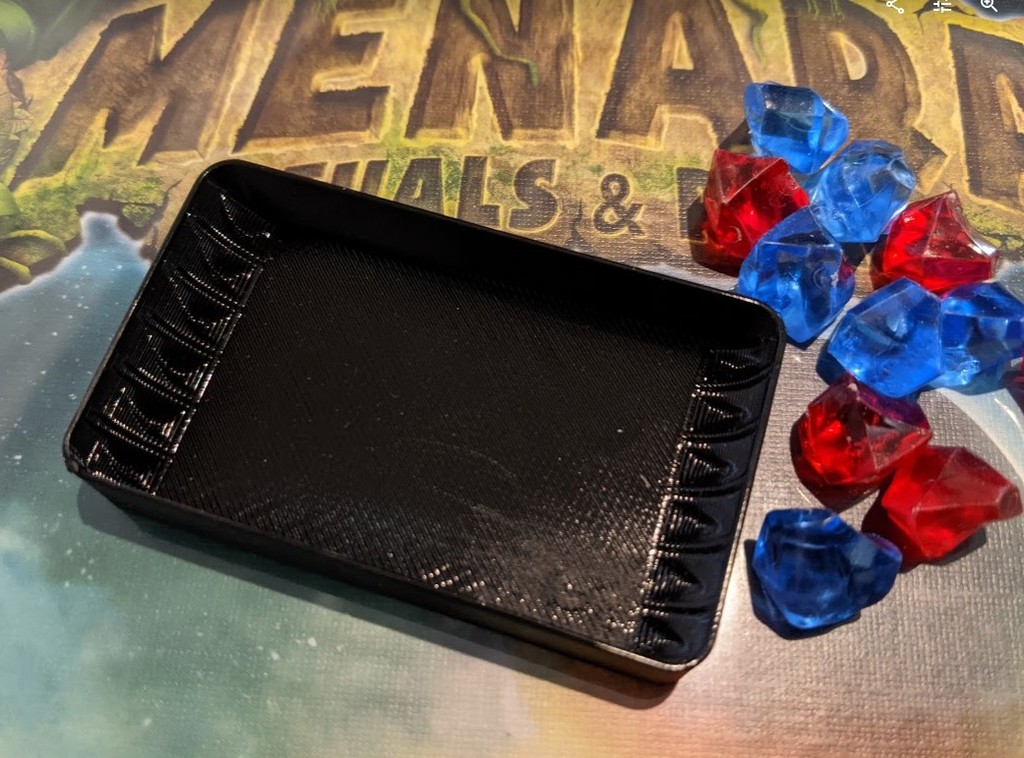

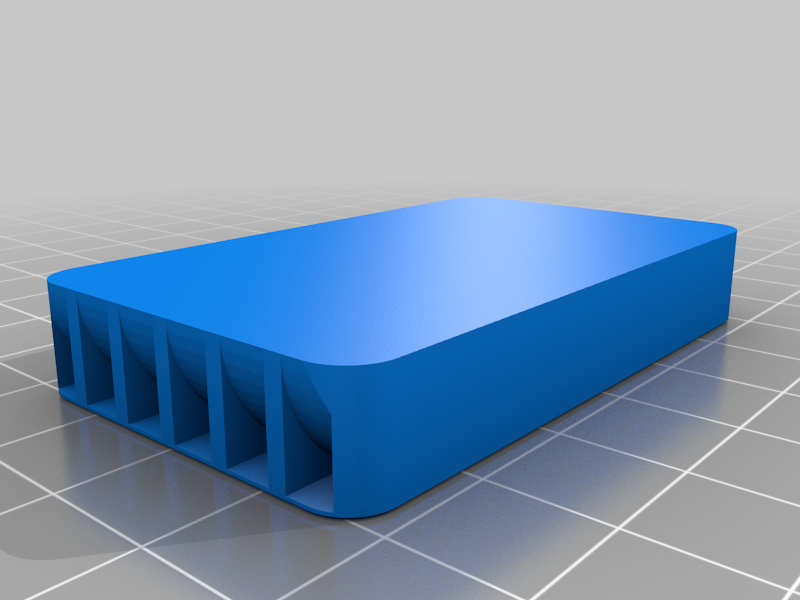

Print 1x floor box, gem box, and expansion column box (expcolbox). The base game columns can be stored in the bag or print 1x column box (colbox).

For best results, use 0.8 extrusion width (even on a 0.4 nozzle, but increase print temp at least 10-20 degrees to allow better flow of all that extra filament), 0.3 layer height and 2 base layers.

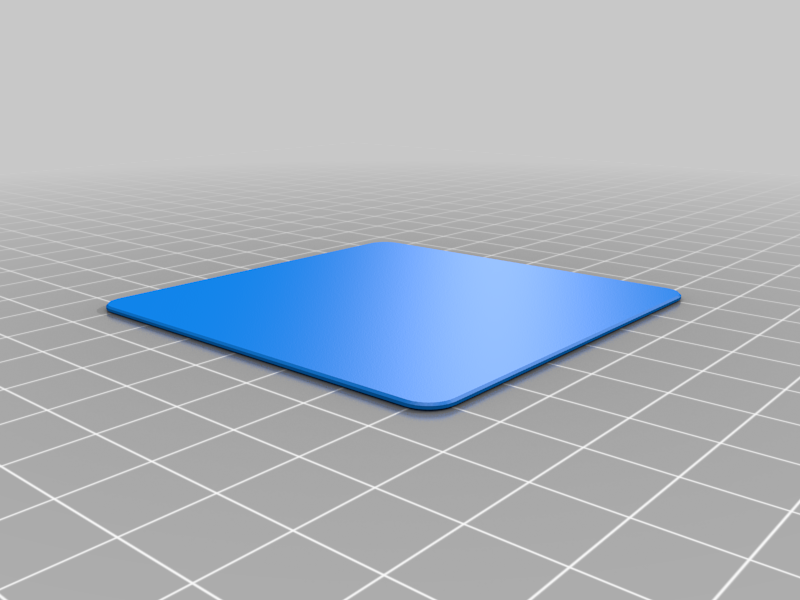

Use your favorite card holder design for the 65x65mm cards to separate as desired and account for sleeves/no sleeves. I've included a simple card box and some dividers that can be customized in your slicer. It will look best using a translucent filament, and printing a 1-2mm larger version can work as a card box lid.

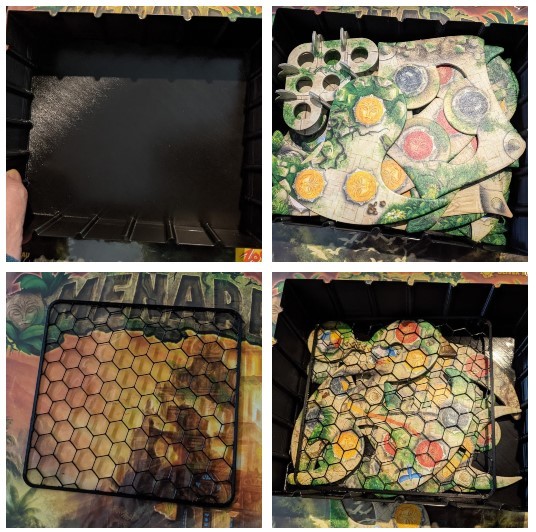

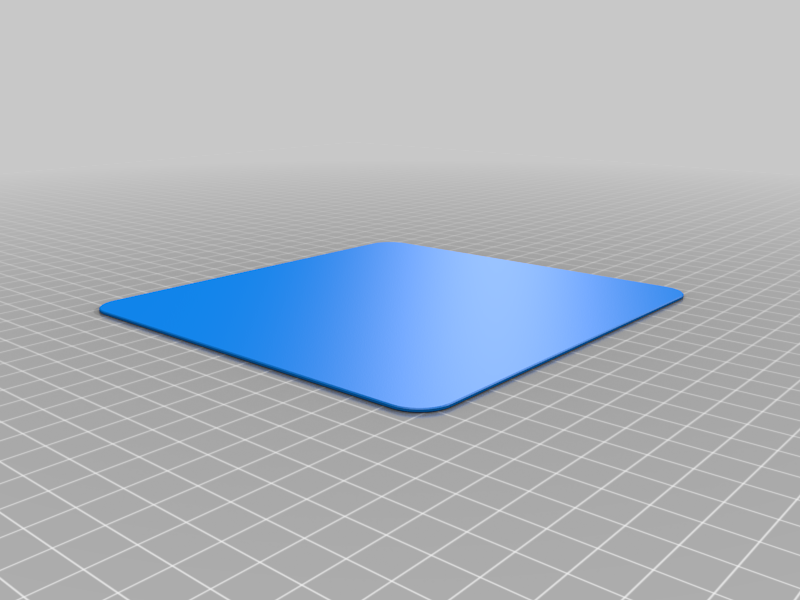

Do NOT use vase/spiral mode to print dividers. The large floor divider to separate base game and expansion was made with -0- top and bottom layers, and 5% honeycomb infill.

Printer Brand:

Creality

Printer:

CR-X

Rafts:

No

Supports:

No

Resolution:

0.3

Infill:

-0-

Filament:
Inland PLA
Black

Notes:

Vase/spiral mode print. 0.8 extrusion width, .3 layer height, 2 bottom layers. Dividers are NOT vase mode.

Category: Toy & Game Accessories
