Boardgame Insert Project - Undaunted 2200: Calisto

# What
3d model files (format: stl) of a board-game insert for a game: Undaunted 2200" Callisto

# Features
- Created as a replacement of the original insert, in order to store sleeved cards.
- One main tray for all you tokens, standees etc,
- Allow to store your game vertically or horizontally
- Requires 200mm x200mm printing space
- Provided a test model to check if standees fits

# Versions

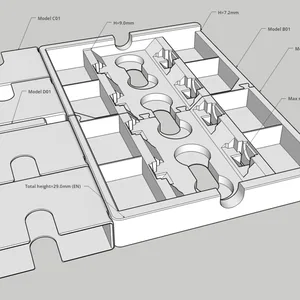

- Supports standee bases 20mm x 2mm
- The insert is 29 mm height

Content
- main tray A
156mm x 189mm x 29mm - (2h30, 110g)
- main tray B
144mm x 189mm x 29mm - (2h30, 110g)
- card box (need to print 4)
29mm x 99mm x 69mm - (45m, 28g)
- card separator
12mm x 99mm x 28mm - (20m, 11g)
- standee test (save time and resources to validate the model)
54mm x 94mm x 20mm - (40m, 22g)

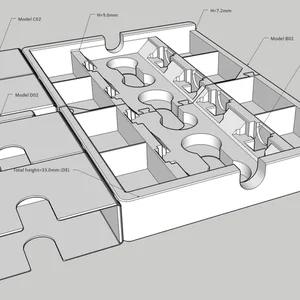

- Supports standee bases 24mm x 2.5mm
- The insert is 33 mm height

Content
- main tray A
156mm x 189mm x 33mm - (2h45, 125g)
- main tray B
144mm x 189mm x 33mm - (2h55, 125g)
- card box (need to print 4)
33mm x 99mm x 69mm - (45m, 30g)
- card separator
12mm x 99mm x 33mm - (25m, 13g)
- standee test (save time and resources to validate the model)
54mm x 94mm x 24mm - (43m, 24g)

# Change log
- 2025-09-08 Made adjustment to standees' holders - added more free space. Prepared DE version of the project.
- 2025-09-21 Increased height of the standee's higher row by 1.8. The rulebooks compartment have 7.2-9.0mm of height. Affected models: A, B, T, version 1.1
