Board Game: Industrial Revolution: Lancashire Deluxe Edition Storage Brass: Lancashire

Statement:

• Exclusive Maker World model, commercial !! prohibited

• All legal liabilities arising from commercial violations are borne by the applicant

Supporting me with Maker World's exclusive model, banned from commercial !!

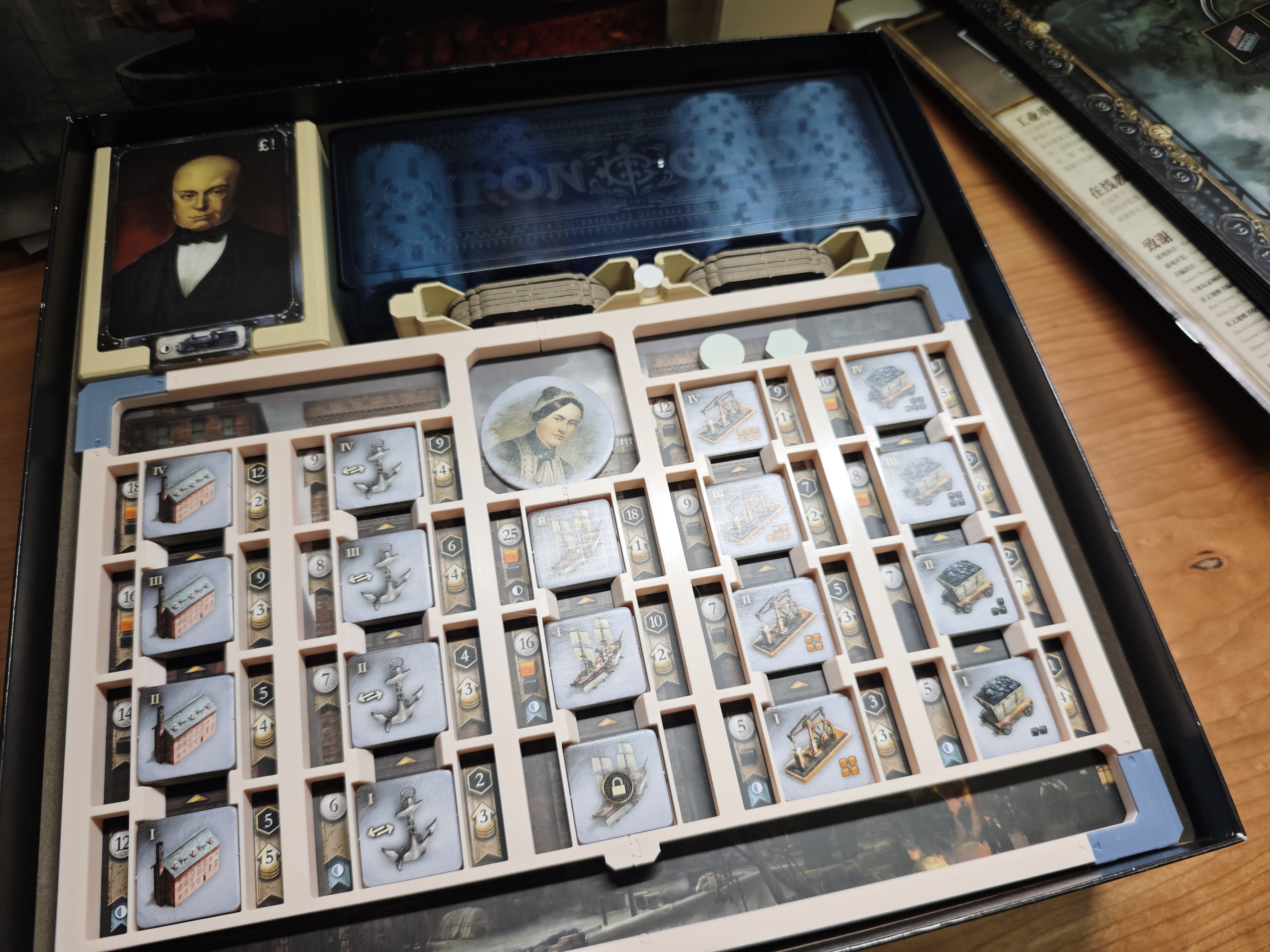

The storage details of the Lancashire Luxury Edition are as follows:

• Supports dual-layer player panels, one-click set of individual player panels

• Supports 20 silk card sleeves (each sleeve is approximately 200μm thick)

• Supports the original chip box with the game

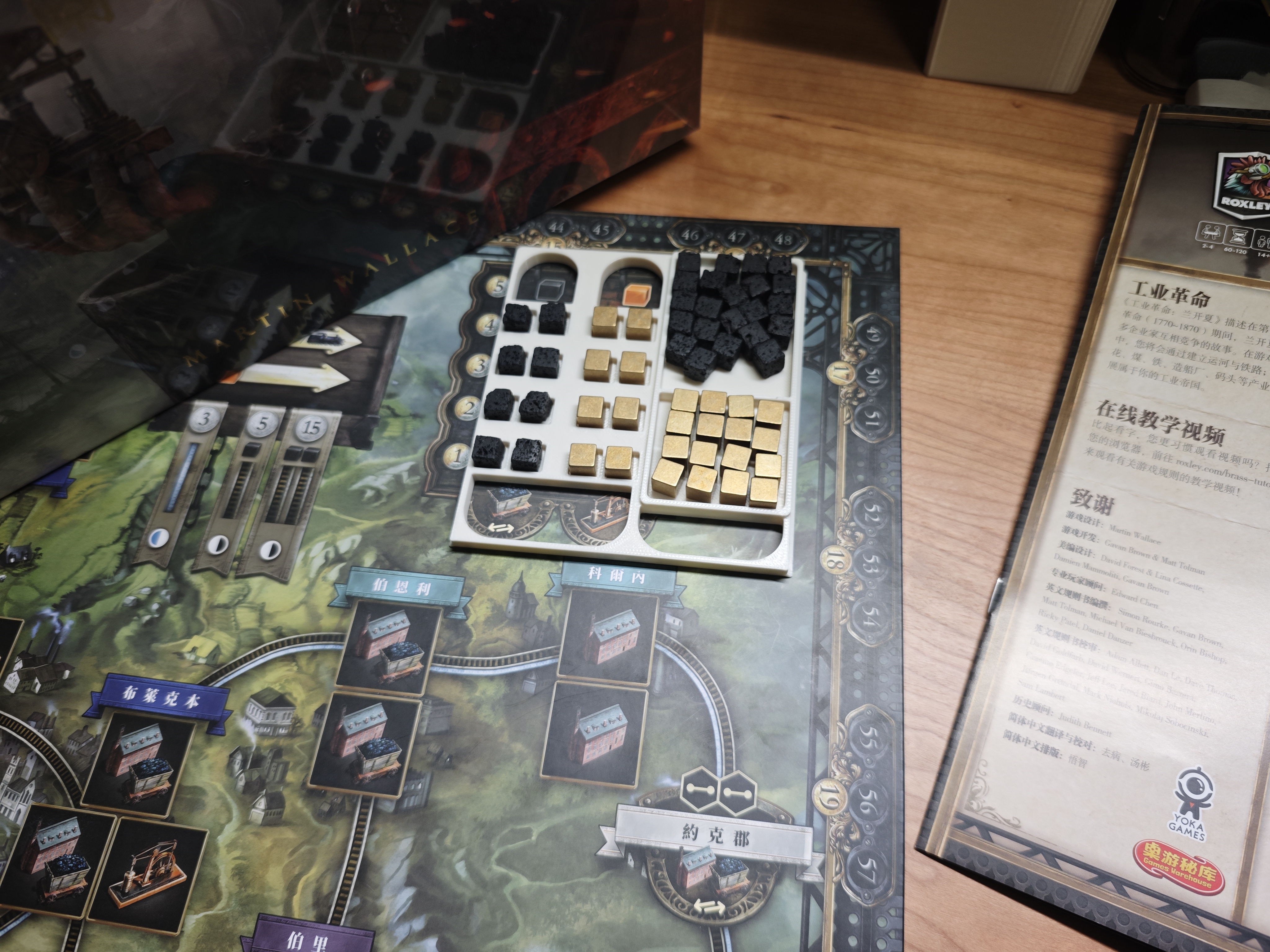

• Supports one-click set for coal and iron markets

• Supports ship and train model boxes

• Supports vertical play

Notes:

• Trays marked with × numbers indicate how many times the disk needs to be printed; for example, ×4 means the tray needs 4 prints.

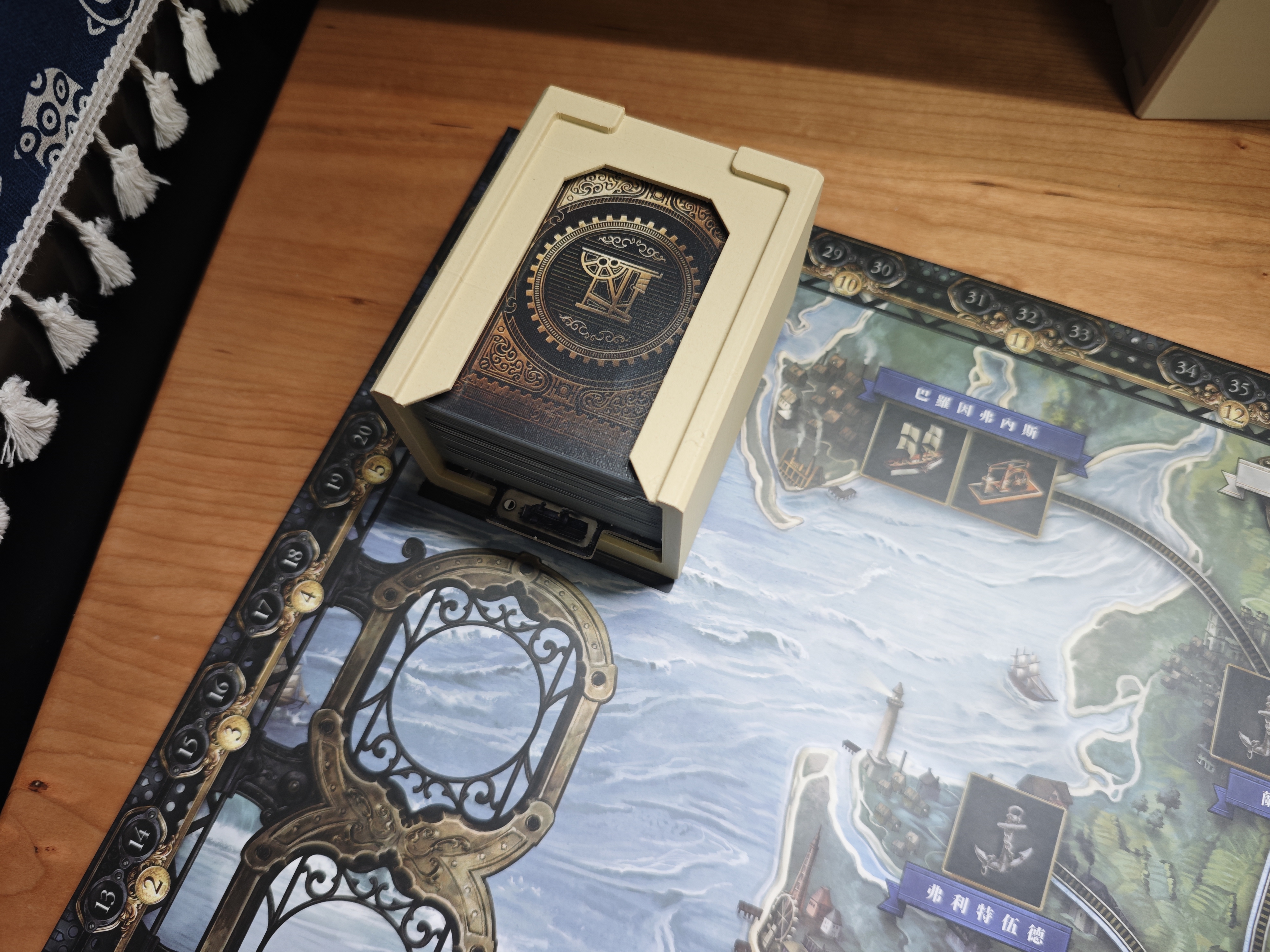

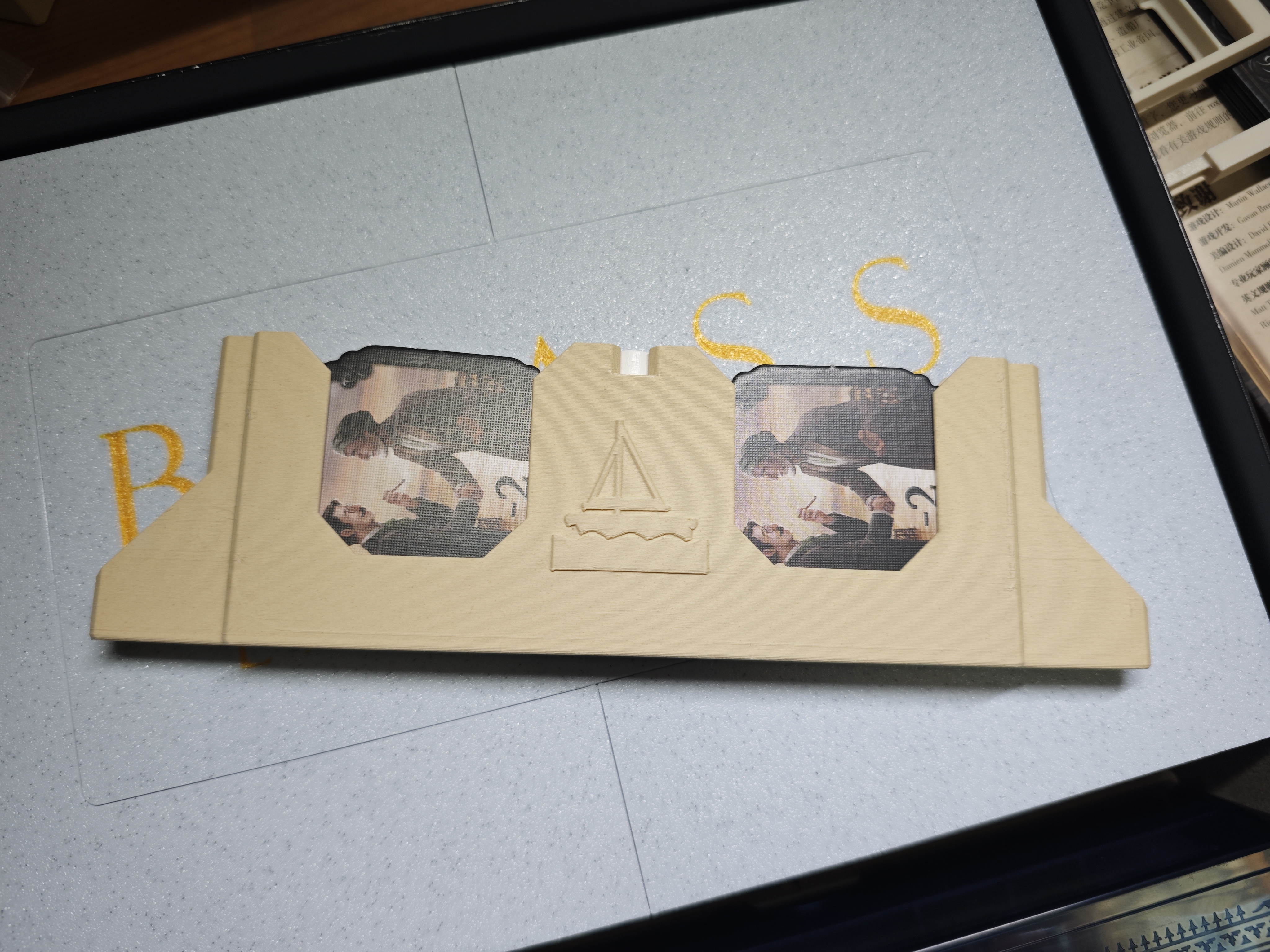

• Card racks can be placed directly on the board to serve as drawing racks, with dividers that can be inserted directly (as shown). At the same time, the card rack is set up at a slightly upward angle to prevent cards from tipping over.

•

The double-layer panel is assembled onto the individual player panel through four clips. Push in along the direction of the arrows according to the ▲ and ● buttons on the frame and clips. After assembly, if you need to disassemble, simply pry out the clip in the opposite direction.

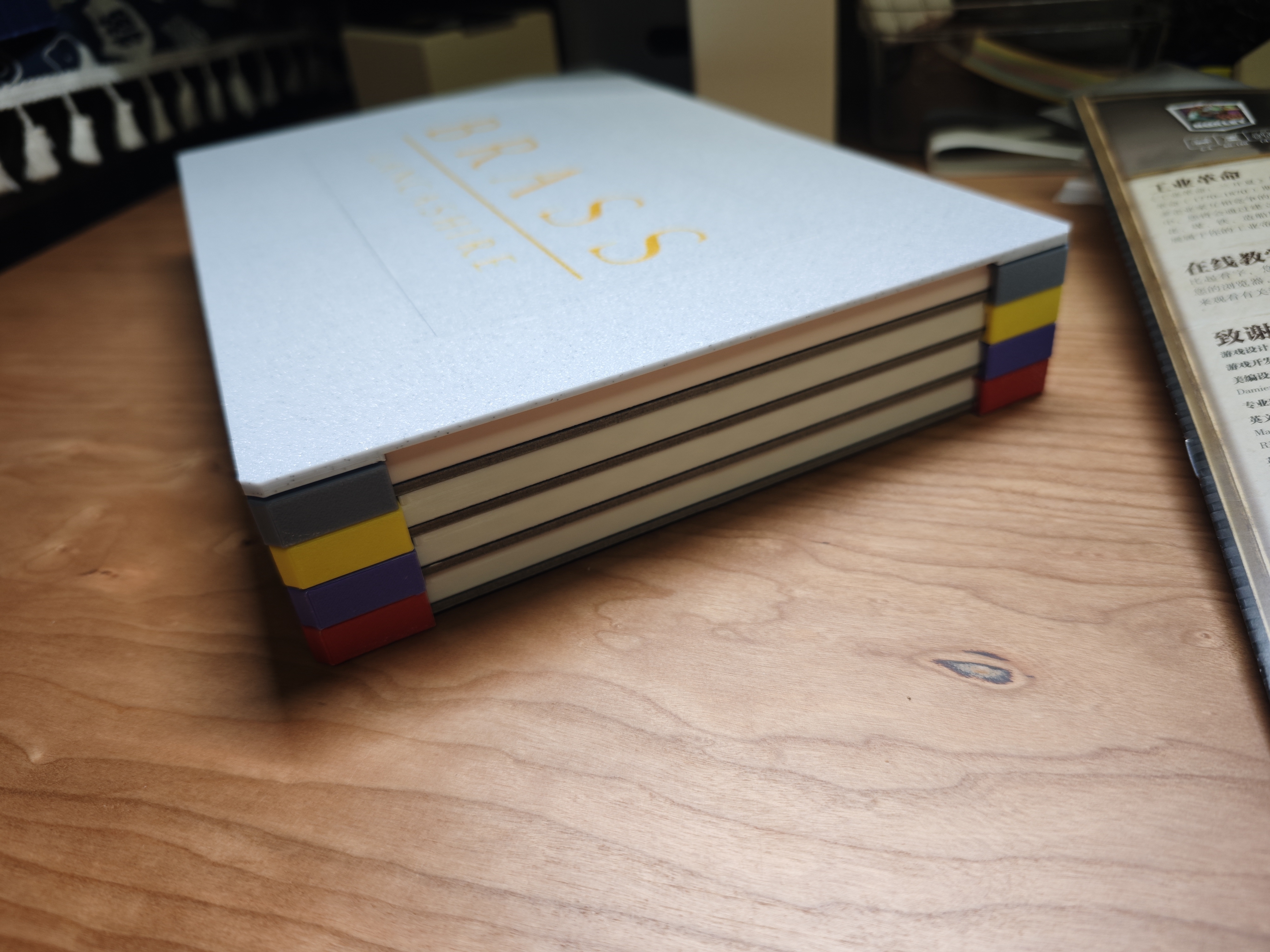

• Each double-layer panel has recesses at the four corners, allowing each layer to be bound by mutual limits to prevent the cover from slipping or scattering when stored.

• During testing, I found some discrepancies in the cutting of personal player panels printed at different versions and times. For example, I noticed that my English retail version of the personal player panel was clearly crooked. This design is based on the latest printed Chinese version of Youka Board Game. This caused a slight misalignment when the double-layer panel was installed on my English retail personal player panel, but it wasn't serious and didn't affect gameplay. My design cannot be compatible with all situations; specific situations require testing and adjustment myself.

•

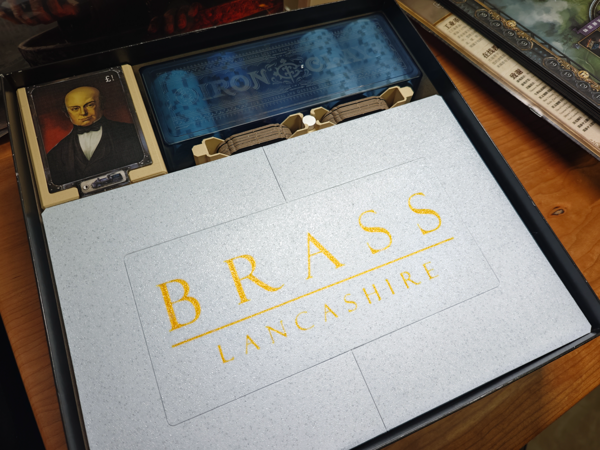

Due to printer size limitations, both the double-layer panel and cover plate need to be spliced together. The double-layer panels are equipped with dovetail joints, and the tolerances have been adjusted multiple times to ensure that no glue is needed when using official Tuozhu PLA or PETG consumables (please test and adjust non-official consumables yourself). Because the cover plate is not thick enough, it must be reinforced with glue. If you have a printer that supports sizes above 290mm, you can directly print the double-layer panel and cover plate in one piece. I will later release a separate version configuration for integrated printing (since I don't have a printer of this size, please print and test it yourself). The cover panel assembly method is shown in the diagram:
Front and back

•

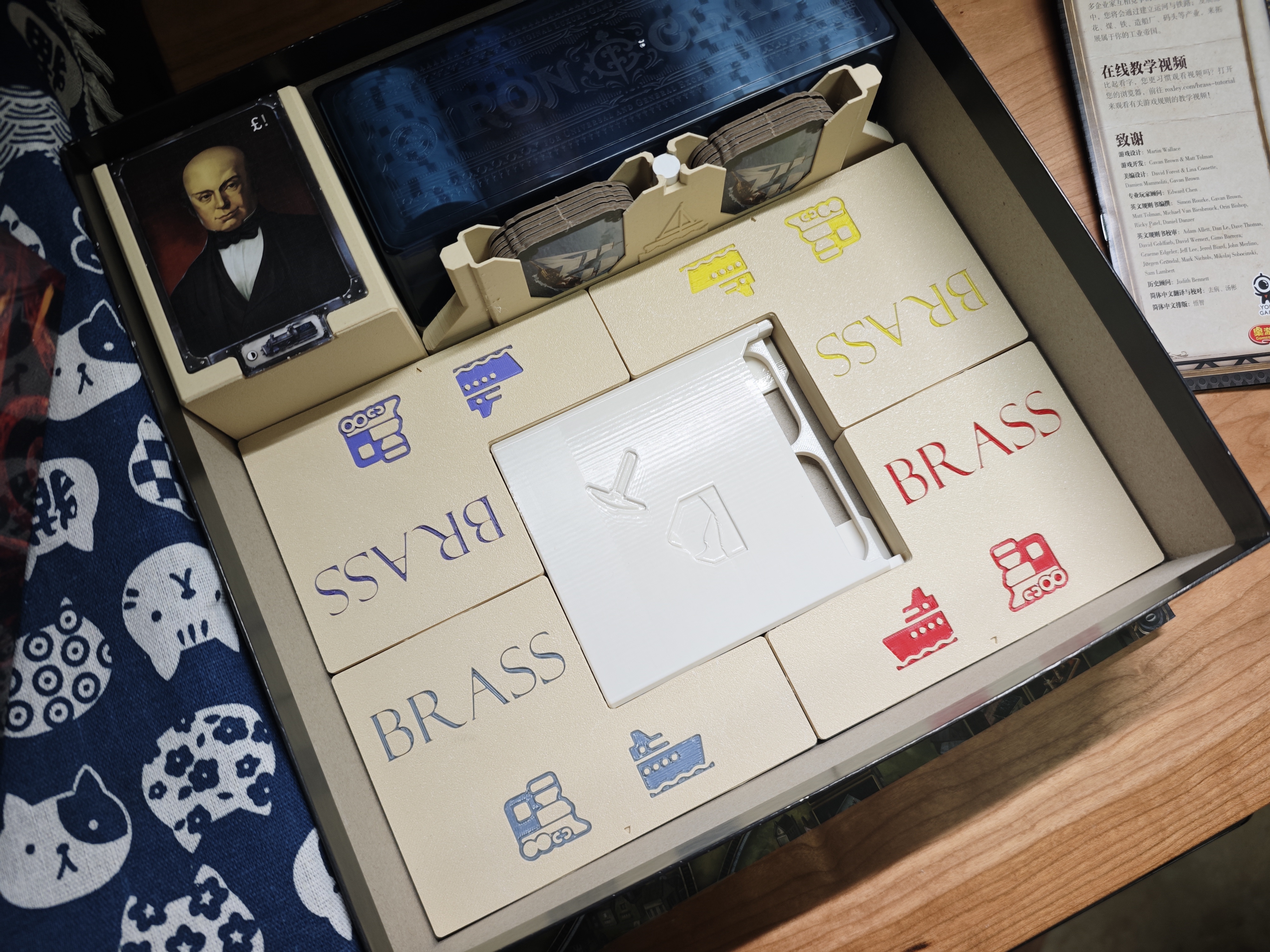

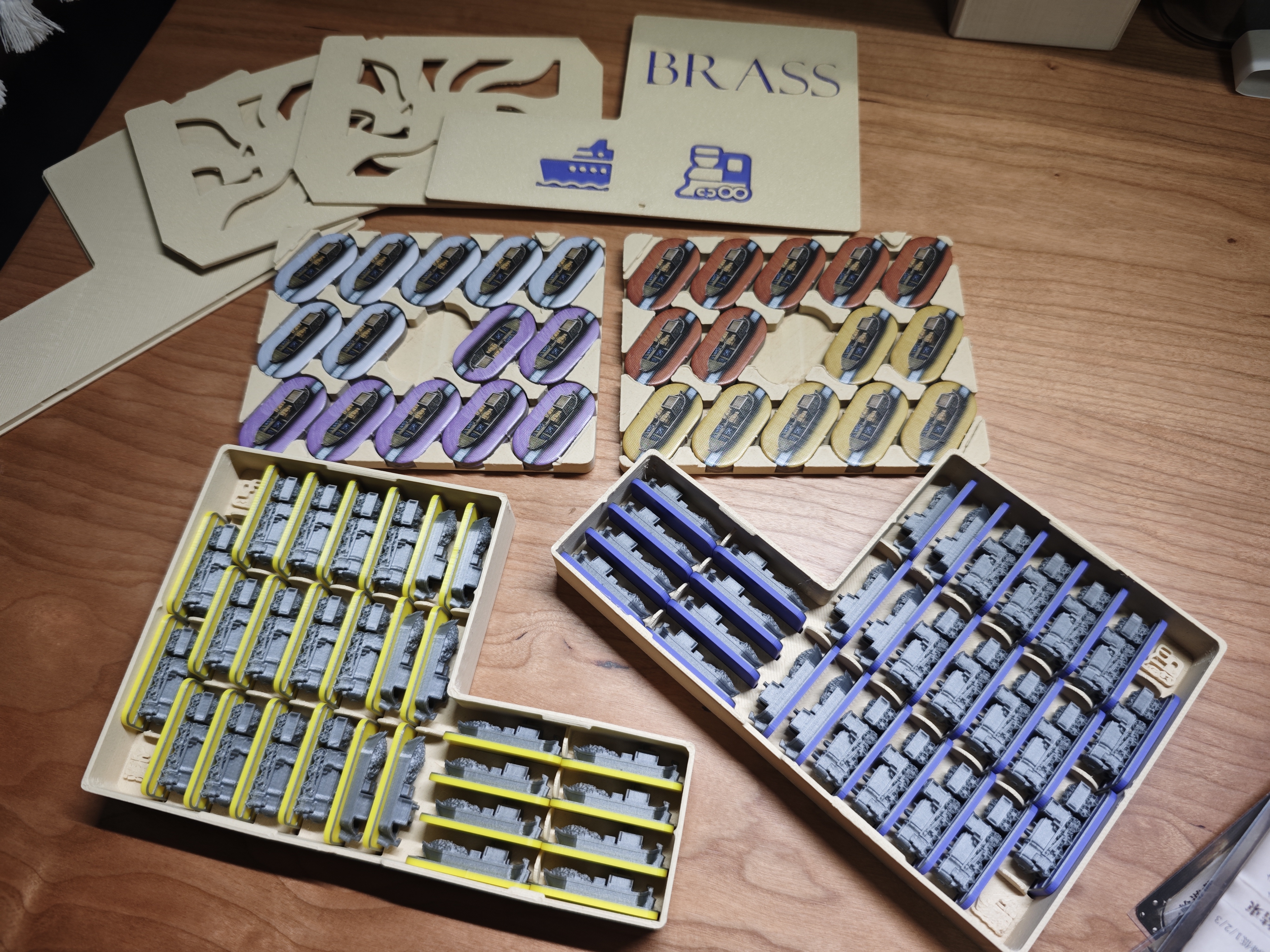

Lancashire's storage includes an accessory upgrade storage box that can hold four colors of ship and train models. The link to the ship and train models is as follows:

https://makerworld.com.cn/zh/models/978708-bo-ming-han-lie-che-bo-chuan-ji-qi-ta-zi-yuan#profileId-998883

If you print models of ships and trains, the original connecting plates are stored inside boxes labeled BRASS on two lids, placed under the chip box, and you don't need to remove them during the game. If you don't want to print the ship and train models, you can store the connecting panels directly into four model boxes. During gameplay, each player uses one box according to their color, and the box with the BRASS label on the lid is used to reserve spaces.
