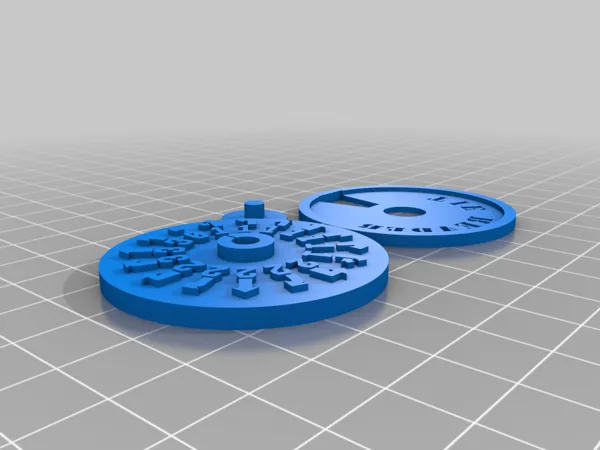

Customizable Maneuver Dial for X-Wing V2.2

This is an updated version of Robert B. Ross' Customizable Maneuver Dial for X-Wing: http://www.thingiverse.com/thing:473972

It now enables you to add the new maneuvers (Segnor's Loop and Tallon Roll) to your maneuver dial, and other symbols have been adjusted to resemble the original symbols better and to be recognizable quickly despite now having many similar symbols. (For example rounded edges for banks and the Koiogran Turn.)

The customizer now also automatically adjusts the spacing between the symbols according to the number of maneuvers you entered. (12-20 maneuvers are supported automatically. TIE/fo's for example have 17 maneuvers.)

STL files for T-70 X-Wing and the first order TIE fighter maneuver dials included.


Update:
V2.1 features a custom symbol to display a "backwards" or "reverse" maneuver option for new experimental flight patterns. Usage as normal with a number and the character "B". (Currently not part of the original game)

V2.2 makes the "pinFit" variable more prominent, which is used to make sure the pin fits the hole perfectly, which has to be adjusted from printer to printer and has the option to print all three parts at once by setting the "part" variable to "all". Also can now print names on the dials, as implemented by claydegruchy here: http://www.thingiverse.com/thing:1513653 with impact font for maximum clarity. STL files of the two new ships with names included.
Special thanks to the creators of 'text_on', their text script is amazing. You should check it out! Visit: https://github.com/brodykenrick/text_on_OpenSCAD
Also minor updates/corrections.
