Paint Rack for IKEA Skadis Pegboards

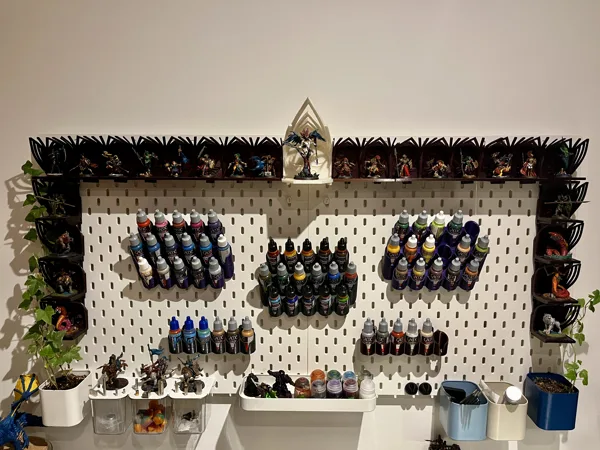

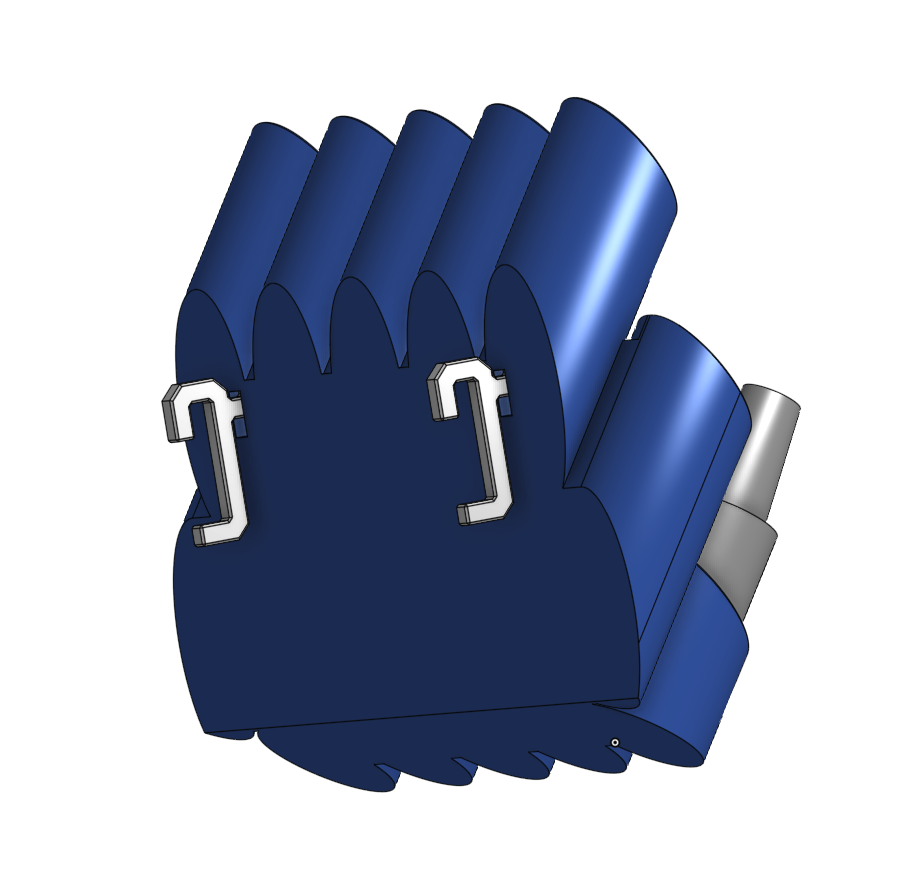

Paint storage rack for 26mm paint bottles that can be attached to an IKEA Skadis pegboard. Includes pins to attach it and sturdy holes in the rack that will not break over time.

Parts fully designed in Onshape CAD but inspired by the following part, which is great for smaller amounts of bottles but tends to break at the attachment point:
https://www.printables.com/model/541037-paint-bottle-holder-ikea-skadis-the-army-painter/files

Compatible with any 26mm paint bottles, such as Vallejo or Army Painter

Added .step files so you can easily edit the part to your liking

----------------------------------

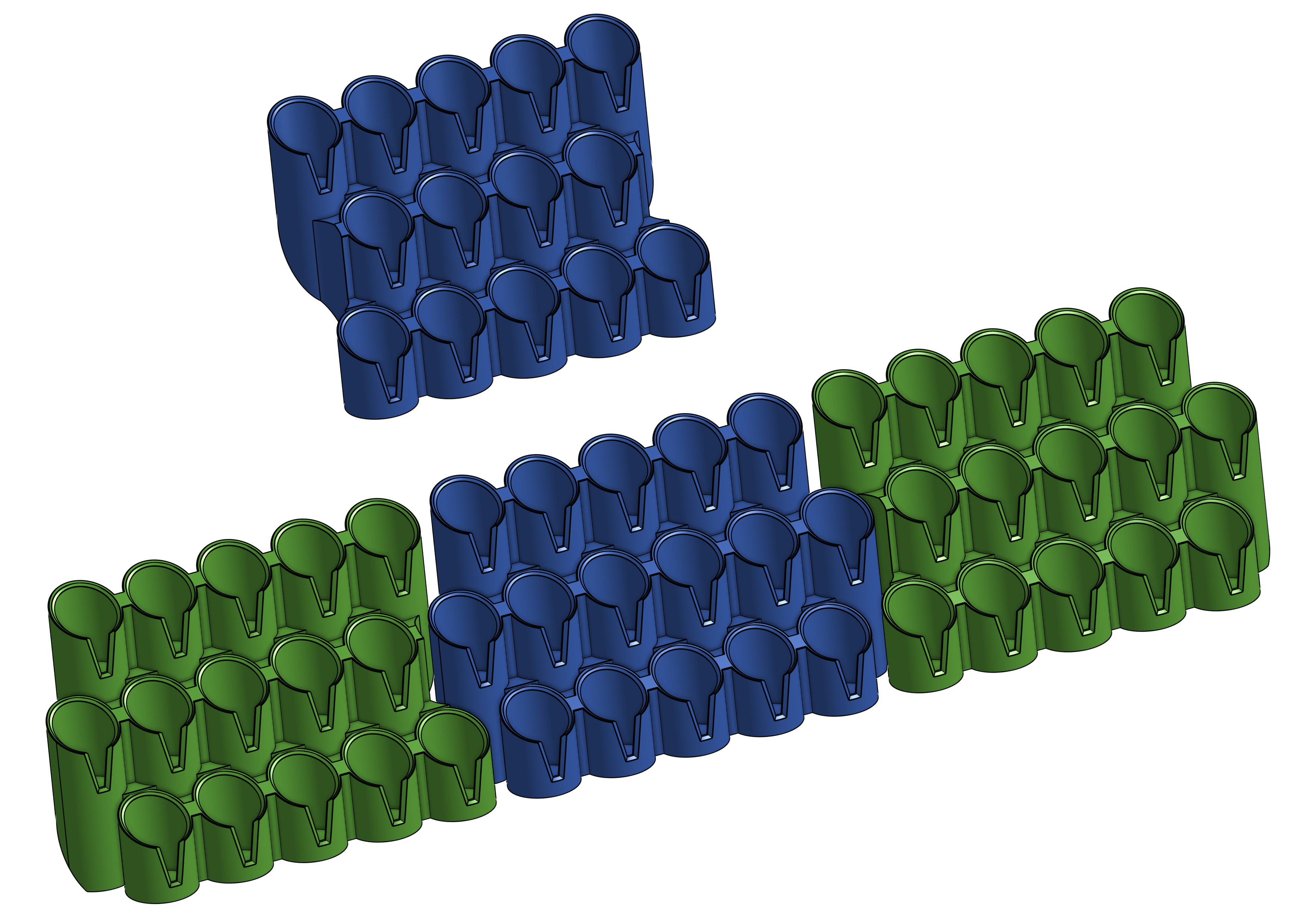

Added additional configuration options with 5-4-5 rows to complement the original 6-5-6 rows. Due to the spacing of the paint bottles and the IKEA Skadis peg distance there will however be a small gap between the two paint racks.

Added 2 additional configurations with 5-5-5 rows to complement the original one on the left and right side.

----------------------------------

Check out my other Skadis design for miniature displays here:

https://www.printables.com/model/785305-miniatures-display-for-ikea-skadis
