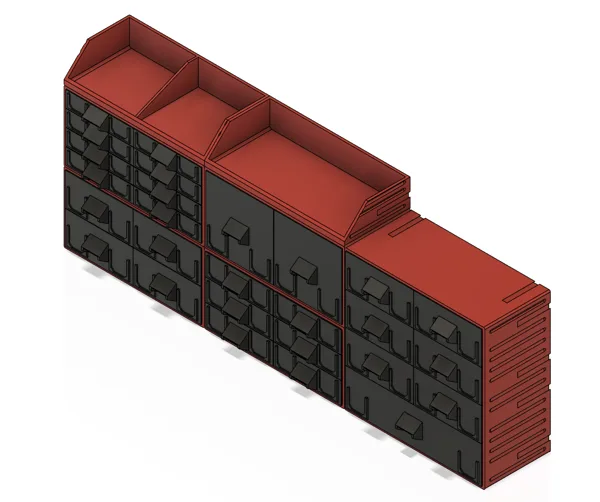

Modular Organizer Box with Drawer - Small components

This is summary for the other models of Box with drawers in one place where it will be more easy to update the files, for the moment I will not delete the single models.

Existing separate models (soon will be deleted)

• Box-with-drawer_2x1_150x70x75 - Link

• Box with drawer_6x2+1_150x70x150 - Link

• Box with drawer_2x2_150x70x75 - Link

• Box with Drawer_3x2_150x70x75 - Link

• Box with Drawer_4X2_150x70x75 - Link

28.07.2022

• add 2 new elements “Top Box”
• Did not print them so it's possible it will need some support or a different orientation as in the .3mf file

• add 2x new drawer for “ Box with drawer_6x2+1_150x70x150 ”
• updated the drawer's to be able to add name plate

29.07.2022

• add a new “ Box with drawer_6x2+1_150x70x150 ” with open back this way it reduced ~2 h of print time

03.11.2022

• add a new “ Box with drawer_ ” with open back this way it reduced

• add smaller fixing rod

Organizer's :
Update Description
28.07.2022

Box-with-drawer_2x1_150x70x75

Drawer 1x1

29.07.2022

Box with drawer_6x2+1_150x70x150

Drawer 1x1
Drawer 2x1 _with 1 separator

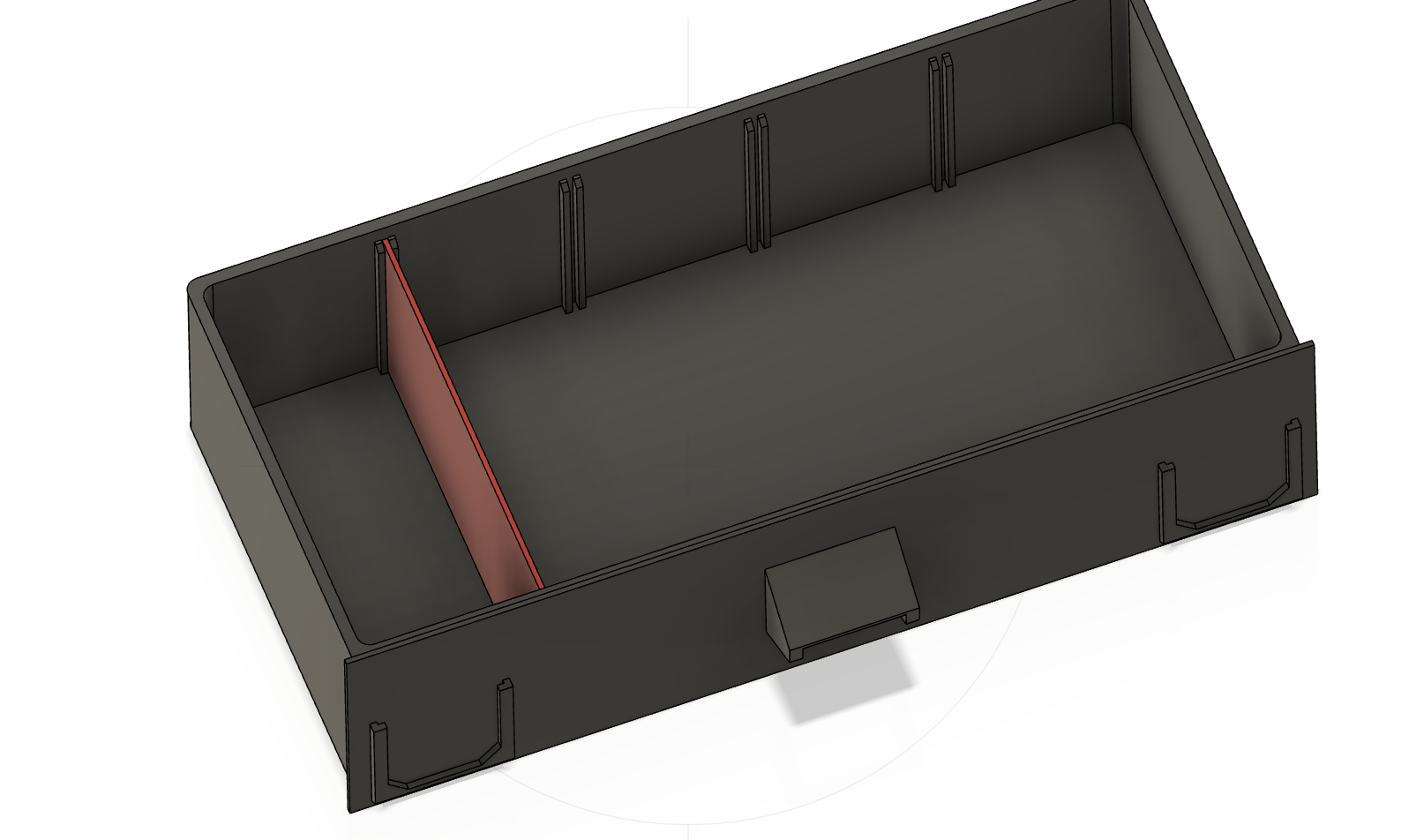

Drawer_Large_Box

28.07.2022

Box with drawer_2x2_150x70x75

• Drawer 1x1

• Drawer 2x1 - with 1 separator.

28.07.2022

Box with Drawer_3x2_150x70x75

• Drawer 1x1

• Drawer 2x1 _with 1 separator.

28.07.2022

Box with Drawer_4X2_150x70x75

• Drawer 1x1

• Drawer 2x1 - with 1 separator

28.07.2022 Top_Box_1x1_150x70x30
28.07.2022 Top_Box_1x2_150x70x30

Printer Brand: Prusa

Printer: MK3S+

Rafts: No

Supports: No

Resolution : 0.3

Infill: 15 - 20%

Filament :
Devil Design PLA >Red for Box, Black for Drawer

Notes:
Any material does the trick.
Standard for 0.4 nozzle I used Prusa Slicer
