Codenames Pictures Full-Box Insert Organizer

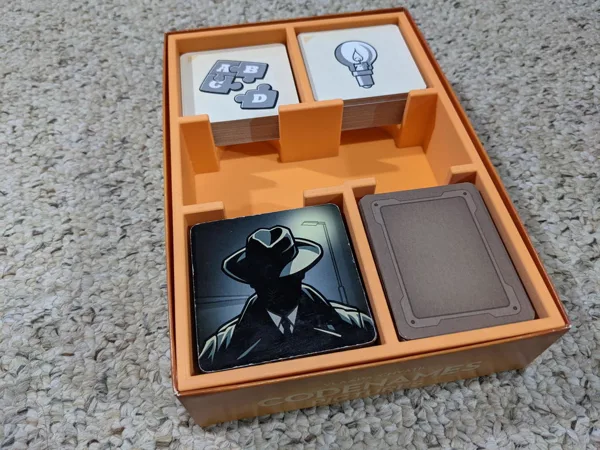

This is an insert for the Codenames Pictures game box. The key cards, agent cards, and picture cards each have their own homes. The box has a nice weight distribution, and the weight does not shift when you tip the box. The insert fills the box, so it doesn't slide around. The insert is slightly shorter than the game box, leaving enough room for the rules to lay on top. I held my box closed, and shook it all around, and the components all stayed in place.

The height of the insert is a bit below the edge of the box to give room for the rulebook.

I recommend measuring your Codenames Pictures box before printing, just in case. The 3D model is 10.8 inches by 6.1 inches. It fits my box snugly.

To fit this on my Ender 3 Pro, I needed to make the skirt much smaller.

Printer: Creality Ender 3 Pro

Support: No support, no rafts

Infill: I printed with a diagonal grid at 12%. I now wish I'd have tried 10% or 8%.

Layer thickness:
6 top layers leaves no gaps in the top layer, even with the light infill.
0 bottom layers speeds up the print by a few hours, and is unnoticeable when the insert is in the game box. I also think the infill is neat to look at.

Filament: Overture PLA
