Wall mounted dropper bottle paint rack

I am always looking for an excuse to learn CAD with practical designs. There are several versions of wall mounted paint storage already but I wanted to try to make my own.

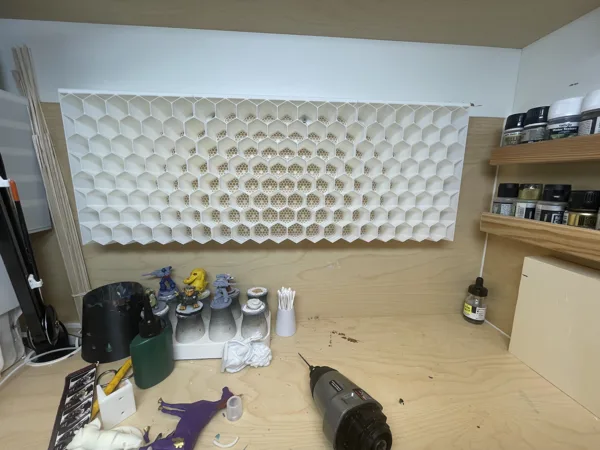

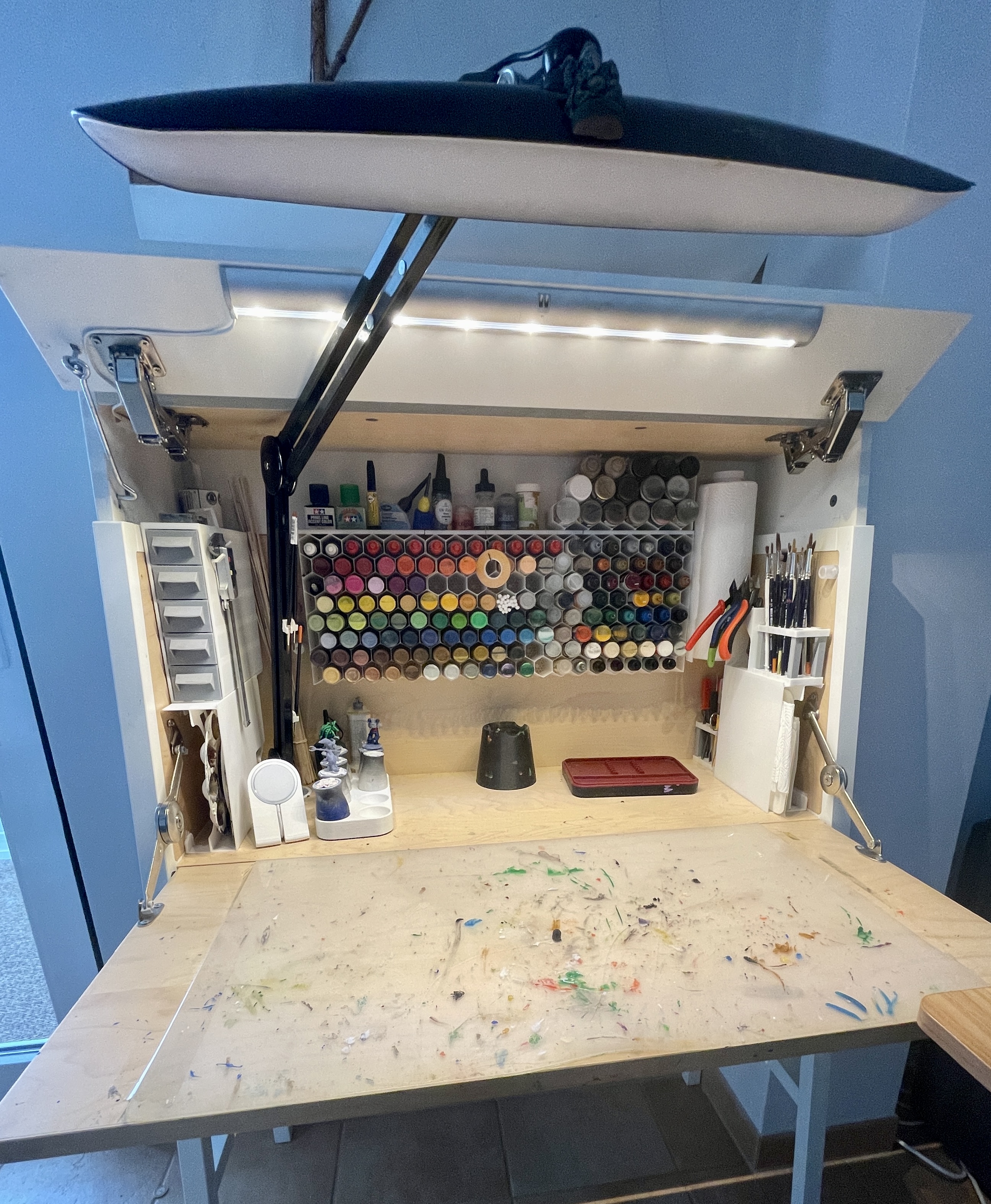

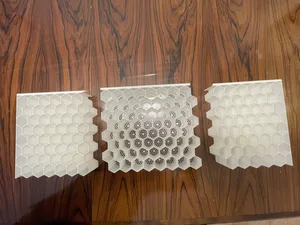

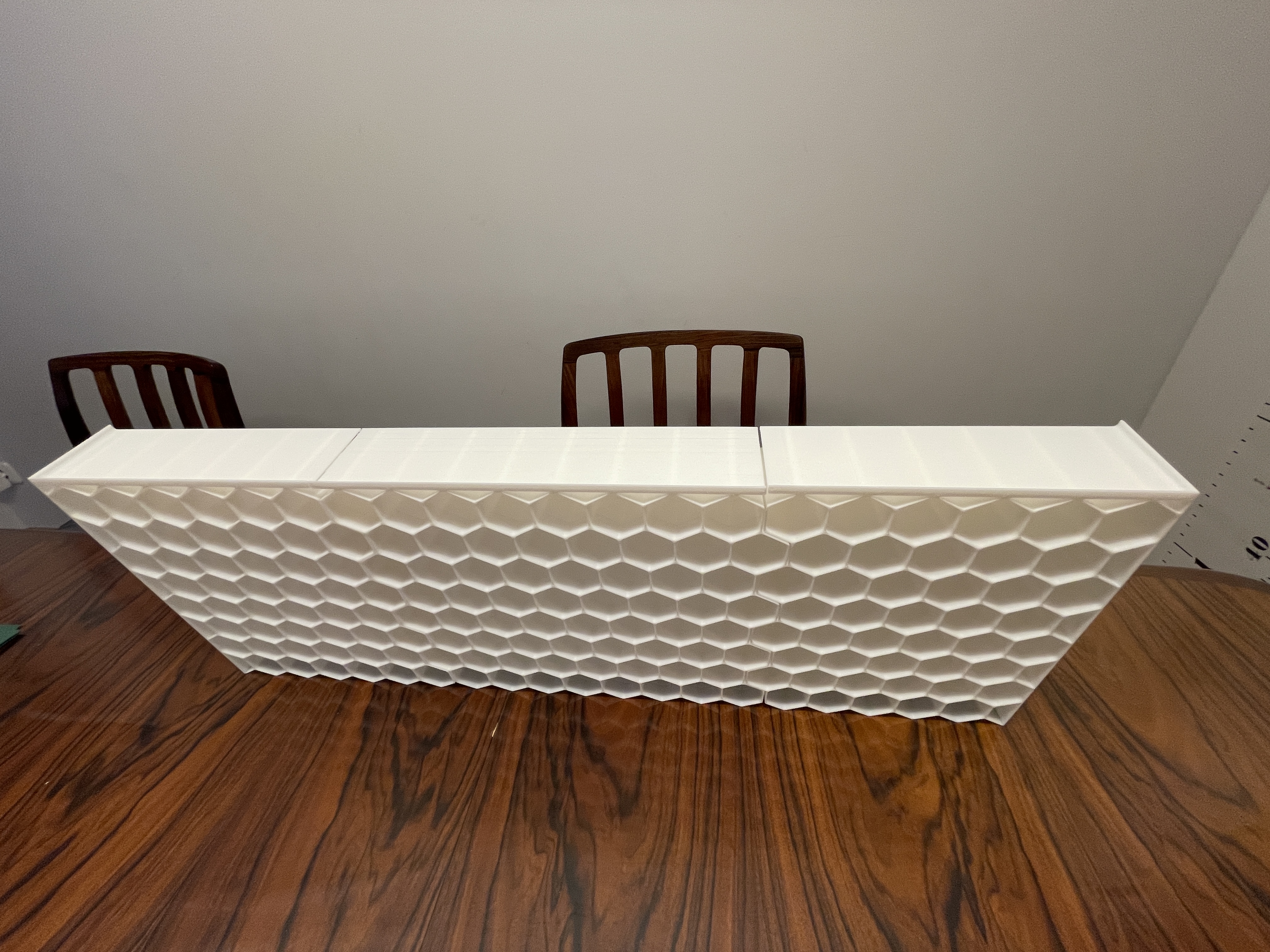

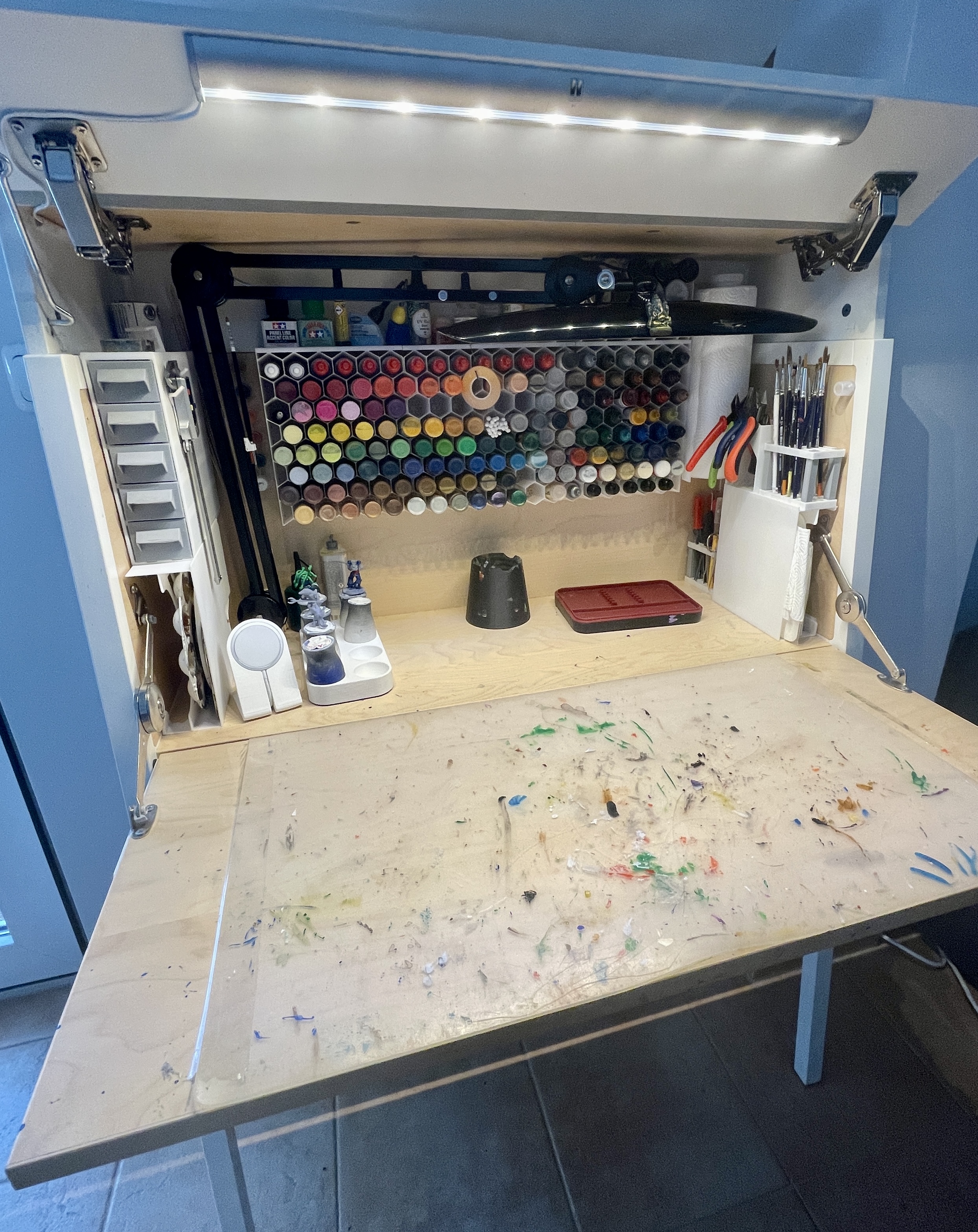

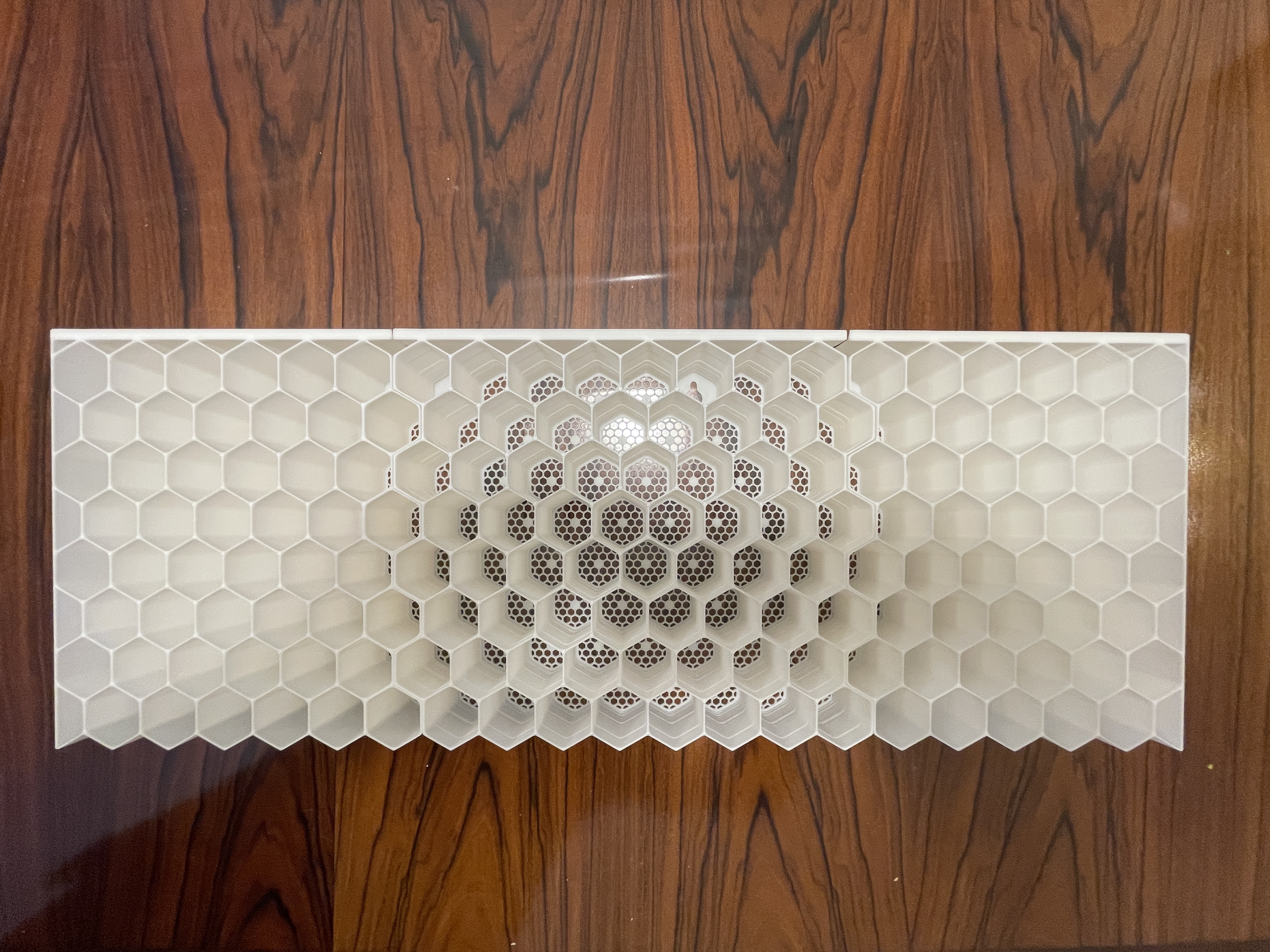

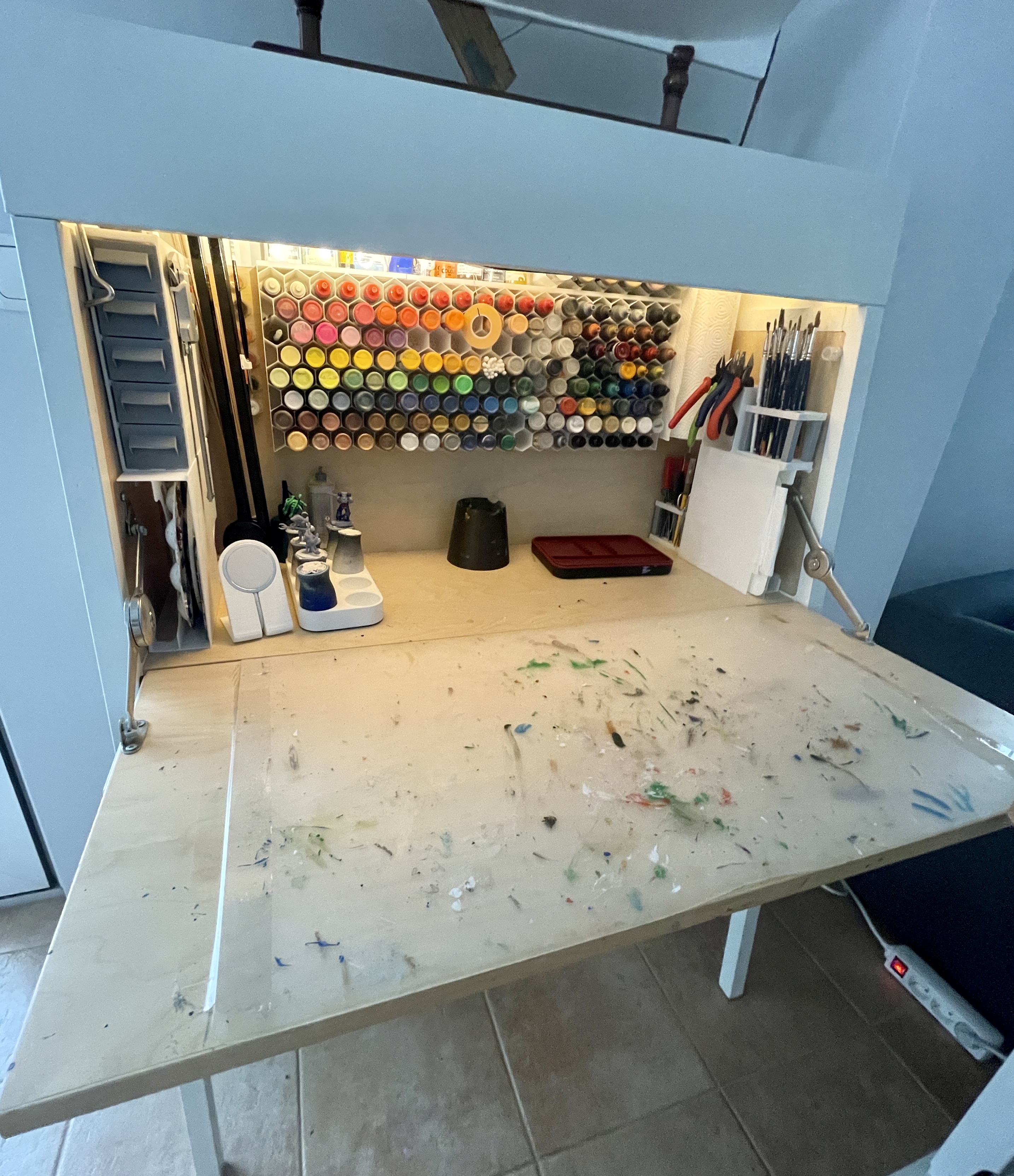

The paint rack in the photos:

• 590mm x 54mm x 230mm (LxWxH)

• 634g PLA (Anycubic white)

• 156 dropper bottles

• Bambu Lab P1S total print time 38hrs (or 40mm/s print time 193 hrs)

I have now made a paint stand for 35mm bottles Dropper bottle paint stand (35mm) by ATree | Download free STL model | Printables.com

I took inspiration notably from:

HSW paint holder by Elvin | Download free STL model | Printables.com I like material and space efficiency. plus Bestagons !

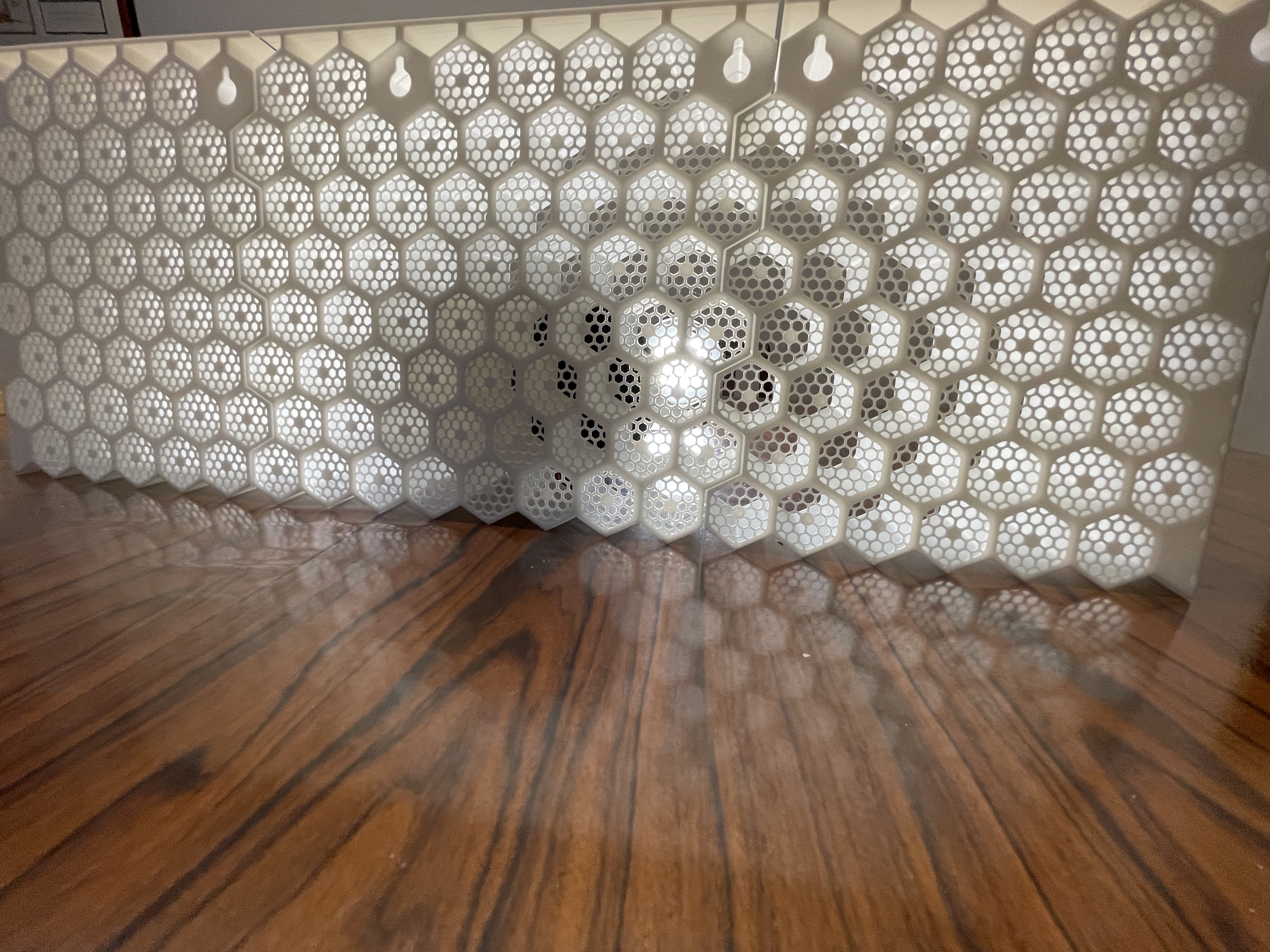

backstops and shelf on top by grindy2608 - Thingiverse I liked the shelf and hidden mounting points.

My specification:

• compatible with dropper bottle paints and their various bottle cap designs.

• maximize build plate (256 x 256)

• minimize space needed for bottle storage

• possible x or y axis expansion (pieces can seamlessly fit together)

• provide resources for others to make customized rack shapes

• shelf on top (with raised edges to prevent things falling off)

• efficient material use

• easy to print

• no supports

• able to lift the whole rack off the wall without the paints falling out.

• tubes long enough to have backwards bottles.

• tubes short enough to access shorter dropper bottles I use for Citadel paints

Notes when making your own paint rack.

• 42 cell racks will fill 220 x 220 build plate

• 64 cell racks will fill 256 x 256 build plate

• Wall thickness for the single cell model is .4mm. I recommend thickening the outer wall of the finished paint rack to .8mm (same thickness as the interior walls of the paint rack.)

• Please share your make, I would love to see this out in the wild.
