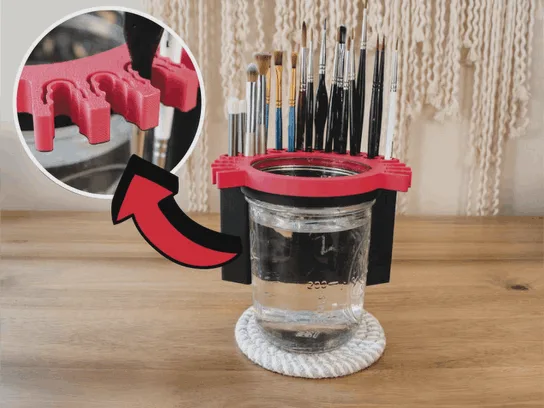

Paint Brush Holder for Mason Jar - Improved
Please support Bird Of Play by Liking/Boosting their Print on MakerWorld.
New version of my previous brush holder. Better vertical brush clips!
Use a standard mason jar as your brush water well and stand. This brush holder holds 19 brushes and up to 8 tip down for drying. The stand has a unique diagonal frame design to minimize filament usage while avoiding supports. Also includes a lid with a screw-on handle to keep your water from evaporating.
• No Supports Required.
• Designed to minimize filament use.
• Stands on its own when changing out mason jar.
• Requires a wide-mouth 16oz mason jar.
• Holes in stand are 10mm or 3/8" in diameter.
• Mason Jar model included if you cannot acquire a glass jar. It has a thick base and 100% infill to help it stand and be waterproof, but for safety's sake - BE SURE TO WATERPROOF - I use a thin UV resin coating or a few layers of rubberized spray (eg. Rustoleum Flex-Seal) waterproof my prints. Your milage may vary.
Standard 16oz mason jar dimensions:
The depth of the threads is 2.25mm, the thread pitch is 6.3mm.
