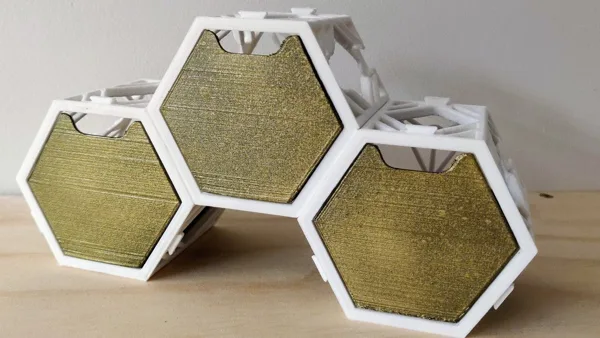

The Hive Reborn - Hex Storage

A cheaper and simpler version of the HIVE designed in fusion 360.

Print List:

• 1x Hive Frame

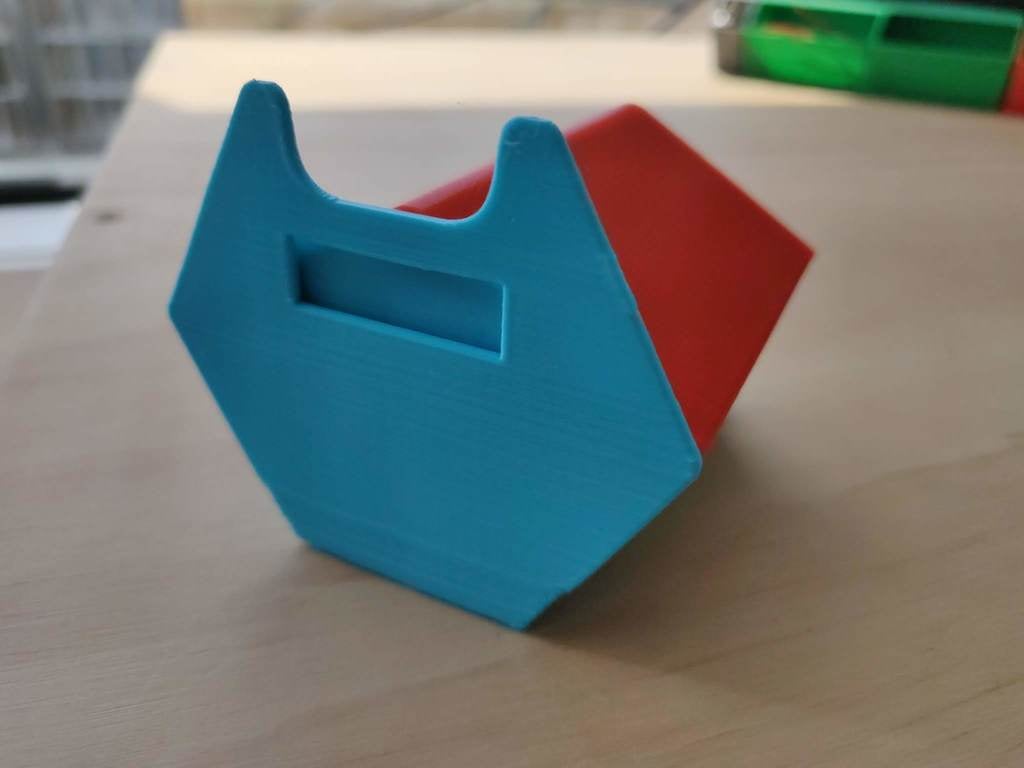

• 1x Hive Drawer

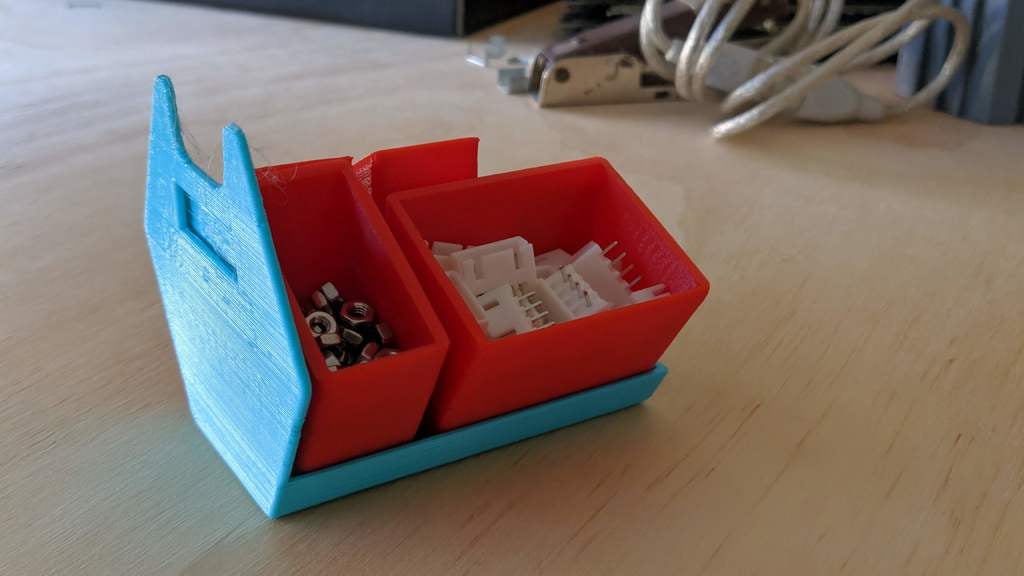

• Buckets (add sizes together and it should add to 12)

• 1x Label (Use Inkscape or similar to edit)

Print Settings:

• The Buckets can be easier to print upside down (often leads to better tolerance on the clip in mechanism)

• Make sure for bowden printers you have pressure advance and flow rate tuned for the frame as it is a bit of a torture test for stringing

• Arachne perimeter generator (Turn On to help with wall quality and bowden stringing)

• 200% (0.8mm) first layer width (helps with bed adhesion a lot)

• Tune pressure advance for your filament (helps with stringing on bowden)

• Try out Scarf Seams (currently only in orca silcer beta)

• Infill 0~10%

• ≤0.2mm layer height

• For strength use petg, pla has been tested to work too

If you want to edit it yourself you can use the Fusion 360 file or the step files
Designed in New Zealand :)
