Tray for Rummikub Tiles

We have a very old Rummikub game at home that comes with really flimsy trays. This is a replacement tray for Rummikub tiles of the size 27mm x 19mm x 3.5mm.

Special features: The tray has a firm stand. It has flip out/in feet. It has end stops on the left and right side to prevent tiles from sliding off. It has deep grooves to hold tiles securely while still allowing easy removal.

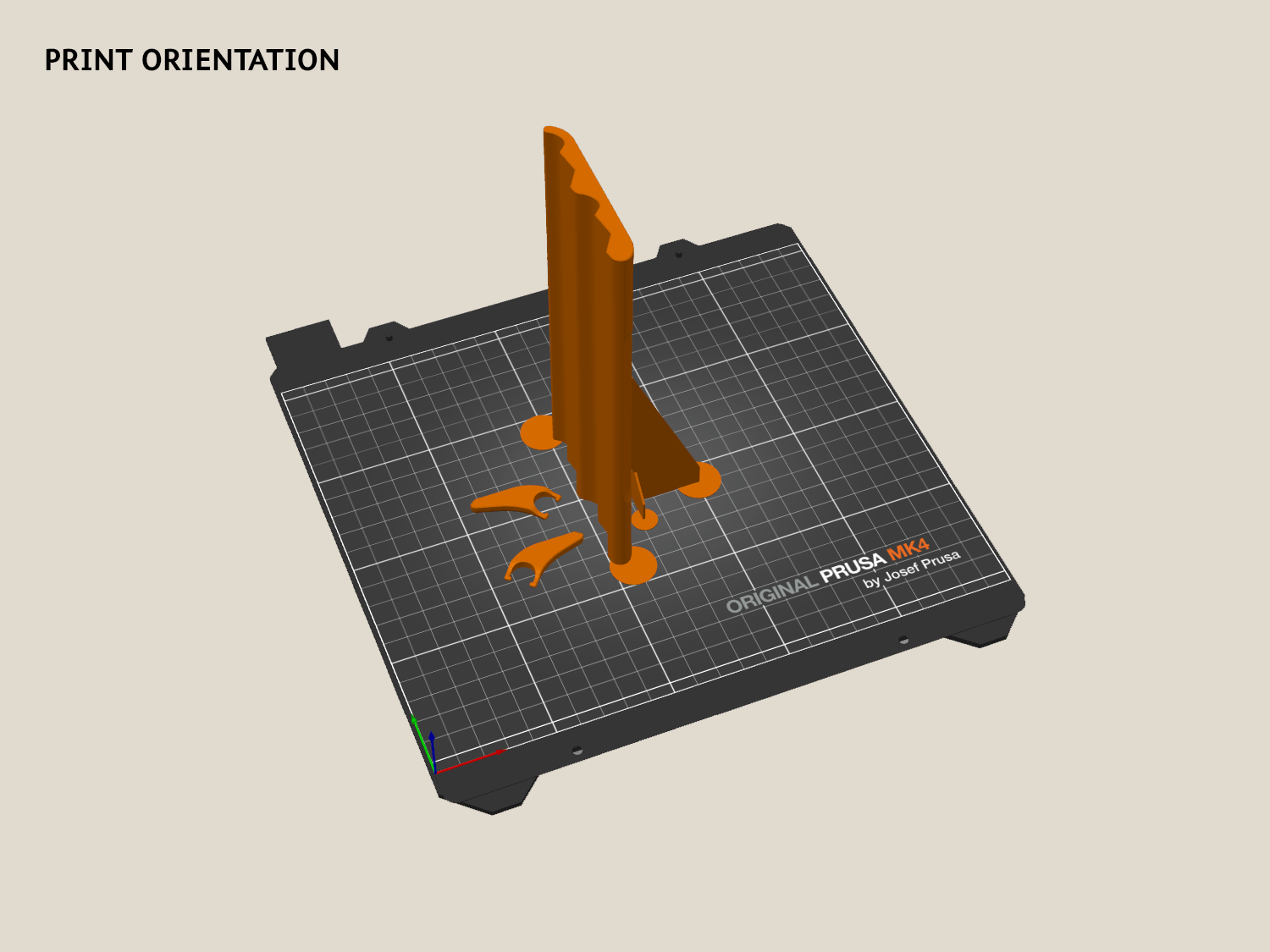

Printing: Use a z-height of 0.2mm for best precision. The z-dimensions have been designed with this in mind. If your bridges are well calibrated, the tray can be printed without using supports. For print orientation check image 2.

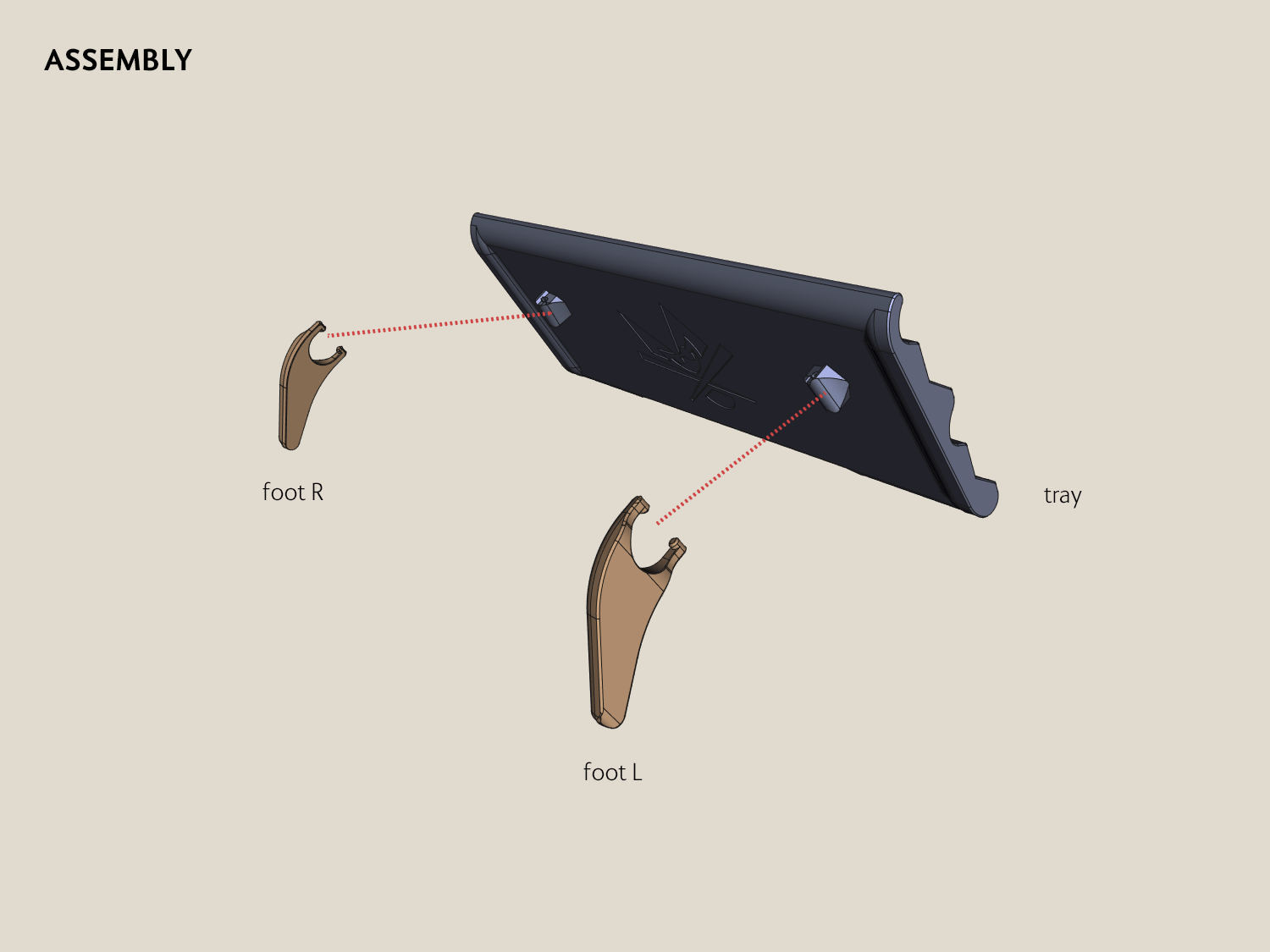

Assembly: This is quite easy. Make sure to snap the L and R feet onto the correct pivot point as shown in image 3.
