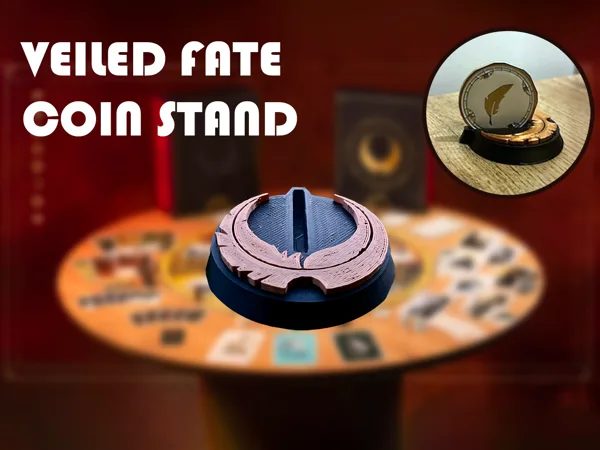

VEILED FATE Coin Stand

This is a custom-built stand for the Fate Coin in the board game Veiled Fate. The board game was produced by IV Studios.

Kickstarter: https://www.kickstarter.com/projects/ivstudios/veiled-fate-tribunal

Print Specifications:

You can print this at any layer height but for the best quality I used the following settings:

Layer Height: 0.05mm

First Layer: 0.28mm

Perimeters: 3

Solid Layers Top: 5 Bottom: 4

Minimum Shell Thickness Top: 1 Bottom: 0

Infill: 100% Rectilinear (to give it more weight)

No Brim required

TWO COLOUR PRINT:

If you'd like to switch filament colours for the logo then create a colour change (M600) at layer height 7.48.

The gcode and 3mf files have this automatically.

If you've not done this before, then what will happen is at layer height 7.48 your printer will move the head away from the print, unload (not load) part of the PLA, and then wait. You'll come along, clip the PLA and then feed your new PLA colour through the settings on your printer. Once you see your new colour out of the head, then you're good to go.

Sliced info:

Used filament (grams): 16.17

Used filament (meters): 5.42

Print Time: 1h31m (If you set the layer height to 0.2mm then your print time will be roughly 25m)

FYI: The licence for this model has been set to Attribution—Noncommercial—No Derivatives, as this logo and brand are owned by IV Studios, so no commercial profit should be made from this model or any derivatives thereof. If you like the model, support the Board Game Company IV Studios by purchasing one of their amazing games.
