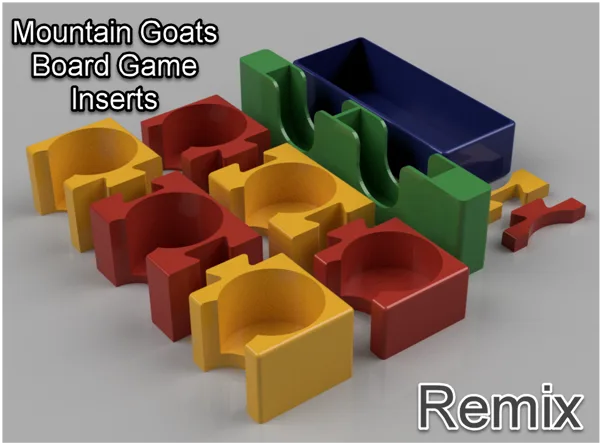

Mountain Goats Board Game Inserts (Remix)

This is a remix combining the best of the original (by @tjdesign ) and another remix (by @fuchsr ). I don't actually own the game, but was asked by my son-in-law to print the original so he could include the inserts with a birthday gift for my son. I saw that the dovetail joints might be troublesome so decided to clean them up a bit.

I wasn't smart enough to take the time to read the reviews or look for a remix before tweaking things. When I found @fuchsr's remix and read the comments and reviews, I decided to continue work and combine the best of both designs.

My remix provides what should be easier to operate dovetail joints and I added the dimension changes that @fuchsr did in his remix.

I have included two sets of token boxes. One set with 0.2mm clearance in the dovetail joint and one with a 0.3mm clearance. There are test pieces that you can print first to test which one works best for you.

If you prefer the token boxes that separate into individual boxes and want things to fit edge-to-edge in the game box, this design is for you.

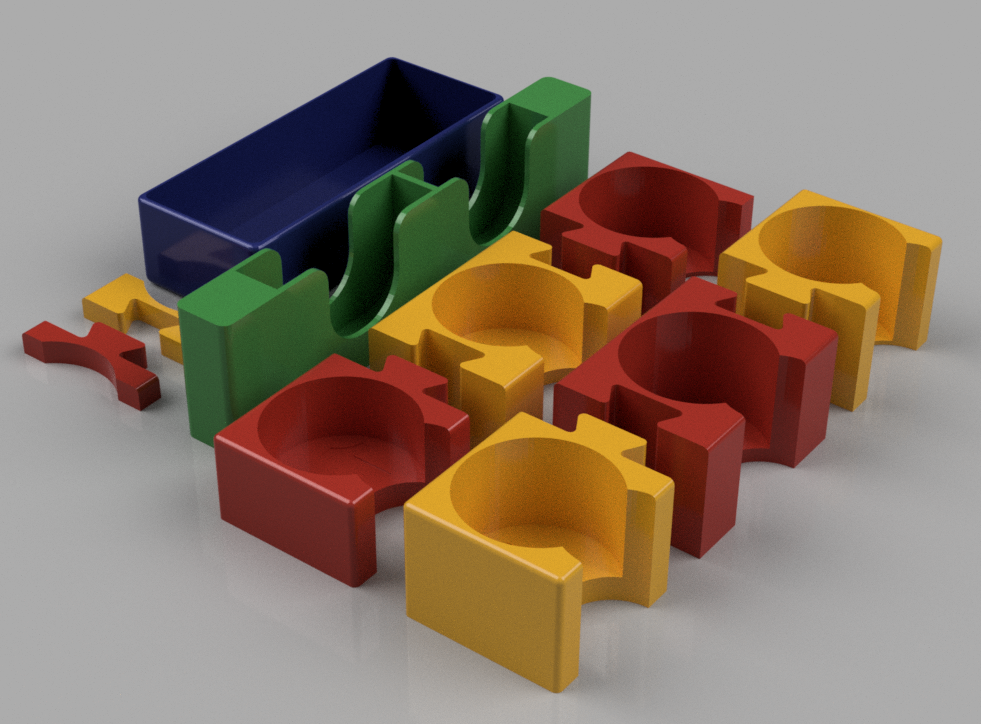

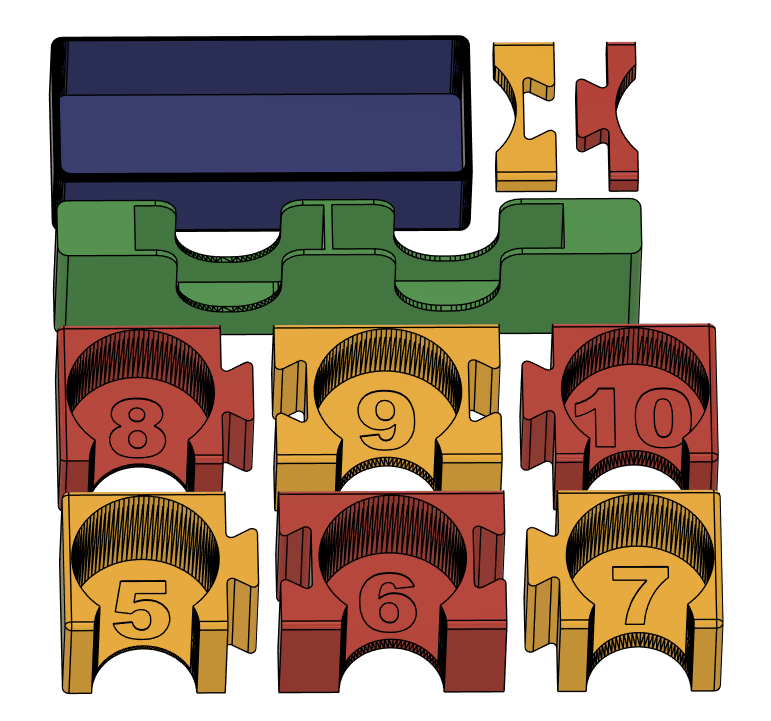

Apologies for screenshots of my Fusion design and not having images of actual prints.

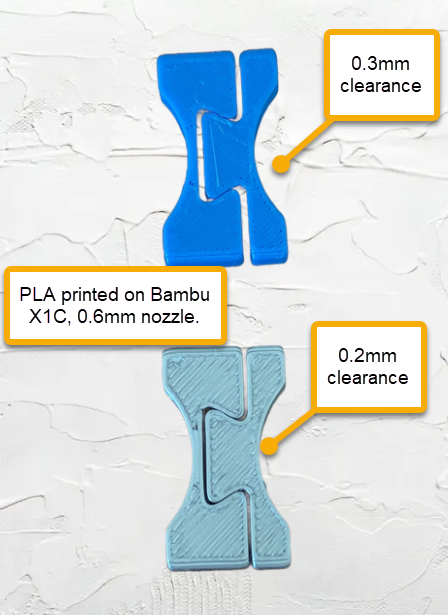

Edit: I did print the clearance test pieces on my Bambu X1C with a 0.6mm nozzle and uploaded a photo of my results. The 0.2mm clearance was a good fit and I could have gotten away with even less clearance. The 0.3mm test was pretty loose, but would have been great on my old Ender 3 and CR-10.

If you want a tighter clearance like 0.1mm or 0.15mm, leave a comment and I'll add them.
