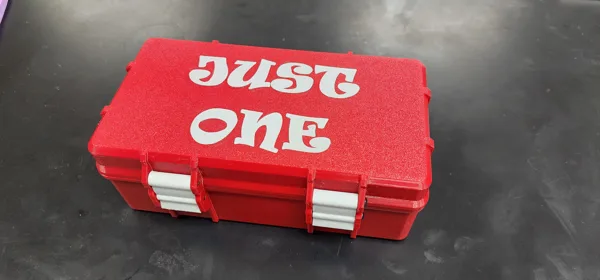

"Just One" game case

Additional Hardware Needed:

• 6 x 30mm M3 bolts

Printing Instructions:

• Print the base as you see fit.

• You'll need to print 2 of the latches , printing on their side would be best for quality and strength.

• The lid and text can be printed in a couple different ways.
• You can just print them seperately and glue the text on, although this wouldn't yeild clean results.

• You could ignore the text file, and just add a filament change to the lid print for contrast.

• You could also just ignore the text file and just print the lid, and the text will just have a different pattern in the lid.

• Finally, you can choose the option that is pictured where I printed the text onto my bed, and then printed the lid with a zhop to clear the text. This produces a perfectly flat and fused text with the lid.

• The seal should be printed in TPU if desired.

Assembly:

• Place the lid onto the base.

• All bolts slide in from the outside of the box towards the center of the box. They will clear everything except the inner most section, which they will thread into.

• Set in the latches as you insert the bolts for the front.
