Twist-lock Dice Box & Rolling Tray

Fan of this model? A Like and a Make would be more than appreciated!

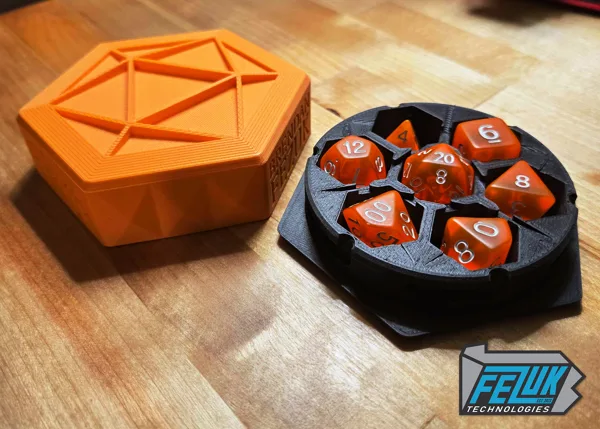

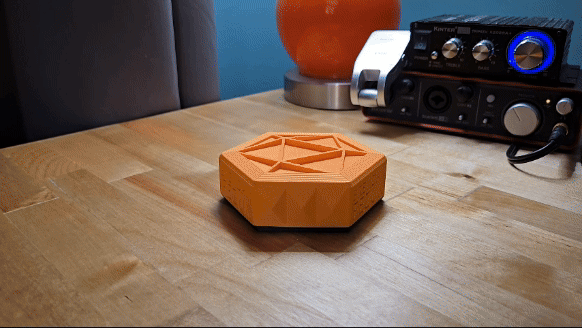

Elevate your tabletop gaming experience with this versatile Twist-lock Dice Box & Rolling Tray , designed to seamlessly transform from a storage case into a rolling tray . Featuring a snap-lock mechanism that engages with a simple 30-degree twist , this design ensures secure storage without the need for mechanical fasteners or magnets.

🎲 Now Available in a Larger Size! 🎲
Bigger Dice? No Problem! See update below for more details!

Key features:

• Dedicated pockets for all 7 polyhedral dice (D4, D6, D8, D10, D%, D12, D20).

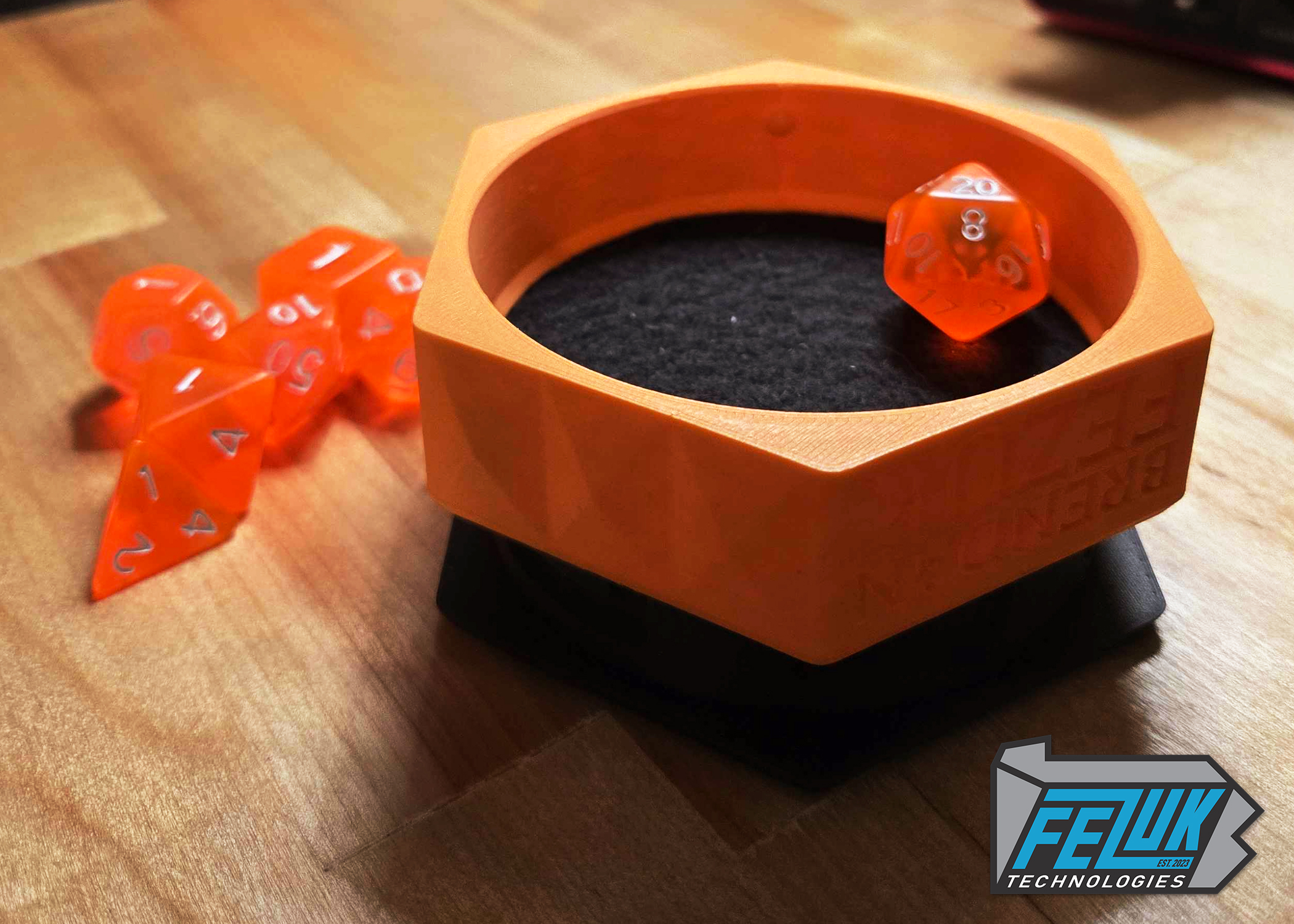

• Integrated rolling tray with a 3-inch felt pad recess for a premium rolling surface.

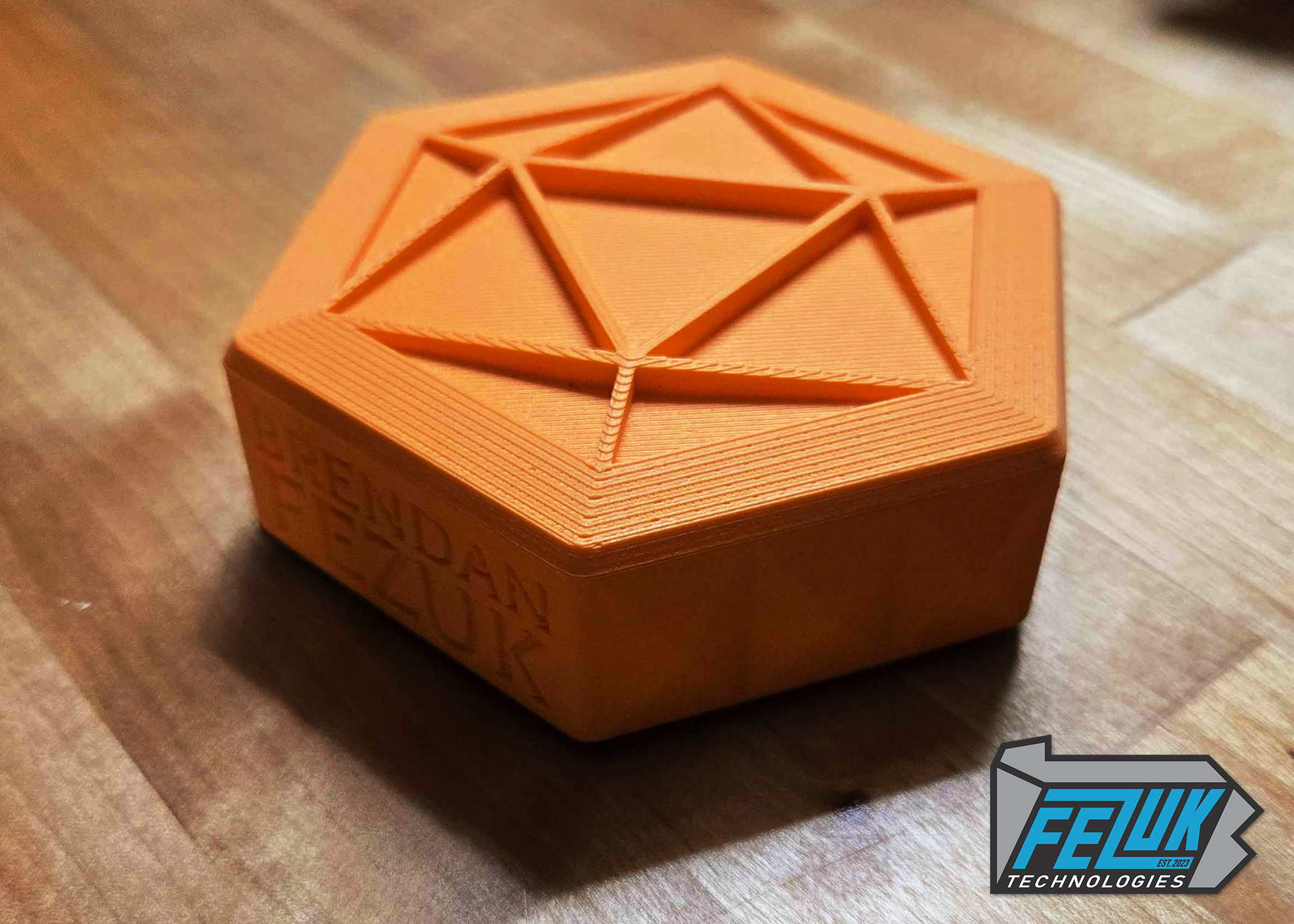

• Raised D20 emblem on the lid, doubling as the interlock feature for the rolling tray.

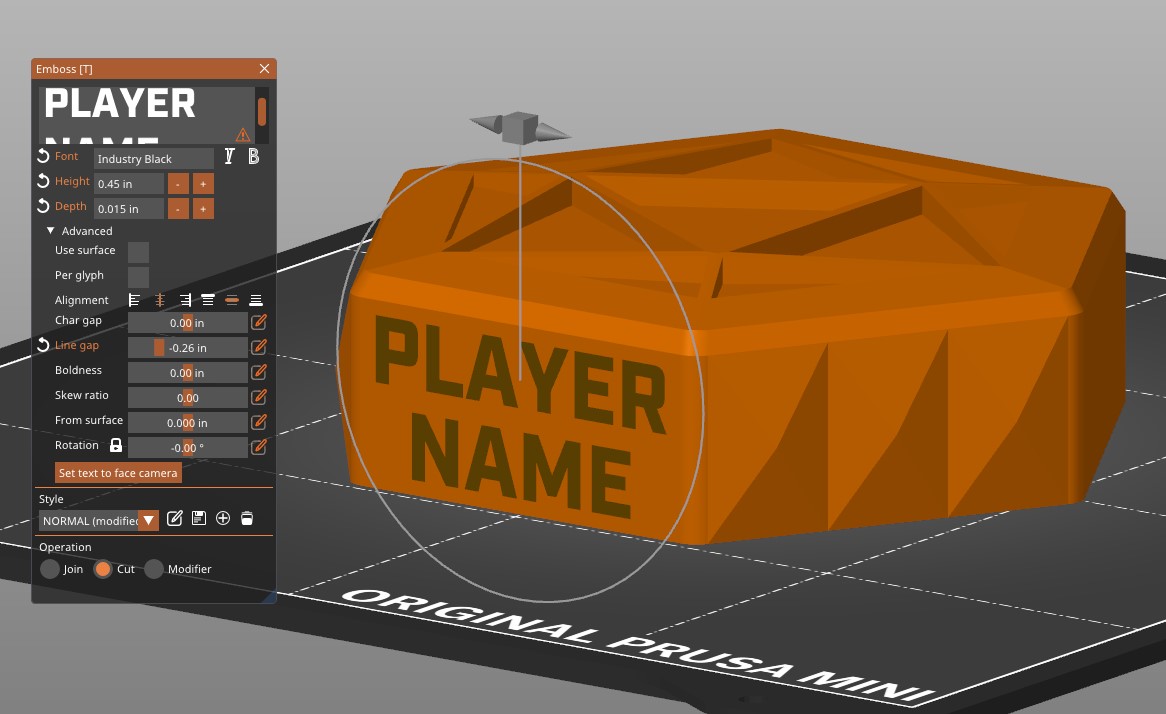

• Three flat planes perfect for customization—emboss player names, character names, or any other text easily with PrusaSlicer's text tool.

• Multiple Lid Clearance Options to ensure you get the perfect twist-lock fit for your printer/filament/settings.

This sleek, functional design is an excellent addition to any dice collection, offering both secure storage and a stylish rolling surface for your gaming sessions.

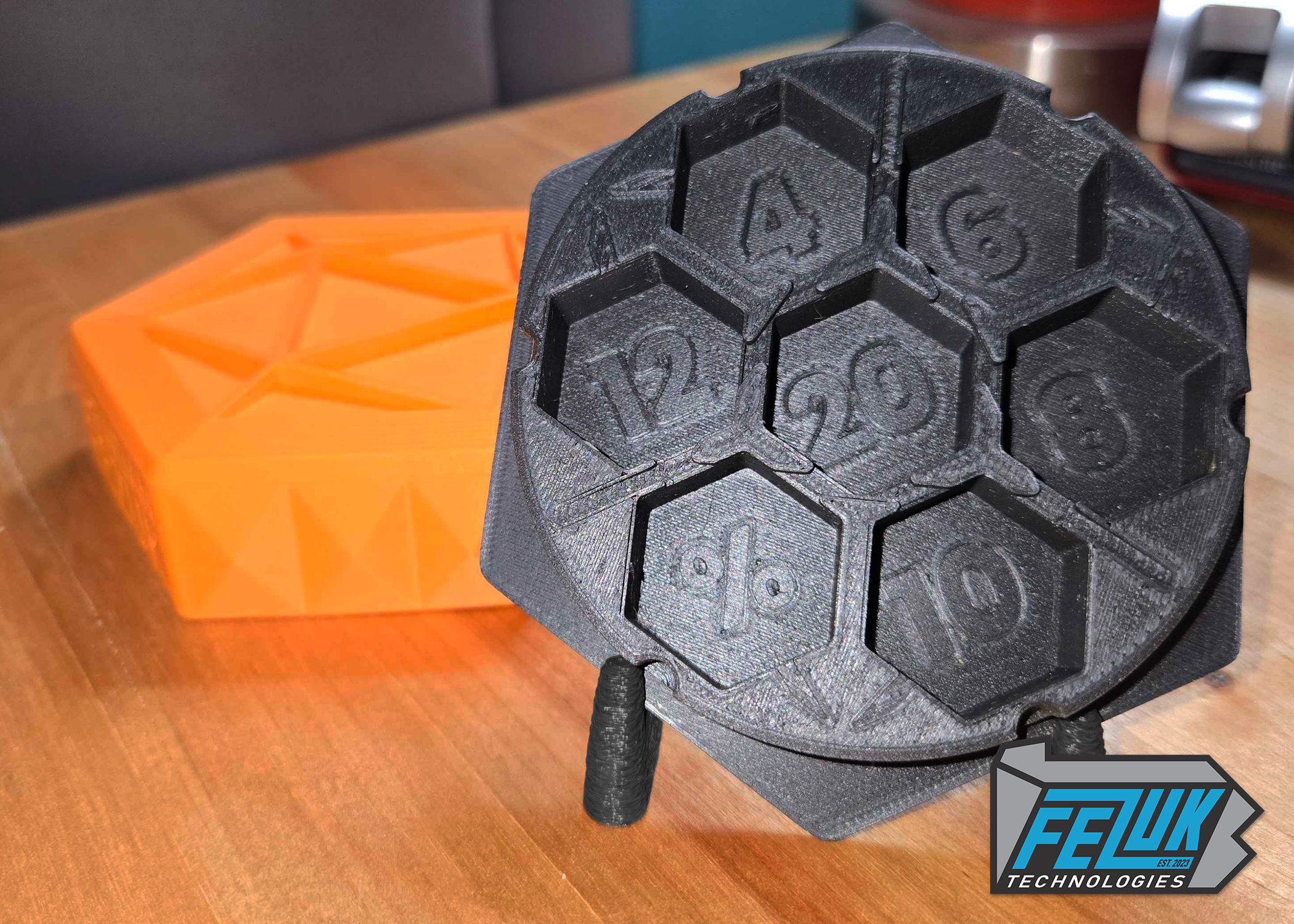

Two versions of the base are included, one with Dice ID numbers, and one without.

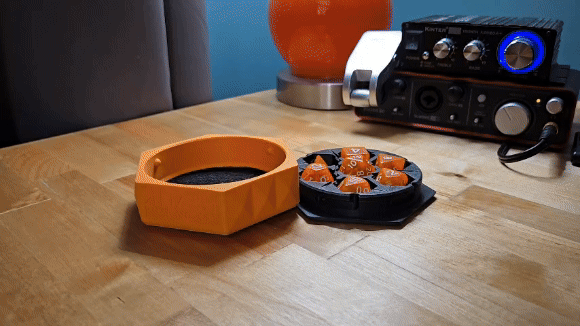

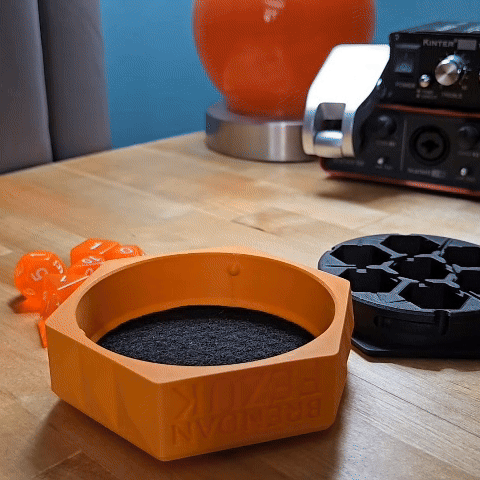

• Open the dice box and remove all dice.

• Position the lid on one of its flat sides with the D20 emblem facing to the right .

• Position the base on its side, ensuring the dice pockets face the D20 emblem on the lid.

• Align the base and lid , then slide them together until they touch.

• Gently slide the pieces back and forth until the interlock features engage—this will be very obvious when properly connected.
• If they do not engage , rotate the base 30 degrees (one hexagonal side) and try again.

• Once interlocked, carefully rotate the assembled rolling tray upright , and you're ready to roll!

• Layer Height: 0.20mm

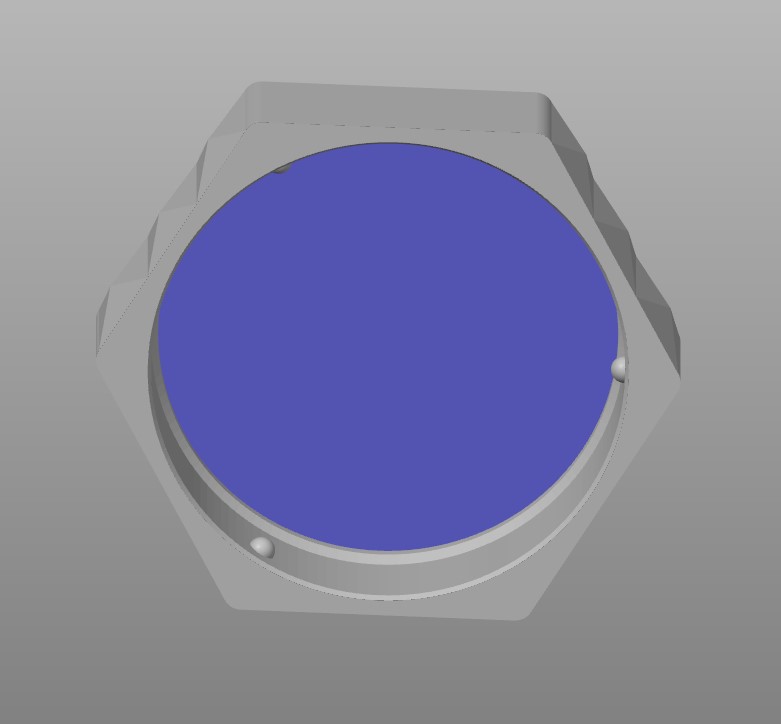

• Supports: Painted supports on the felt pad recess of the lid ( Snug Supports and For Support Enforcers Only enabled)

• Infill: Recommended 15-20% for durability

• Material: PLA, PETG, or your preferred filament

• Bed Adhesion: The base is a big flat area with sharpish corners, may be prone to warping at said corners. Clean your print bed with moisturizer-free dish detergent (Dawn Platinum), and thoroughly dry before printing. A brim may help with adhesion if needed.

For best results, ensure proper bed leveling and cooling settings to maintain dimensional accuracy for the snap-lock mechanism .

##

##

Got some feedback that the lid fit was a little too snug for some printers and filaments, so I’ve added a couple of alternative lids with a bit more clearance to make sure everyone can get a solid, satisfying snap-lock!

If your lid is just a little tight but still workable , don’t worry— the twist-lock will naturally wear in over time , making for an even smoother fit with use. But if it’s too tight to be practical , grab one of the versions with more clearance and you should be good to go.

To accommodate different printer tolerances and filament variations, three lid options are available:

• TLDB_Lid.3mf – Default clearance of .003" between the lid and base.

• TLDB_Lid_.006.3mf – A bit more room with .006" clearance.

• TLDB_Lid_.009.3mf – The most clearance at .009" , great for trickier prints or filament that expands more than expected.

If your printer is dialed in and prints super accurate parts , the default lid should work fine. If you find things tend to print a little larger or your filament likes to expand, try one of the higher clearance options for a smooth and frustration-free fit .

Still not quite right? If one size is too tight and the next one up is too loose, just drop me a message or leave a comment—I’ll do my best to upload an in-between size as soon as I can!

##

##

Love rolling with chunky resin dice, sharp-edged sets, metal dice, or other artisanal beauties ? I got you covered! After chatting with a few dice manufacturers/distributers to determine sizing, I've added a new version of the dice box with larger dice pockets (~30mm / 1.188") to fit those premium sets comfortably.

Since the whole design had to scale up, the rolling tray section is also larger , now featuring a 4-inch inset that fits a 4" adhesive felt pad for a smooth rolling surface.

Now, whether you're using classic polyhedrals or oversized statement pieces, you’ll have a secure, stylish, and functional storage & rolling solution! 🎲✨

Let me know if you have any special requests or feedback—I’m always happy to tweak things to make sure they work for everyone!
