Detachable sanding disc trays
Please support Friis by Liking/Boosting their Print on MakerWorld.
Remix from multiboard version, and yes, the backgrund image is very much AI, the model is not. See the original here

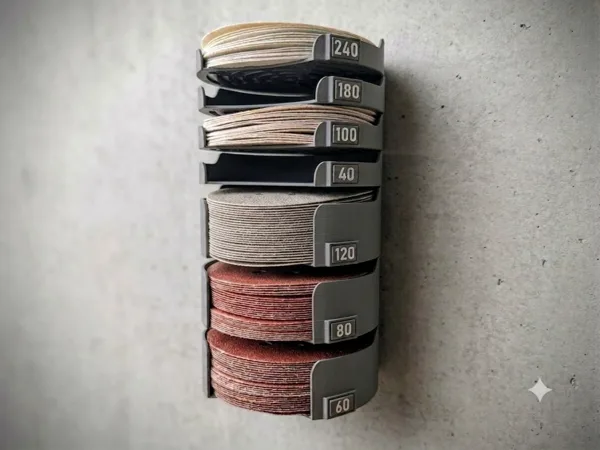

Modular system for ø125mm sanding discs with magnetically detachable trays. The brackets have a fairly strong grip on trays, cheap magnets will work perfectly fine.

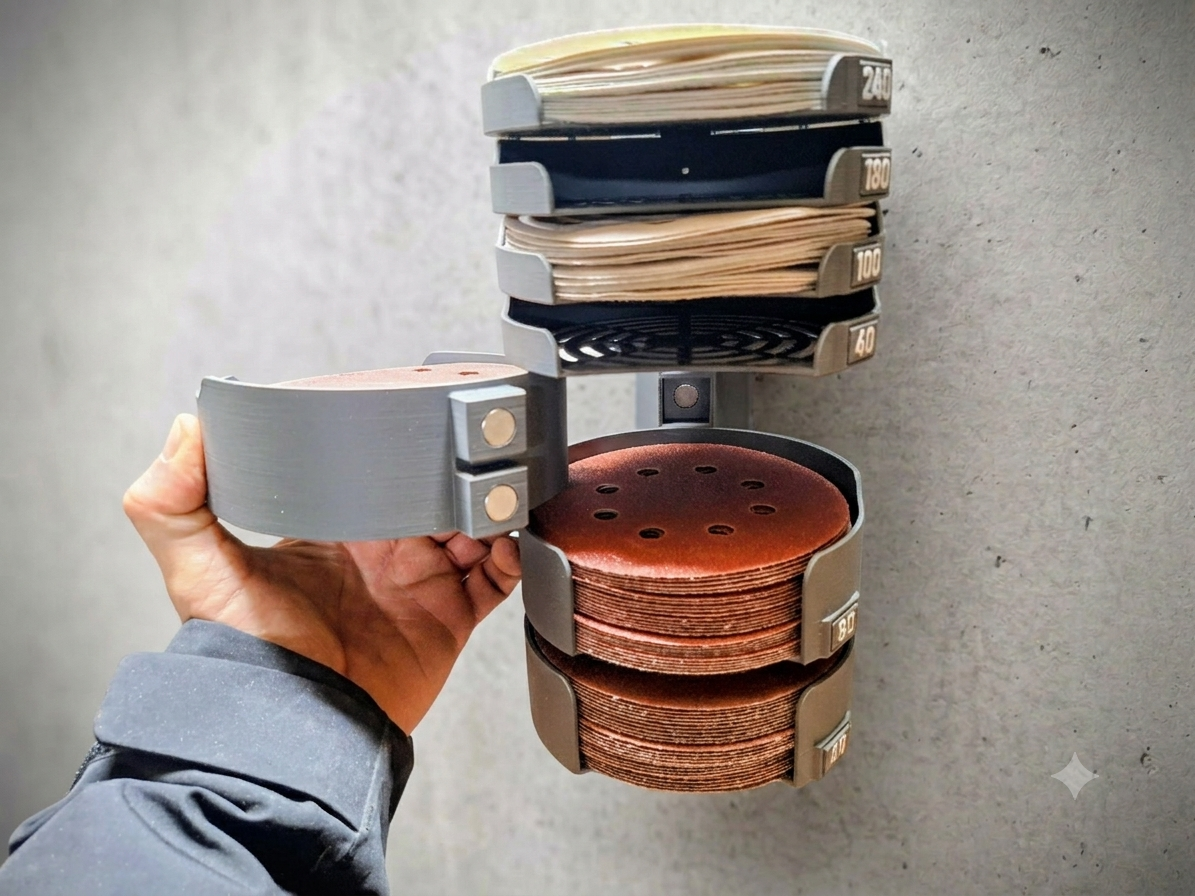

• Magnetic Freedom: Magnetic trays - snap a tray off the wall, bring it to your project, and snap it back when you're done.
• Vertical Stacking: Brackets are designed to be mounted above or below each other. Whether you have a basic 2-grit setup or a massive collection of 10+, just stack the brackets to fit your wall space. Up to 10 trays per bracket
•

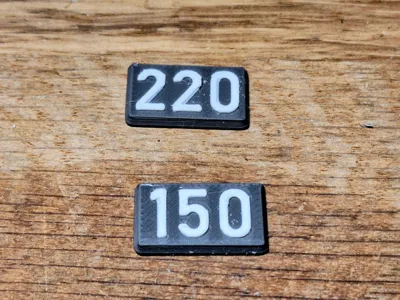

Swappable grit labels: Each holder has a swappable label. I’ve included a blank one in the 3MF file for custom grits.
Use Bold Bahnschrift, size 8pt if you want to match the included labels.
•
Magnets are press fit, glue isn't needed.
Following sizes are available, need a different size? Reply here, or drop me a message.
• 12 x 2.6 mm
• 10 x 3 mm
• 8 x 3 mm
