Fully Parametric Magnetic Box / Bin Customizable
Please support FSKhardcore by Liking/Boosting their Print on MakerWorld.
Boost Me Thanks for Your support and motivation.

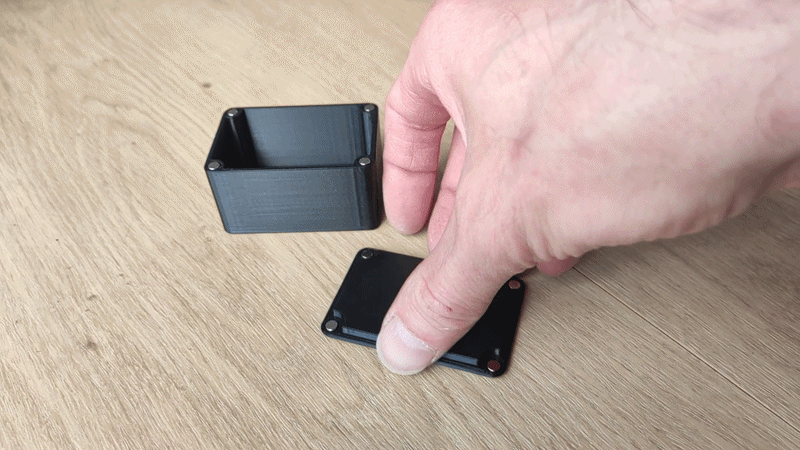

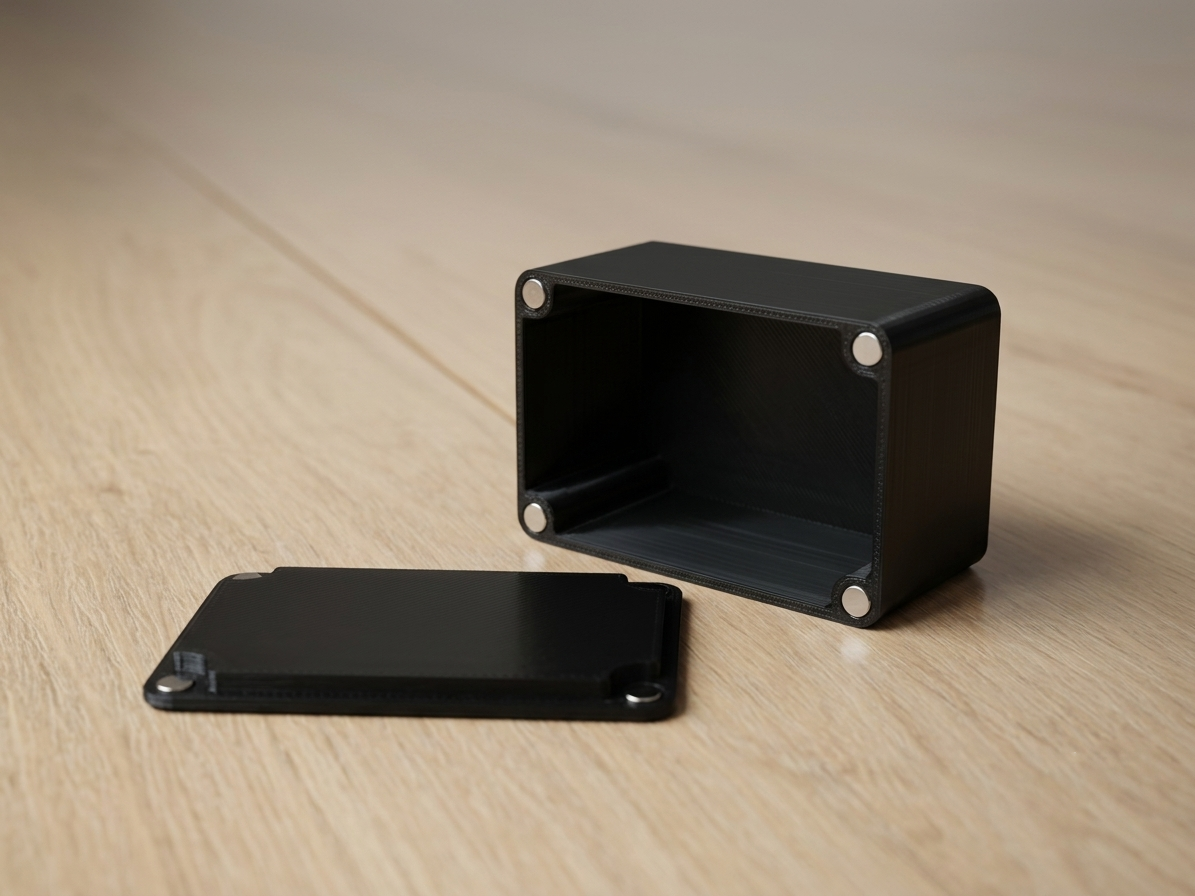

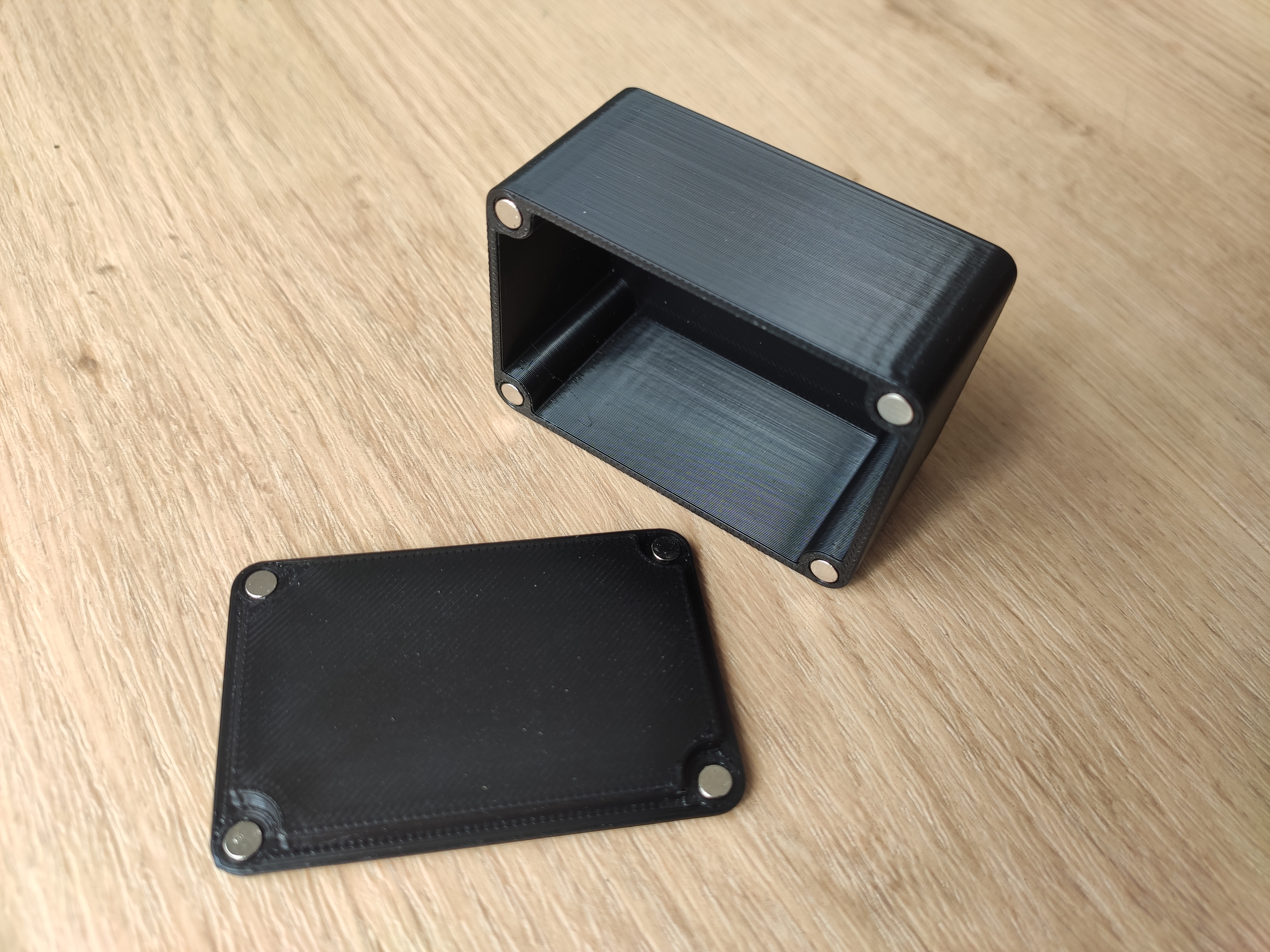

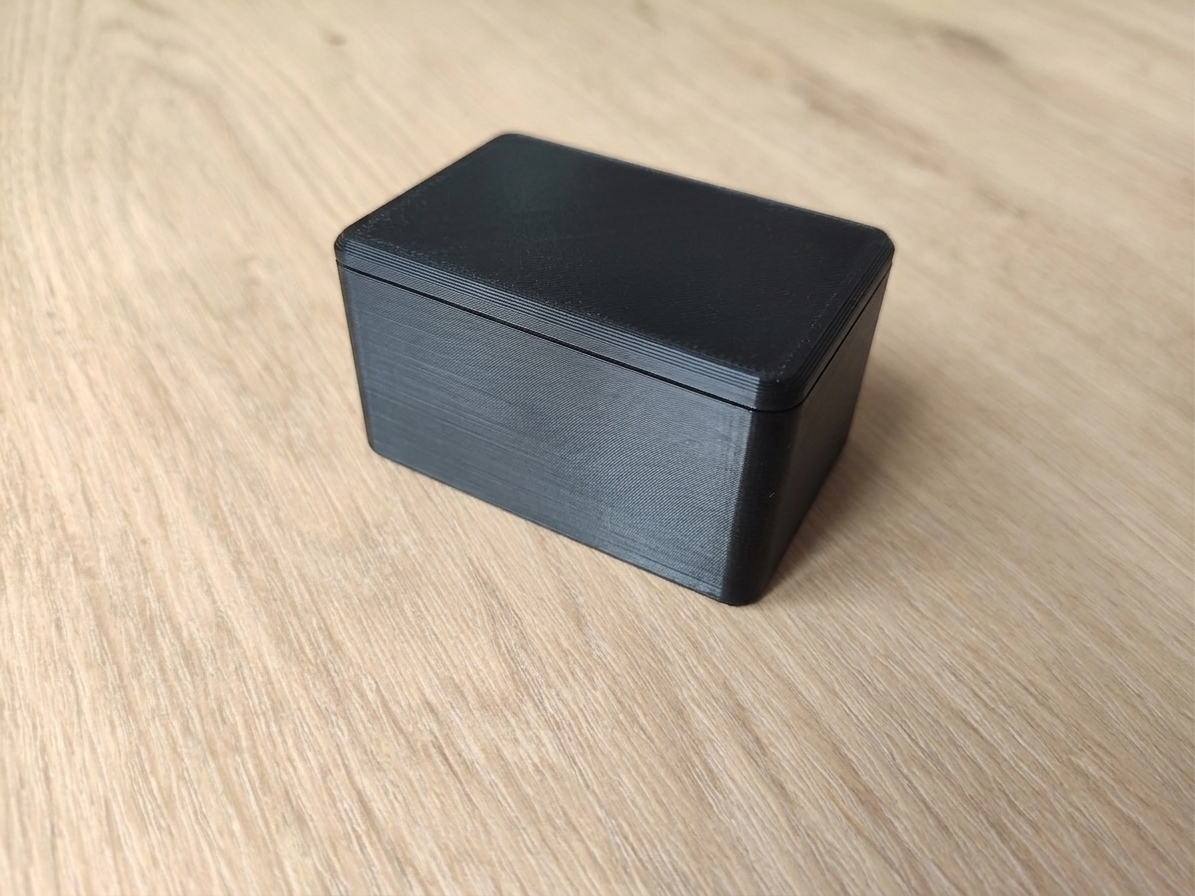

Are you looking for the perfect storage box that fits your exact needs and your existing magnets? This completely parametric box can be customized in absolutely any dimension! No more annoying searches for exactly the right magnets - you simply set the dimensions yourself.
Use the model as a sorting box, transport box, EDC box or for your tools.
You can customize the model directly from the MakerWorld MakerLab Customizer (if uploaded) or the file provided:

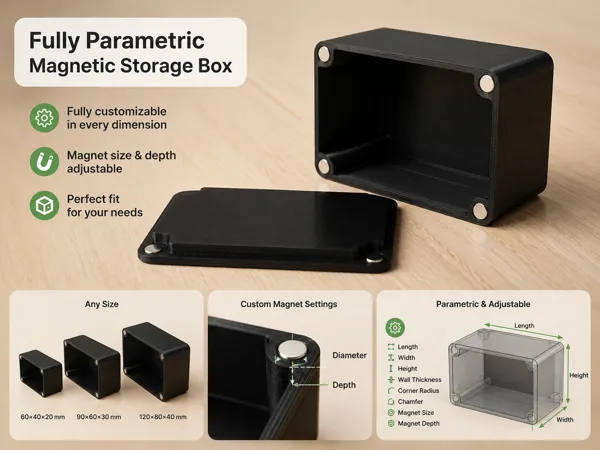

• Box dimensions: length, width, height, wall thickness for magnetic cage, radii and chamfers completely freely selectable.

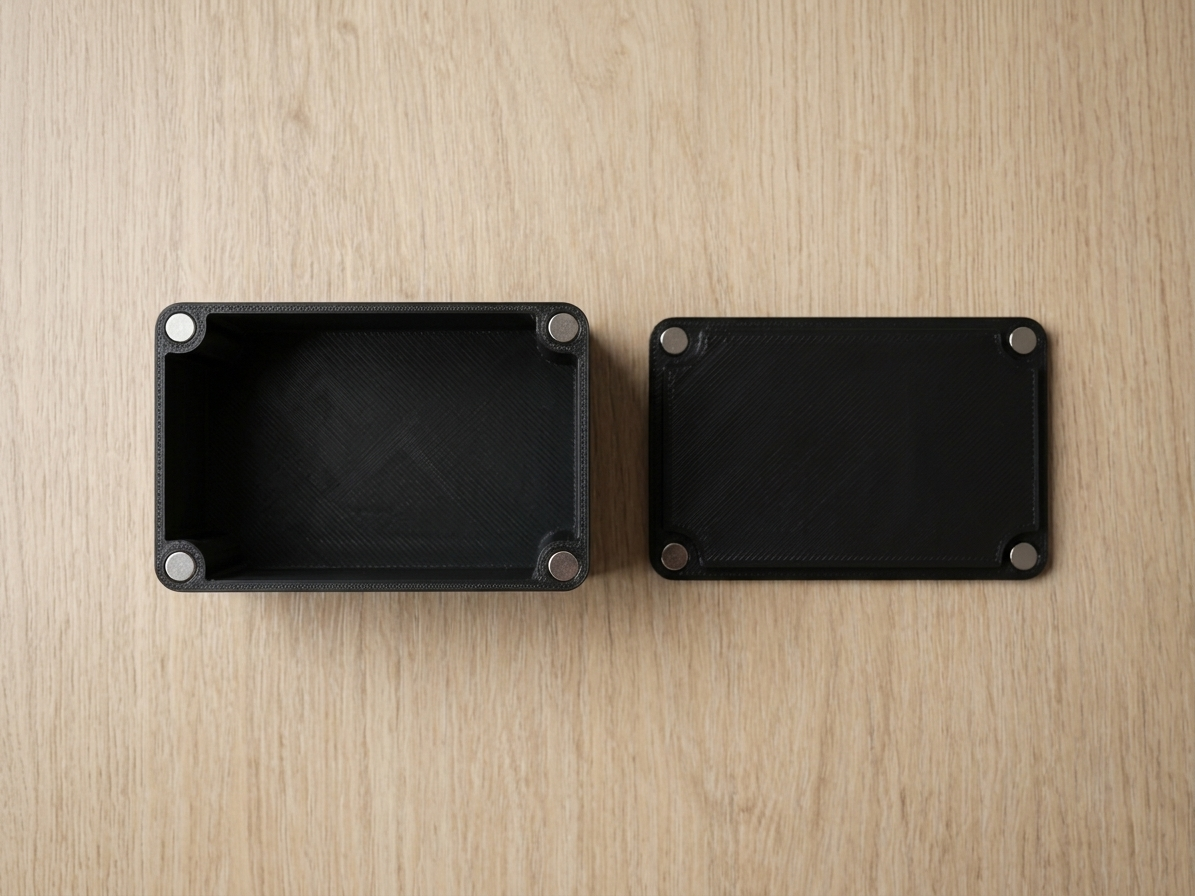

• Magnets (lid & body): Diameter and depth/thickness can be adjusted exactly to your magnets (tip: add 0.1 to 0.2 mm tolerance for printing!).
• Design details: Corner radius and chamfer at the edges are completely variable.
• Wall thickness: Determine for yourself how robust your box should be.
• Floor thickness: can be adjusted separately from the wall thickness.
💡 Are you missing a setting option? Just write it in the comments! I try to update the model regularly and add new parameters.
For my speakers I found magnets D4 x 2mm perfectly sufficient!
There is another variant without magnets and without lids for drawers.
https://makerworld.com/de/models/2816734-anysize-parametric-drawer-organizer-customizable#profileId-3136006
If you like the model, I would be very happy about a rating (5 stars), ⭐ a short comment and a photo of your make! This helps the model to be found by more makers.
Translated from German - show original
Boost Me Thanks for Your support and motivation.
Suchst du nach der perfekten Aufbewahrungsbox, die exakt auf deine Bedürfnisse und deine vorhandenen Magnete passt? Diese komplett parametrische Box lässt sich in absolut jeder Dimension anpassen! Kein lästiges Suchen mehr nach genau den passenden Magneten – du stellst die Maße einfach selbst ein.
Verwende das Modell als Sortierbox, Transportkiste, EDC-Schachtel oder für dein Werkzeug.
Du kannst das Modell direkt über den MakerWorld MakerLab Customizer (falls hochgeladen) oder die bereitgestellte Datei anpassen:
• Box-Abmessungen: Länge, Breite, Höhe, Wandstärke für Magnetkäfig, Radien und Fasen komplett frei wählbar.
• Magnete (Deckel & Korpus): Durchmesser und Tiefe/Stärke exakt auf deine Magnete einstellbar (Tipp: Gib 0.1 bis 0.2 mm Toleranz für den Druck hinzu!).
• Design-Details: Eckenradius (Corner Radius) und die Fase (Chamfer) an den Kanten sind vollkommen variabel.
• Wandstärke: Bestimme selbst, wie robust deine Box werden soll.
• Bodenstärke: kann separat von der Wandstärke eingestellt werden.
💡 Fehlt dir eine Einstellungsoption? Schreib es einfach in die Kommentare! Ich versuche, das Modell regelmäßig zu aktualisieren und neue Parameter hinzuzufügen.
Für meine Boxen fand ich Magnete D4 x 2mm vollkommen ausreichend !
Es gibt noch eine Variante ohne Magnete und ohne Deckel für Schubläden.
https://makerworld.com/de/models/2816734-anysize-parametric-drawer-organizer-customizable#profileId-3136006
Wenn dir das Modell gefällt, würde ich mich riesig über ein Rating (5 Sterne) ⭐ , einen kurzen Kommentar und ein Foto deines Makes freuen! Das hilft dem Modell, von mehr Makern gefunden zu werden.
