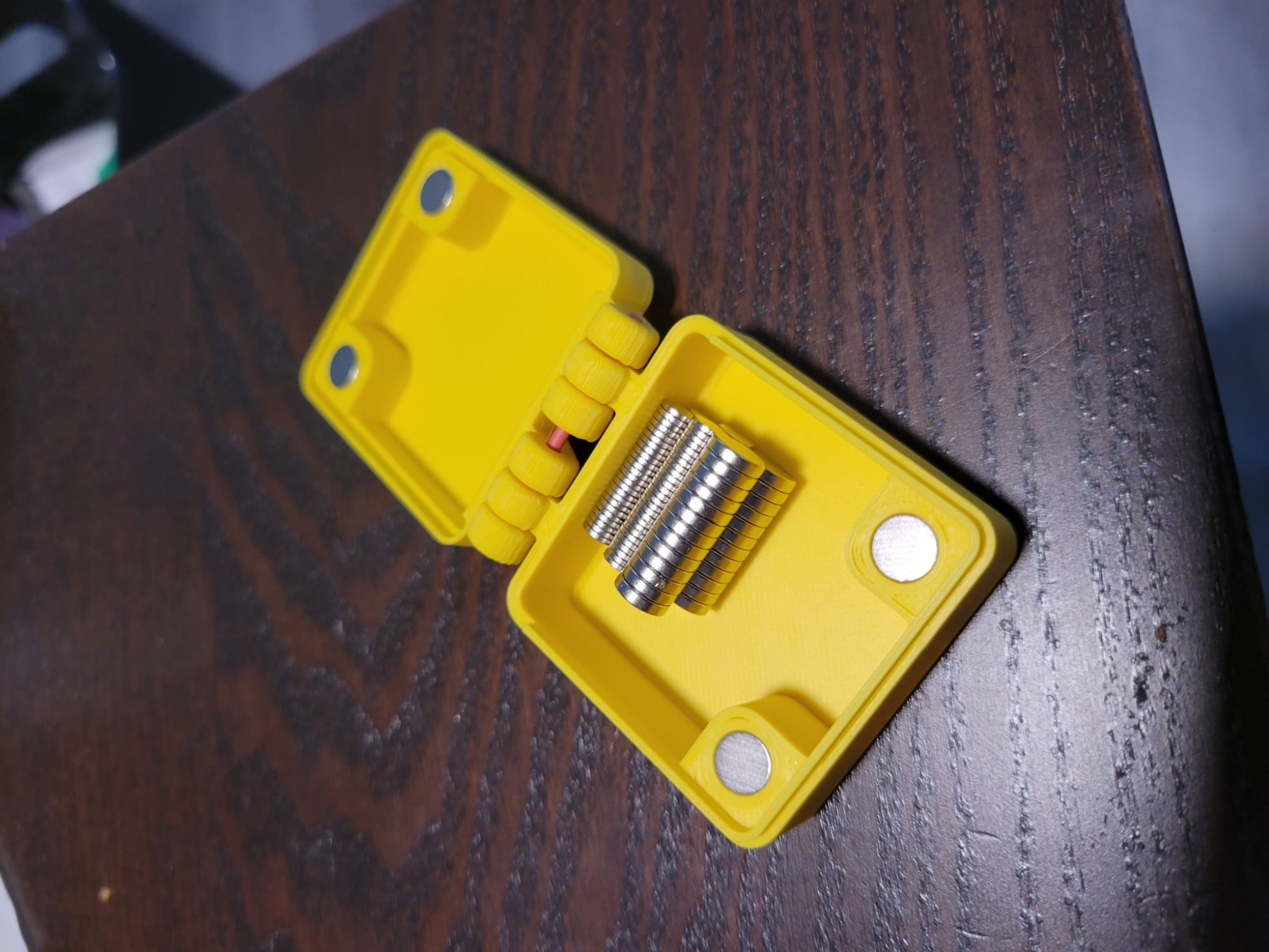

Parametric Magnetic Storage Box/Container

Couldn't find a box that was both configurable and met my needs. I designed this box so that essentially every property of the box can be edited in Fusion. This includes, the box thickness, size, ratio of lid size to box size. The magnet diameter and depth are also customizable.

The number of hinges, hinge length, width and size can be configured as well (for a piece of filament a “holeDiameter” size of 2.0mm works well).

The top can also be edited in Fusion to add inlaid labels, that's what I've been doing with them.

I've included a sample box but, again, it can be changed to suit what you're trying to store.

NOTE!!: A small remark would be to note that the hinges work smoother when a 1mm radius is applied to the edges. Since I cannot figure out an elegant way to pattern fillets in Fusion you should take care to add fillets to any extra hinges that you add.
