Parametric Dice Box

This is a remix of the Parametric Dice Box from Aaron.

I've remade the Fusion file for complete parametric configuration. I've had problems with the original because some change may do some weird things to happen.

Due to many change, the parameter in Fusion are now the following :

Parameters
DiceSie The size of the dice. Do not forget to put some clearance for them.
Spacer The thickness of the wall between dice. You should be able to set this to zero to get a box without dividers.
Row The quantity of dice row.
Column The quantity of dice column.
WallThickness This drives the minimum wall, floor, and top thickness. It also makes sure there is enough meat in the hinge.
BoxSizeColumn DO NOT EDIT Size of the box depending of Row.
BoxSizeRow DO NOT EDIT Size of the box depending of Column.
MagnetDiameter The diameter of the magnets.
MagnetHeight The heigh of the magnets. It must be no bigger than ½ the die variable.

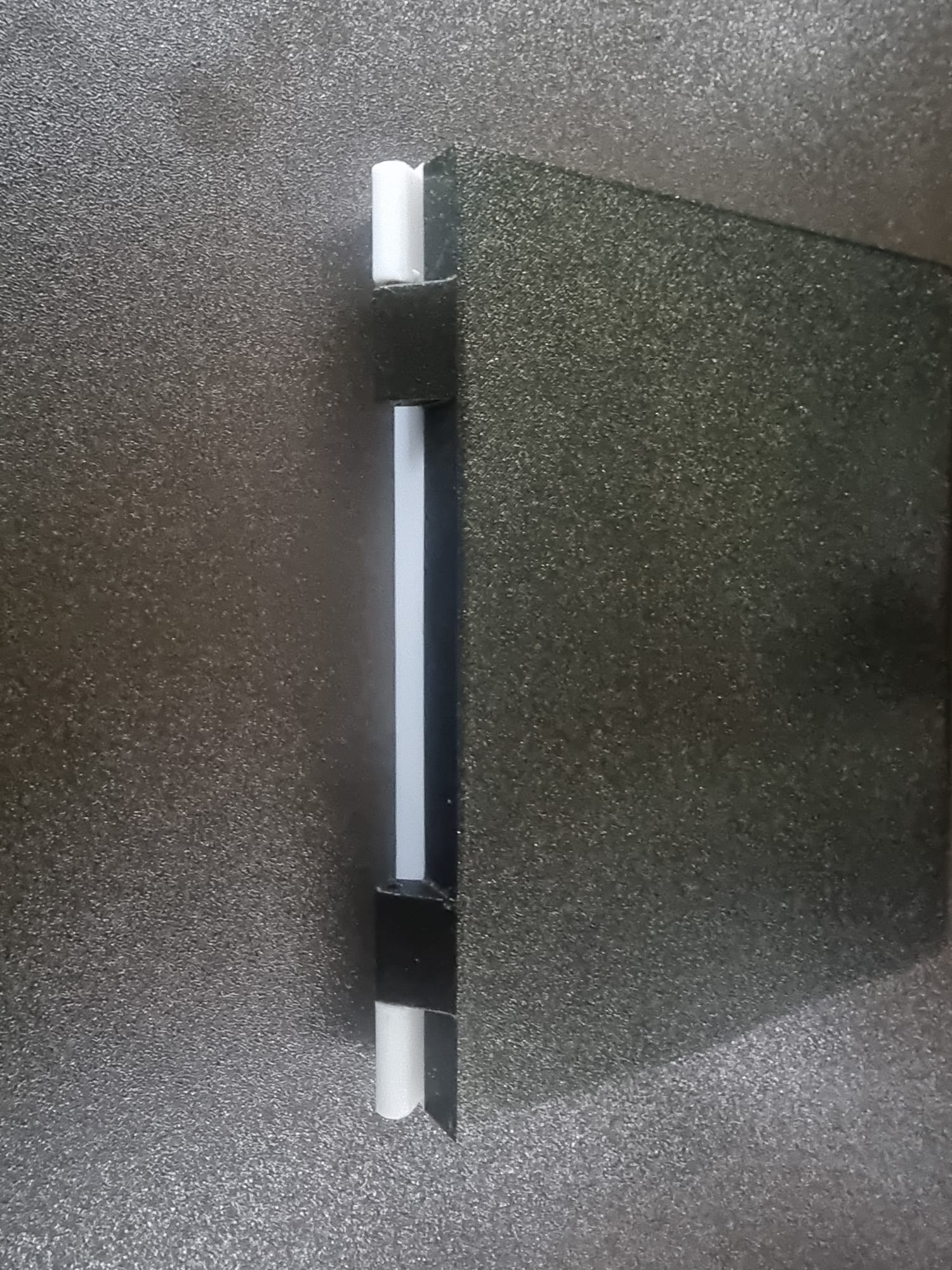

HingePinDiameter The hinge pin diameter. Default is for a bit of printer filament, 1.75mm.
HingePinClearance The hinge pin clearance (Must be smaller than HingePinDiameter).

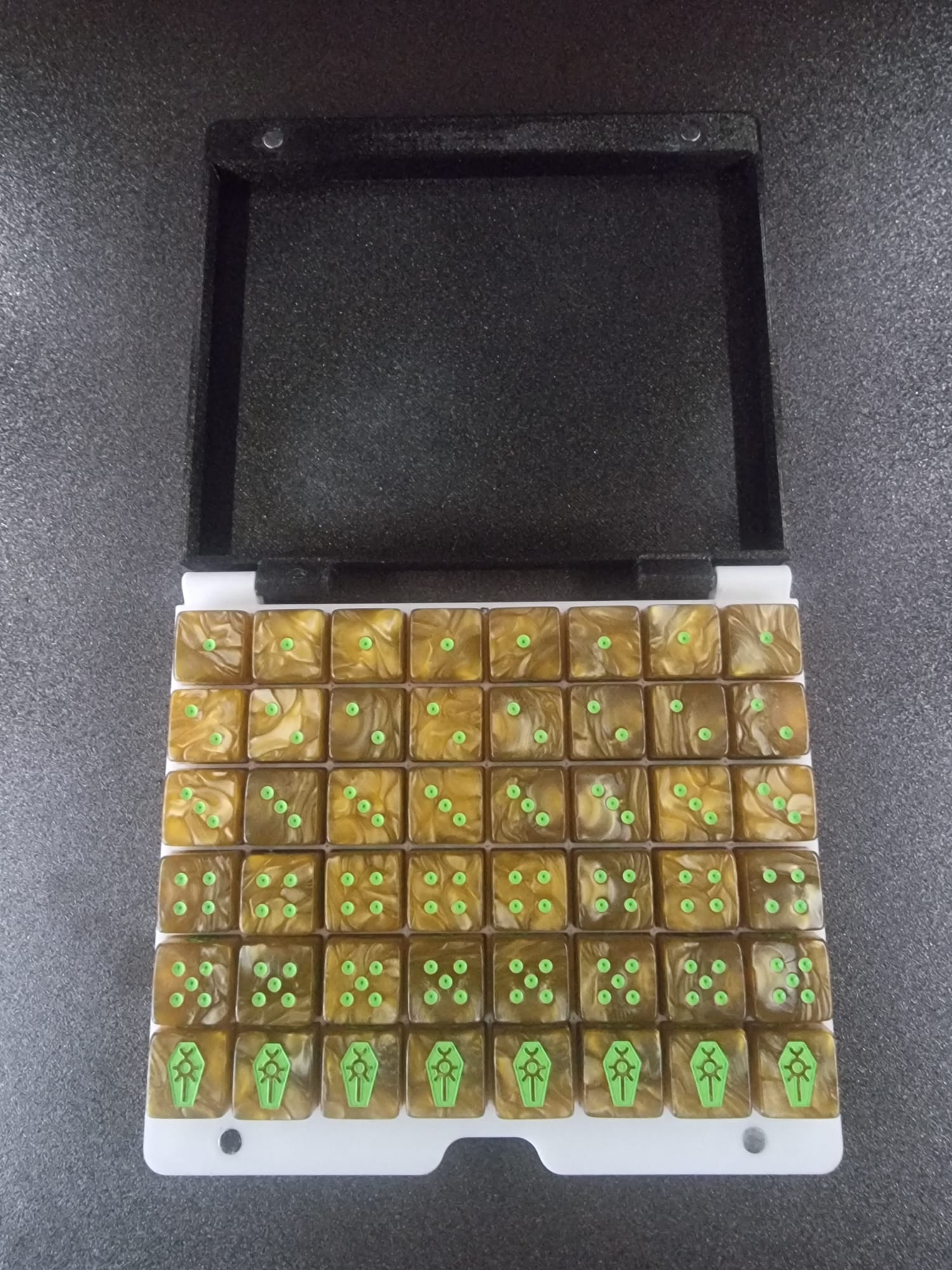

I've put the files for 48x 12mm dice box and 100x 16mm dice box. Both with 5mmx2mm magnet and 1,75mm hinge.
