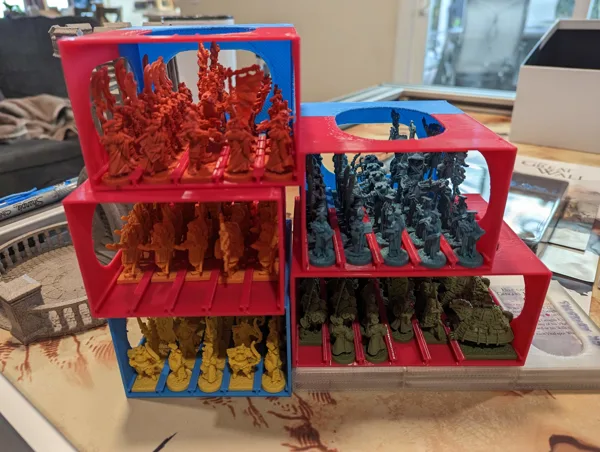

Update 2025-06-06 The Great Wall board game insert / organizer with sleeved cards, assembled towers & walls, for all-in

#################################

Update 2025-06-06

I know some people hated the lids so I changed it to sliding lids for the tokens, tea/score trackers, and barricades/ladders. I personally started getting annoyed with my own design of the card holders as it was difficult to pull the cards out so I redid the cards holders with a finger opening on the bottom to push up the cards. I also resized the green mini holder to fit more snuggly into its opening to try to stop contents from sliding around.

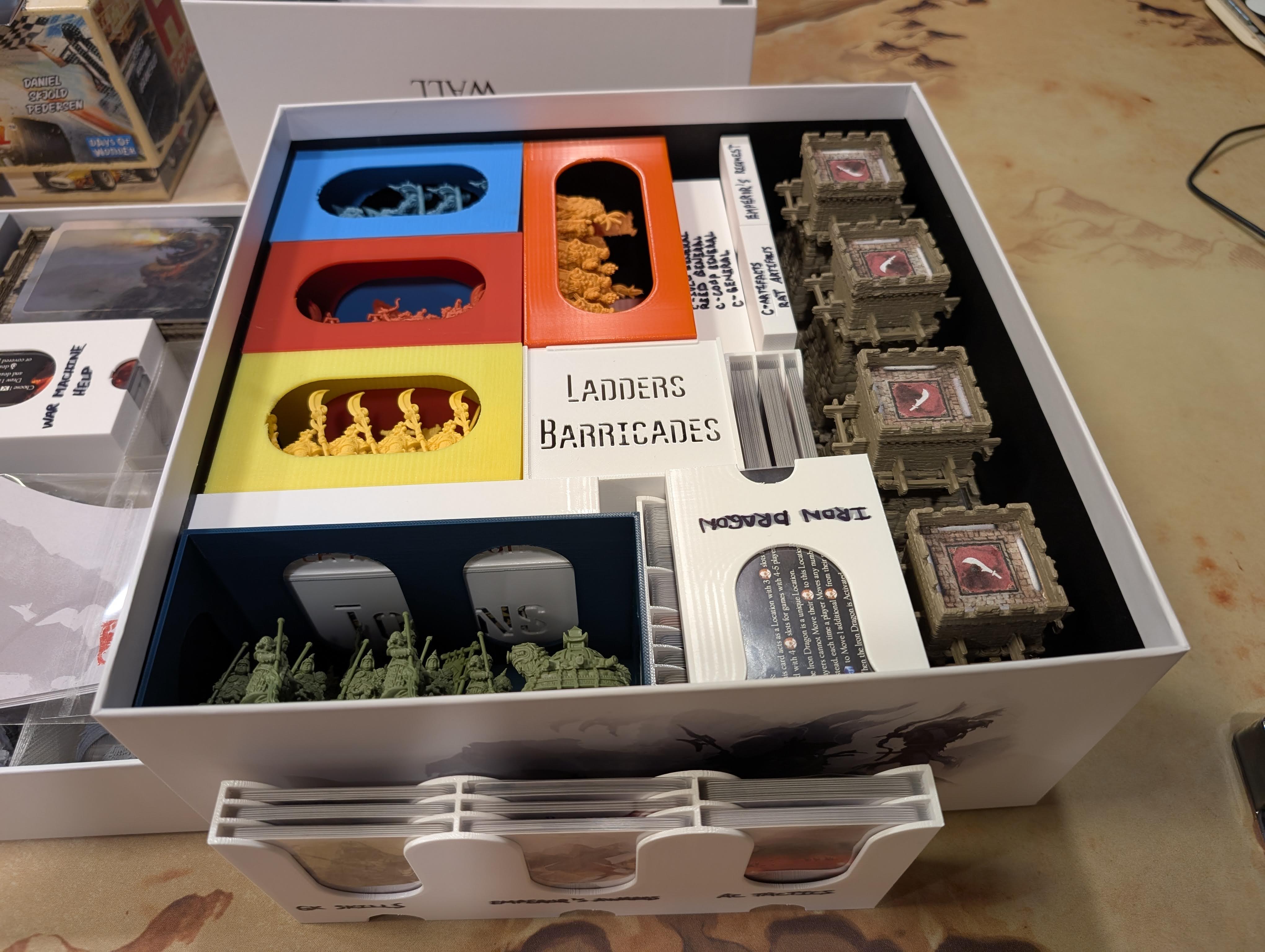

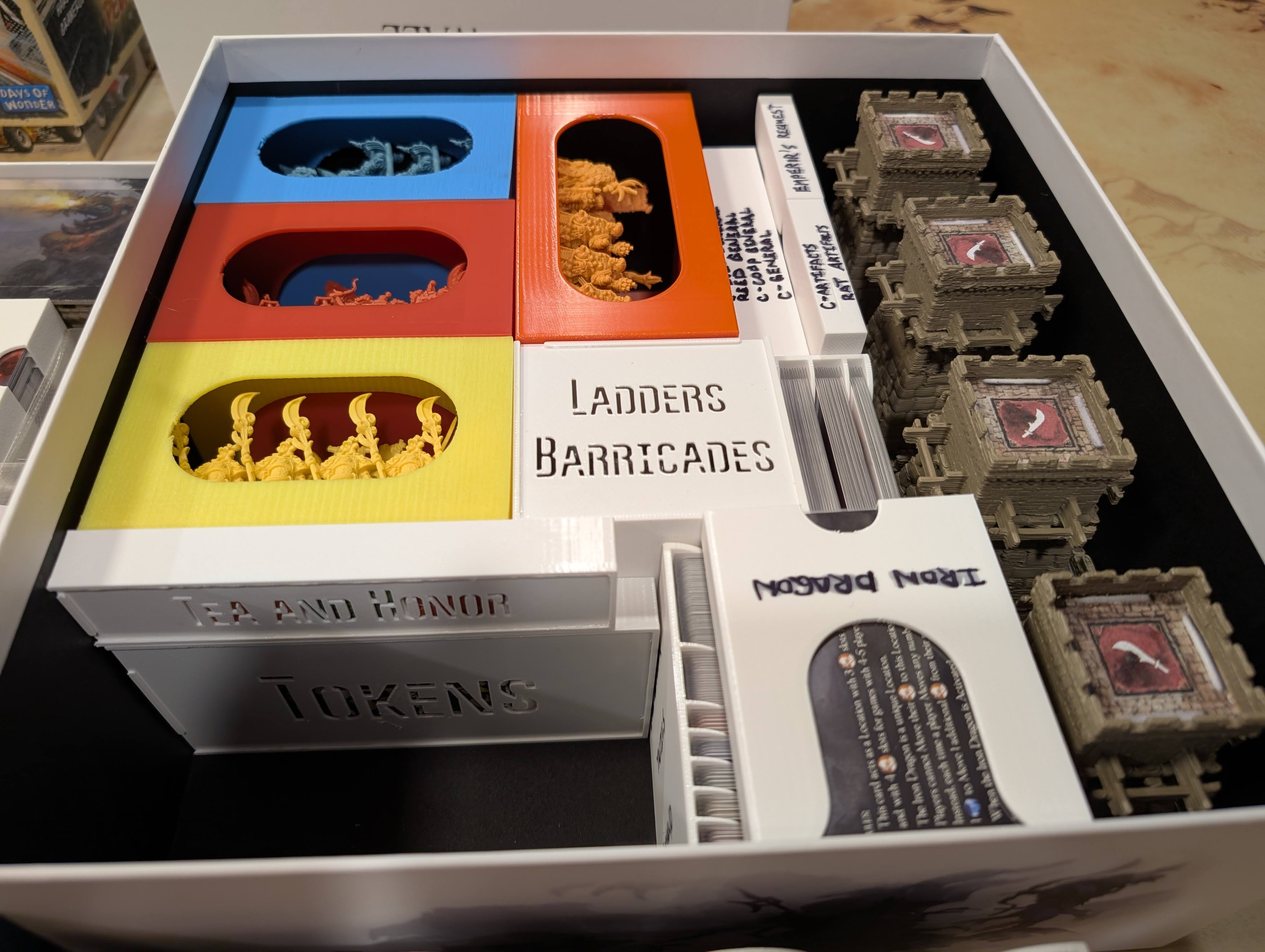

Updated pictures also uploaded.

The old models will be in the archive folder if anyone does like the original. I have reprinted stuff with default bambu settings using a .4 nozzle with .2 layer height except for the following:

• 3 walls

• 2 layers for bottom/top

Change log:

• All card holders have a finger slot on the bottom

• Mini holder for the turtle clan has been widened

• All curved holes were made smoother in tinkercad using 128 sides/circle (originally was 48 sides/circle)

• Used sliding lids for score/shame/time tokens, tea/scoring tokens, and barricades/ladders boxes

• Resized barricades/ladders box to be bigger for a more snug fit in the box and to allow easier storage of the barricades and ladders

• Resized score/shame/time token box to be bigger for a more snug fit in the box and to allow for individual compartments for each type of token.

I did print out custom walls and towers that are roughly the same size as the cardboard ones.

Here are the towers:
https://www.thingiverse.com/thing:6978753

Here are the walls:
https://www.myminifactory.com/object/3d-print-optional-walls-for-the-great-wall-boardgame-by-awaken-realms-205838

#################################

Box organizer for The Great Wall board game. This is for the core game, stretch goals, black powder, iron dragon, and ancient beasts, it is for the all-in. This organizer will shrink it down to 2 boxes. I use the stock resources tray and cram in the upgraded resources.

I hacked this together using tinkercad.

I am using the Awaken Realms card sleeves.

Benefits:

• Sleeved cards *

• Separated cards by type and expansion *

• Assembled walls *

• Assembled towers *

• Ancient Beasts holder *

• Only uses 2 boxes *

• 3d printed barricades fit *

• Supports Upgraded resources *

If you use the barricades from
https://www.thingiverse.com/thing:5135649
They will fit in the same box that I put the card board barricades in. I have added pictures showing the fit and how I meshed the barricades together.

I print using .6 layer height with a .8 nozzle, your results may vary when using different settings. Even with a .6 layer height, this took a while to print.

Check out my prototype time token for this great game.

https://www.printables.com/model/435552-the-great-wall-board-game-time-token

**Edit
Added new core generals holder TGW-Cards-core-generals-v2.stl to replace the original one.
From largest opening to smallest:

Core generals
Core coop generals
2 x reed clan generals
Solo general

**Edit 2
Added new shame holder box TGW-Tokens-point-shame-v2.stl to replace the original one. This has higher dividing walls so that the tokens don't slide around.

Core Box Contents:

3 x TGW-Mini-holders-YRB.stl
This is for the yellow, red, and blue minis.

TGW-Mini-holder-O.stl
Orange minis

TGW-Mini-holders-G.stl
Green minis

TGW-Cards-core-standard.stl
Starting from the big slot:
Core Advisors
Core Tactics
Core Command card separated by the 5 player colors
Core Reed card

TGW-Cards-rat-dragon.stl
Starting with the slightly larger slot:
Iron Dragon card
Rat cards

TGW-Cards-core-solo-coop.stl
Starting with the large slots:
Core Solo/Co-op Tactic cards
Core Solo/Co-op Event cards
Core Solo Command cards

TGW-Cards-SG-5th-ac-gk.stl
Orient the holder with the double slot on the left, triple slot in the middle and right.
In the double slot:
Large opening - Ancient Chronicles Advisor cards
Small opening - Ancient Chronicles Tactic cards
In the middle slot:
Large opening - Emperor's Award cards
Small opening - 5th player Tactic cards
Small opening - 5th player Advisor cards
In the right slot:
Small opening - Genghis Khan Help cards
Large opening - Genghis Khan Skill cards
Large opening - Genghis Khan Advisor cards

TGW-Cards-core-sg-ab-artifacts-er-1.stl
Ancient Beasts Relic cards
Emperor's Request cards

TGW-Cards-core-sg-ab-artifacts-er-2.stl
Single Slot:
Ancient Chronicles Artifact cards
Double Slot:
Small opening - Rat Artifact cards
Large opening - Core Artifact cards

TGW-Tokens-tea.stl
TGW-Tokens-tea-lid.stl
TGW-Ladders-barricades.stl
TGW-Ladders-barricades-lid.stl
TGW-Tokens-point-shame-v2.stl
TGW-Tokens-point-shame-lid.stl

Deprecated:

TGW-Cards-core-generals.stl
TGW-Tokens-point-shame.stl

Second box contents (either Black Powder or Stretch Goals box):

TGW-Minis-BP.stl
Black powder minis:
Trebuchets
Battering Rams
Crossbows
Missile launchers
Cannons

TGW-Minis-Ancient-Beasts-holder.stl
Refer to picture for placements of minis:
Genghis Khan
Rat
Tiger
Phoenix
Dragon
Turtle/Snake
Iron Dragon

TGW-Cards-tarots.stl
Orient the holder with the double slot on the left
Double Slot:
Core Horde cards
Core Co-op Horde cards
Multiple slots (starting with the opening closest to you):
5th Player General cards
Ancient Chronicles General cards
Stretch Goals Scenario cards
Genghis Khan Horde cards
Black Powder Horde cards
Black Powder General cards

TGW-Cards-BP-AB-misc.stl
Starting with the smallest opening and moving sequentially
Black Powder Special Soldier Help cards
Black Powder Advisor cards
Ancient Beasts Tactic cards
Ancient Beasts Advisor cards
Ancient Beasts Ancient Beast cards

TGW-Cards-bp-shots.stl
Black Powder Shot cards

TGW-Cards-bp-artifacts.stl
Black Powder Artifact cards

##

Printer brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

Yes

Resolution:

.6

Infill:

5%

Filament brand:

Cheap stuff

Filament color:

Any

Filament material:

PLA+

Notes:
