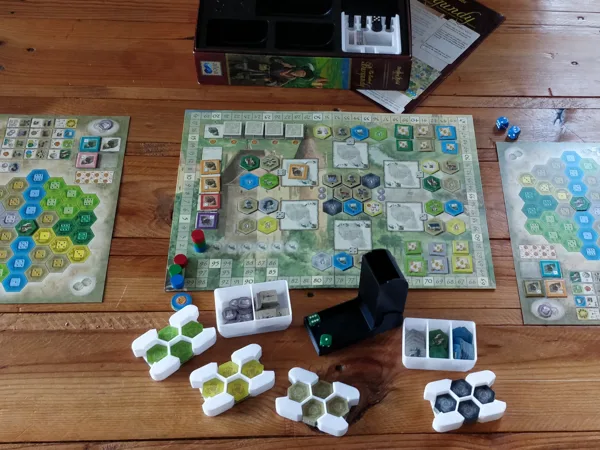

The Castles of Burgundy Insert (Die Burgen von Burgund)

• Insert for The Castles of Burgundy

• easy accessible organization

• organized by setup and in game material

• fast and simple setup and teardown

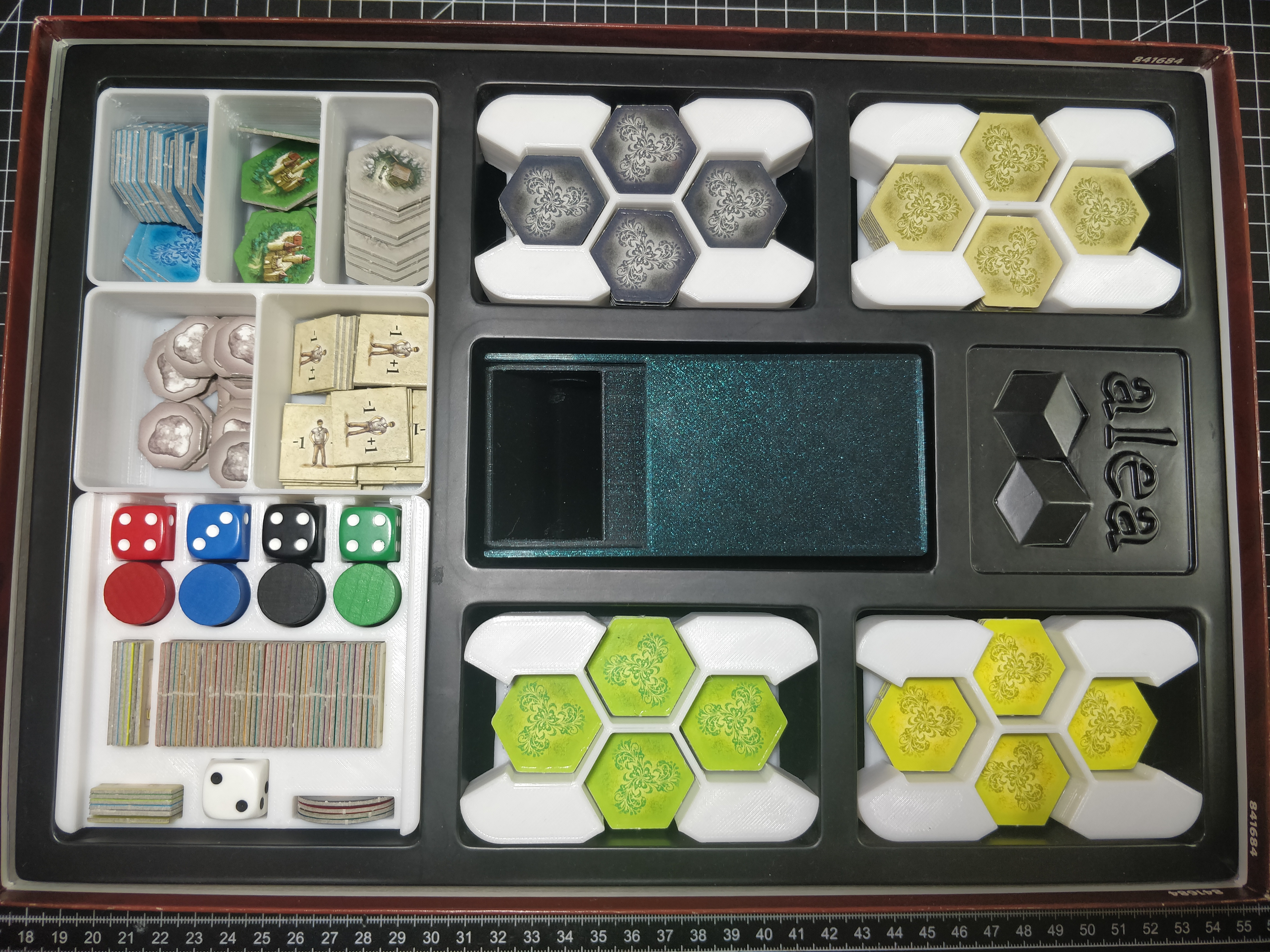

• fits the original box insert

• flush in the box for vertical storage

• minimizing filament used

##
Design Process:

• every component is flush with the original insert

• I added 6 mm thick (30 x 21 cm) cardboard under the insert, so the box is filled exactly to the brim with the main board, player boards and rule books

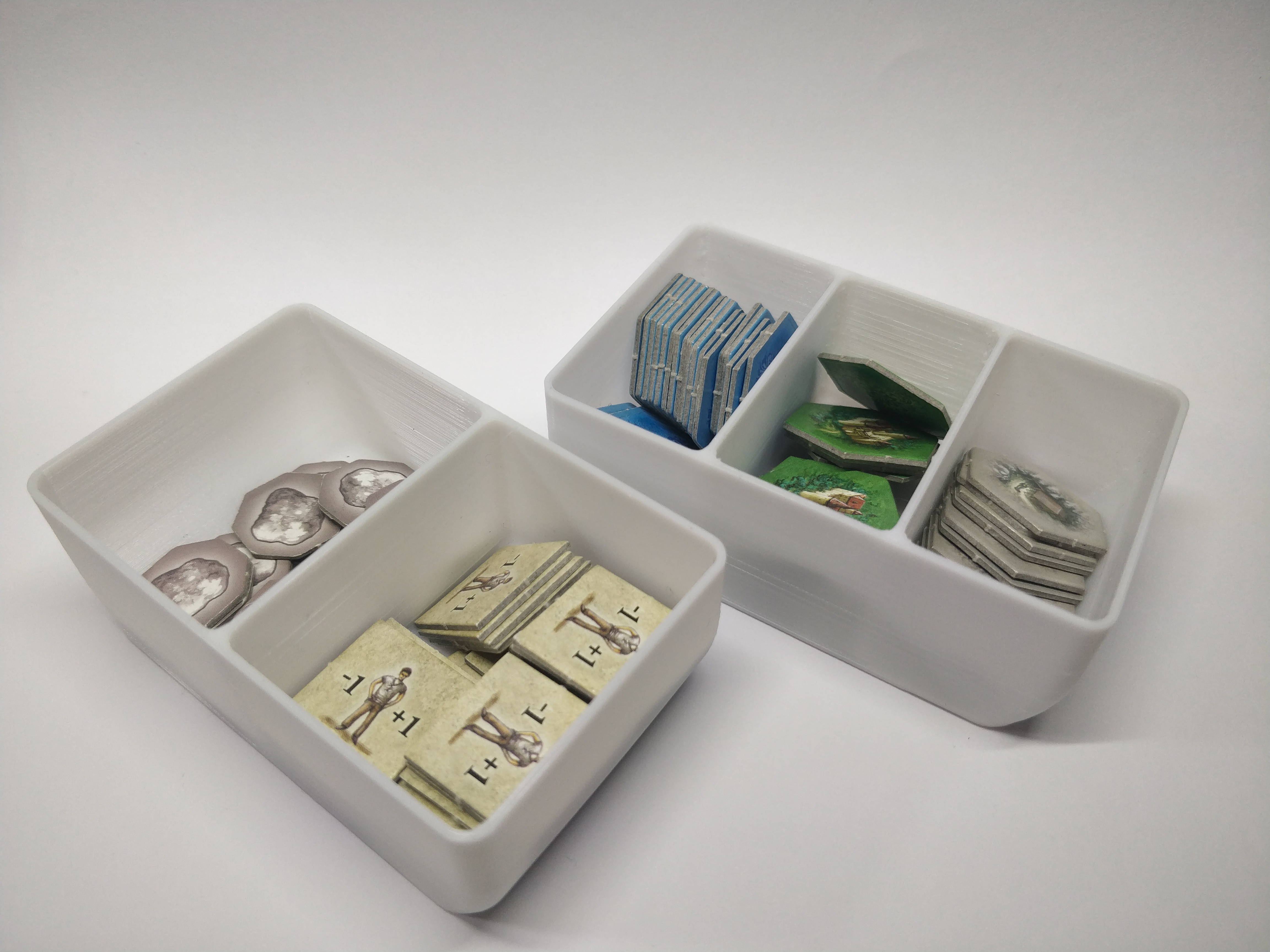

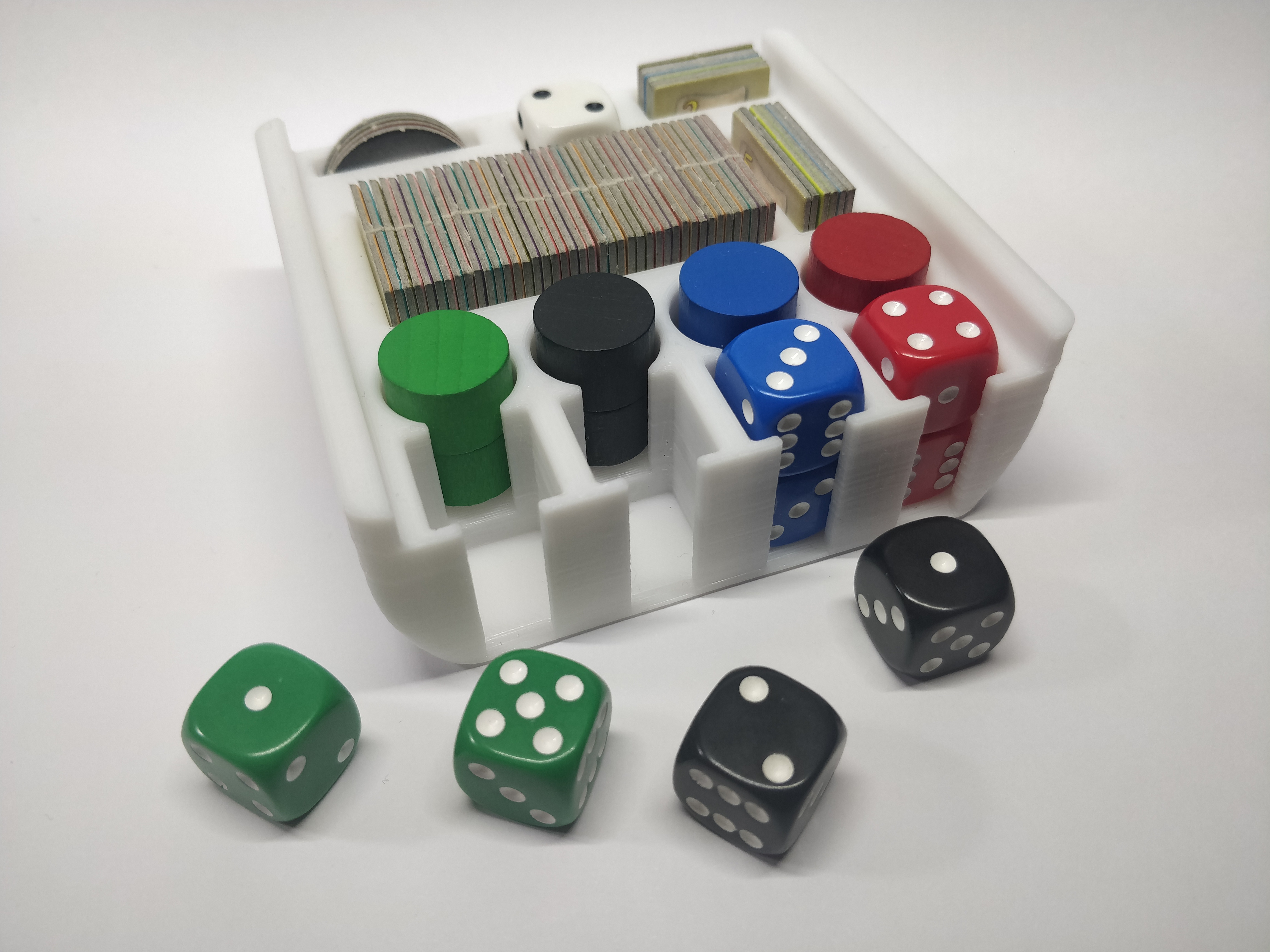

• all trays have chamfers under the game pieces to be grabbed easily without lifting the trays

• weight of all parts:

weight height width depth
20 g 19 mm 87 mm 54 mm

weight height width depth
62 g 32 mm 87 mm 82 mm

weight height width depth
22 g 32 mm 87 mm 52 mm

##
Print recommendations:

• 0.4 Nozzle in 0.2 Layer height

• PLA

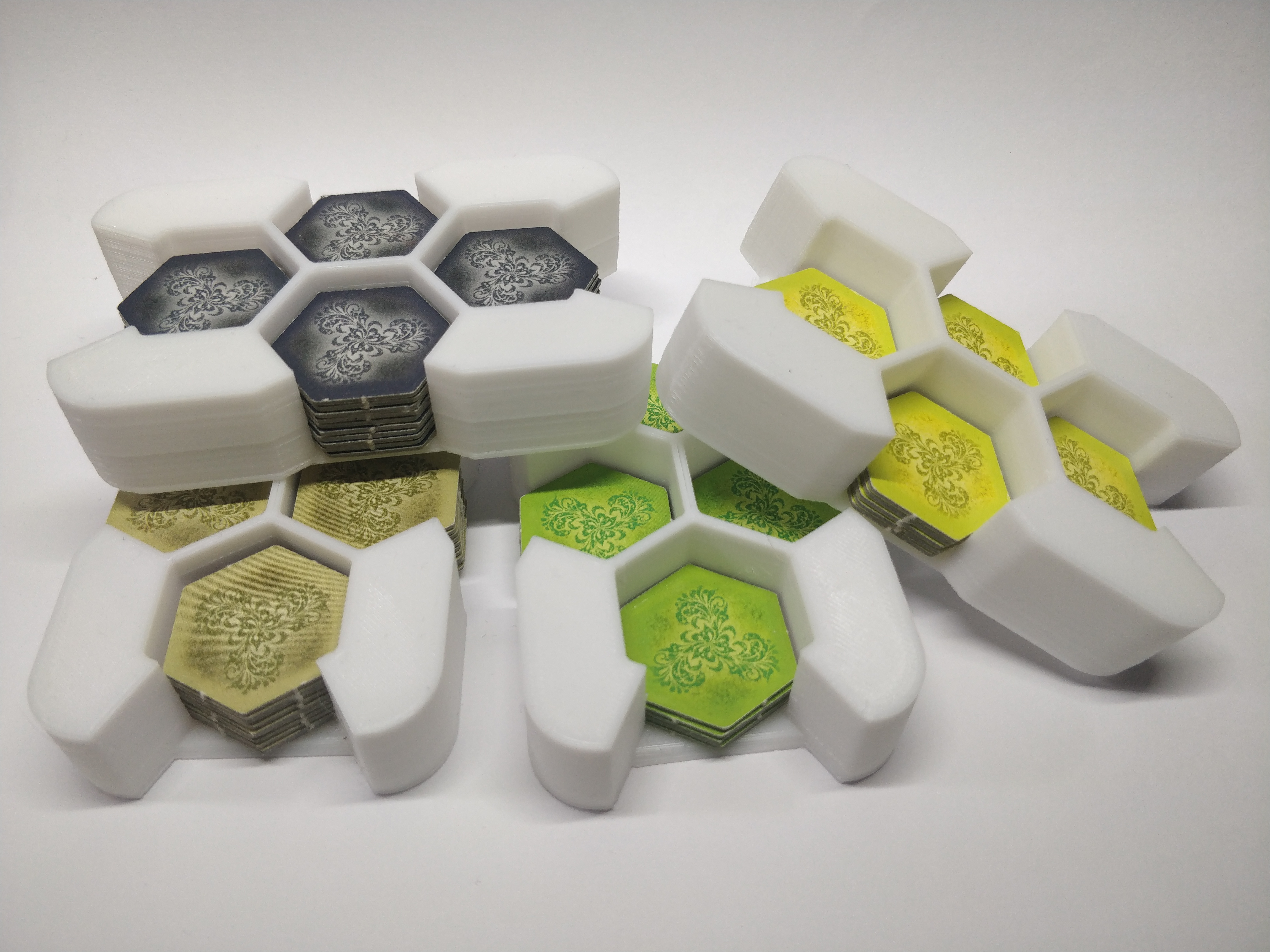

Part covered six-sided tiles game setup ships-mines-castles / Silverlings-worker tiles
Infill 0% 15% Grid 100%

• every part has a big flat bottom surface to face the built plate

• not needed, only minimal stringing cleanup

##
Related Model:

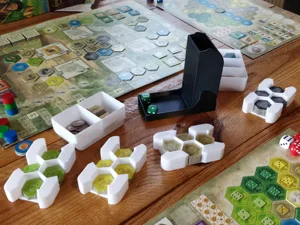

The Castles of Burgundy Dice Tower (Die Burgen von Burgund)
