ESP32 Project Enclosure with OLED SSD1306 0.96"

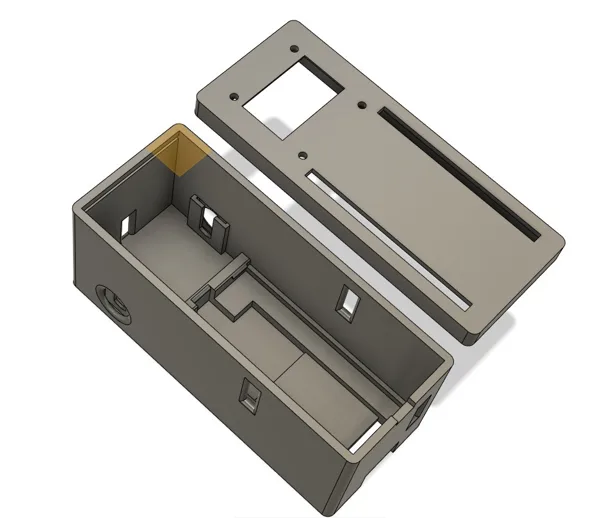

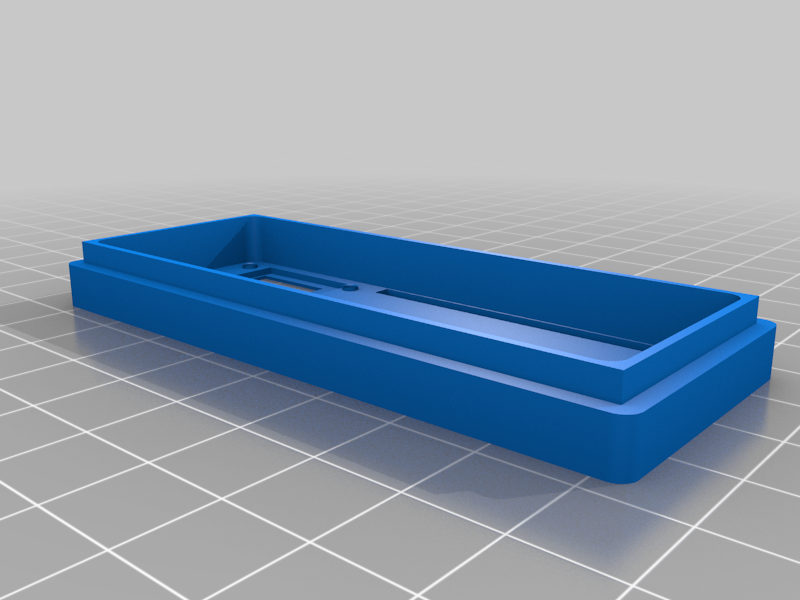

Made a project box for the ESP32 WROOM (although most ESP32 boards have the same form factor), with a lid for the 0.96" OLED screen.

It houses multiple access points for wiring, and a small 10mm slot for the touch sensors. I use a folded piece of nickel strip used for soldering lithium cells, and wire it to a touch-enabled GPIO pin.

There's extra space in there for voltage regulators, IMU's, etc. as well as the touch sensors. The lid also has a spot for a single 5050 addressable LED.

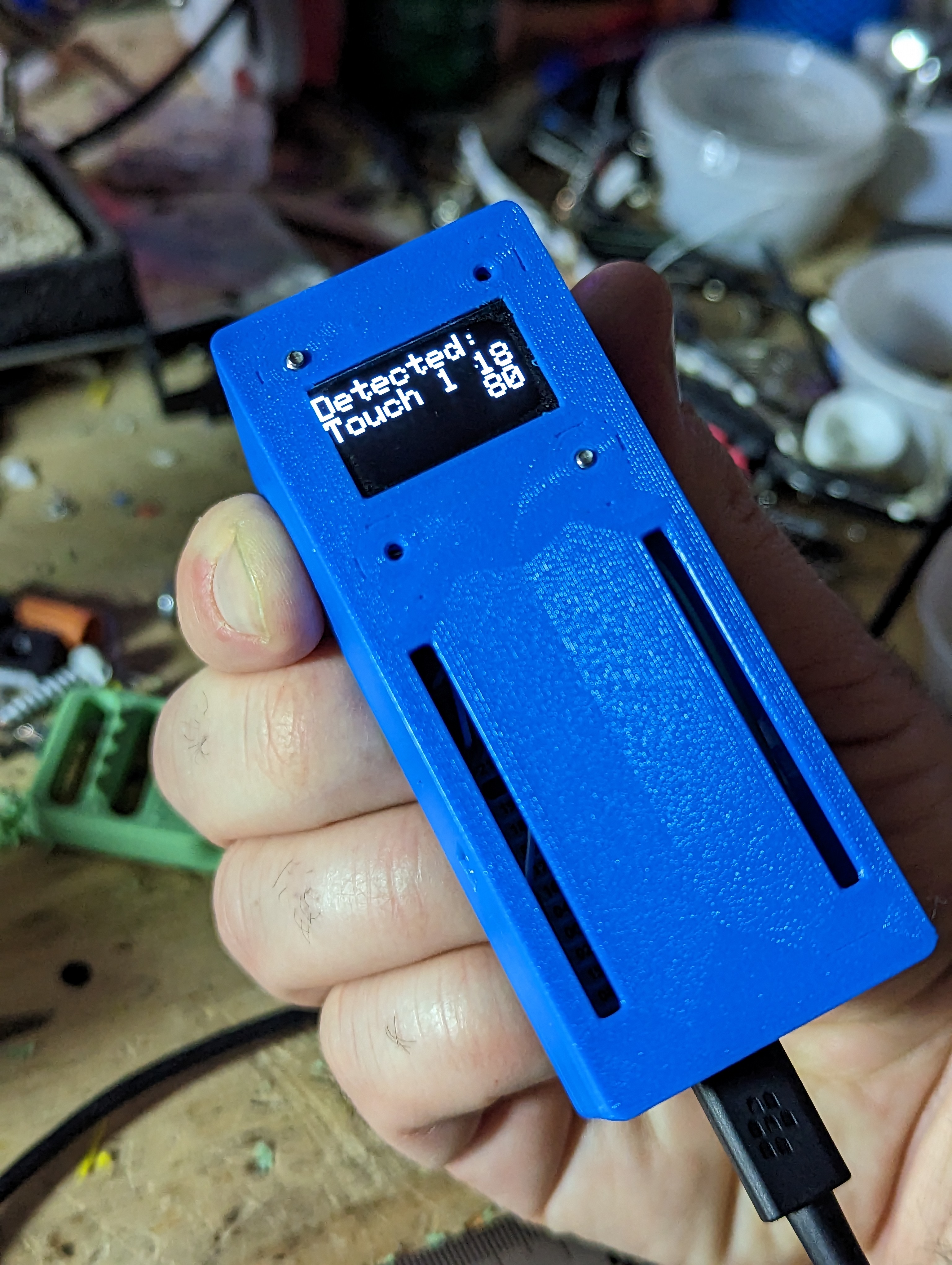

I've added a shorter box, in case you just want access to the pins from the outside. Not sure how the OLED will work being so close, but the photo is just a demo of what it could look like.

Print as-is, even .25mm layers will do.
