Modular Display Case for Hot Wheels stand holder

Boost Me 🚀 Support my work: If you like this model and appreciate it, please consider giving it a 👍, comments, or throwing a Boost my way! It really helps me keep creating and sharing free quality designs. Thank you!

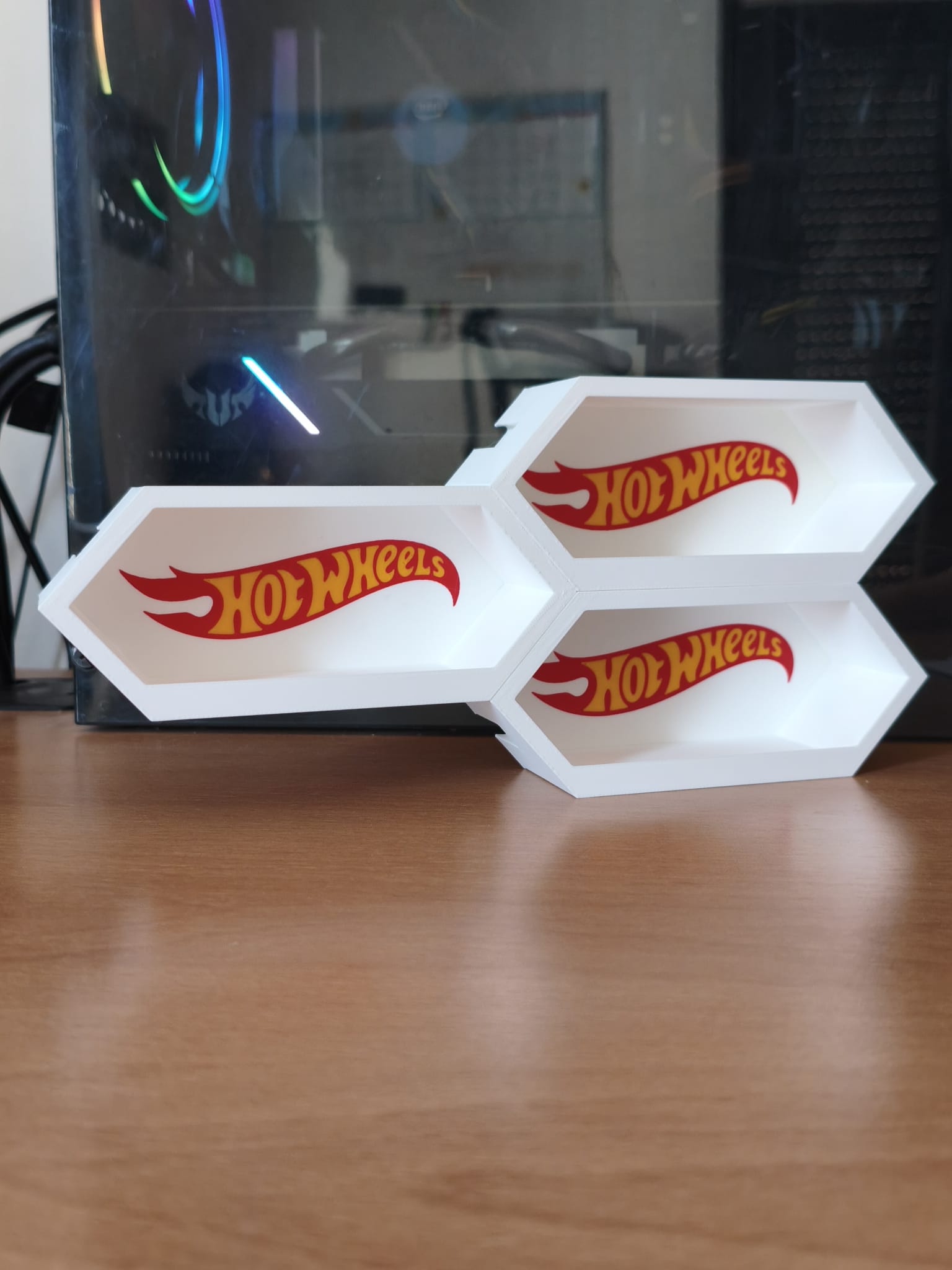

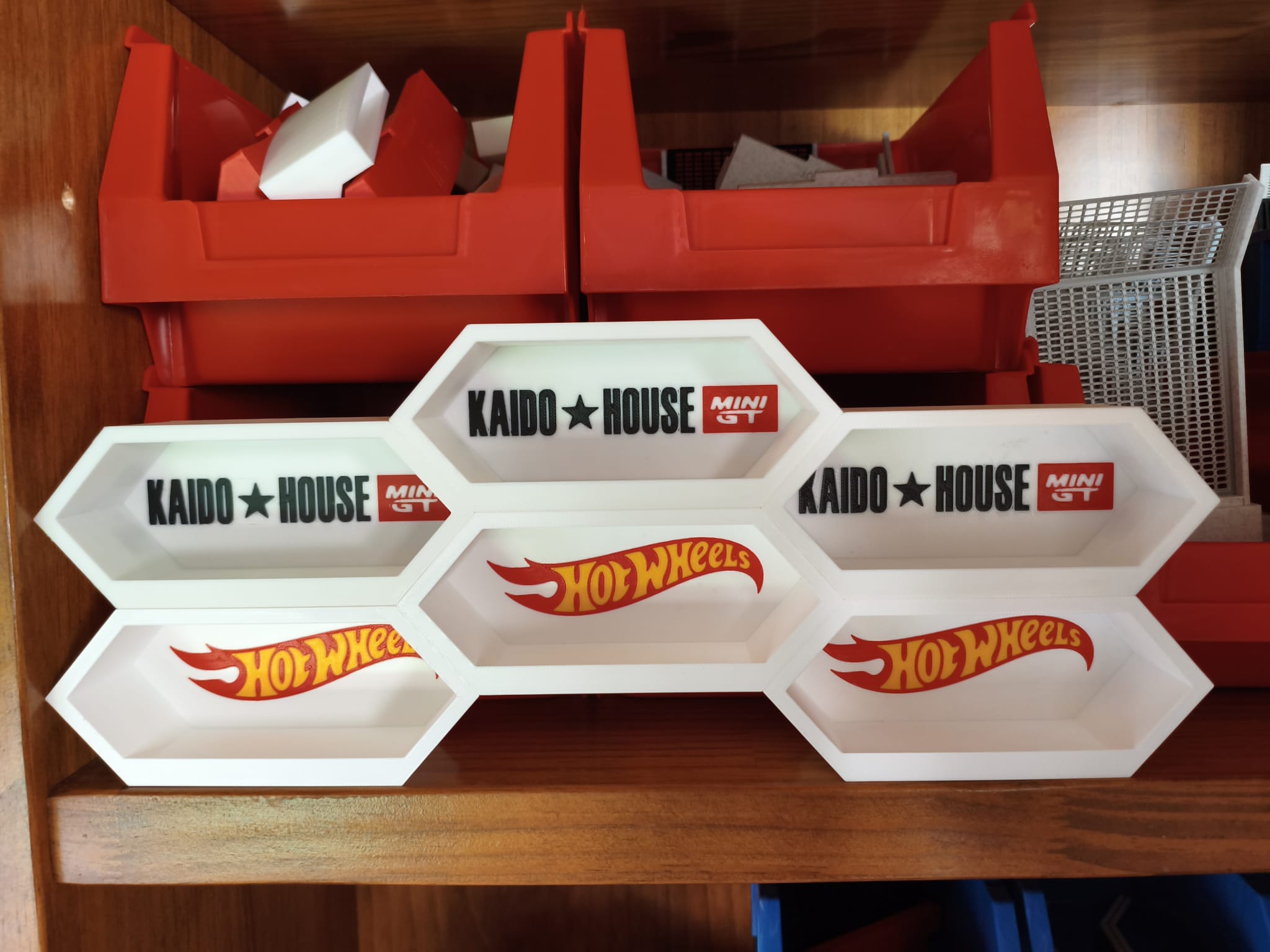

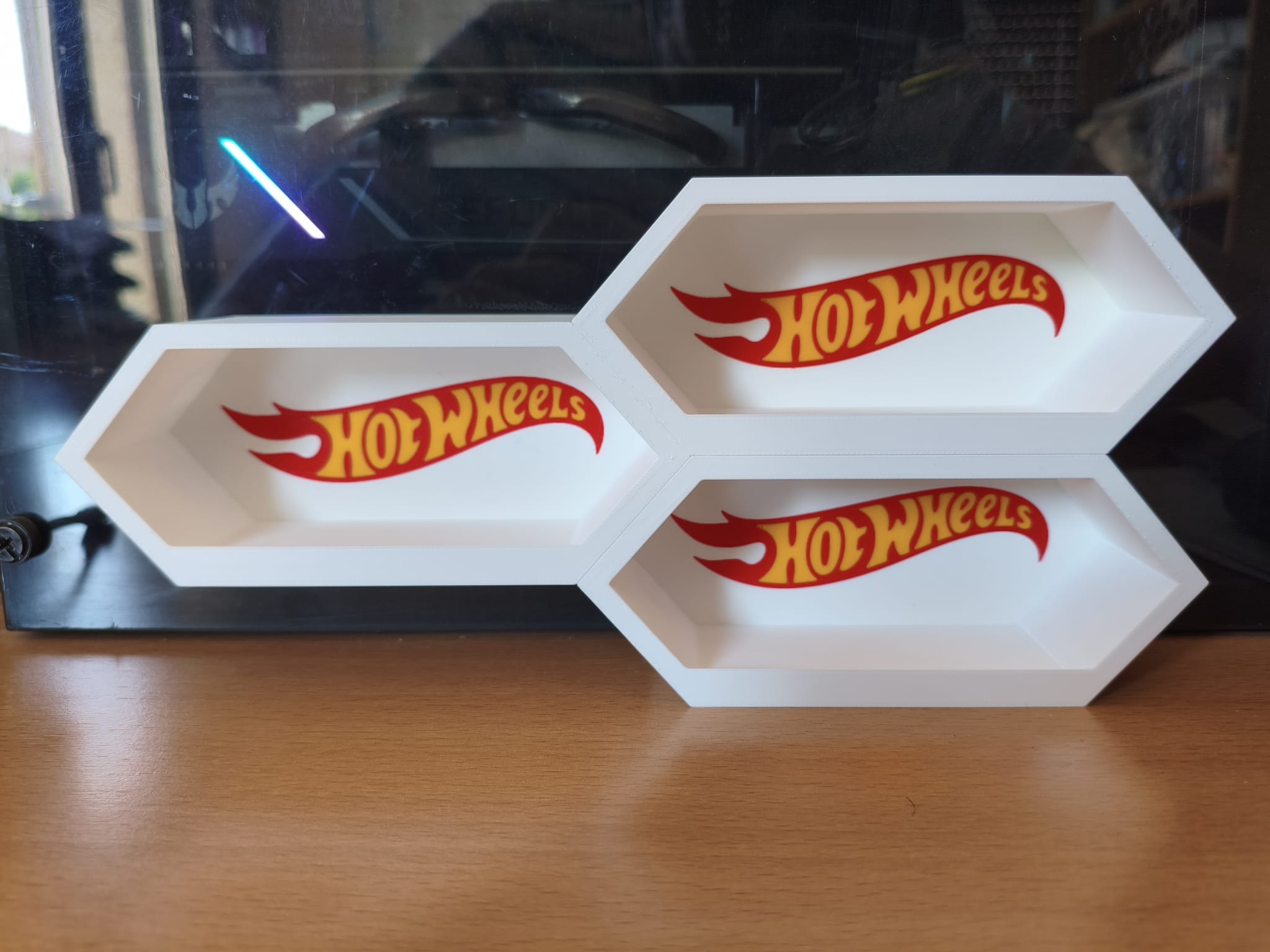

Showcase and organize your 1:64 scale diecast collection with this modular hexagonal display case . Specially designed for Hot Wheels, Matchbox, and other 1:64 scale cars , this interlocking system allows you to build a custom honeycomb wall display that grows along with your collection.

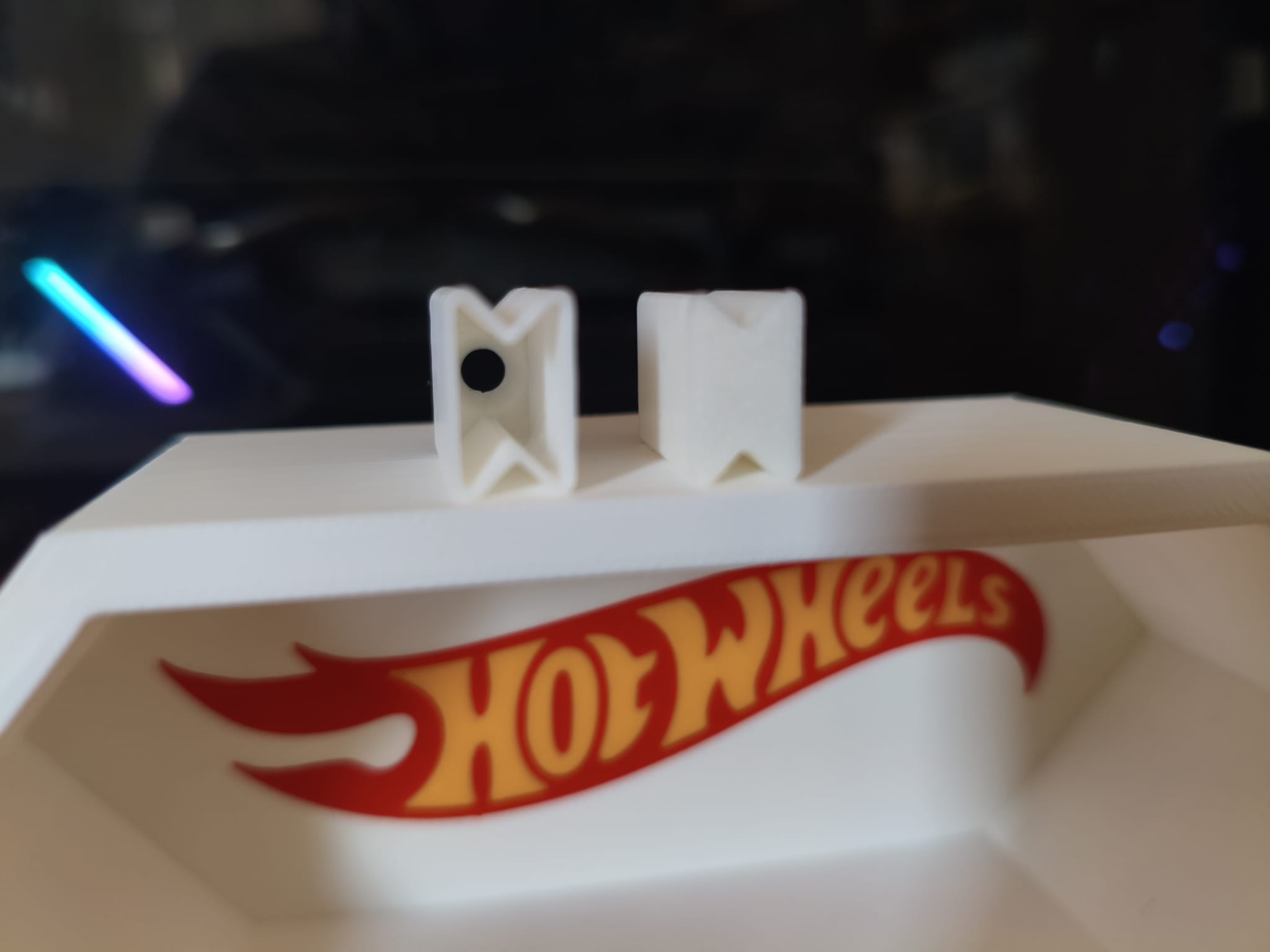

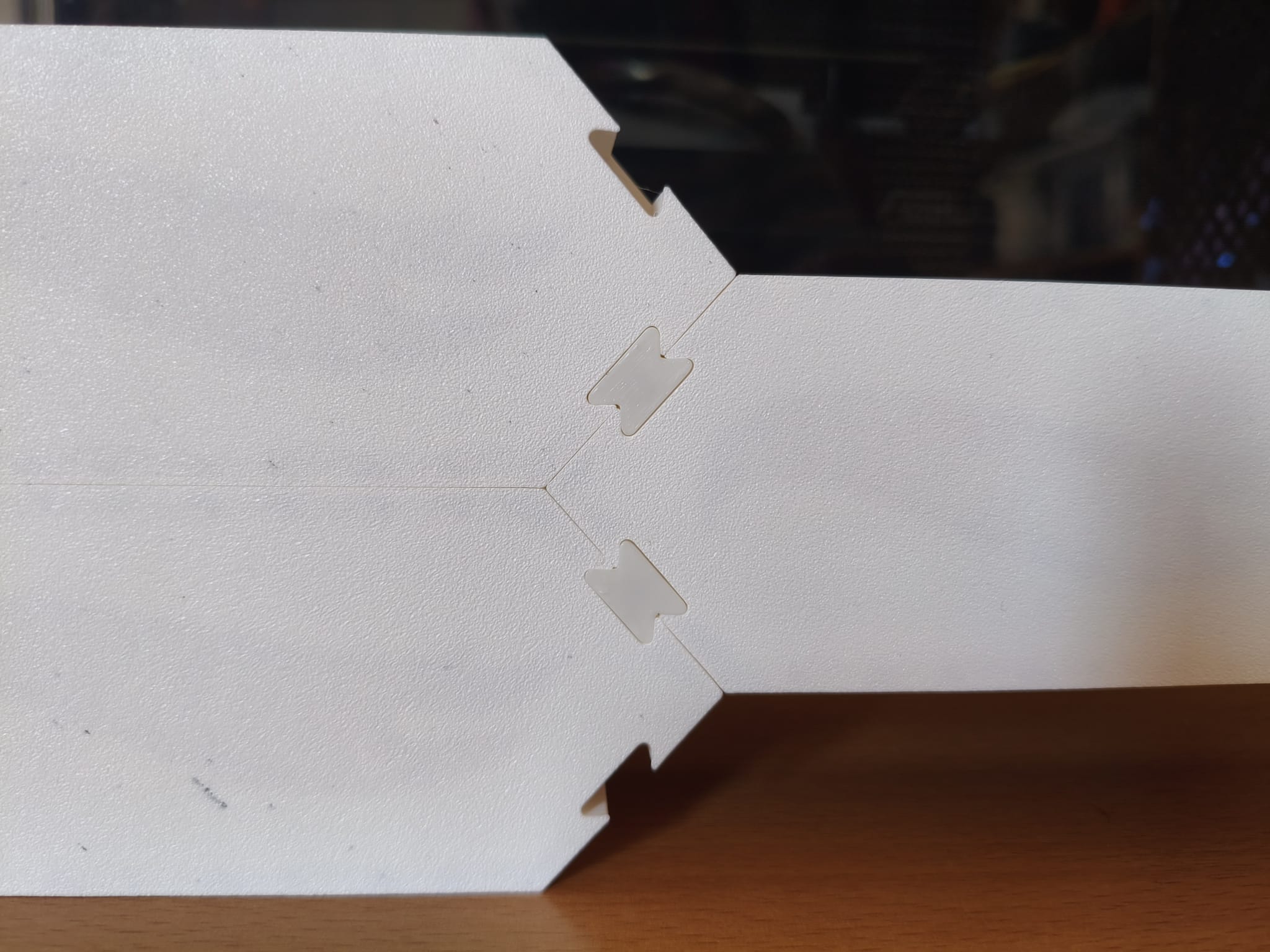

Smart Modular System: The boxes connect seamlessly at the back using custom dovetail/butterfly joints. The profile includes two types of connectors :

• Solid connectors for a quick and sturdy interlocking assembly.

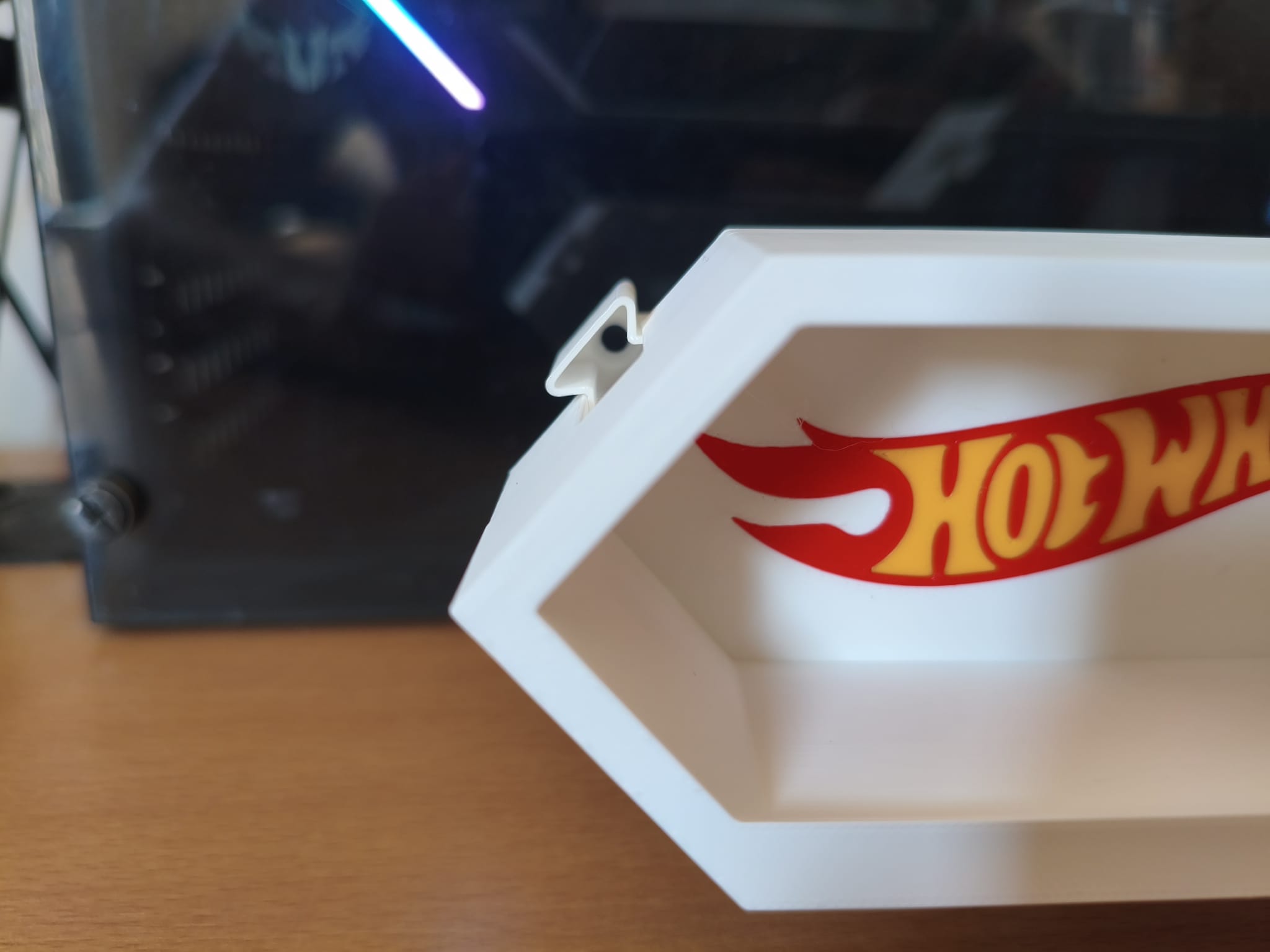

• Screw-hole connectors so you can easily mount and secure the display directly onto your wall.

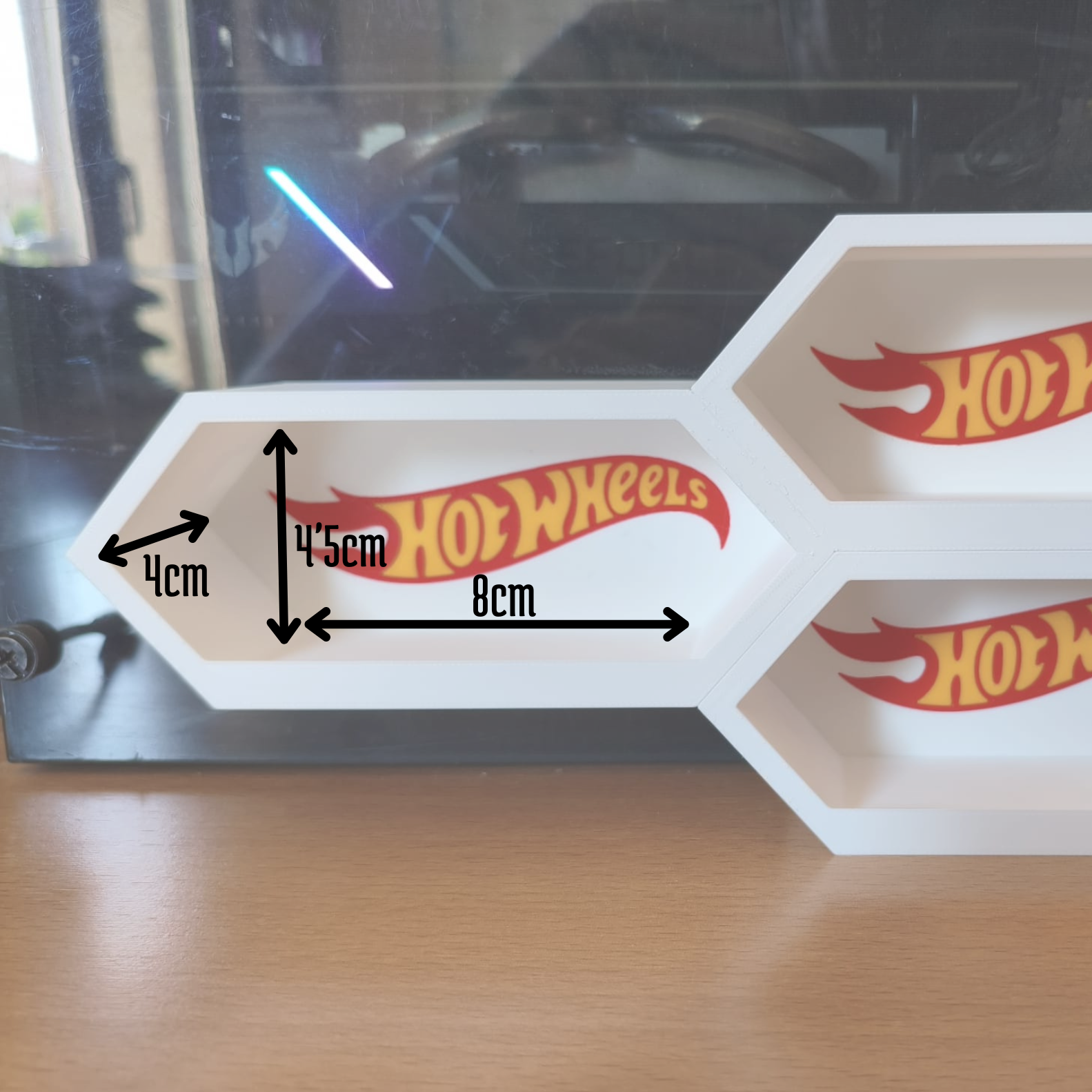

Perfect Fit Dimensions (Per Slot):

• Length: 8 cm

• Height: 4.5 cm

• Depth: 4 cm (Perfectly sized to fit standard cars while keeping a compact profile on the wall).

Printing Recommendations:

• Nozzle: Optimized for a standard 0.4mm nozzle .

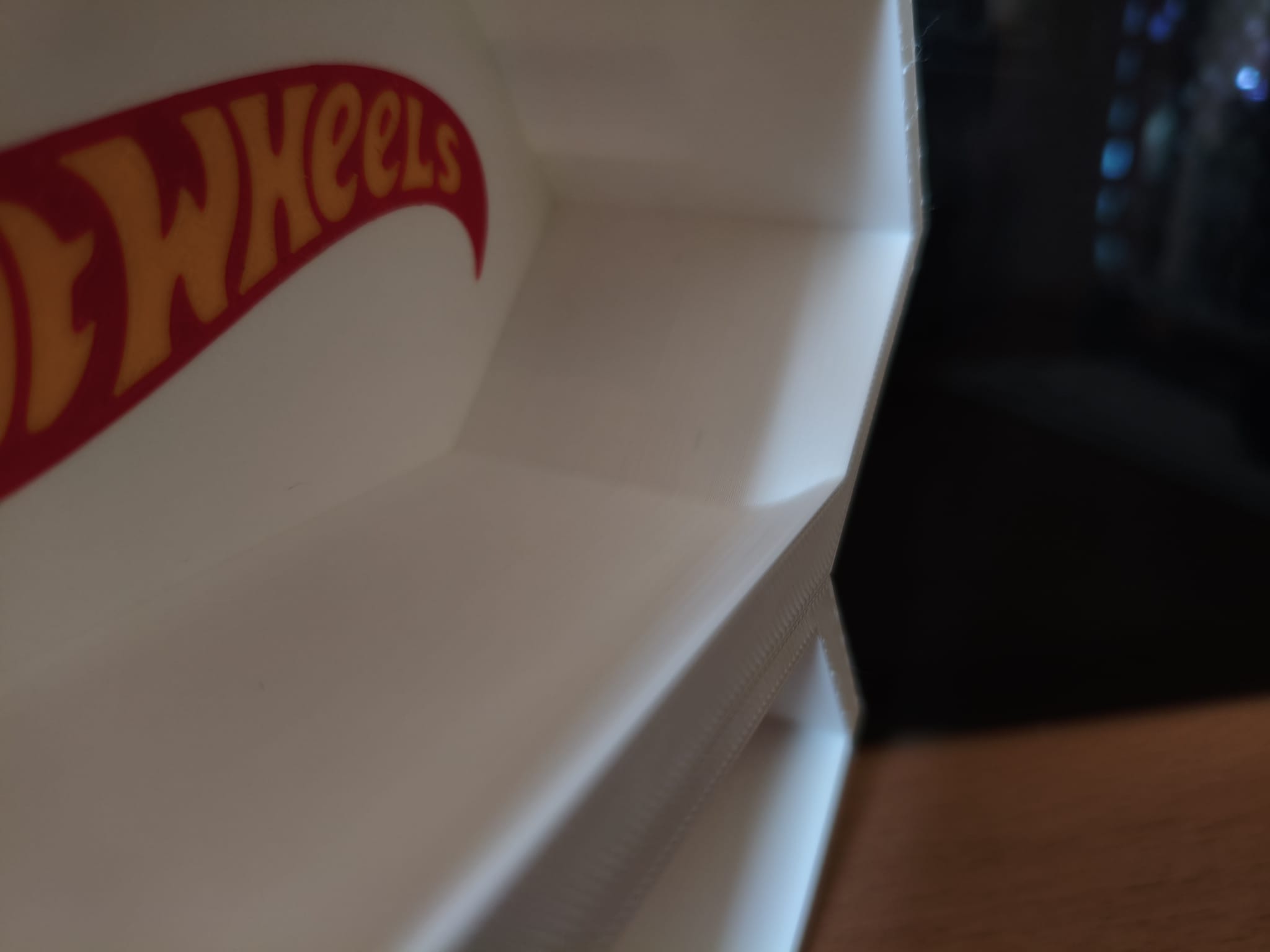

• Supports: No supports needed! The chamfered interior edges are designed to print perfectly using standard bridging/overhang settings.

• Wall Loops: 2 or 3 wall loops are more than enough for a sturdy structure.

💬 Future Upgrades & Community Support: This is an ongoing project! If this display case gets enough support (downloads, likes, and stars), I will expand the collection with new utility modules. I am already planning to add half-hexagonal boxes to perfectly flatten out and complete the bottom or top base on your wall. Have another idea or custom layout in mind? Leave a comment below with your suggestions, and let's build the ultimate display system together!
