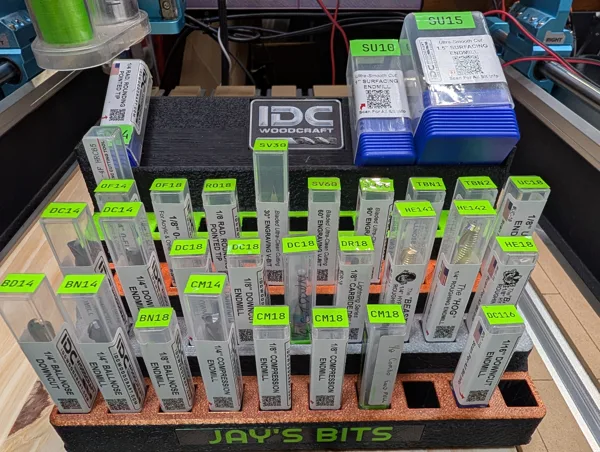

IDC Woodcraft Bit Organizer

CNC Bit Organizer, designed specifically for IDC Woodcraft bits, but should work for others.

Files:

Organizer, 2 versions, with and without Gridifinity base.

Name plate

IDC Woodcraft logo plate

Printing:

Print organizer at 0.24 layer height, 5% infill

Colors (optional):

Gridifinity version change color at:

26.70-28.70 -0 .16 layer height, 15 % infill, Hilbert Curve top layer

40.50-42.50-0 .16 layer height, 15 % infill, Hilbert Curve top layer

53.70-55.70- 0.16 layer height, 15 % infill, Hilbert Curve top layer

67.50-69.50-0 .16 layer height, 15 % infill, Hilbert Curve top layer

No Gridifinity version change color at:

20.70-22.70-0 .16 layer height, 15 % infill, Hilbert Curve top layer

34.50-36.50- 0.16 layer height, 15 % infill, Hilbert Curve top layer

47.70-49.70-0 .16 layer height, 15 % infill, Hilbert Curve top layer

61.50-63.50- 0.16 layer height, 15 % infill, Hilbert Curve top layer

Name Plate:

Edit the text.

0.12 layer height, 15% infill, Hilbert Curve top layer

IDC Woodcraft Logo Plate:

Black color 0 to 0.6, 0.24 layer height, 15% infill

Silver color starting at 0.60 height, 0.08 layer height, 6 wall loops, 90% infill

Paint bit flutes black with fine brush
