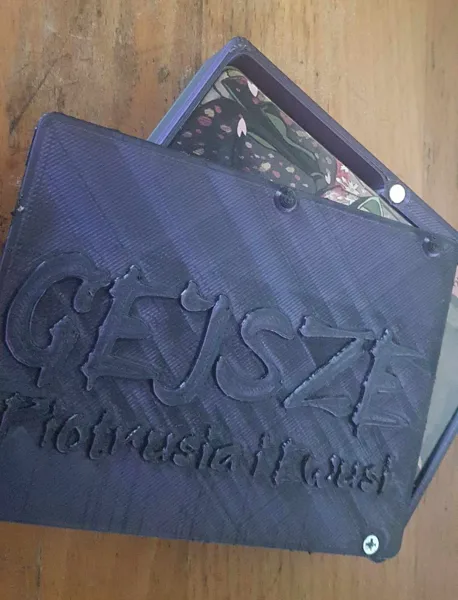

Gejsze (Hanamikoji) slide case

A travel box for Hanamikoji (Gejsze) game based on dimensions for polish release. Its a slide box with additional magnet lock.

Print Settings:

• Printer: Sidewinder X2

• Sunlu 2 color PLA

• 20% infil

• Enable Ironing (Default settings)

Simple design requiring only those components:

• M3 Nut 3x

• M3 x 20 bolt

• 2x 6x3 mm Neodymium magnet (optional)

Assembly instructions:

• Insert neodymium magnets in the circular holes,

• Insert 2 m3 bolts in hexagonal slots located in the back side of the top piece

• Insert M3 bolt inside the small slot located in the side of the case

• Allign top case with bottom piece and screw in the M3 bolt to match previosly inserted M3 bolt

Here are the dimensions used, check before printing:

Cards_x = 58.5;
Cards_y = 89;
Tokens_x = 30.5;
Tokens_y = 30.5;
Markers_D = 26;
Gejsza_x = 80;
Gejsza_y = 120;
