This is an insert for Street Masters - the Steamforge Edition, including all expansions.

There is a fantastic insert from Weltende, which cannot be praised highly enough: https://cults3d.com/en/3d-model/game/street-masters-all-in-insert
Not only is it excellently conceived and designed, but it also looks very nice and has the great advantage that you can choose the boxes (Steamforge or Blacklist version).

My solution was simply to build an insert for the Rise of the Kingdom box and add the Tide of the Dragon expansion at most, and then expand this to the Aftershock box from Steamforge, so that ultimately the Rise of the Kingdom box and the Aftershock box could contain everything that was available for purchase during the Gamefound campaign.

This insert holds (per box): Rise of the Kingdom Box:
- Rise of the Kingdom content
- Tide of the Dragon expansion
- Redemption 3 expansion (may also be included in the Aftershock Box)
- Rumble Pack
- Up to 2 playmats
- Extra dice and ring set

Aftershock Box:
- Aftershock Box content
- Lament of the Blood Moon expansion
- Redemption 3 (may also be included in the Rise of the Kingdom box)
- Up to 4 playmats
- Extra dice and ring set

You can see that the miniatures are only loosely stored in trays—otherwise, none of this would have been possible, and I would have had to leave out the playmat storage, for example.

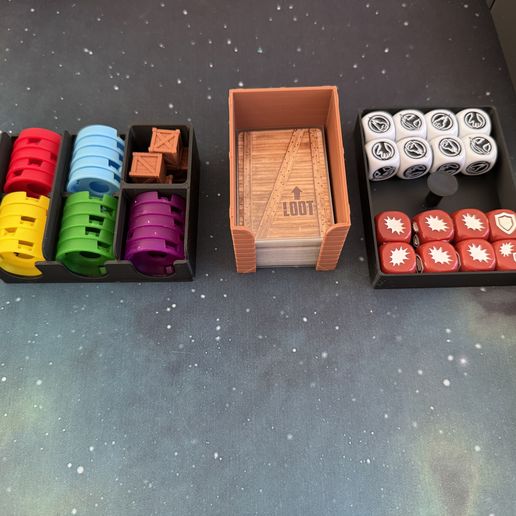

The tokens, dice, and rings have their own trays, although in the Rise of the Kingdom box, some tokens are stored according to Rivals/Allies, Fighters, and Enemies, as there would not have been enough space otherwise.

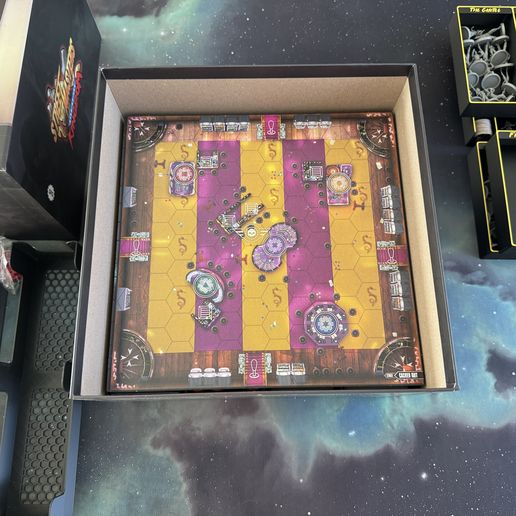

This is followed by a layer of game board pieces.

Below that are token trays, dice storage, trays for loot cards and mission cards, and of course the card trays for the stages, enemies, and fighters, which are designed for sleeved cards. All cards were sleeved with Gamegenic Matte Premium Sleeves, and that's how it was designed and tested. As you can see from the pictures, there is still enough space for expansions. Here in the pictures, you can only see the contents of the Rise of the Kingdom and Aftershock boxes, which have been sorted.

At the bottom of both boxes, you can see fillers in the pictures. These are available as a single piece (requires a large printer) and as a split version. In the Rise of the Kingdom box, the filler replaces the missing game board piece from the Tide of the Dragon expansion. In the Aftershock box, the filler replaces the missing game board pieces from the Lament of the Blood Moon expansion. If you have these expansions, you don't need to print the filler, of course. I printed the fillers without the top and bottom layers.

I also created the boxes in 3D so that they can be used instead of the cardboard tokens.

The Playmate Trays: The Rise of the Kingdom Box comes with one, while the Aftershock Box comes with two. Each tray can hold two rolled-up playmats, and there is still room left over to store additional rings in a zip bag (if you need them – one set is perfectly sufficient). There are two versions of the 2-pack for the Aftershock Box: a split version (you print 2 individual trays) or a connected 2-pack version. The split version can be printed at a 45-degree angle on standard printers. The connected version requires a larger printer such as the Bambu Lab H2D or H2S.

The insert does not create a lid lift.

All files must be printed once, with the exception of files that have an x and a number in their name. For example, x24 means that this part must be printed 24 times.

For the playmat trays and sensors, you need to check whether you need them.

The 3mf file is included and already prepared for multicolor printing. There is one 3mf file for each box – these are easily recognizable by their names.

The longest part to print measures 290.5 mm. This should be possible to print on standard printers by rotating the part 45 degrees in the slicer.

The whole thing was printed on a BambuLab A1, H2S, and H2D. Printing takes about 65 hours for both boxes, with a material consumption of about 1300 grams (Rise of the Kingdom box) and 1450 grams (Aftershock box) – so about 2750 grams for both together.

The STL and 3mf file names are named after the respective box at the beginning of the file:
RotK = Rise of the Kingdom Box
Aftershock = Aftershock Box
