Aeon Trespass: Odyssey Interlocking Map Card/Tile Frame - Resized and Raised

Edit - print v3, see changes below!!

Edit 05.2025 - Added 3x3 and 4x4 tiles, more info belw.

Thanks thingiverse user taboobat for the excellent design! It is able to stack and locks very well without using magnets.

For me, it had two things I didn't like - the cards are quite receded (4mm from frame) and have too much space around them to move (something like 2mm).

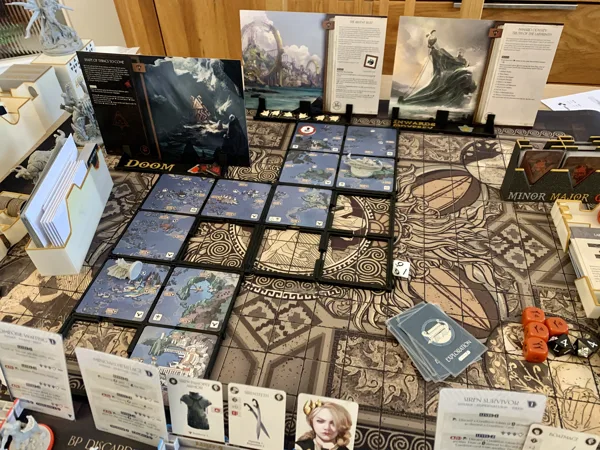

This remix does two things:

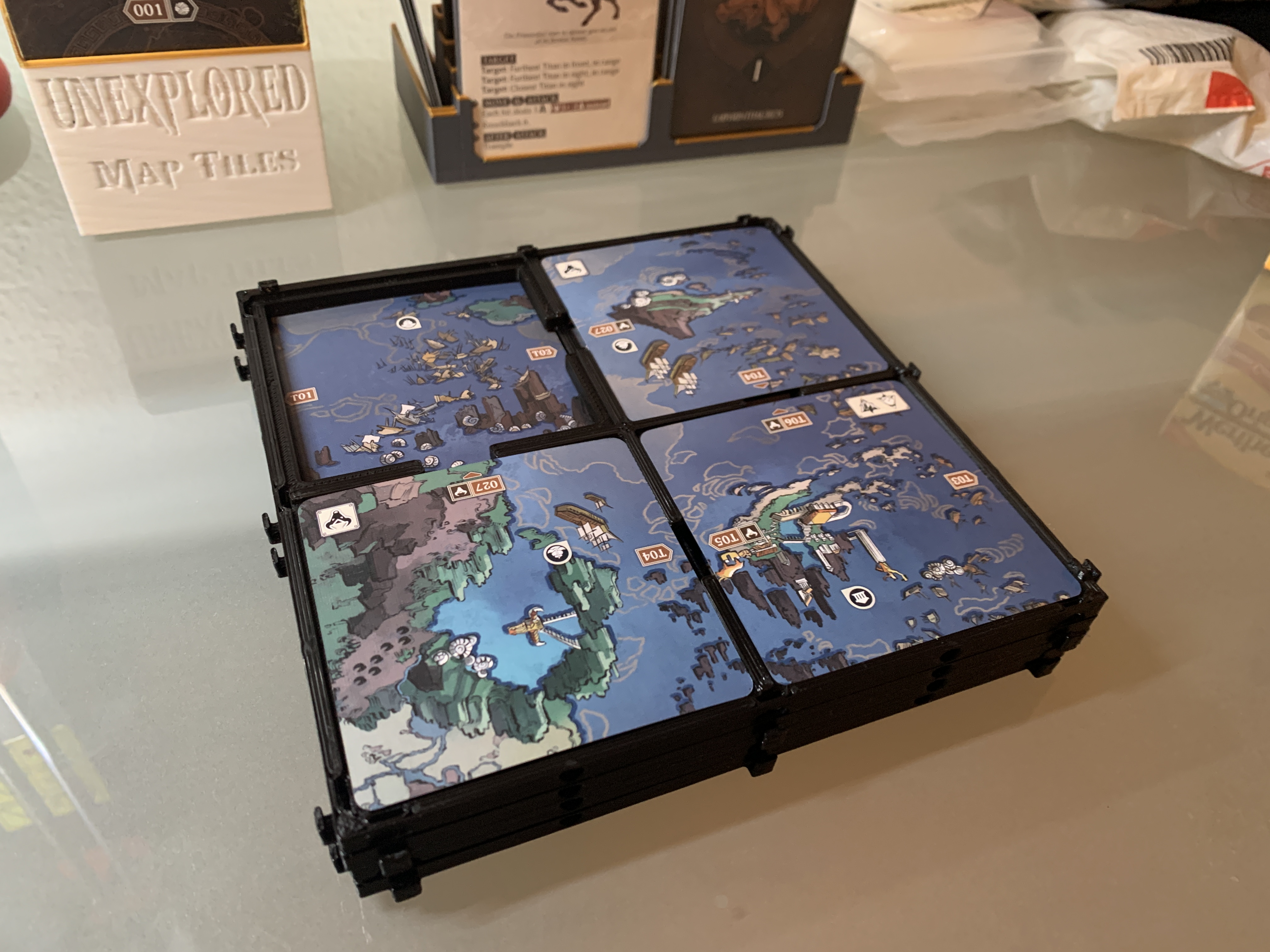

• It raises the cards by 3mm to they are not as receded and just 1mm from the frame, which is enough to keep them in place.

• Reduces the size of the frame so the cards do not move around as much.

As well I have improved the design further as you see below through the versions, and added the following versions (for both tiles and cards):

• Standard is 2x2

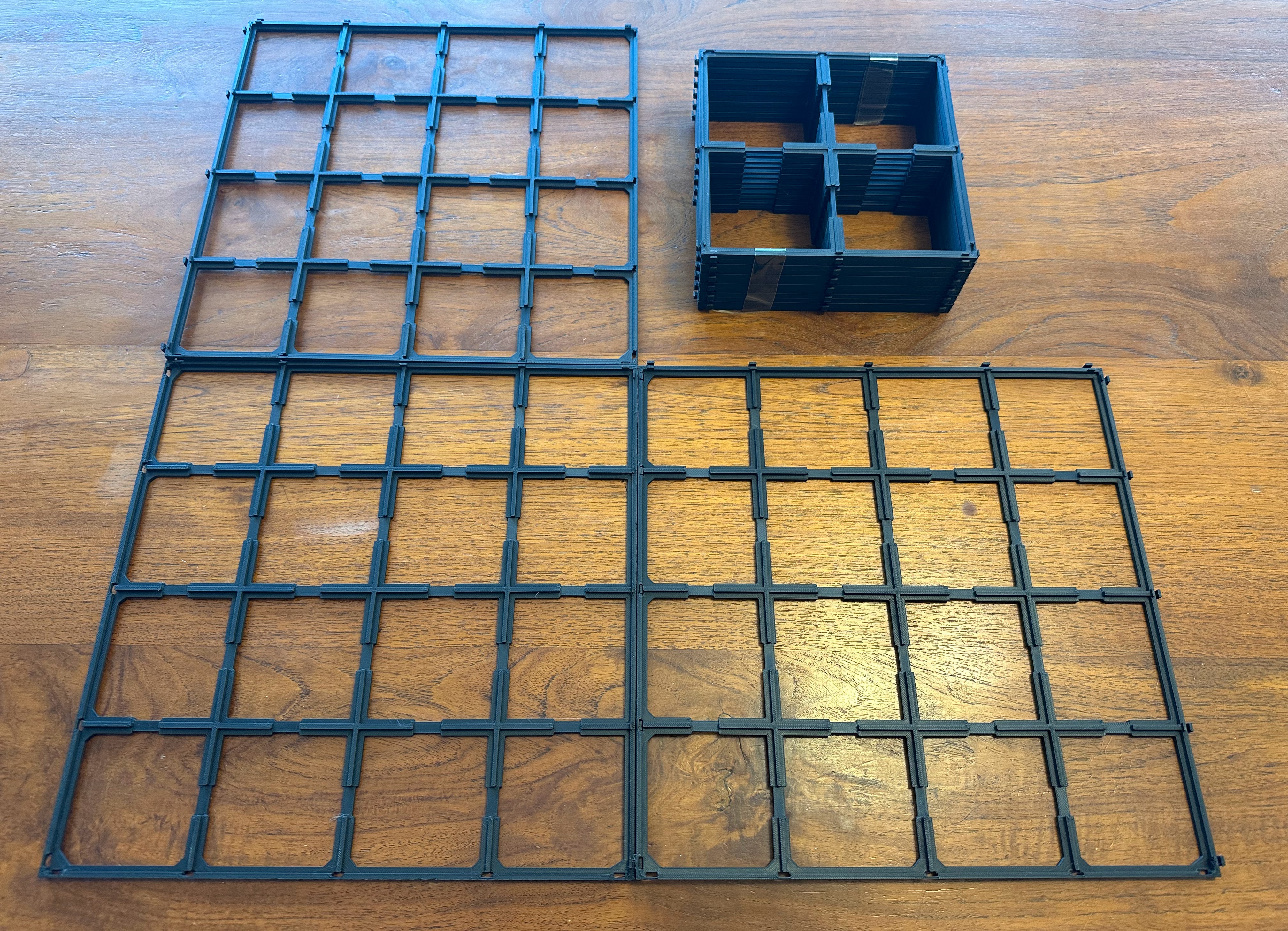

• 3x3 for people with larger printers, 230x230 minimum (ie, Bambu)

• 4x4 for people with even larger ones :), 305x305 minimum (ie, Prusa XL)

I printed on a Prusa with 0.6 nozzle and 0.3 layer height, it worked well.

Check my ATO collection for more models for this amazing game: https://www.printables.com/social/102825-juanv/collections/554970

v2 - Uploaded 2 new models, please use these new ones. Changes:

• Models for cards (more raised so cards are near upper edge) and one for tiles (lower, enough space for tiles to be flush against upper edge).

• Removed holes for magnets. Never using these, made print weaker.

• Removed some material, added some other - optimized for printing fast with 0.6 nozzle.

v3 - Uploaded, Changes:

• Thickened tabs as they were breaking away when using PETG, and were weak with PLA and could break.

• Because of thicker holes for tabs, also added reinforced corners. Also made thinner center section thicker, so trays don't bend as much.

v3.1 - 05.2025 - added 3x3 and 4x4
