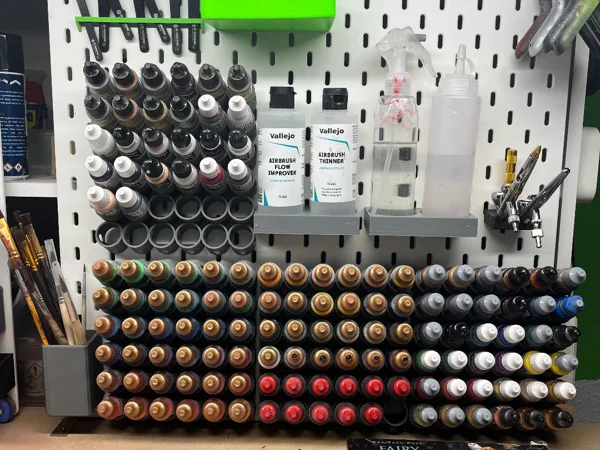

Modular Skadis Paint Rack UPDATE Vers. 2
Please support Kinni by Liking/Boosting their Print on MakerWorld.
UPDATE March 2025:
Added Profiles for the new version of the Paint Rack. Version 2 is stripped down as much as possible.
• P1S = 36 holder with only 99gr PLA and below 3hrs print time with P1S and 0,6 nozzle.
• A1 Mini is 24 holder wit only 85 gr PLA and as well below 3hrs.
• Added round edges to the tops for easier use.
• Added a bunch of pictures as installation guide, as many asked for it.
They will look much nicer if you print them with 0,4 nozzle and 0,2mm layer! Print time would be around 4 hrs, but still material saving.
UPDATE Dec 2024: Based on so many comments asking for an A1Mini version, I uploaded now the smaller Vallejo, Army Painter rack fitted for prints an A1 Mini. Have fun.
Modular Pain Rak for Army Painter or Vallejo colors like GameColor, ModelColor, …. Each modul holds 36x 25mm bottles.
Variation for 25x35mm bottles as well included.
For me it´s easier to get this either flat on the table or on the Stand that ´s included, instead of each time looking for color and have to sort them back in after painting. So I can choose directly and put them back.
For the Stand you need 2 M3x8 screws.
The mounts for Skadis are separated, so you can organize them as you want. 1 spacer for the bottom is inculded. All simply the be attached by any Superglue available.
Install mounts:
1. Put the hangers in the Skadis wall where you want the rack.
2. Attach superglue on their backside.
3. Position the racks the way you need them.
4. Use activator spray if you have, to fasten the dry process. A very light spray of water might work a well.
5. Take off the rack and fix the spacer plate at the bottom of the backside. So it will hang straight.
Done. Now you should be abel to mount serveral of them without any gaps side by side. Saves space. It wont get any easier then this.
