Arkham Horror LCG Modular Token Storage

Usage

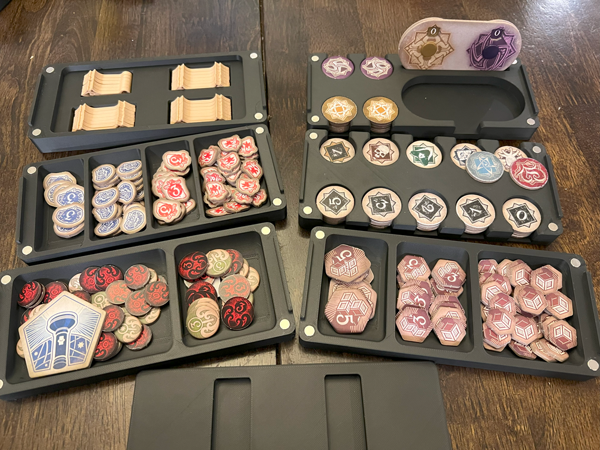

This storage system is designed to store the following Arkham Horror LCG items for quick setup:

• Chaos Tokens

• 10x Bless / Curse Tokens with Dial

• Resources

• Health / Sanity

• Doom / Clues

• Path Connector Arrows

It is also modular, allowing some degree of customization. If you are not using bless / curse tokens, you can easily omit that. You can also mix and match with other trays from my Marvel Champions Modular Token Holder , which may work better for other custom tokens.

I have since replaced all of my original Chaos Tokens and Clues/Doom with Aurbits and can confirm that they fit with no modifications.

The storage stacks and locks into place with magnets and guiding tabs. Print 2x lids if you want to store this in two separate stacks to fit in the Marvel Champions box. I store mine in a Dragonshield Magic Carpet 1000 XL. This is sized to fit exactly within. The “Lid - Grip” has cut outs to allow you to lift the entire nested system out of the Magic Carpet.

Due to the size restrictions for fitting in the Dragonshield box, the chaos tokens do not accommodate coin capsules .

Printing

To fit all standard items, print the following:

• 1x Lid - Grip

• 1x Path Arrows

• 1x Resources

• 1x Bless Curse Tokens

• 1x Chaos Tokens

• 1x Doom - Clue

• 1x Health - Sanity

You will also need 8x magnets sized 6mm x 2mm thk per modular section. Be very careful about the magnet polarity when installing these. All of the magnets on the top faces must be the opposite as the bottom faces (i.e. top faces of all trays is North, while the bottom faces of all trays is South). This will allow you to nest them easily in any order.

The magnets holes are designed to be 0.10mm oversized, which is very close. Depending on your printer, the magnets may be a bit tight or loose. Use superglue or epoxy to keep the magnets stable.
