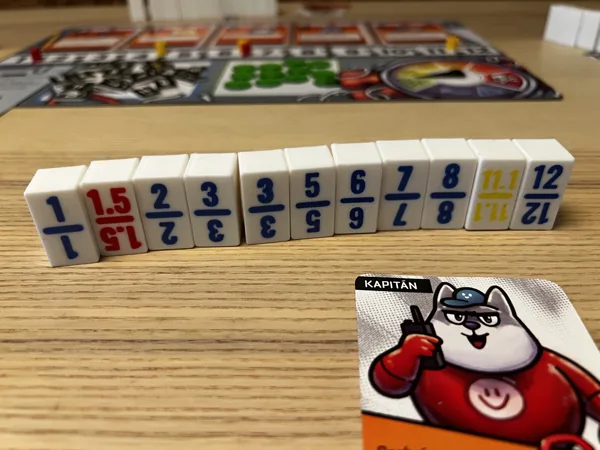

Bomb Busters wire tiles

A 3D-printable replacement for the cardboard “wires” used in Bomb Busters . I created them so you can have durable, good-looking, color-coded parts. Printing is possible without needing a multi-material printer.

• Prepared for: Prusa Mini+ (but should work on any single-extruder printer that supports M600 filament changes)

• File: .3mf sliced and ready to go

• Material: PLA

• Layer height: 0.2 mm

• Input Shaper: Works great with it enabled

The provided G-code/3MF assumes four filament swaps per board in this order:

• Color filament (blue, red, or yellow)

• White

• Color (same as step 1)

• White again

You can start the print with any filament —the G-code will immediately prompt you to swap to the first required color.

I added small helper/sacrificial objects on the build plate to shield the model during filament changes and to catch stringing . Just snap or trim them off after printing.

##

• No supports needed

• Brim: only on support objects

• Cooling: standard PLA profile is fine

• Perimeters/infill: Default Prusa Slicer / Prusament PLA or whatever your default PLA profile uses will work; these parts don’t need special strength

• If you’re not on a Prusa Mini+, make sure your printer correctly handles M600 (or equivalent) filament change commands

##

• Remove the helper objects

• Lightly deburr edges if needed

Modeled in Onshape and publicly available here:

https://cad.onshape.com/documents/7ba55a5a90c20828d489b430/v/d8dddb263544532465d13e6d/e/2a2d706c17a35abe4093c8f0

I’m also providing each piece as a separate STL file, so you can orient and slice them yourself.

Unofficial fan-made accessory . All rights to Bomb Busters belong to the original publisher/designers.

This is my first ever 3D model upload — thanks for your kindness, and please drop any tips, print reports, or suggestions to make it better!

v1.0 – Initial release of the 3MF with helper objects and filament-swap sequence.
