EDC Rummikub Game

Hello!

Here i present to you my design of a pocket able rummikub version.

This idea was born out of my intrest in the EDC world, having tons of useful and fun portable things with you at all time.

I already had a deck of playing cards with me every day, when i was starting to play rummikub a ton with friends.

So i decided to make a portable version of the game.

I used a 20G needle that i filed the tip off to fill in the numbers with acrylic paint.

this worked well for me but the golden rule is, wipe your tip and don't use to much paint!

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

20%

Filament: 1233d PLA

Notes:

you can try to print the box and lid without support but in my case i needed to add them.
for all of the stones there is no support needed.

what you need to assemble and print this.

You can fully print this games with the exception of the hinge post, i used a paperclip cut to length for it.

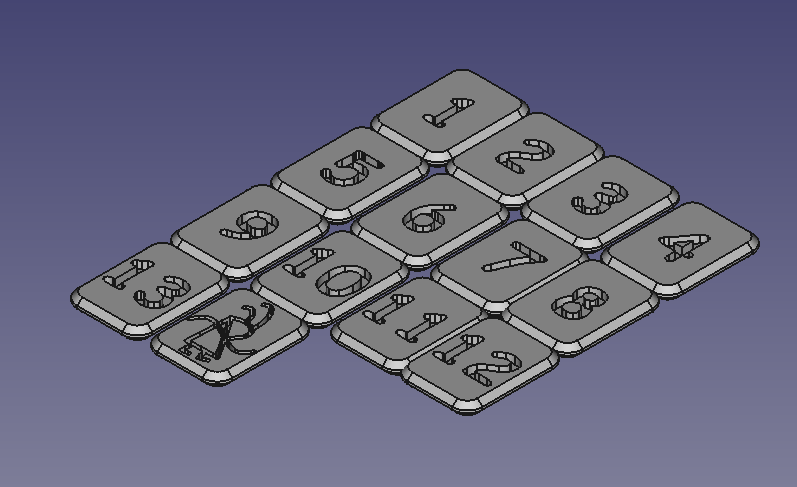

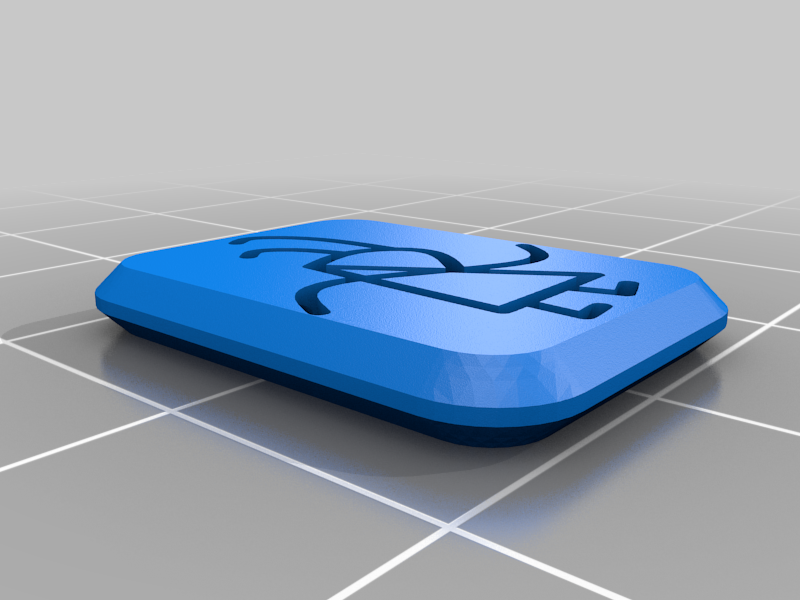

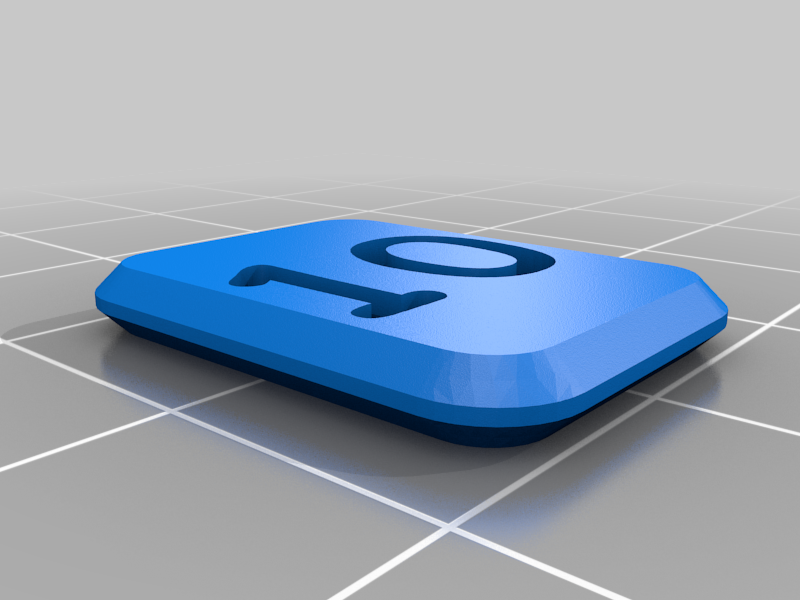

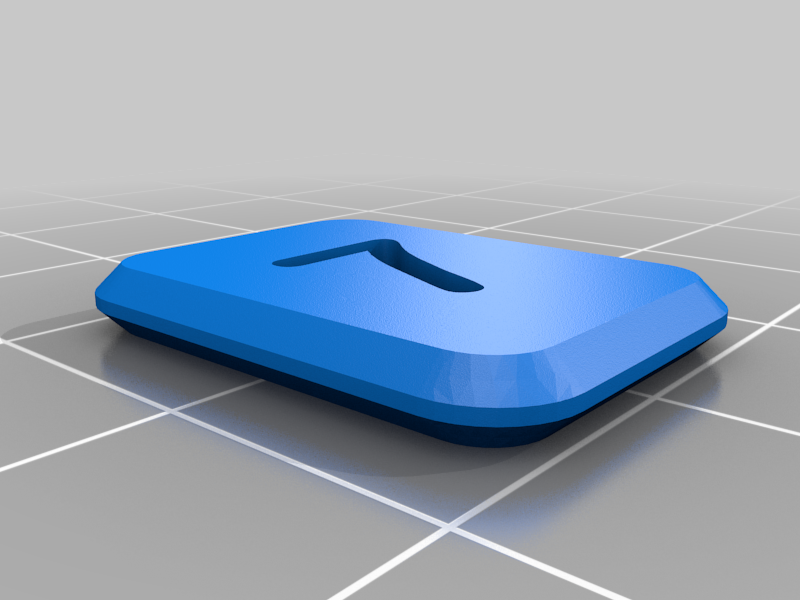

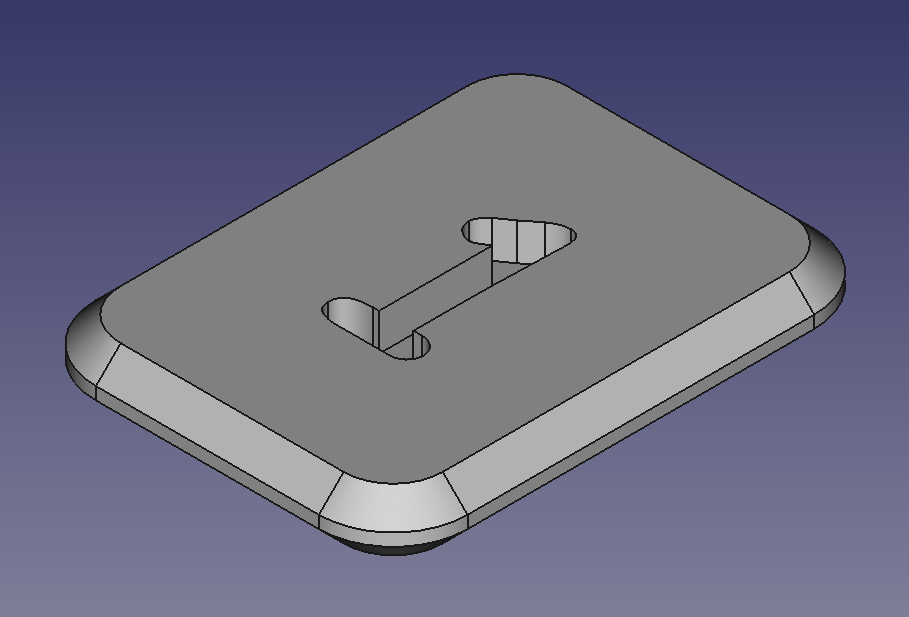

You will need to print the tiles 4 times except for the joker witch you only need 2 off.

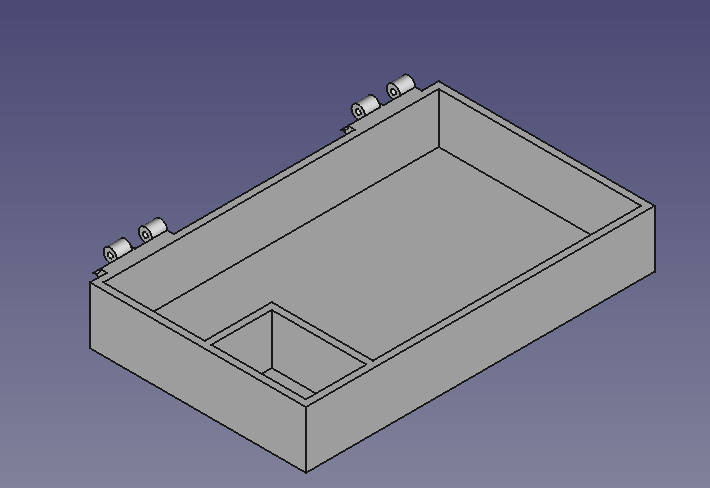

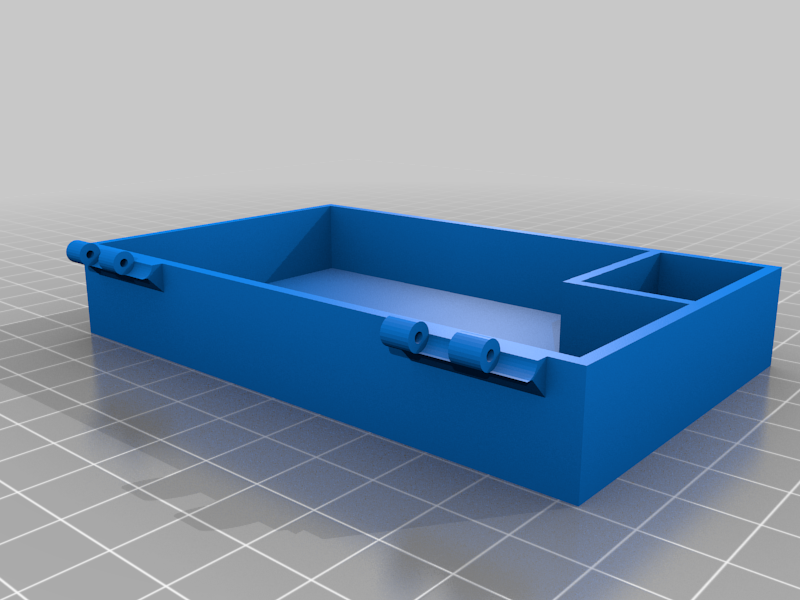

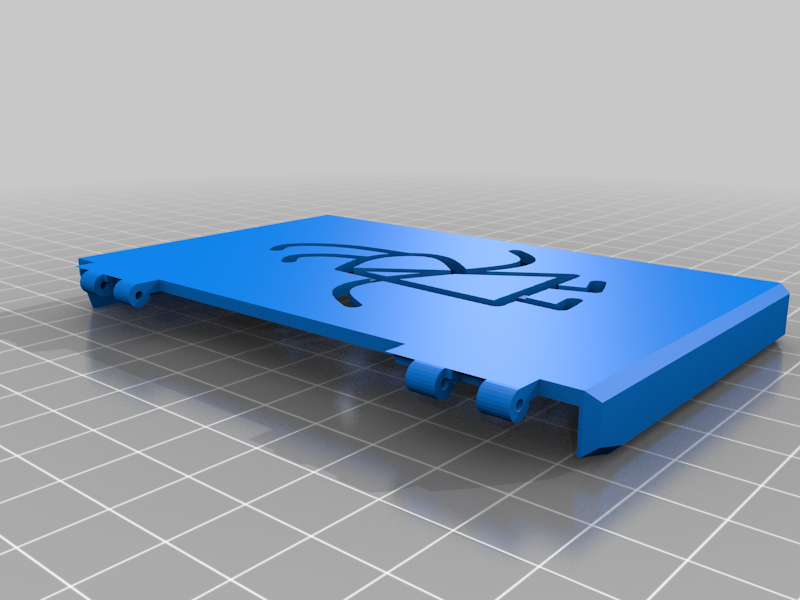

The lid and the box need to be printed with the flat portion on the bed and with support for the hinges. the lid will need some support under the symbol.

A bit larger then a set of playing cards, but still portable

There is an option to add a small bag or cloth in the free space in the box, so u can cover the stones.
