Arkham Horror TCG - Location Manager

for Arkham Horror (2005)

Malachiasz + Follow

Card & Deck Holders

2 plates 5h 21m 0.4 mm 127 g PLA Free

View Print on MakerWorld

Please support Malachiasz by Liking/Boosting their Print on MakerWorld.

Before you print

✓ Needs about 127 g

✓ Fits sleeved cards

✓ Fits premium sleeves

Print profiles

0.2mm layer, 2 walls, 15% infill

2 plates 5h 21m 0.4 mm 127 g PLA

Fixed Plate 2 Connectors (Fixed Layers,Arachne Walls,Faster)

1 plate 1h 49m 0.4 mm 44 g PLA

As sliced by the designer. Your printer, filament, and settings will change these numbers.

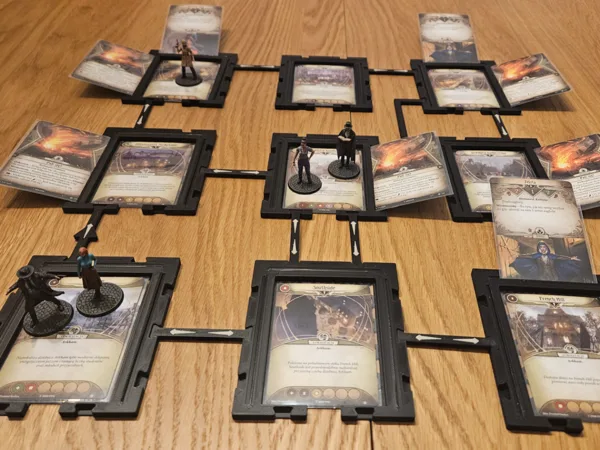

One thing that irked me when playing Arkham Horror TCG was location cards sliding and moving during play. Another issue was if there were attachments on the location (e.g. Fire! or any enemy). My design aims to solve them both.

Every card holder can contain one location card (dragon shields fit inside exactly) and 3 slots for "addons" - one on each side and one on top.

Card holders allow for connection from every side and available connectors include:
-both ways
-single way
-diagonal

you can print everything in one color and geometry of connectors will be enough to understand pathing.

Version 3: I revamped “diagonal” connectors. Now they come as single and double direction connectors. They have the same type arrows as the straight connectors.

Version 4: I added new type of elements - “Connector Hubs” and “Connector Spokes”. They allow more freedom in arranging location holders and most importantly they allow for connector-connector connection. I was able to fully connect “Ice and Death” scenario using this setup which has arguably the most expansive location placement in all Arkham Horror scenarios. If “Ice and Death” is possible - all scenarios should now be possible.
