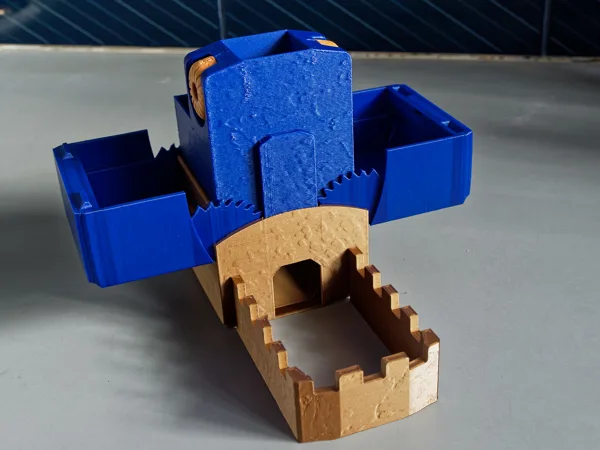

A folding dice tower

Just the thing for keeping board games under control. :D

This design provides a compartment for dice storage, as well as an expanding dice tower. Not only that, but there's a pair of rotating counters at the top of the tower. The box latches closed, and the fence is secured to the front of the box magnetically.

You'll need four 10mmØ x 3mm magnets for the latch and the fence, a pair of 12mm, 6 gauge screws for the counters, and a pair of 12mm M3 screws (non-stainless) for the fence.

• Features

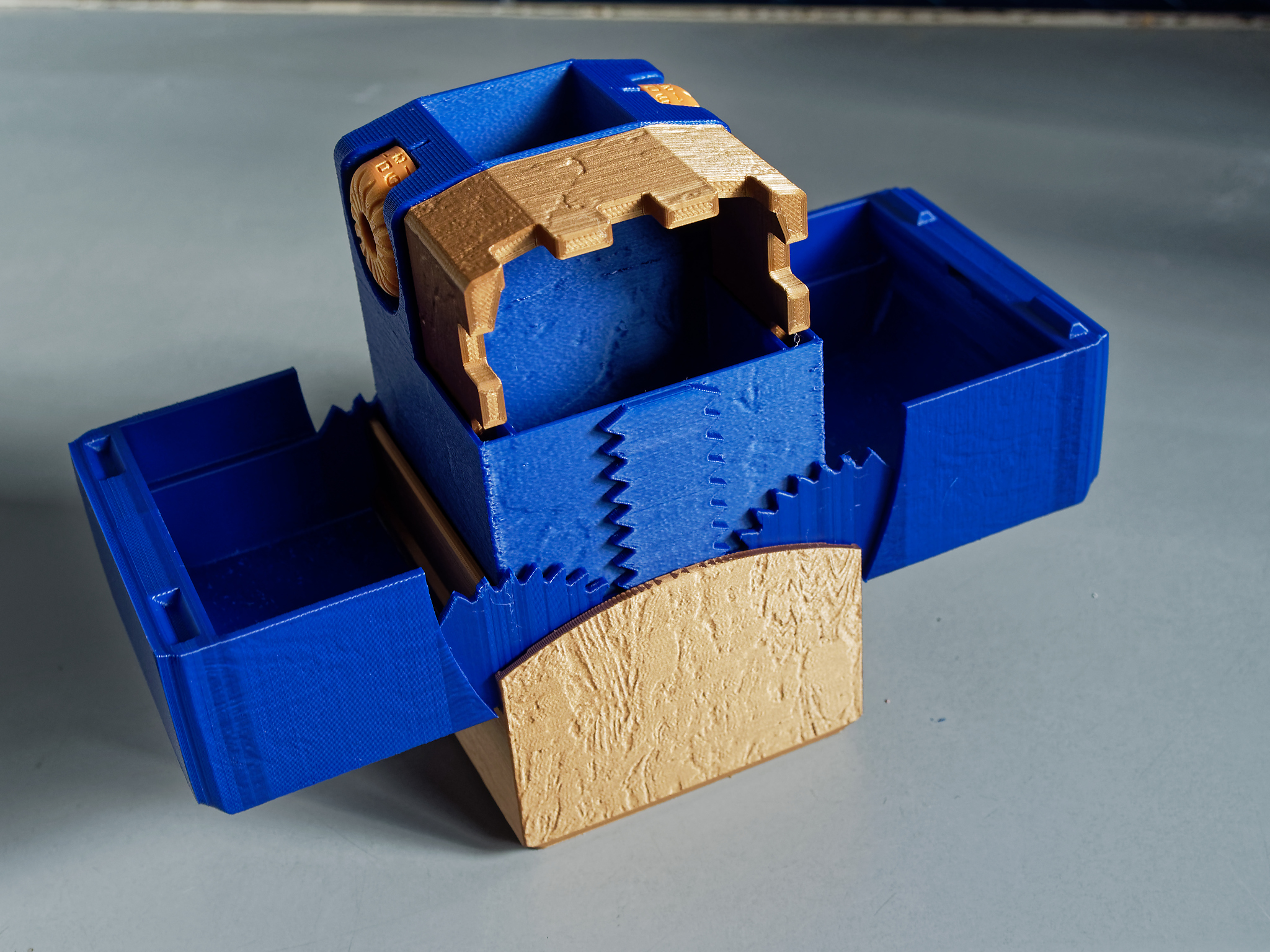

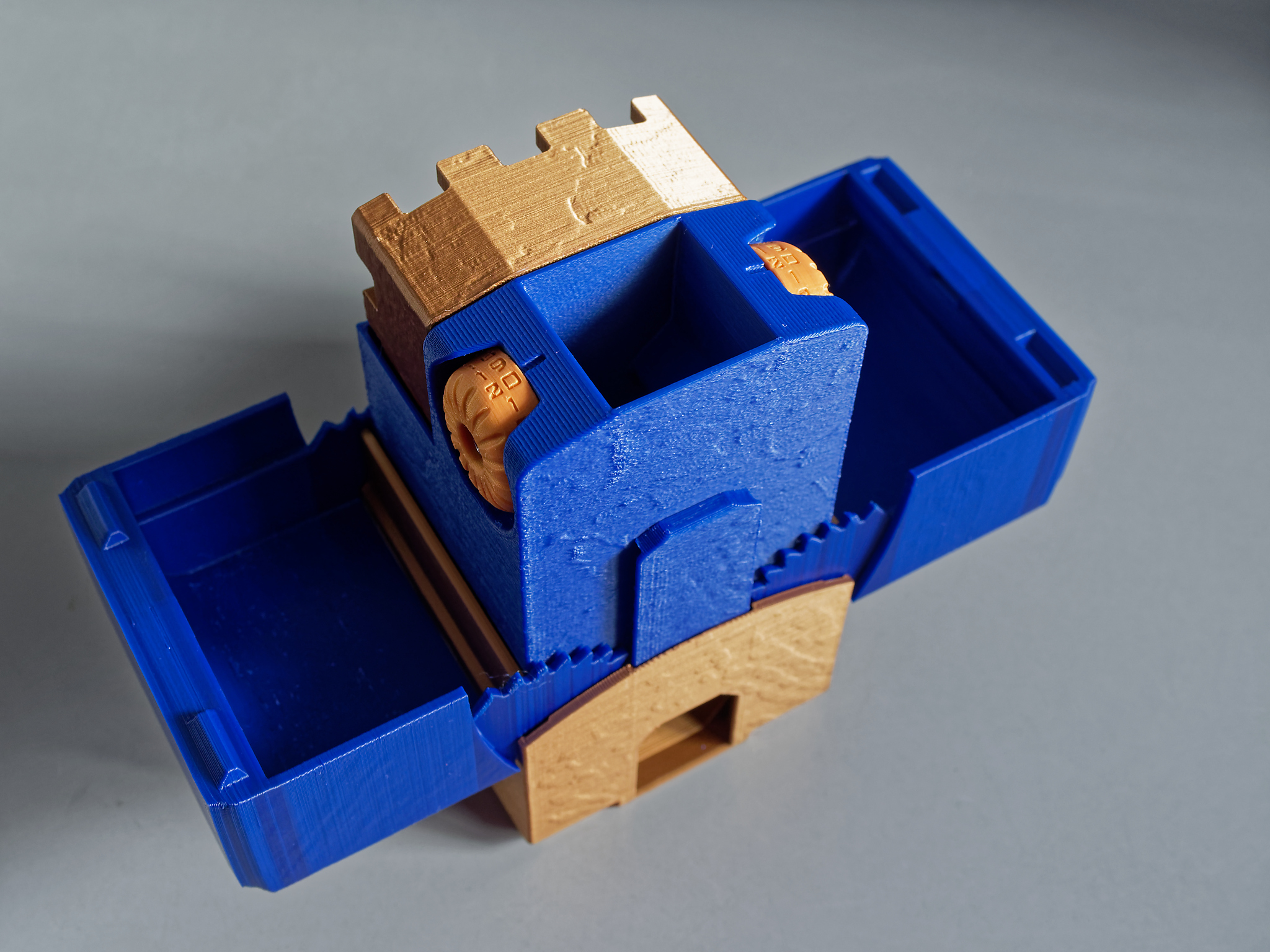

Open the box and the dice tower rises up.

There's a special storage for the fence so that it won't get mixed up with the stored dice.

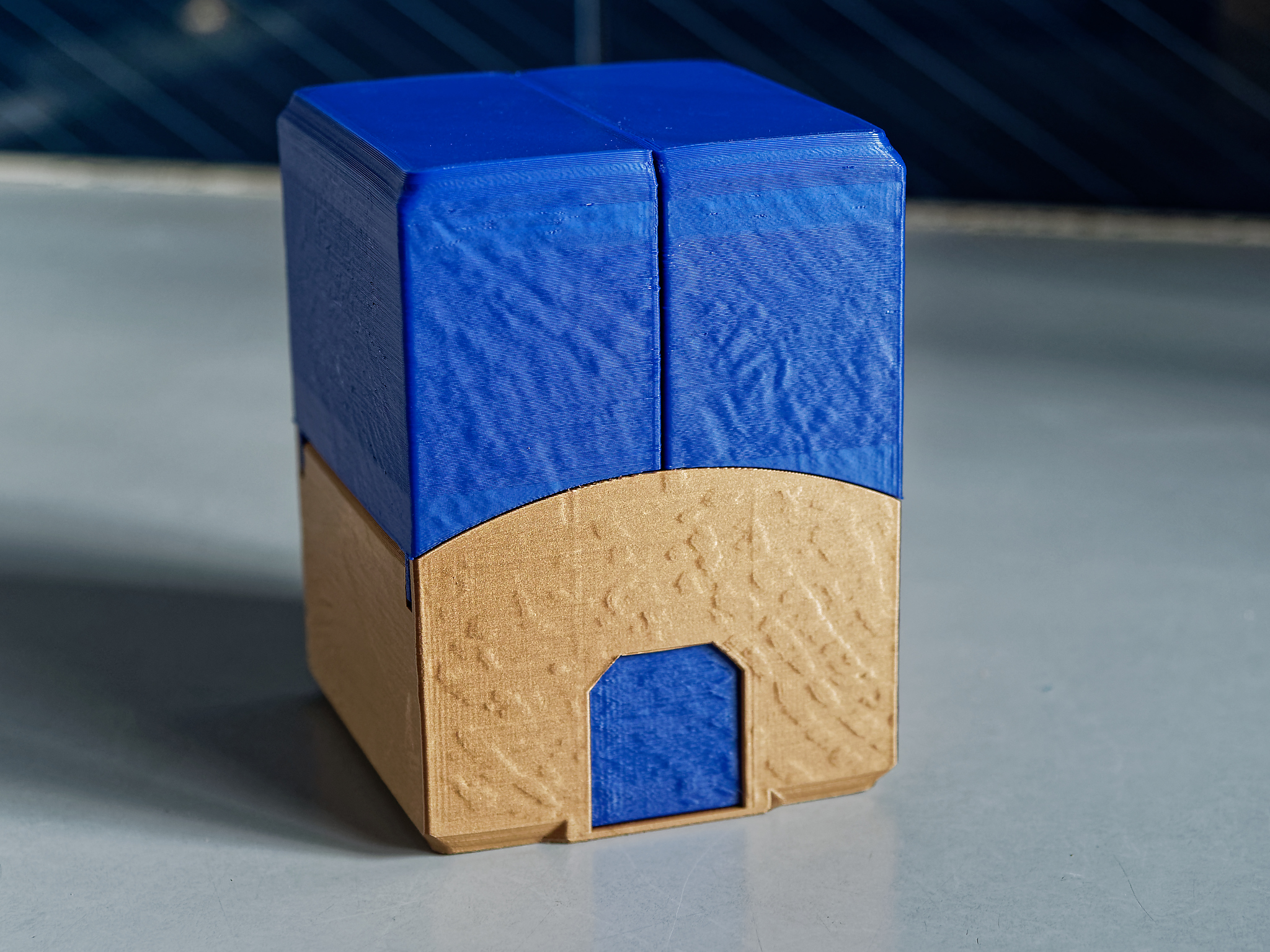

The box locks closed with a magnetic latch. There is also a detent mechanism to lock it in the open position.

• To assemble:

Magnets go into the slots of the lids, and the slots within the base.

Place the lids in their open position.

Align the lowest gear tooth with the bottom gear teeth of the cart

Place the entire lid and cart combo into the main shell. It should click into place (and that's why having an accurate printer is a requirement).

• Printing details.

0.2mm thick layers or less.

Print cooling on

The cart requires support.
