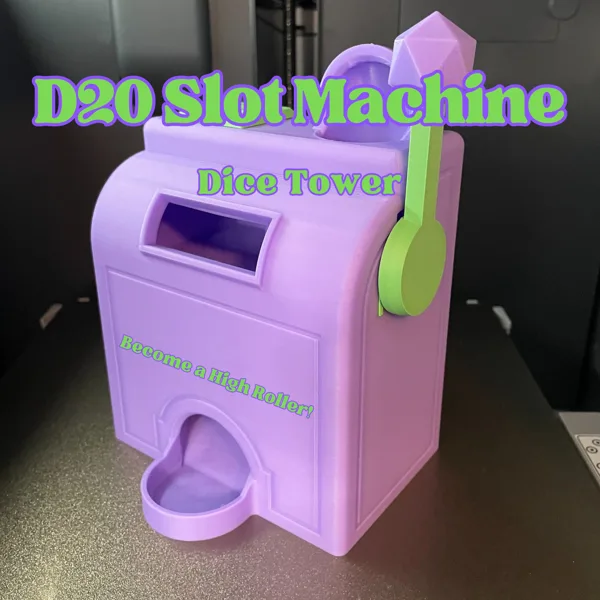

D20 Slot Machine Dice Tower

Step up your tabletop gaming experience with the D20 Slot Machine Dice Tower! This unique 3D model combines the thrill of a classic slot machine with the functionality of a dice tower. With its eye-catching design and practicality, it's the perfect addition to any gaming session. Did I also mention it has a storage compartment for your dice? Neat-o!

Print Settings:

• Body
• 0.2 layer height

• 3 walls

• 10% Infill

• Bridging enabled

• No brim

• No supports

• Spring, Key, Arm, Blocker, D20, Lid
• 0.2 layer height

• 3 walls

• 25% Infill

• No supports

• Key, D20
• 0.2 layer height

• 3 walls

• 25% Infill

• No supports

• Scale if tolerances are too loose or too tight

Assembly Instructions:

• Print one of each part

• Insert Key into Blocker (It should hold with friction, use Super Glue if needed)
•

• Insert Blocker into the side of the Body with the Key facing outward.
•

• Insert Blocker all the way and turn clockwise so the key is now vertical.
•

• Slide the Spring onto the Key and fit the Spring into the slot. (Spring should have slight tension)
•

• Press the D20 onto the end of the Lever. (It should hold with friction, use Super Glue if needed)
•

• Press the Lever onto the end of the Key so the Lever is Pointed up. (It should hold with friction, use Super Glue if needed)
