Minecraft Furnace Nightlight with Secret Money Box
Please support MOSS 3D by Liking/Boosting their Print on MakerWorld.
Hello everyone!
Thank you all for the amazing feedback on the original Furnace Lamp! I’ve taken your suggestions on board and completely overhauled the design.

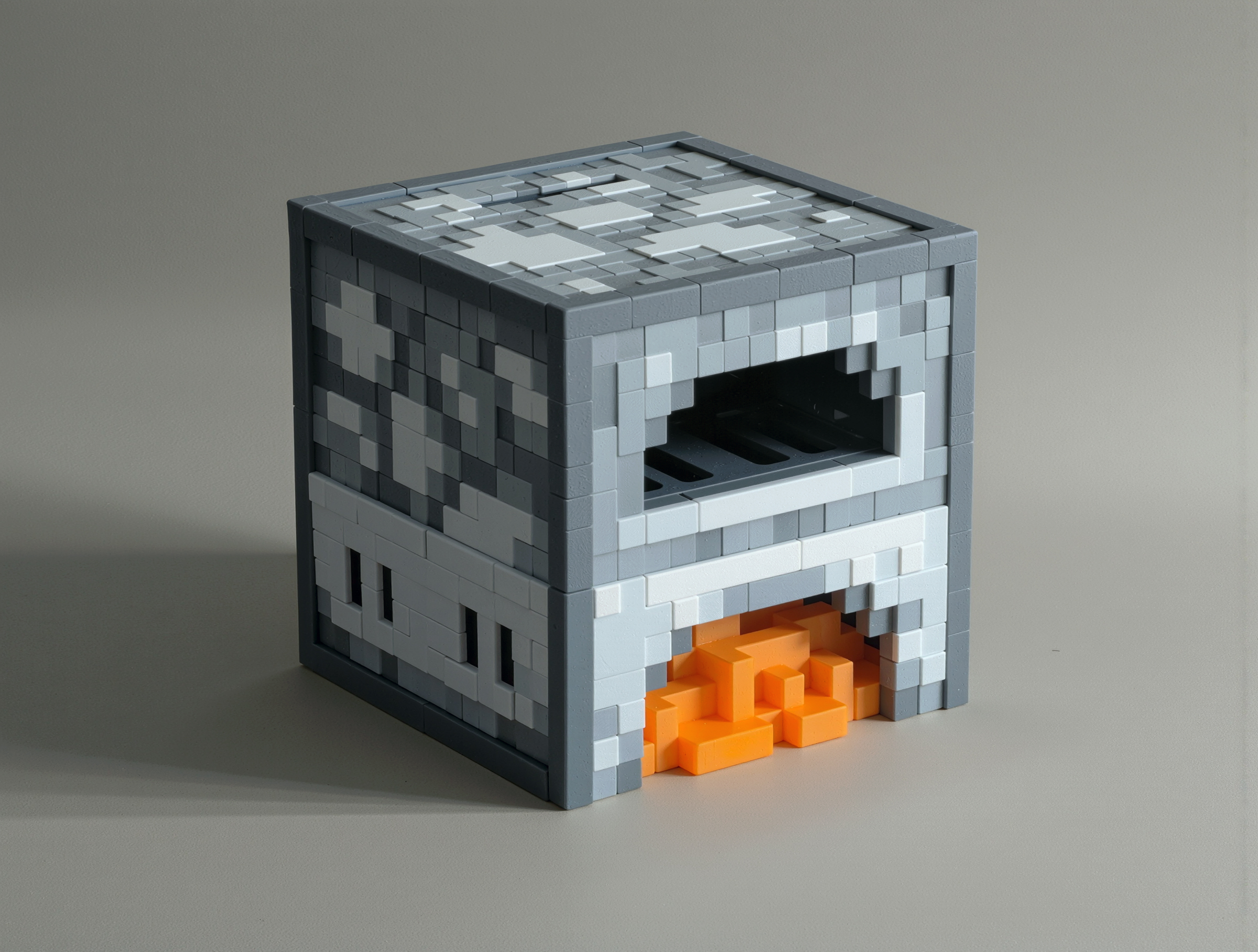

Introducing the Minecraft Furnace Lamp & Money Box (Version 2.0) .
If you don't have an AMS system or just want to skip printing yourself I have a limited number available for sale on my Etsy Store Page
##
• New Hidden Lock: I've ditched the filament pins! There is now a built-in, concealed latch located directly under the furnace fire.

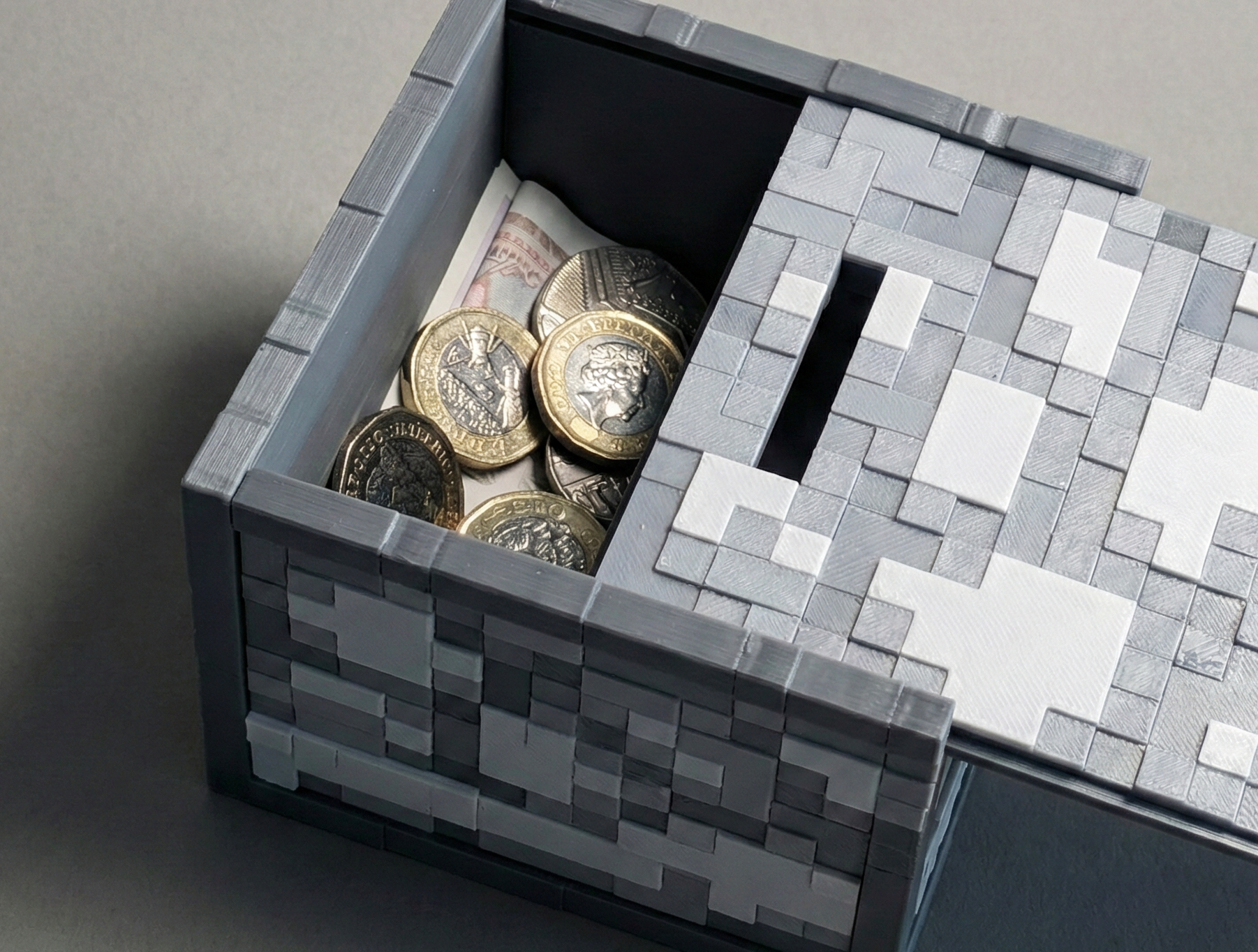

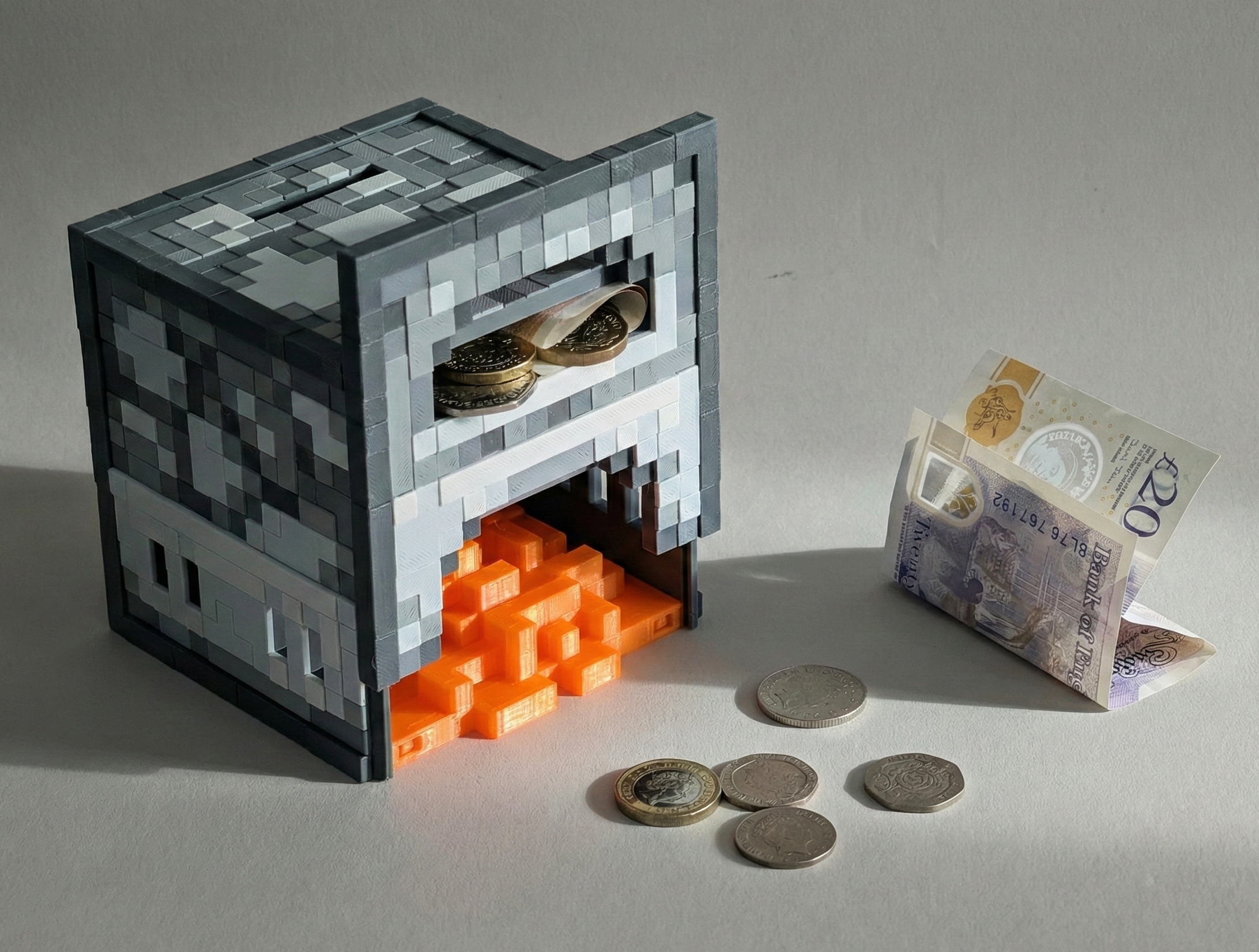

• Coin Access: Removed the front coin insert, moved up, allows retrieval without removing the top

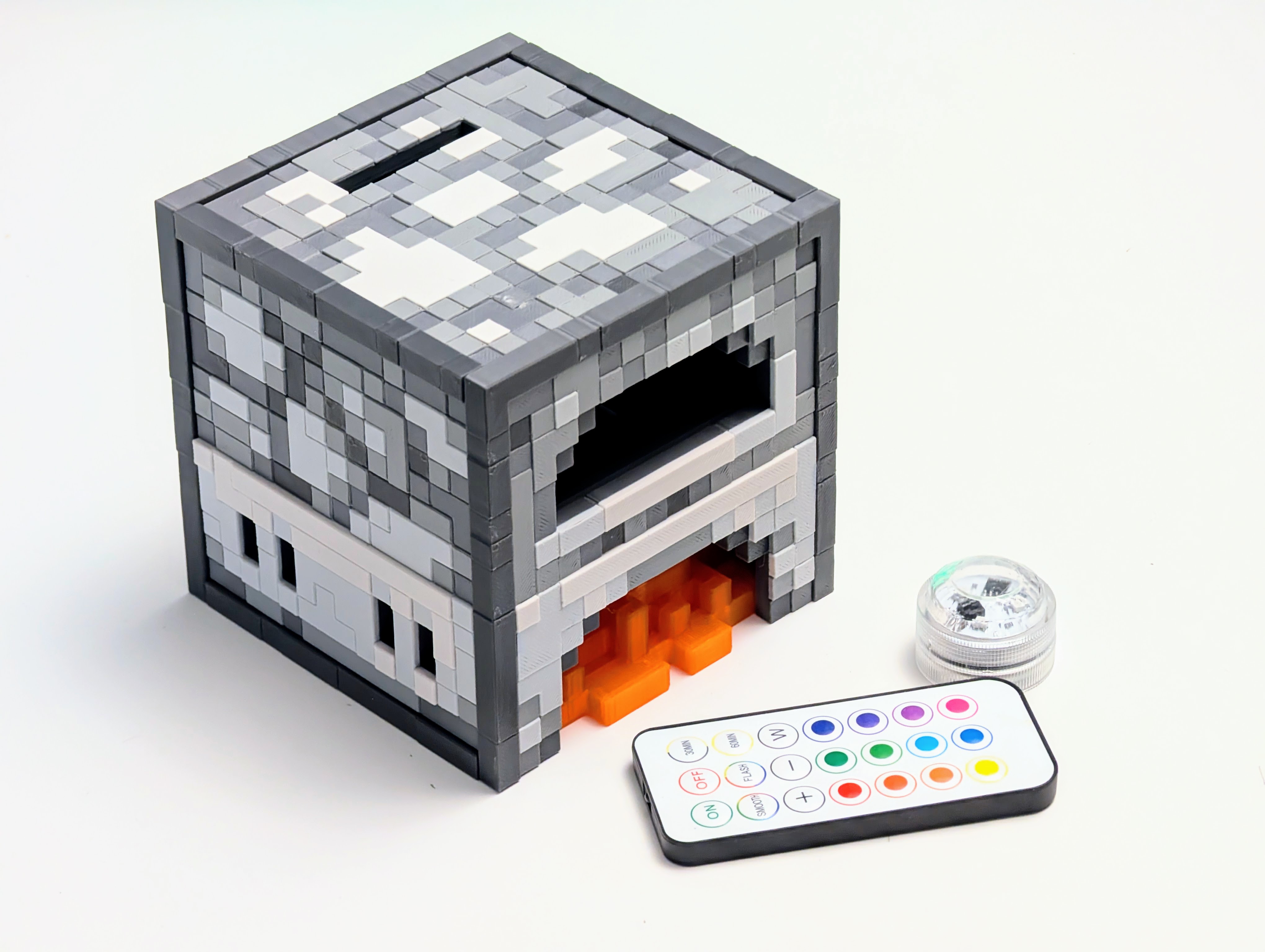

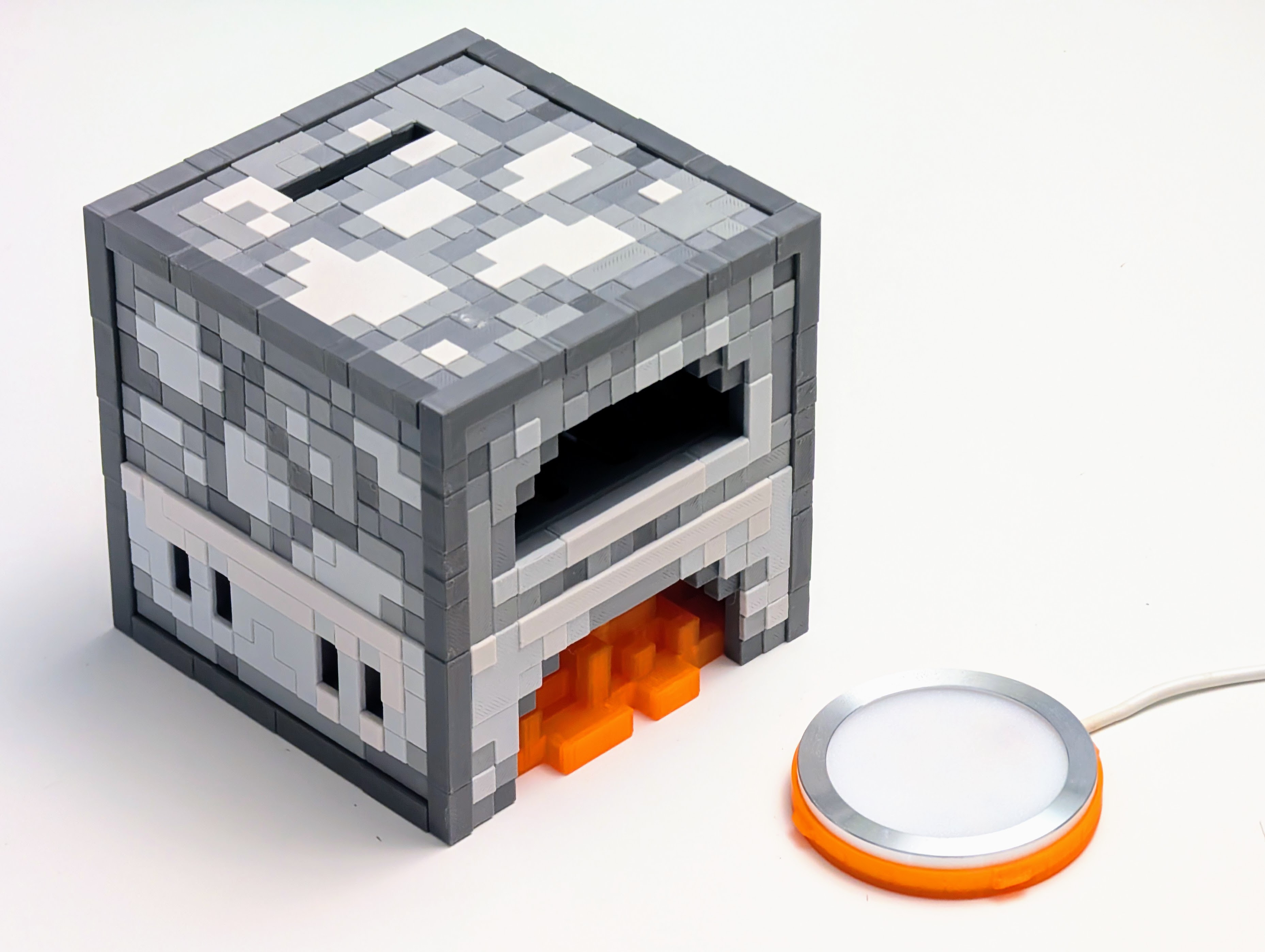

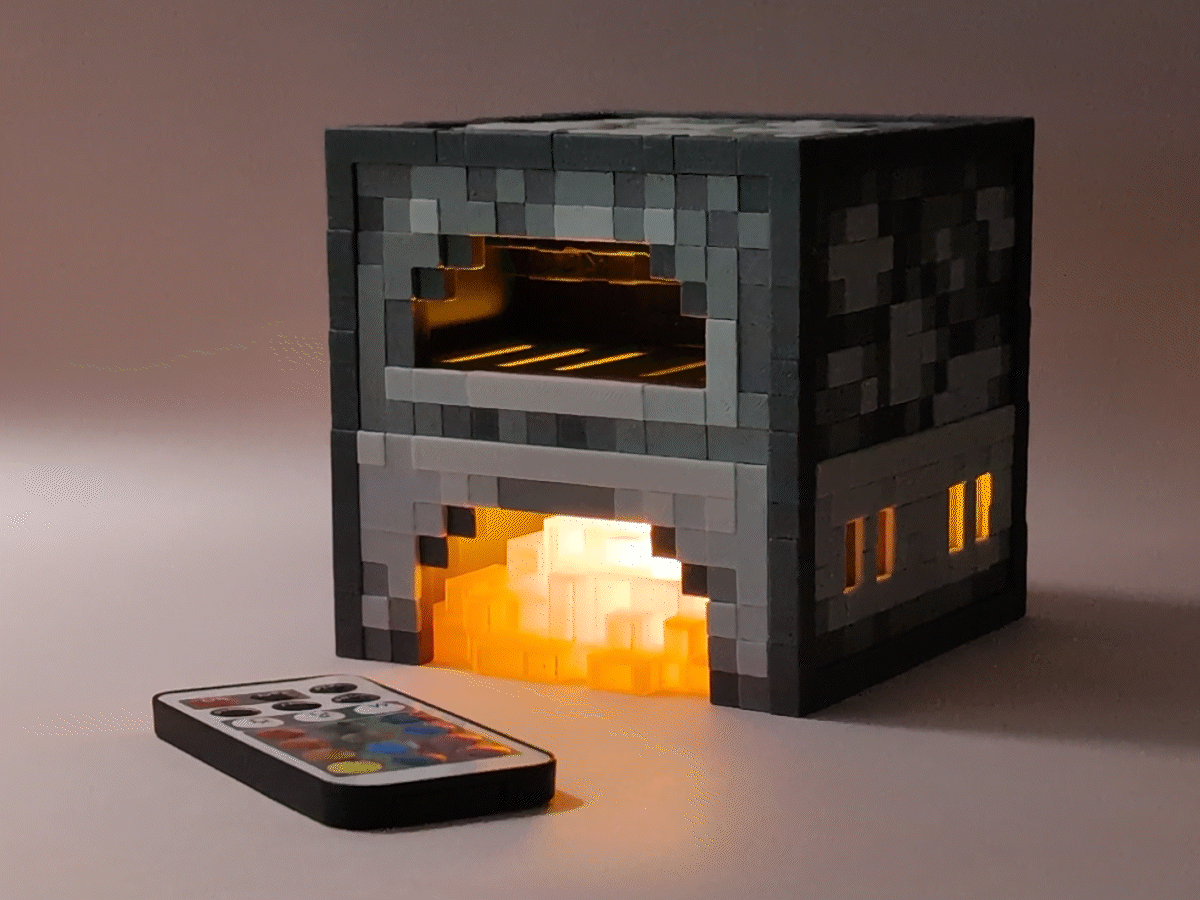

• Expanded Lighting Options: In addition to the Bambu Lab LED Lamp Kit (MK001), a new base now supports standard LED Tea Lights (KC020) .
• Upgraded Aesthetics: Improved surface textures and painting across the board, including a new textured finish on the internal coin partition.
• Optimised Geometry: The cube is slightly larger ( 102.4mm³ ) but utilizes thinner panels for better light diffusion and material efficiency.
• Fool Proof Slicing: All "negative parts" have been removed from the slicer file for a much smoother, error-free printing experience.
• Refined Assembly: Overall tolerances have been improved so everything glides together beautifully.
•
No more supports!

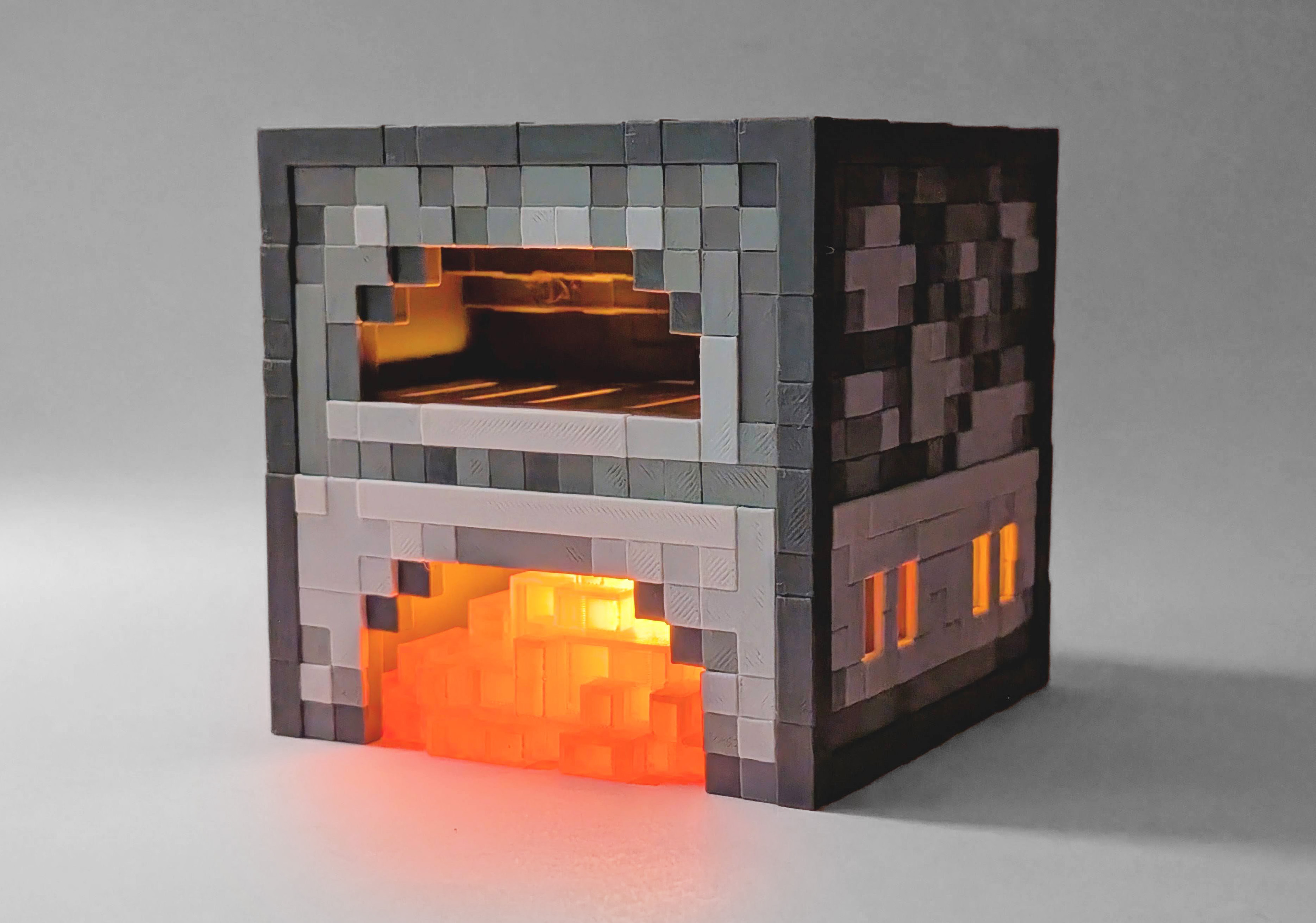

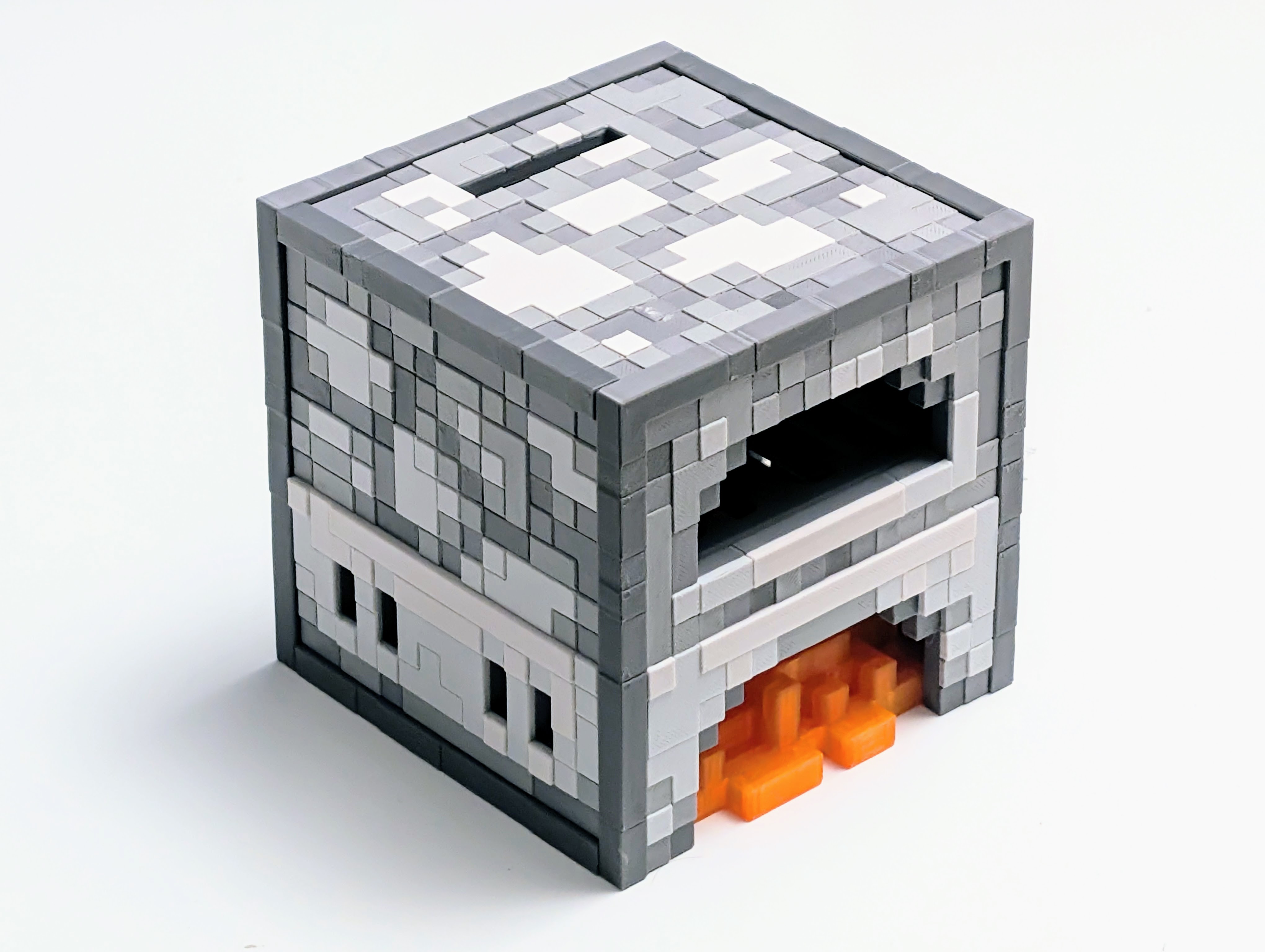

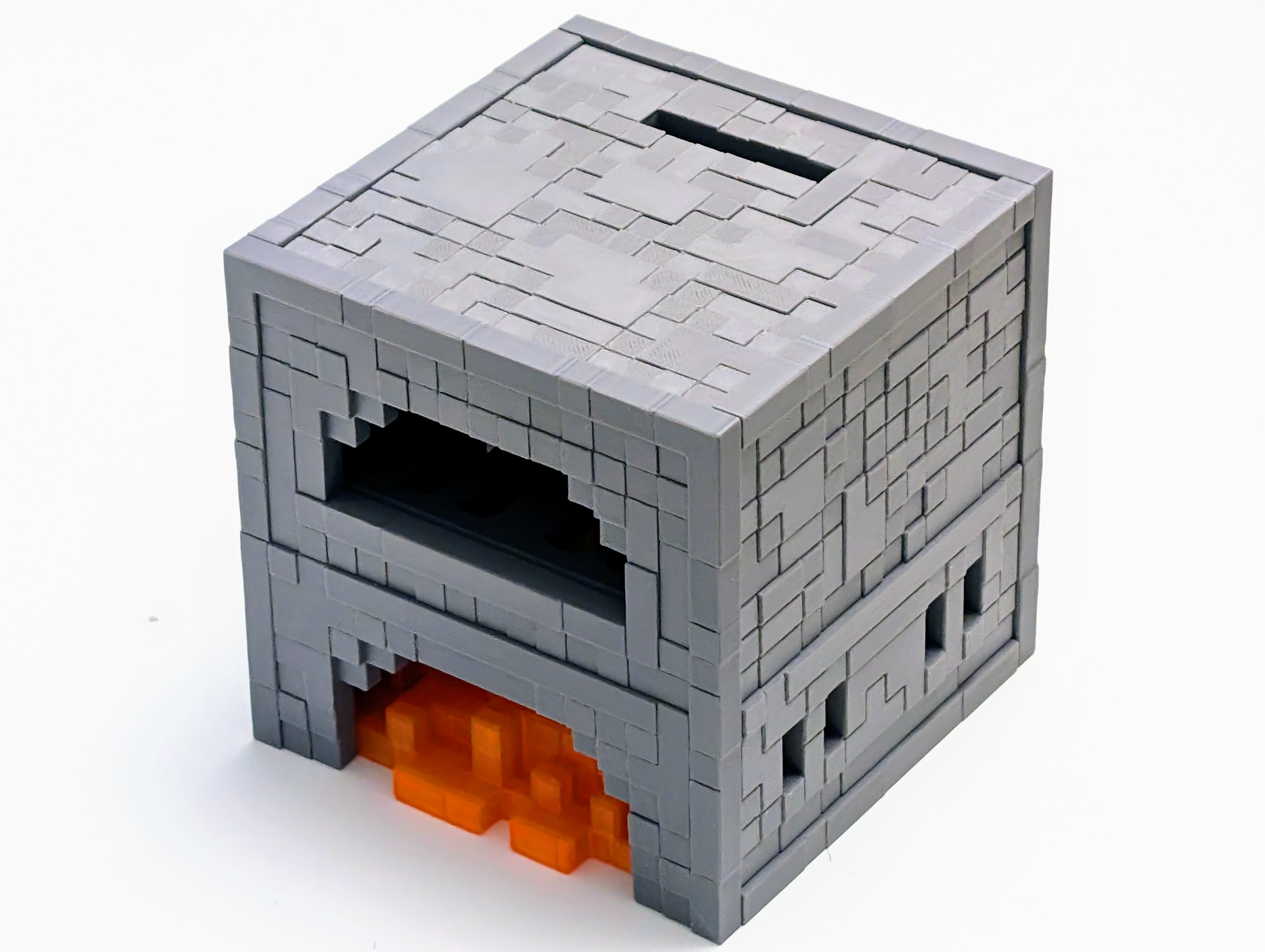

• Dual Functionality: By day, it's a sturdy money box with a top coin slot. By night, it transforms into a comforting nightlight, casting a warm, ambient glow.

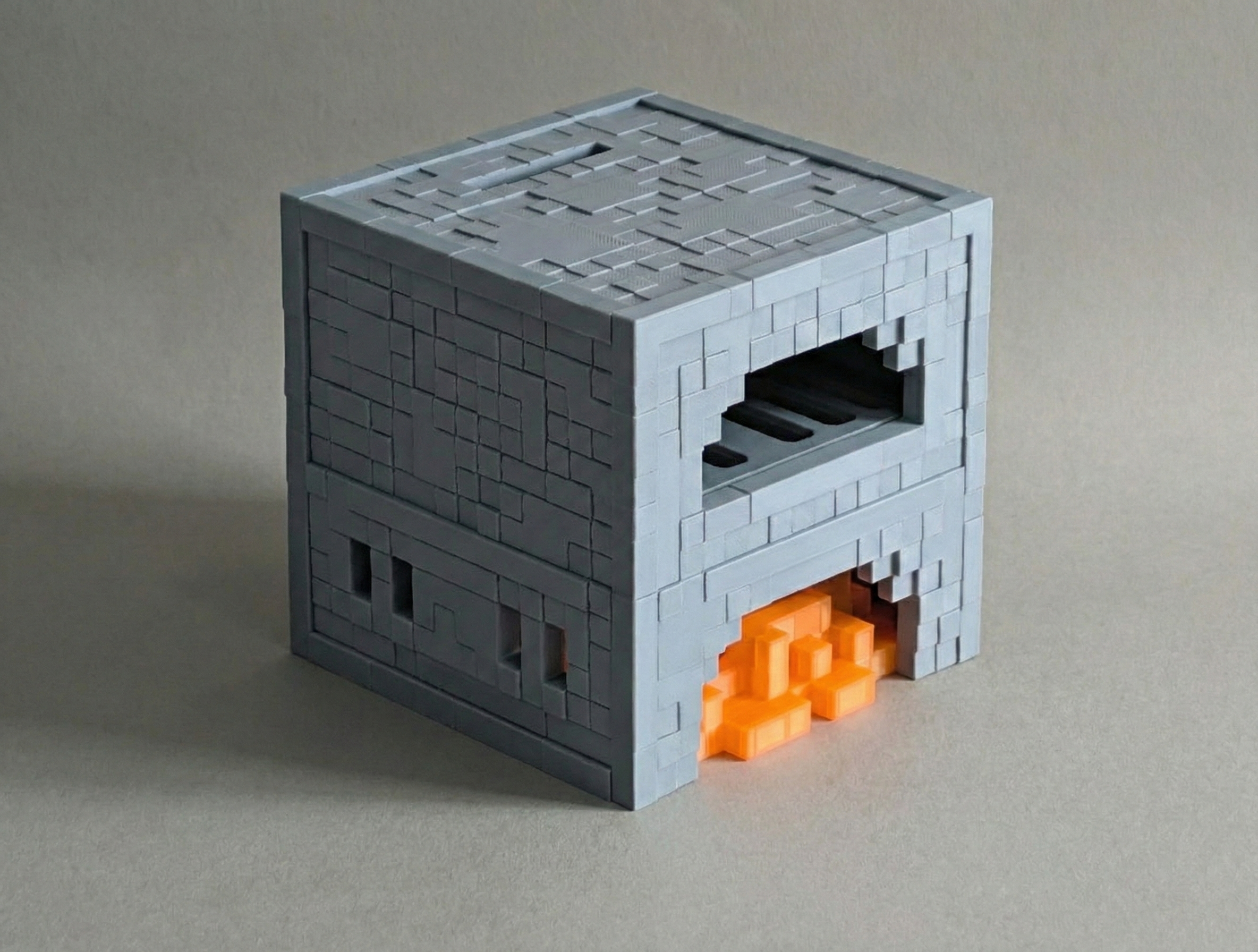

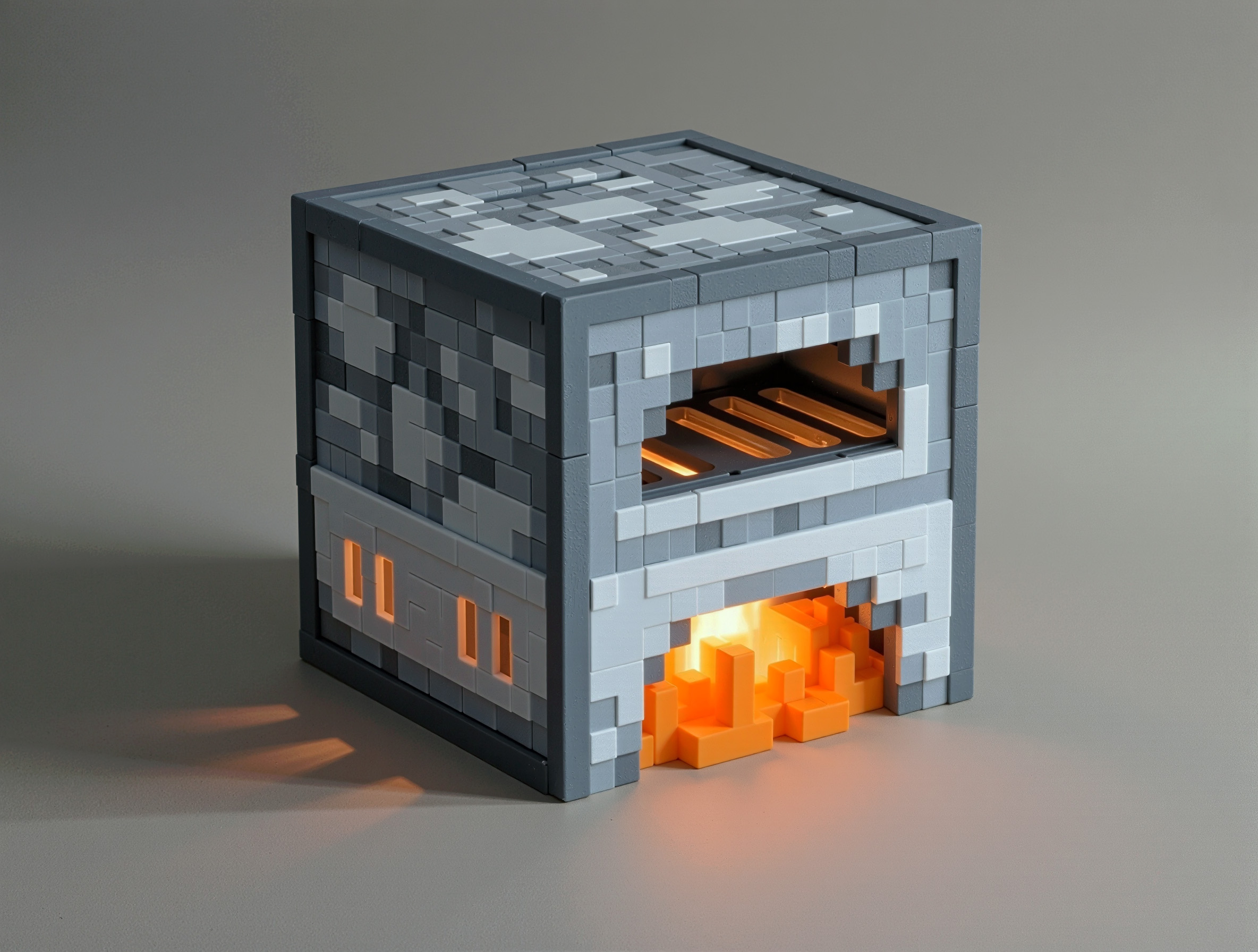

• The "Glow Within": The Furnace Fire component is printed in translucent orange PLA, diffusing the light beautifully to mimic a real lit furnace.
•
Simple, Sturdy, Secure: The entire model slots together precisely with zero glue required. The interlocking design creates a surprisingly solid block, kept secure by the new hidden latch
Place a 4.5mm flat headed bit behind the latch for leverage and use a quick down action to the push the latch through then work back and forth a few times to loosen it up
##

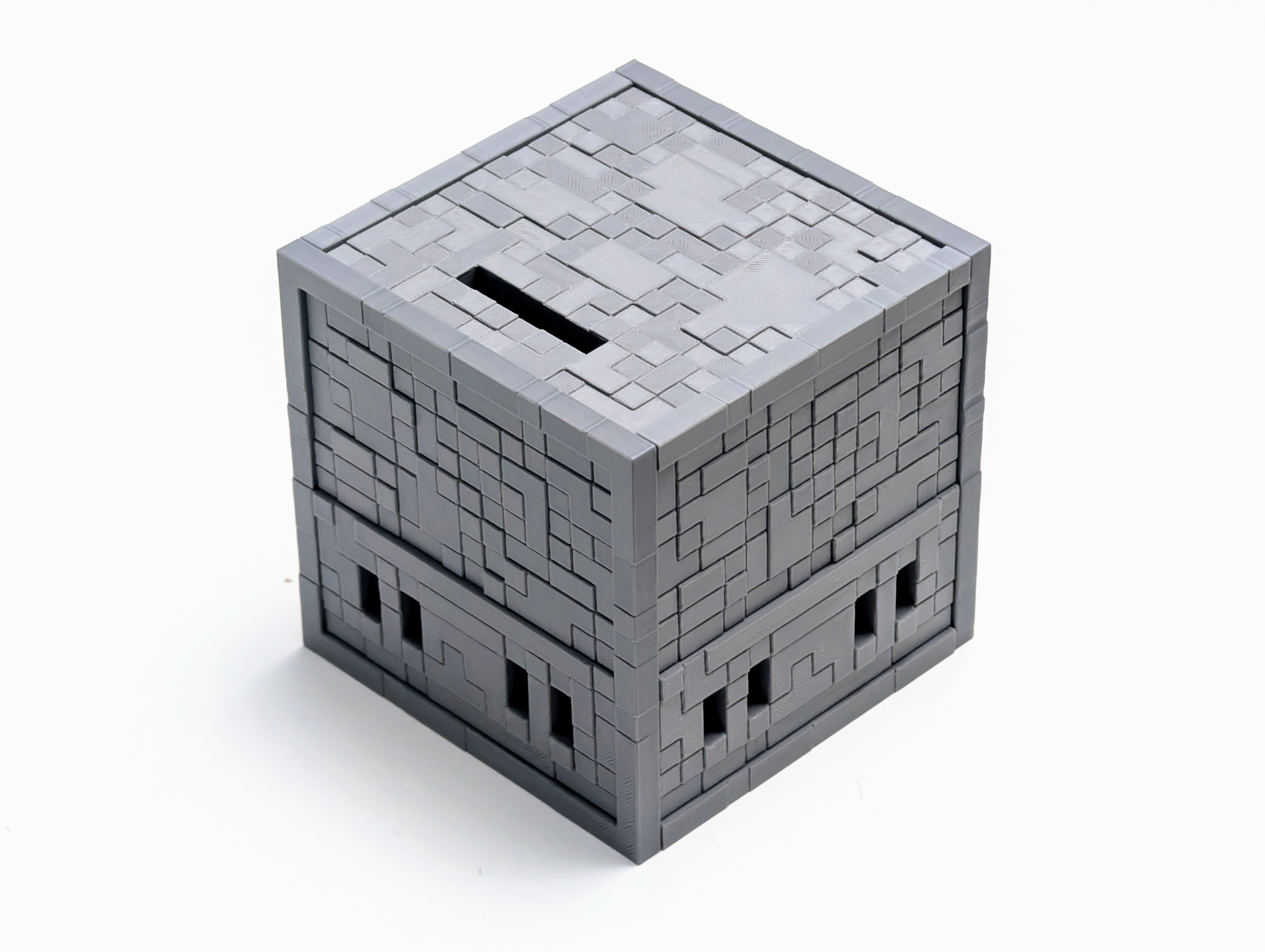

This model is designed for a straightforward print on a Bambu Lab P1S or similar FDM printer.
• Layer Height: 0.2mm for a single-color print. If printing the multi-colour AMS version
• Speed: Use a slow initial layer to ensure perfect bed adhesion.
• Filament Recommendations:
• Main Body: Bambu PLA Basic (Dark Grey, Blue Grey, Grey & Light Grey).
• Fire: Bambu PLA Translucent Orange.
• Supports: Only required on the base to accommodate the LED/Tea light cavity.
• Install the Light: Begin with the FIRE part. From the underside, gently press either your Bambu Lab LED Kit (MK001) or your Tea Light (KC020) into the designated slot until secure.
• Assemble the Frame: Place the textured COIN PARTITION between the two SIDE PANELS . Slide the BACK PANEL down along the vertical rails on the side panels to lock them together.
• Insert the Internals: Slide the BASE assembly and snap the GRILL into the frame along their corresponding horizontal grooves.
• Secure the Box: Slide the TOP PANEL in, followed by the FRONT PANEL down its vertical tracks.
• Lock it Up: Engage the new built-in latch located under the furnace fire to secure the assembly! (Note: Try to keep panels parallel when sliding them in. If there is resistance, check for stray filament. Don't force it, or it could bind up!
⚠️ Caution: The MK001 LED Lamp can get warm. If you plan to leave it on for long periods, please stick rubber feet or felt padding to the bottom of the cube to create a small air gap for ventilation.
Turn on your new Minecraft furnace and enjoy the ambient glow!
