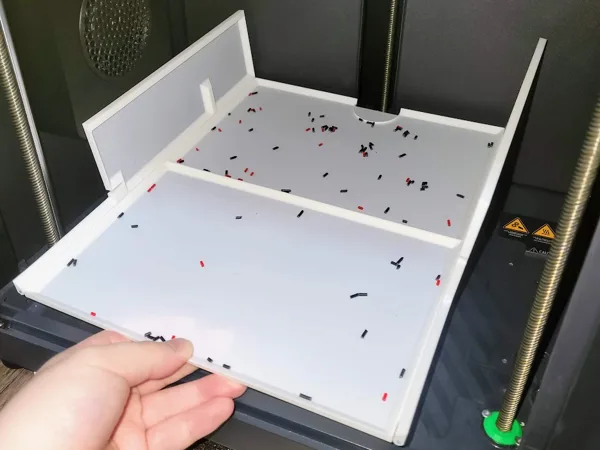

Easy-Clean Debris Tray Diaper for Bambu P1S / X1C

🚀 Looking for the Easy-Clean Debris Tray for Bambu Lab P2S/H2 Series? This is available here.
👉 Easy-Clean Debris Tray for Bambu Lab P2S

👉 Easy-Clean Debris Tray for Bambu Lab H2C / H2S / H2D

👉 Easy-Clean Debris Tray for Bambu Lab X2D

🆕 Update Log

• [2026-01-17] : Added a dedicated profile for Bento Box v2.

• Effortless Cleaning
A 4-part tray system (Front, Rear, Left, Right) that neatly catches debris, filament scraps, and dust inside your printer.

• Quick, Tool-Free Removal
Left and right trays are connected with smart filament hinges that fold slightly, allowing the entire tray set to be lifted out with ease.

• No Tools Required
Hinges are assembled using standard 1.75mm filament—simple and fast.

• Secure Fit
Locks firmly in place at multiple points to prevent movement during printing.

• Designed to fit internal printer space measuring : 385mm (W) × 295mm (D)

• Confirmed compatible with Bambu Lab P1S

• Likely compatible with other Bambu Lab models (X1 Carbon, X1E, P1P, X1) that share similar internal dimensions.

• If you try this on a different model, please consider leaving a comment or review to share compatibility feedback!

⚠️ IMPORTANT - Before You Print:

• Measure your printer's internal dimensions to ensure they are at least 385mm (W) × 295mm (D)

• Print the Left Tray first as a test piece to verify proper fit before printing all components

• If the test piece fits too tightly or won't install smoothly, consider using the Compact Version (380mm × 290mm) profile instead

• Individual printer tolerances may vary - choose the size that works best for your specific printer

• Print all four trays (Front, Rear, Left, Right) according to the recommended settings.

• [Important] Identify the Trays: Before inserting the filament pins, please check the Front and Rear trays carefully. The Rear Tray has a specific cutout to avoid the protrusion inside the printer chamber. The tray with the cutout must be at the rear .

• Cut two 295mm lengths of 1.75mm filament for the hinge pins.

• Align the hinge holes between the trays:
• Front tray connects to Left and Right trays

• Rear tray connects to Left and Right trays

• Insert the filament through the aligned hinge holes to create the pivot points.

• Trim excess filament flush with the outer edge of the hinges.

• Test the hinges by gently folding the left and right trays - they should move smoothly.

💡 Tip: If the filament is difficult to insert, try cutting the end at a 45° angle for easier threading.

• Insert the Front Tray First
Slide the front tray under the front door stop and hook it into the slot at the bottom front of the printer.

• Install the Rear Tray
After the front tray is in place, gently press the rear tray into position until it's seated flat.

• Place Left & Right Trays
Finally, press down the left and right trays so they sit flush with the bottom and secure the full set in place.

⚠️ Important:
Due to the front door stop, this specific order must be followed to avoid breaking parts.

• Clean and degrease the build plate thoroughly before printing

• Use the official textured PEI plate for optimal adhesion

• These steps help ensure proper first-layer bonding and reduce failure risk

• This tray is designed for a snug fit to prevent shifting. Minor adjustments (light sanding) may be needed due to individual printer tolerances or FDM print variations.

• Do not force installation —this can cause damage.

• Double-check the following before using:
• Is anything interfering with moving parts (print head, bed, etc.)?

• Is the tray set fully seated and stable?

🛑 Use at your own risk. The designer is not responsible for any damage caused by use or misuse of this model.
