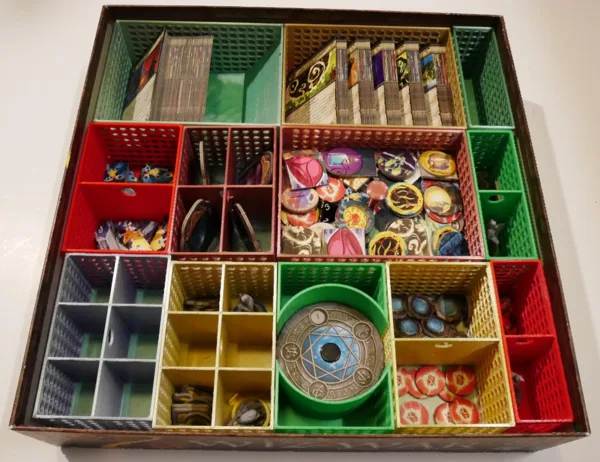

29x29 Box Board Game Organizer and Inserts
Please support olikraus by Liking/Boosting their Print on Thingiverse.
Concept
* Inserts for 29cm x 29cm Board Game Box
* Game Box divided into 9x3 cells (9 columns, 3 rows)
* Cell width: 31 mm
* Cell length: 94 mm (most game cards should fit)
* Should fit for most board games with cards, shipped in 29x29 cm box
* Each insert is a multiple of the cell width and height
* The inserts are available in two heights: 56mm ("f"ull height) and 28mm ("h"alf height)
* The insert name contains two digits, first is the column cell multiplier, second the row cell multiplier
* The size of the smallest insert is 31x94 mm (f11)
* OpenSCAD source: https://github.com/olikraus/scad/tree/master/29x29box
* Designed for Wiz War board game, but should fit for any other board game in a 29x29 cm Box
Design & Print
* Mesh walls to save material
* Not so think bottom (excption: Wiz War Life Tracker, f41_plain)
* 0.4mm Nozzle, 0.2mm Layers, Infill 20%
Game Insert
