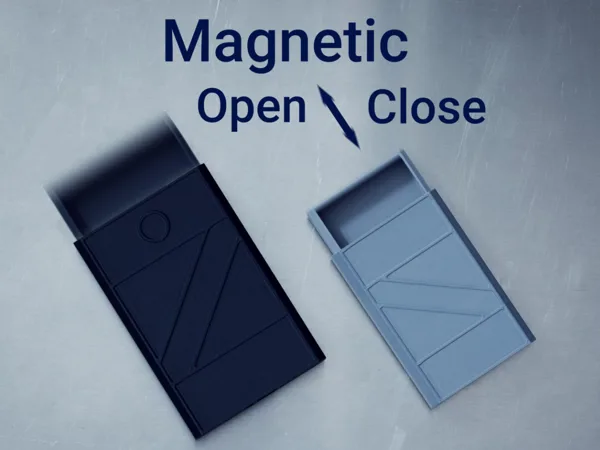

Box – Magnetic Open & Lock

Built-in magnetic closure system and an auto-opening mechanism . When closed, magnets securely hold the tray shut. With a slide of the release switch, the tray pops open automatically thanks to the magnets.

• Magnets : 6 in total 6mm x 3mm

• Polarity matters : Ensure magnets are installed so they attract when the case is closed and push when you wanna open it
• Tip: Let two magnets naturally snap together, then mark one side with a marker

• Add a drop of super glue (CA glue).

•

• The sliding switch locks and releases tray

• Its easiest inserted from underneath - Step1

• Tilt the switch at an angle - Step 2

• Once aligned, press it gently from above until you hear or feel a soft click. I used a pen to press down the slider

• Slide the switch back and forth to confirm smooth motion and latch release.

•

##

• Put the tray into the case until the magnets click into place.

• Slide the release switch.

•

The tray should pop open smoothly.
