Brew Crafters Tray Insert

**Note: From now on build notes will be posted to the changelog.txt file uploaded, with only the latest notes added below.**

Hey, you should also check out [ViperMan's](https://www.thingiverse.com/ViperMan) set of organising trays [here](https://www.thingiverse.com/thing:3361334).

Yes, I will come back to this soon and do something about storing it upright!

*Edit 2018-02-25*:
So, it's always bugged me that some of the designs may not fit within the build volumes of some printers. In support of this, I have:

* Re-designed the player upgrade token trays (again) - 3 trays now.
* Cut the ingredients token tray in two, made it 6mm taller (to accommodate double-stacked cubes)
* Trimmed the Player token storage box down

Where possible, I've tried to make this fit within a build volume of 120x120mm. This is the standard build volume of one of the more popular cheap printers today (the MP Select Mini Pro).

There's still a couple designs I need to modify to this size:

* Player Trays - Length is 126mm so this shouldn't be difficult to get back down to 118mm (my target size)
* Dollar_Rep_Tokens_tray - This will need to be cut into two pieces

Finally, the worst is the card storage tray - as the space for them is 90x72, the only way to make this work is to just make an upright box. Which WILL suck, because there's nowhere in my design to make it fit into the box.

I could split it into two separate boxes (single design) but that seems even more pointless.

---

This is my attempt at making a good set of tray inserts for the Brew Crafters board game. It's a Kickstarted board game which is a spin on the Agricola board game (and a lot more fun).
[BGG](https://boardgamegeek.com/boardgame/139898/brew-crafters) [Site](http://www.dicehatemegames.com/games/brew-crafters/)

It's got a notoriously HUGE amount of tokens (initial game setup can take anywhere between 15-30 mins depending on familiarity with the game), so there are already a number of these projects around the traps.

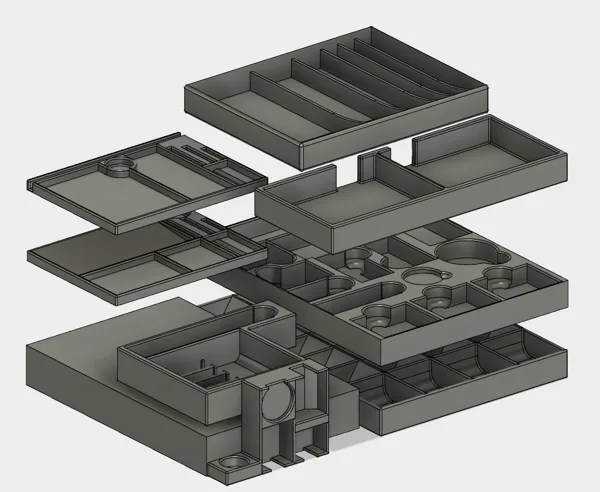

This helped me get my head around a few things in Fusion 360, and is a little cathartic at times. Here's what I've got:

**Note this list will change shortly**

* Beer_Tokens_Tray_v2.3
Holds 6 sets of beer tokens, along with medal
Print 4 times
* Dollar_Rep_Tokens_Tray_v1.1
Holds $1/$5 and 1/5 rep tokens
Print 1 time
* Player_Upgrades_Tray_1-2_v3.1
Holds Advanced market spaces, Brewpub, loan cards, collaboration tokens & pink intern meeples
Print 1 time
* Player_Upgrades_Tray_2-2_v3.1
Holds double batch, storehouse, oak barrelhouse, yeast lab, farm, rest of the player upgrade tokens
Print 1 time
* Ingredients_Tray_v1.1
Holds all ingredients cubes
Print 1 time
* Player_Token_Storage_v1.2
Holds player token cubes, meeples & tokens
Print 1 time
* SP_2x_4x_Hops_Tokens_Tray_v1.2
Holds the season token, 2x/4x tokens, hops token and also the starting player beer figure
Print 1 time
* Player_Tray_v1.2
* Player_Tray_v2.0
Holds starting player token, meeples, brewery action meeples, as well as money, rep & cards.
Print your choice (v1.2 or v2.0) 5 times (or a mixture if you like that)
* Optional: Player_Upgrades_Tray_v2.4
This holds all player upgrades in one larger tray (as opposed to two smaller trays)

Only tray I have left to design will be the selected beers display area but at this stage its dependant on what room I have left in the box. For most printers a 283x208mm print is too large an area to be printed in one hit (thats the interior dimensions of the box; which amazingly is what would be required to display 9x beer cards at once!),

So I'll have to devise some way of printing this in pieces (and joining together), ensuring that a card with sleeve will fit, AND provide room for the beer tokens & medal. I'm not sure its possible with the available room left over.

Yes these trays should all fit in the box! I do this stuff in my spare time so it may take about a month or more to finish all this. Any requests/complaints etc the comment section is to the right >>. Cheers.
