HEAT - Pedal to the Metal Insert with 4 extensions

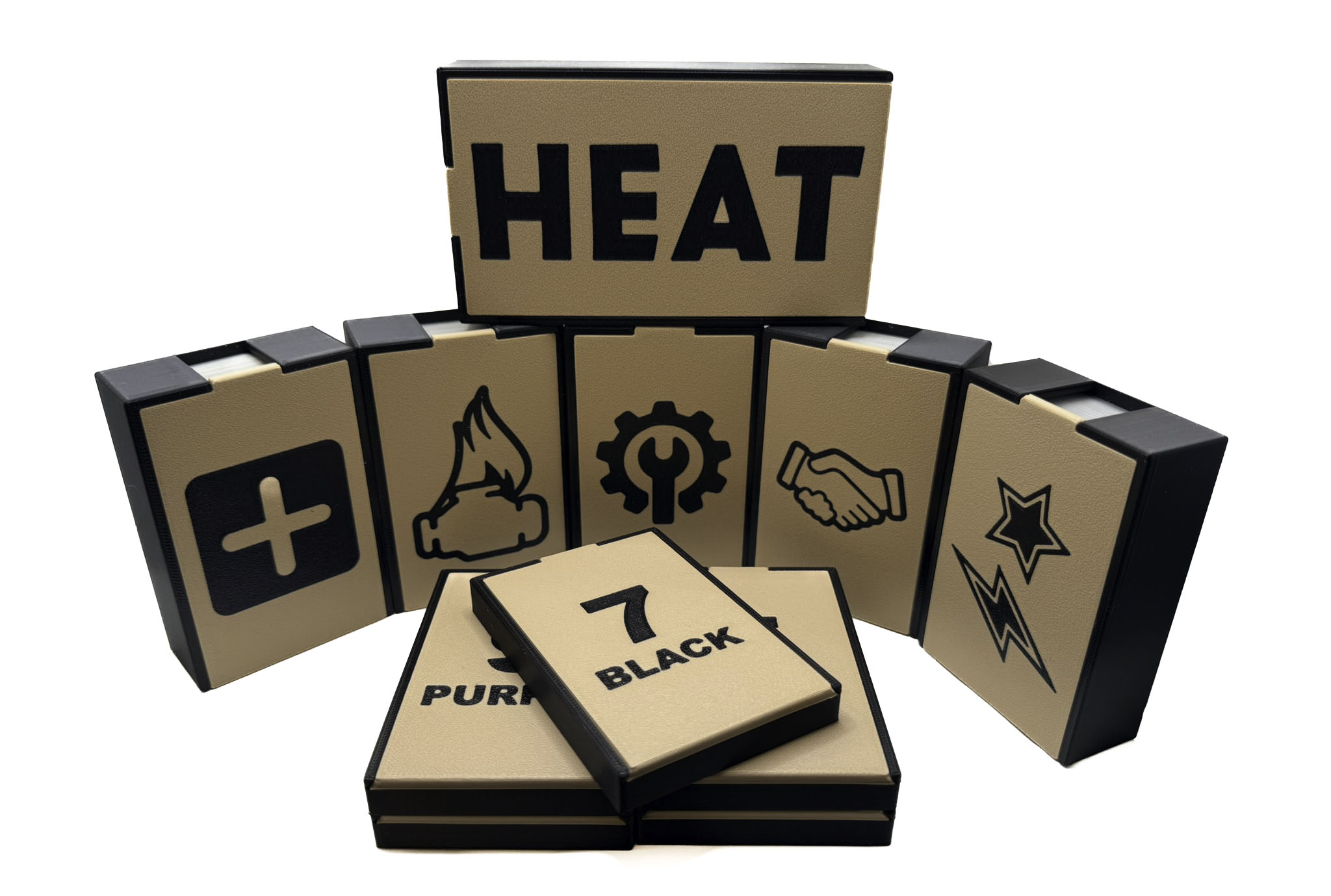

This insert for HEAT - PEDAL TO THE METAL (recently updated to include LEGENDS ) makes it possible to keep the core game and every extension in the core box without any lid lift . It is also compatible with American Standard USA Game sleeves (56 mm x 87 mm) . Every box and tray features a themed snap-fit lid .

• HEAT - Pedal to the metal core content.

• Heavy Rain (HR)

• Tunnel Vision (TV)

• Rocky Road (RR)

• Legends (released in May 2026)

• Fully compatible with American Standard USA Game sleeves (56 mm x 87 mm) .

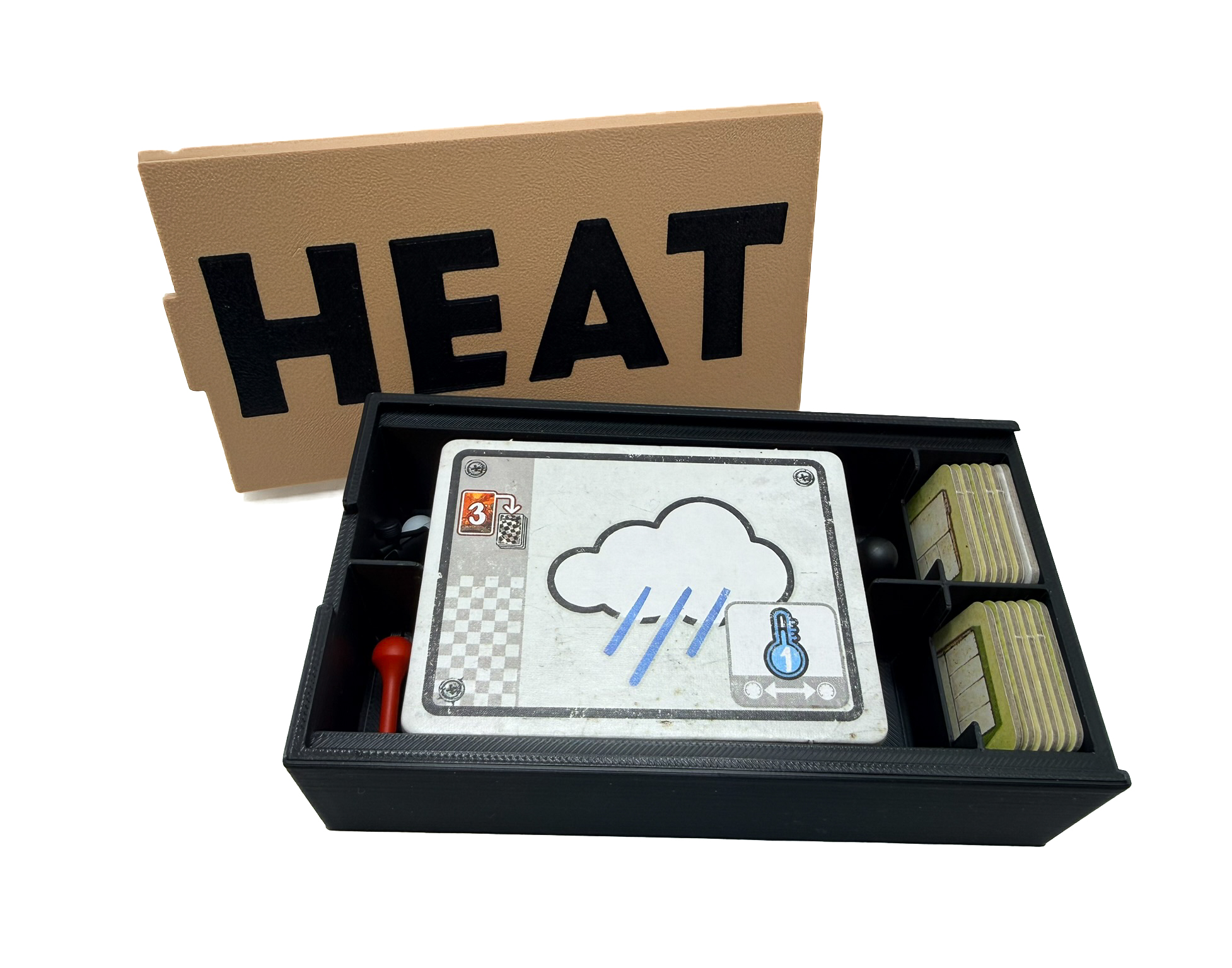

• Every box has a smooth and secure snap-fit lid.

• No supports are required during the printing process.

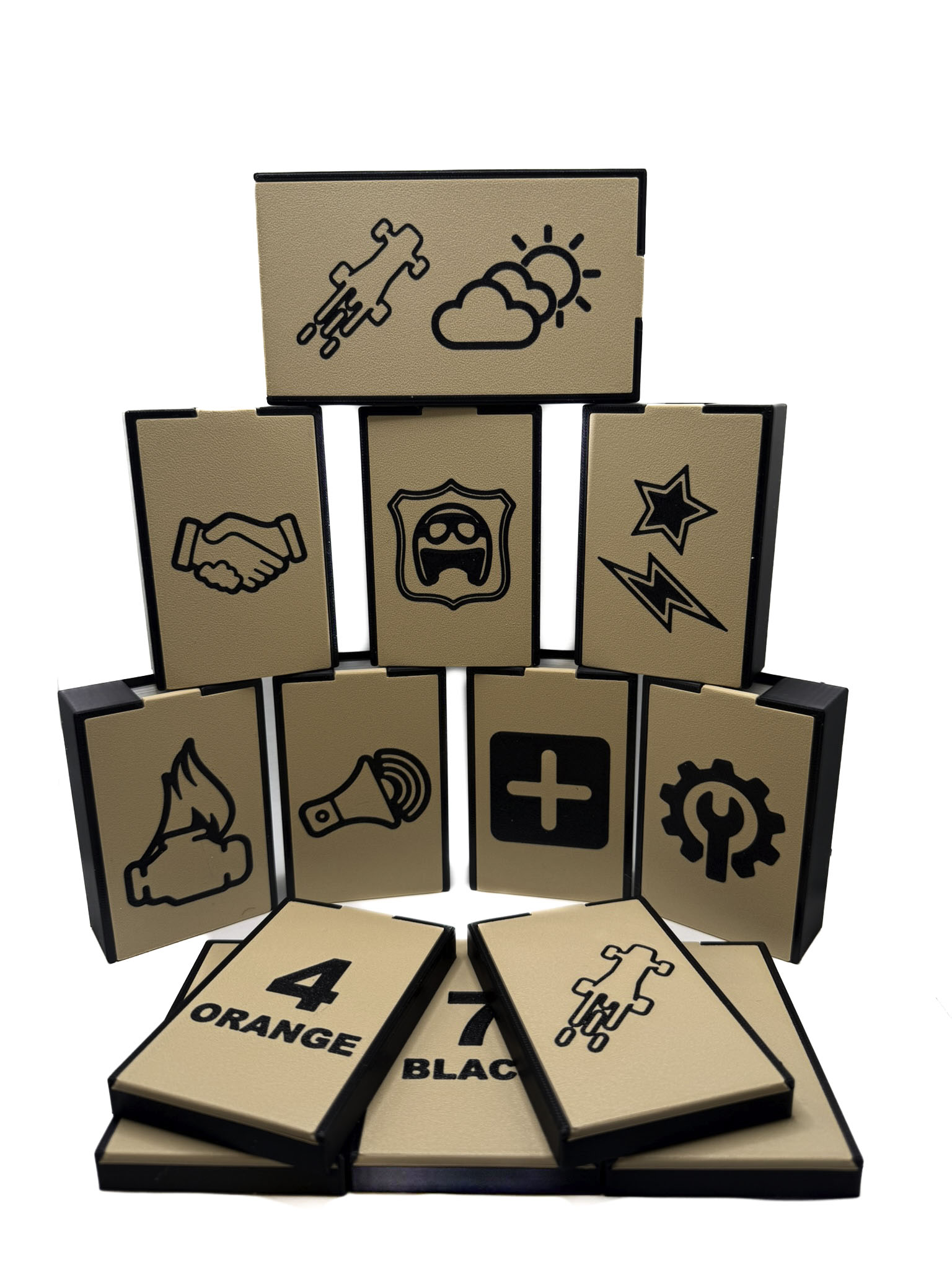

• Every lid has an icon to help store and identify content.

• Included new iconography on the lids to reflect the latest content from Legends

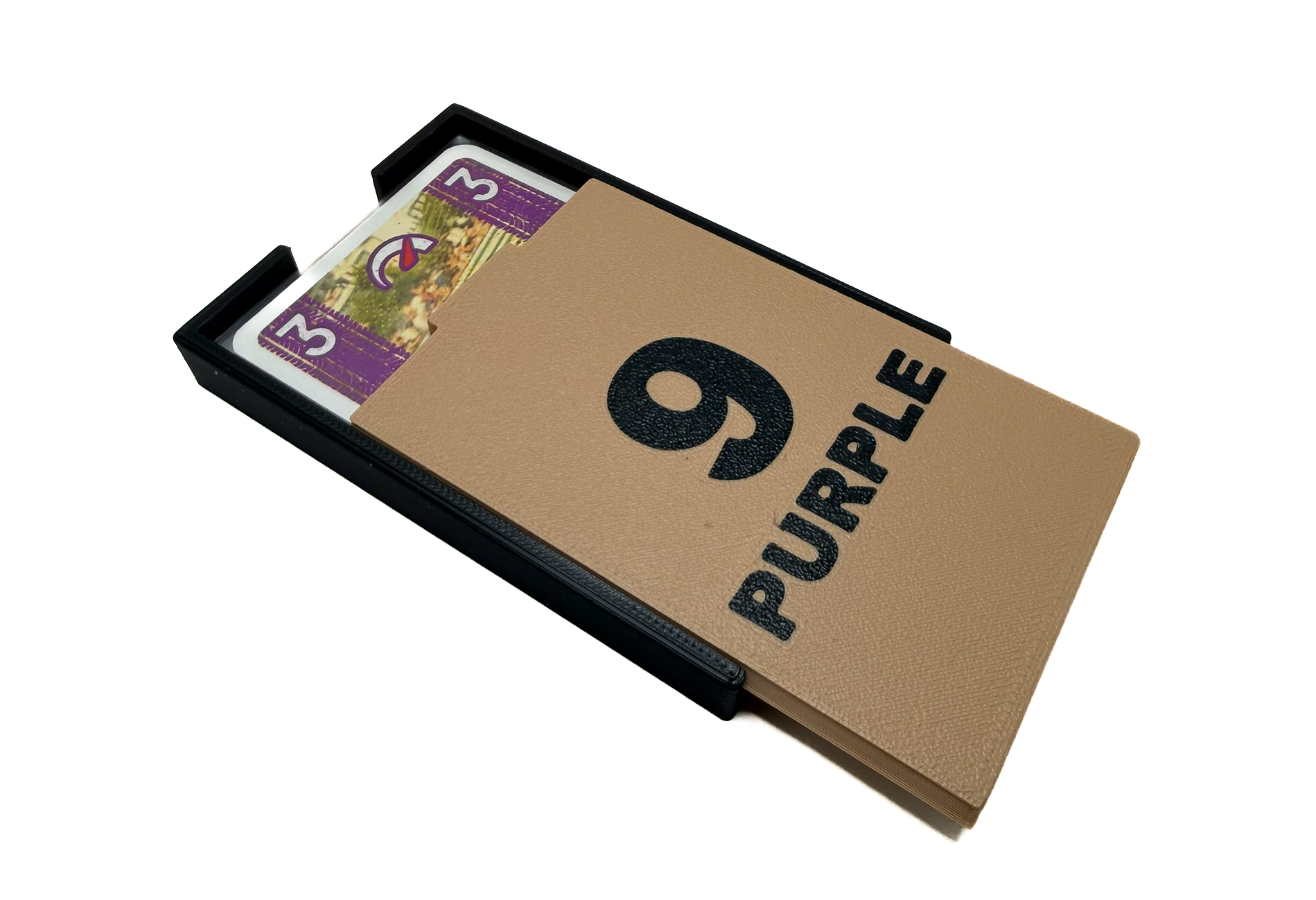

• Separators and individual player card storage lets you save your championship progress between gaming sessions.

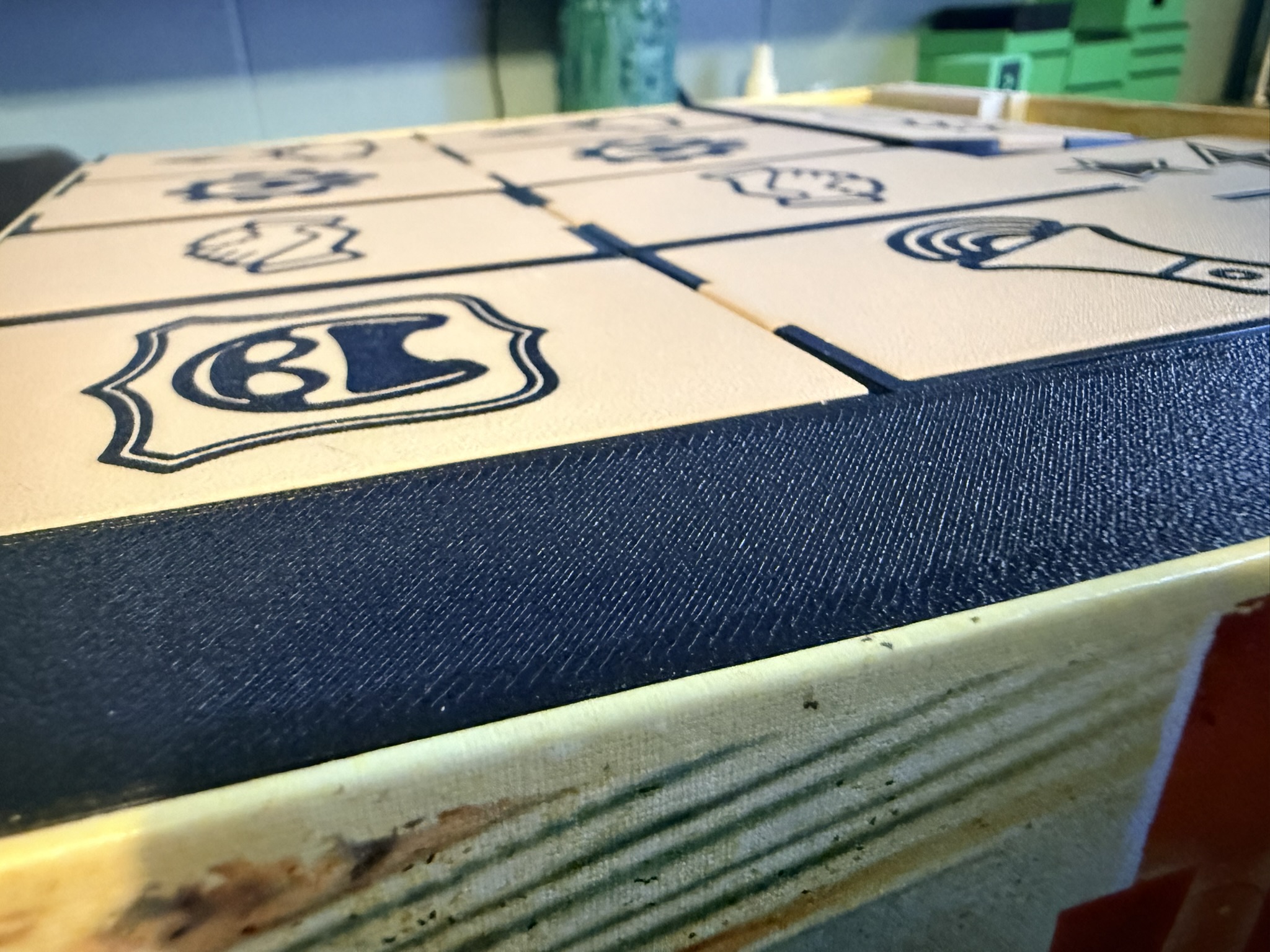

• Available space has been used in a way to mitigate moving parts during storage. You should not have any issues storing this game vertically.

• Lids can be printed with either face on the bed. Placing the top face down is recommended for a cleaner finish on the visible surface.

• The lids do NOT require any supports. If you get warning messages with your slicer, ignore them.

• Once printed, pinch the cantilevers inward (the little arms), which are found under the lid. Minimal force should be required. You will hear a small snap. Your lid is not ready to be used.

https://makerworld.com/en/@user_2443559174/upload

If you like what you see , there are two ways you can help me make more designs.

An easy way is to boost me through Makerworld. Another way to help out is to (via Ko-Fi).
Boost Me If you print any of these and they work well for you, a boost on MakerWorld is a great way to show it. Boosts earn me points I can put toward filament, materials, and parts, which matters more than it sounds. Every design here went through multiple prints before I was happy with it. Either way, happy printing.

Step 1 - Map Boards: Place the map boards on top of each other, flat at the bottom of the box. Align them in one corner.

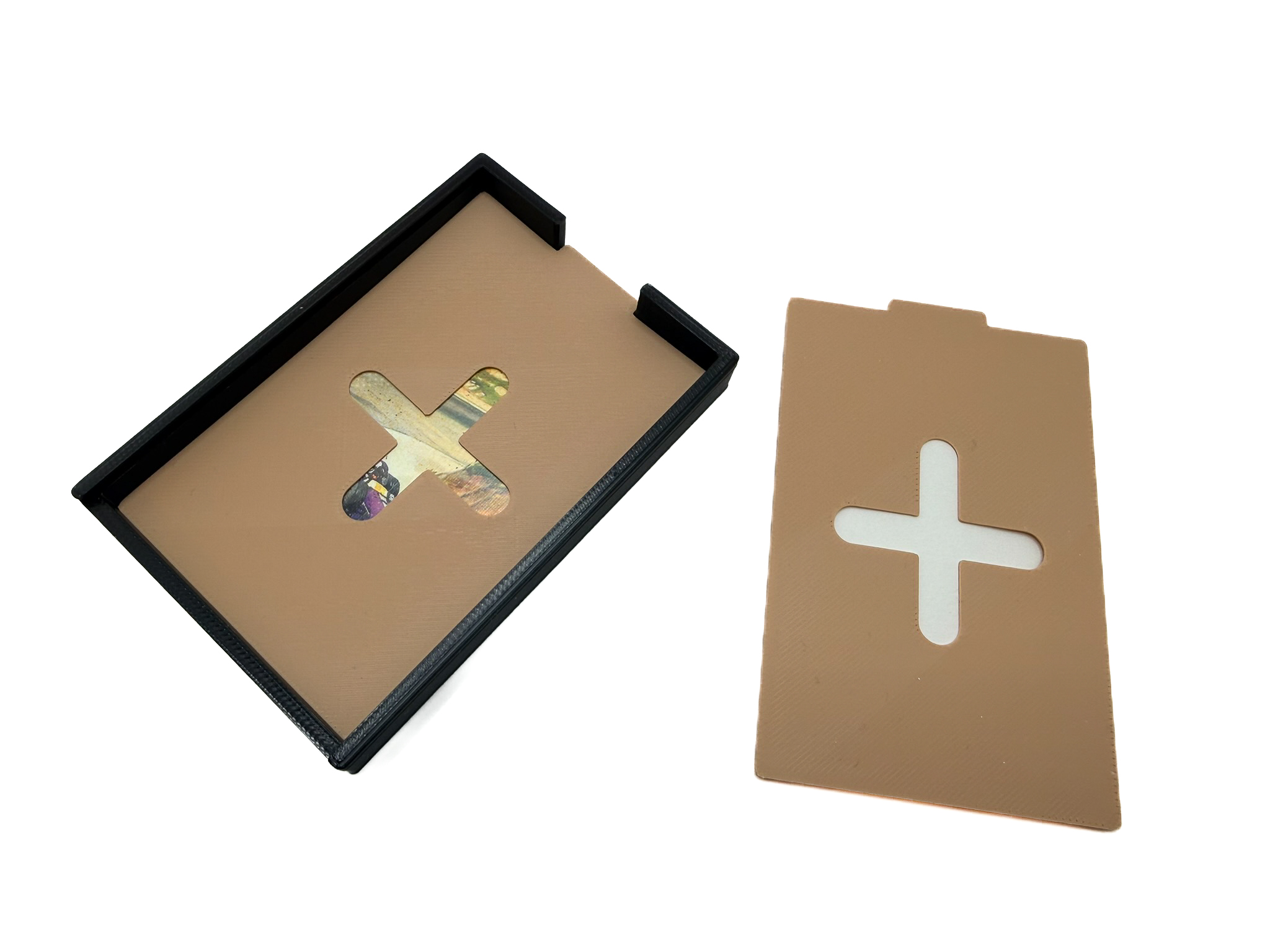

Step 2 - Riser & Card Boxes: Lay the black cross-shaped riser on top of the boards. Lay the player card boxes and the rival box sideways around the map boards. Tuck the score pads vertically into one corner.

Step 3 - Rulebooks: Place the rulebooks and expansion booklets face-up on top of the riser.

Step 4 - Player Boards: Stack the player boards on top of the rulebooks.

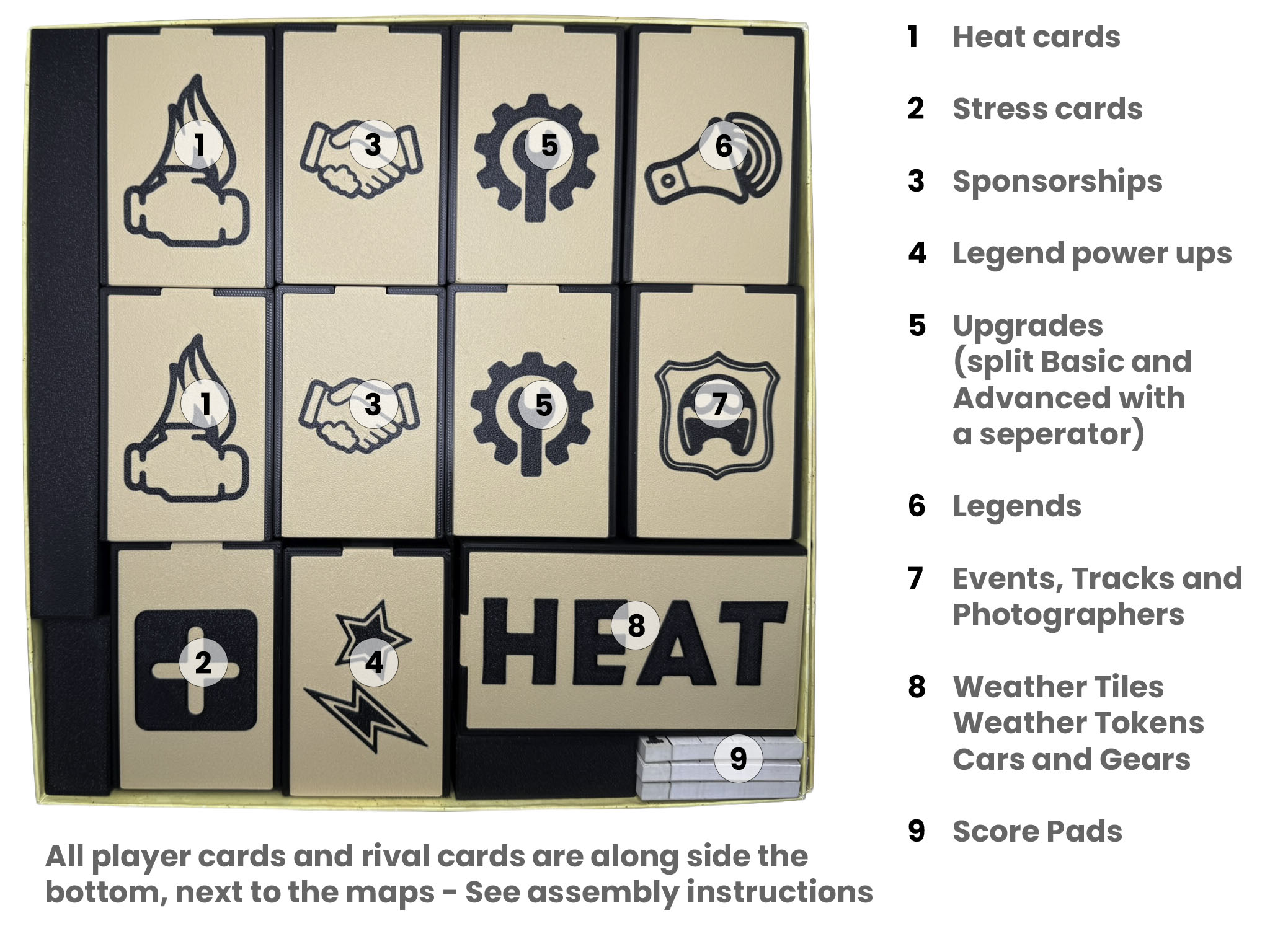

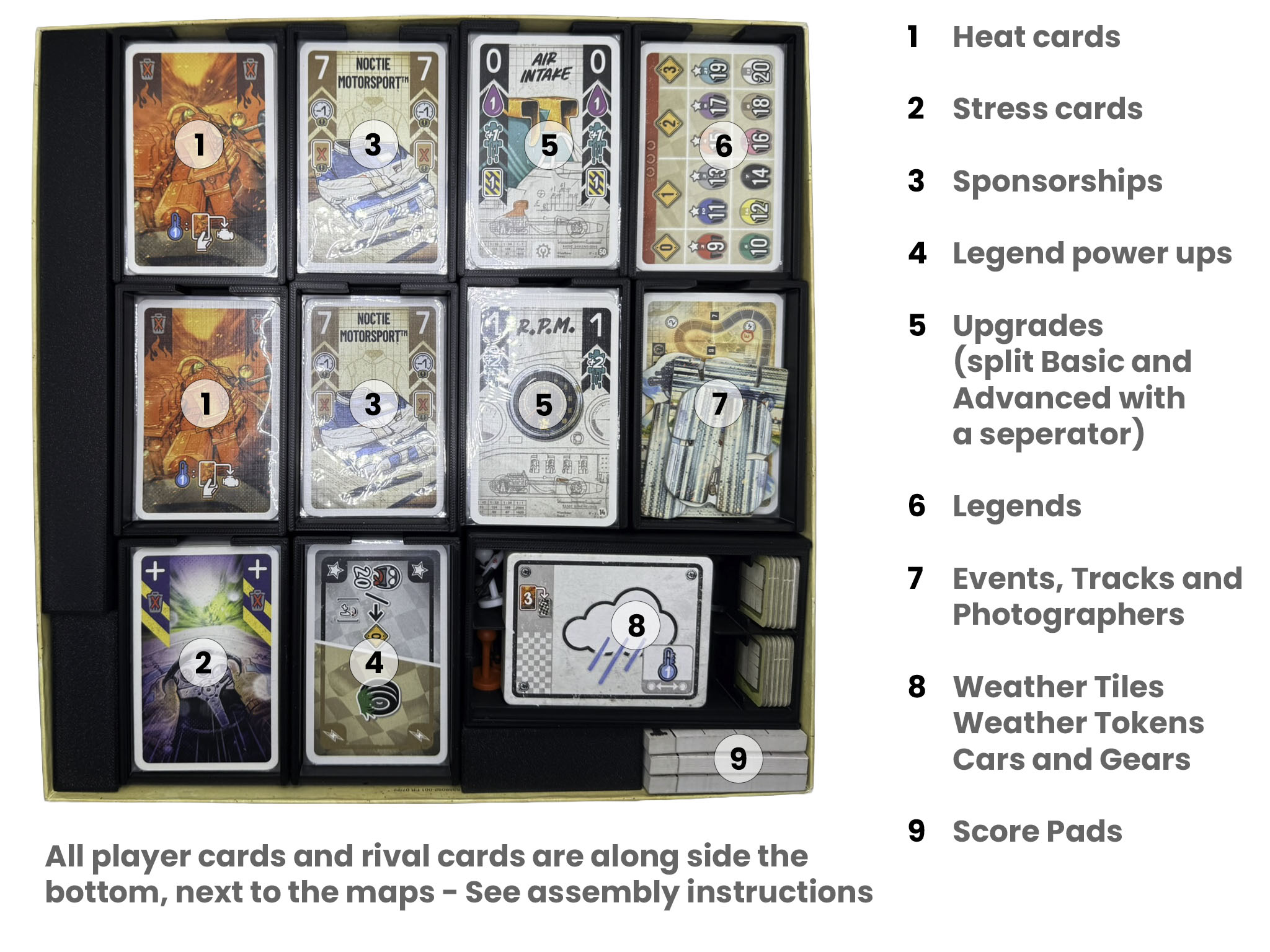

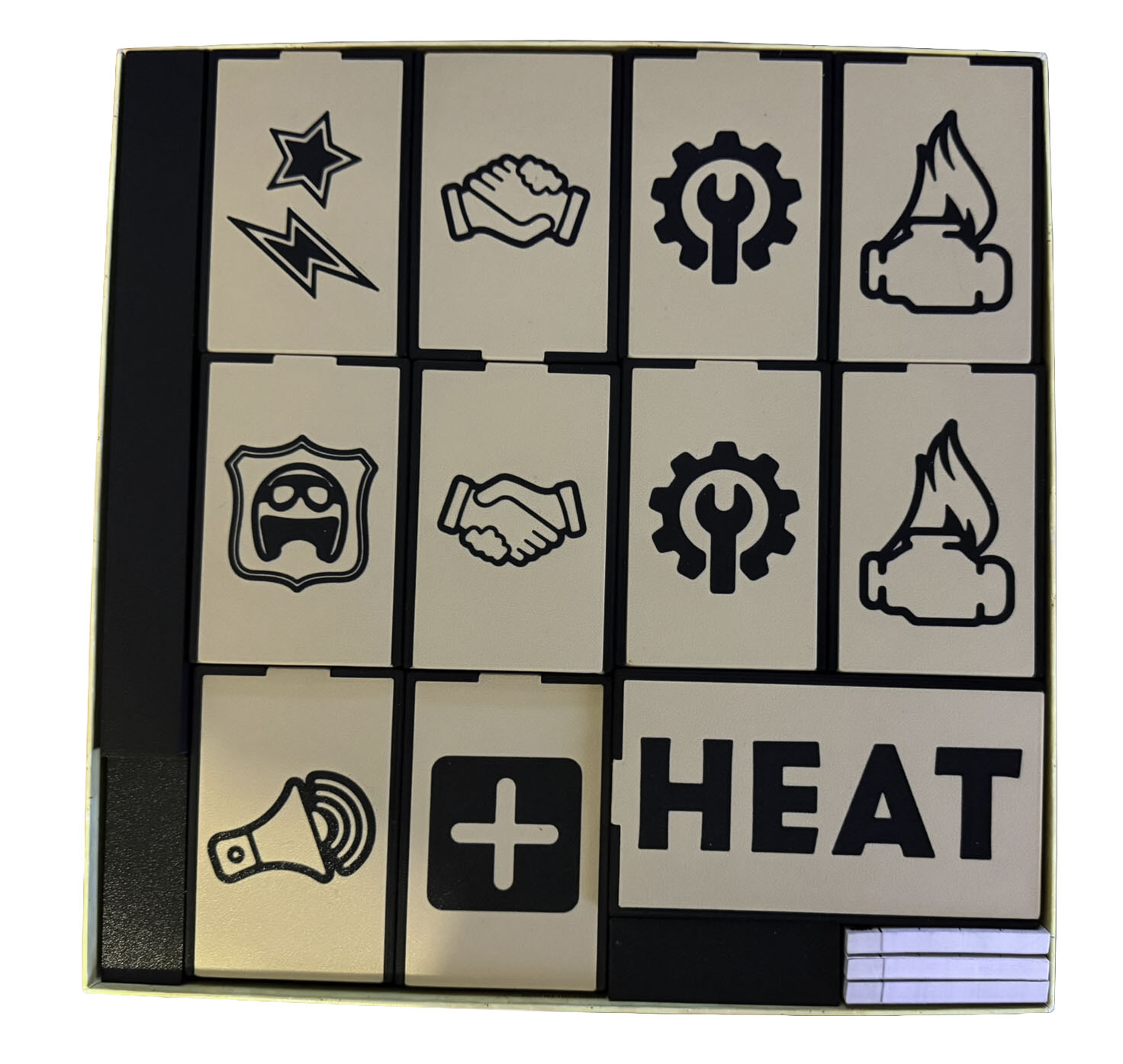

Step 5 - Card Boxes: Place the boxes in any order using a 3×4 grid pattern. Optionally, place the three spacers in any remaining gaps.

If you've made it this far, I have a small bonus for you. This is an updated version of a design I created a few months ago. I was really happy with the original. It featured individual paddocks for each car, and I had done my research on the upcoming Legends expansion, so I designed an extra-large "extension bin" to accommodate any future content.

The issue was that I hadn't accounted for sleeved cards, and unfortunately the design never quite gained traction because of that incompatibility. I really did not think it would be such a big deal, but it obviously was. While I'll be using this new sleeved-friendly version myself, I do have a soft spot for the original project. Rather than deleting it from MakerWorld, I'll be setting it to private. If you're curious to give it a try, you can find it here .
