Zenith Board Game Organizer

These are piece organizers for the spectacular board game, Zenith. The trays are held closed with magnets to go along with the premium feel of the game itself.

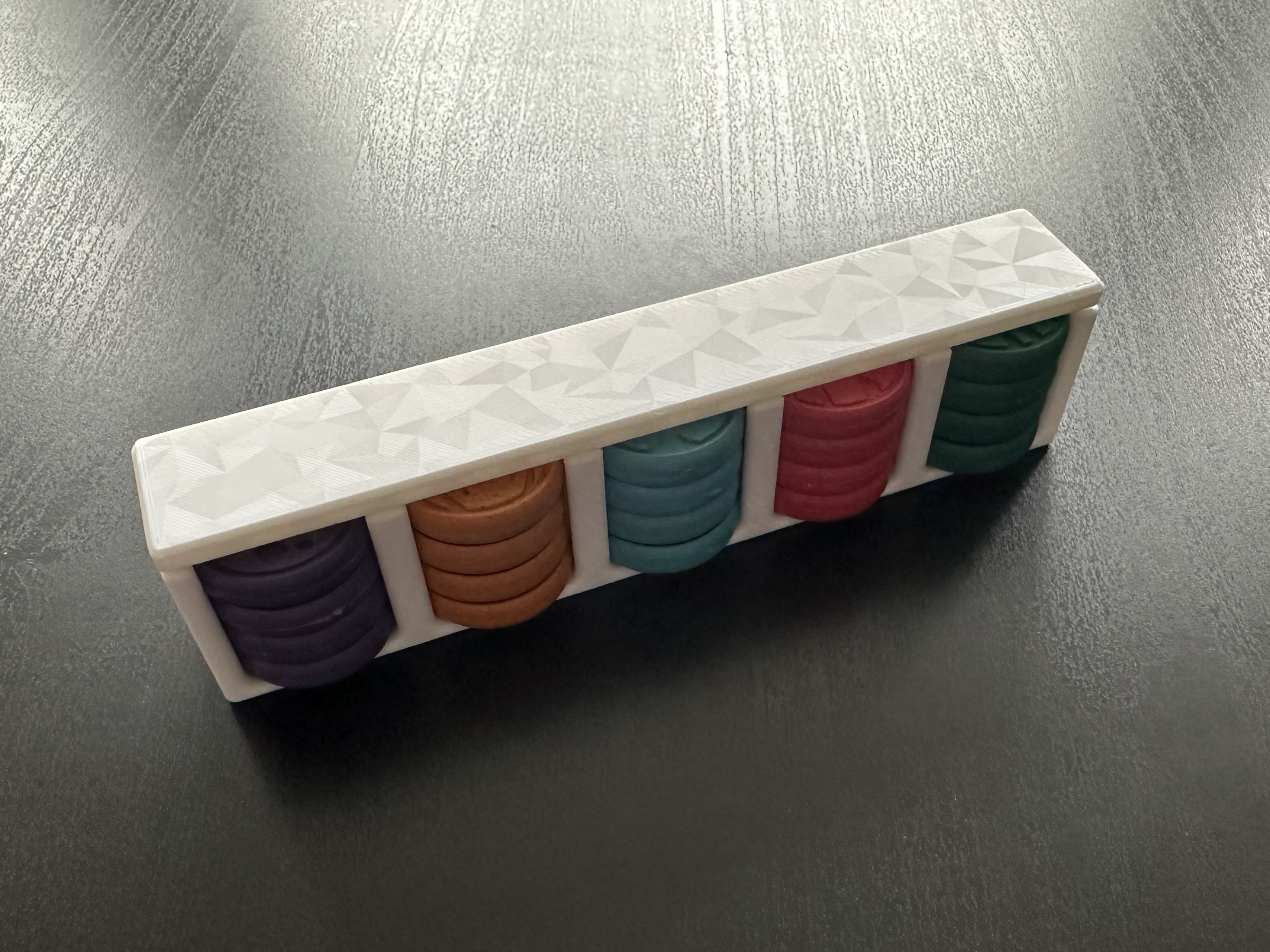

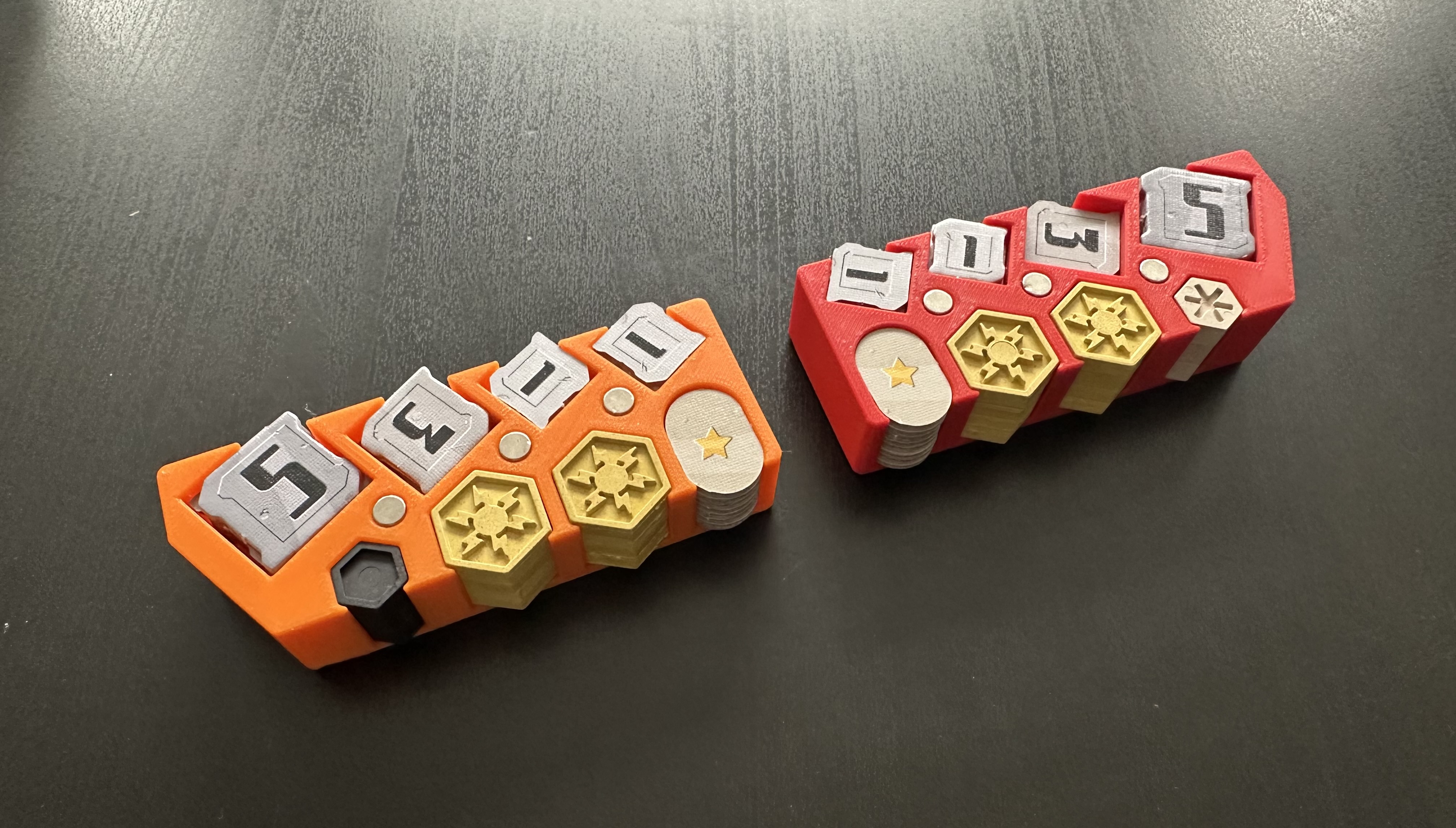

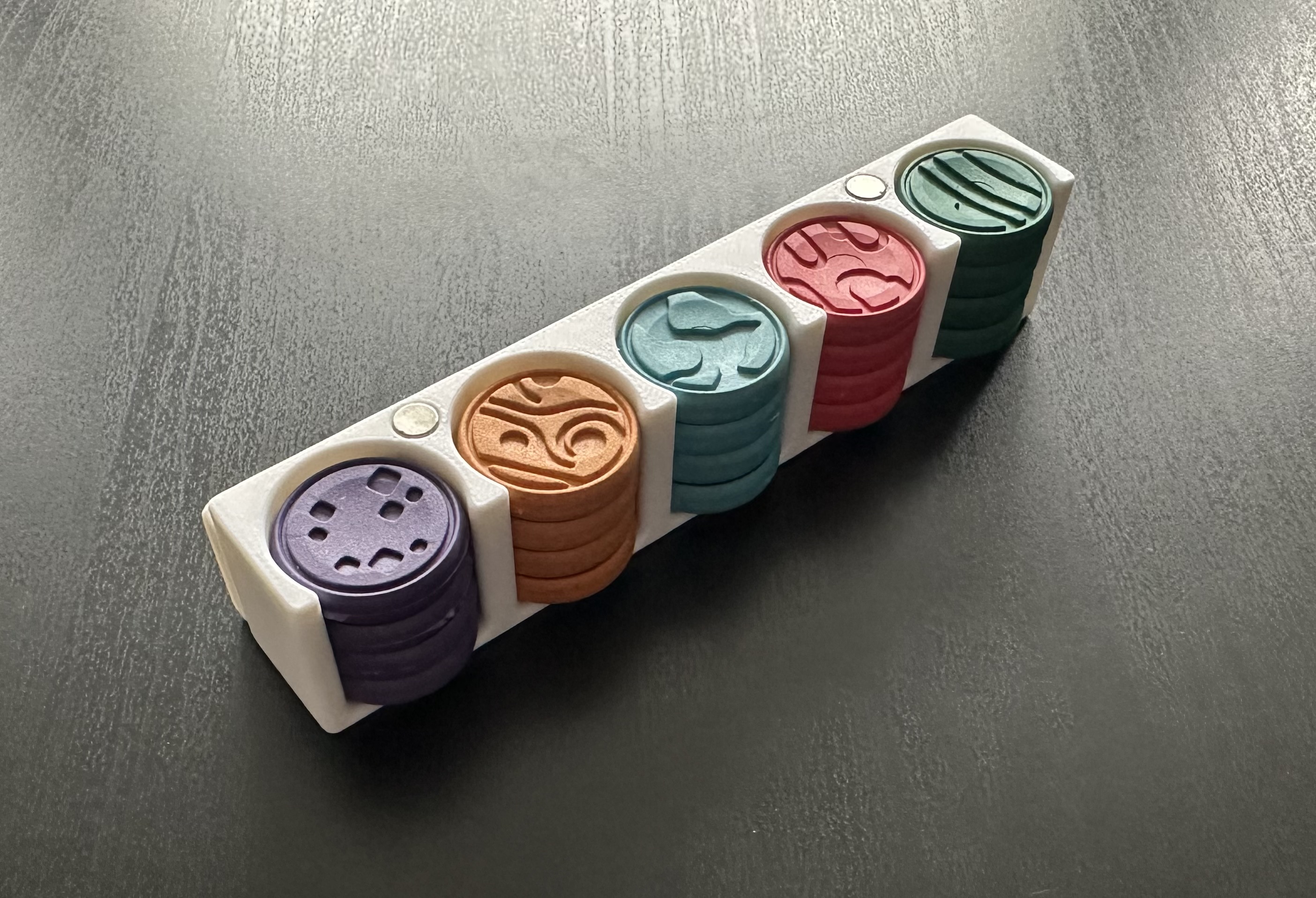

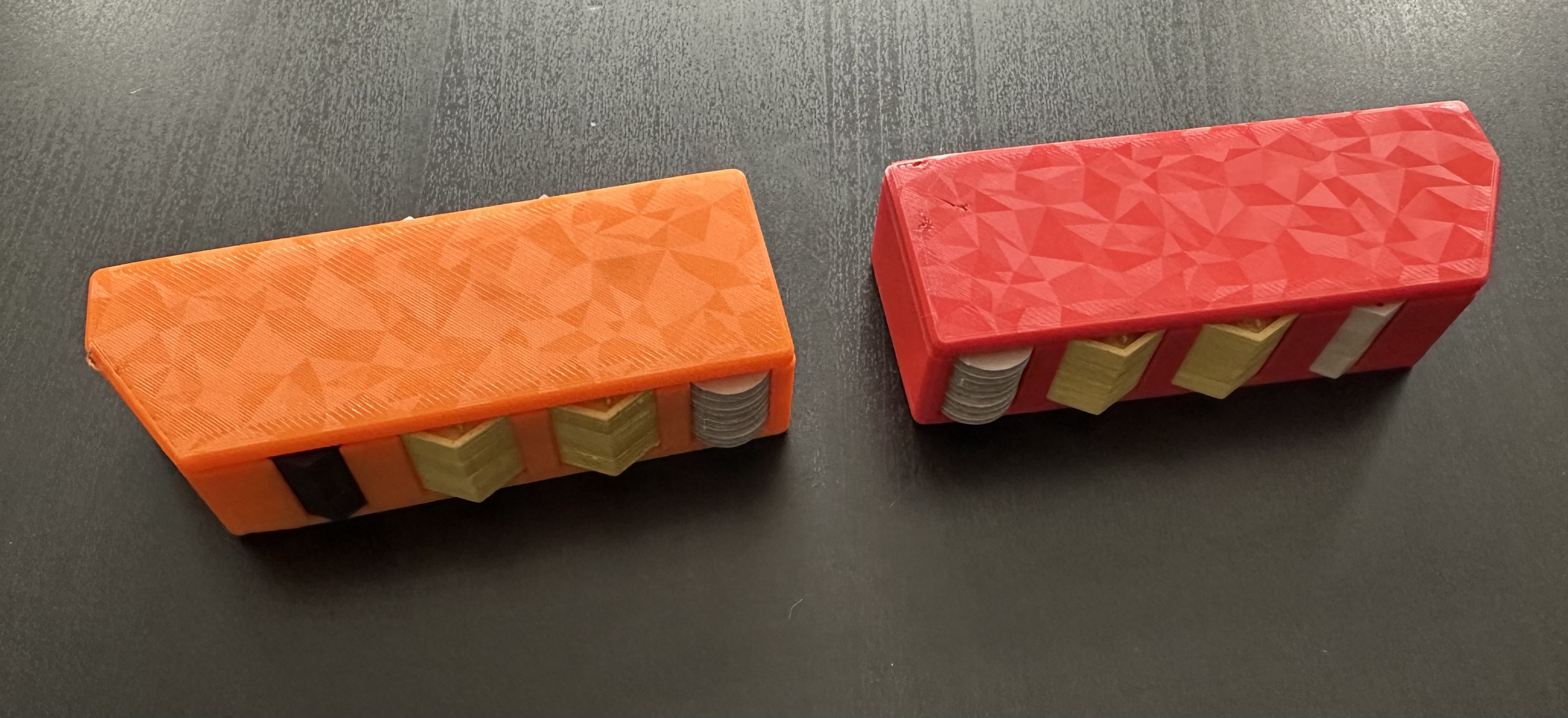

There is a common bank for the planet tokens, and a resource bank. Print two resource banks, one for each player/team. Additionally, I suggest mirroring the models for one of the token holders. The planet bank has two extra magnet holes on the back of the tray and the token banks have extra holes in the bottom to hold the lids while the banks are in use. Alternatively, you can just set the lids aside.

I used 6 x 2.5mm disk magnets with a dot of super glue to hold them in place. Be sure to check polarity before using glue!

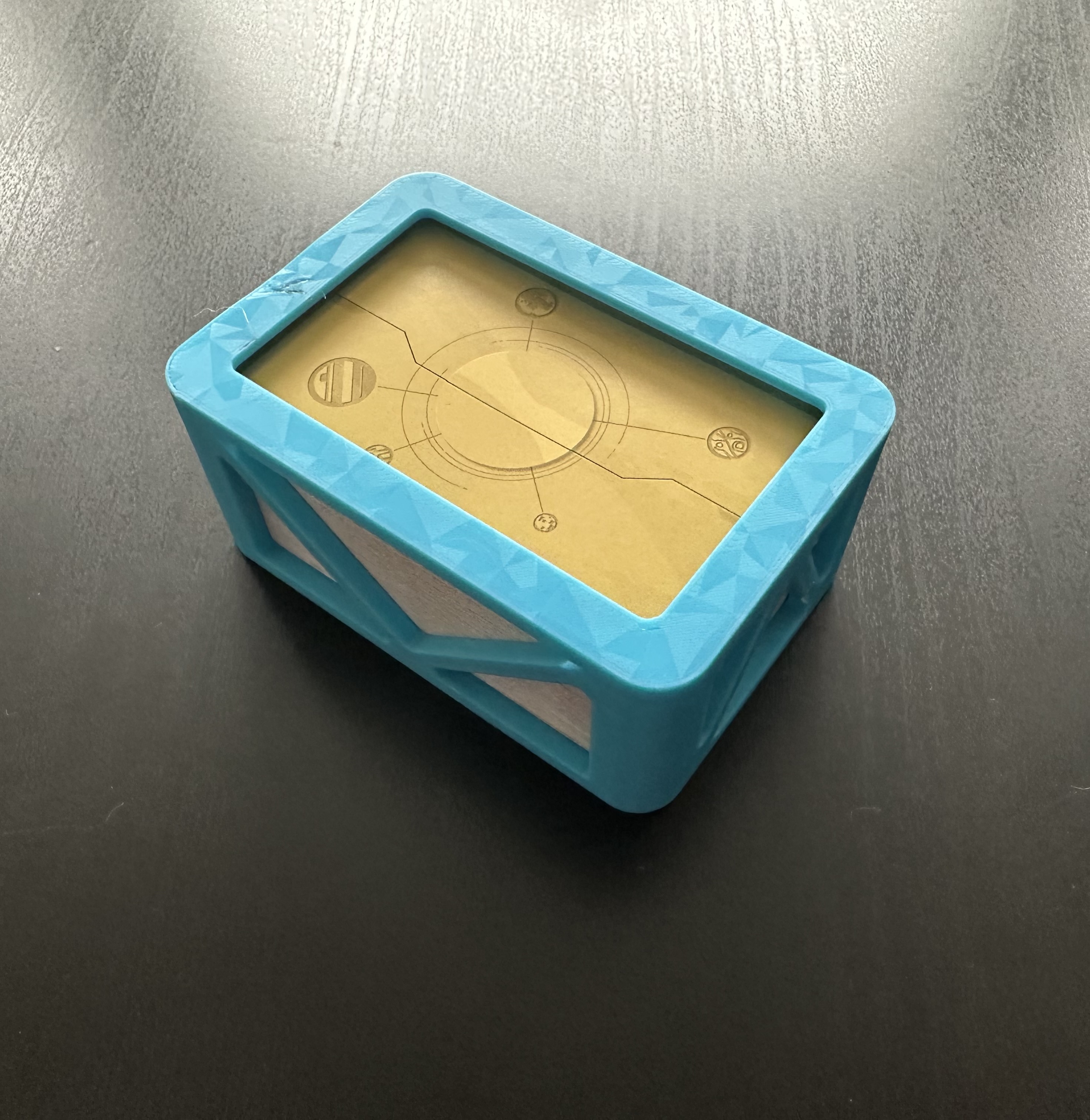

For the cards, I printed this model . This tray is short enough to fit the cards as a single stack in the original box without issues. I scaled both parts in the slicer as follows:

•

X = 101% or 97.74mm

•

Y = 100% or 65.65mm

•

Z = 95% or 39.9mm/3.8mm for base/lid -->

•

This fits both the base game and the Secret Agents expansion.

•

If you have no plans to get the expansion, try printing at Z = 90%

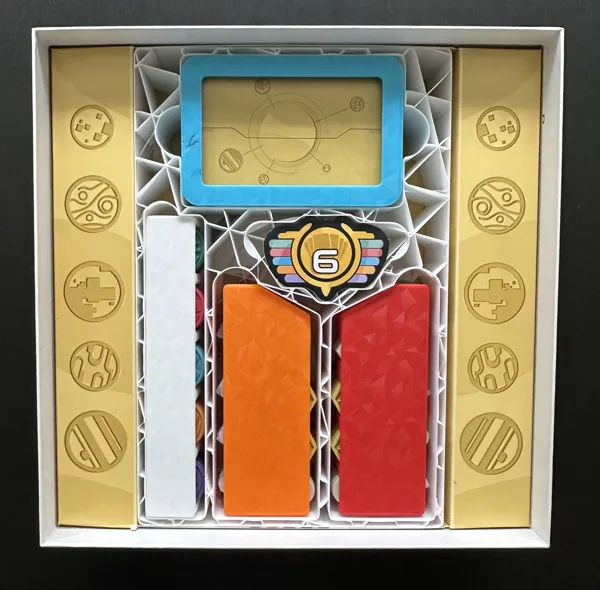

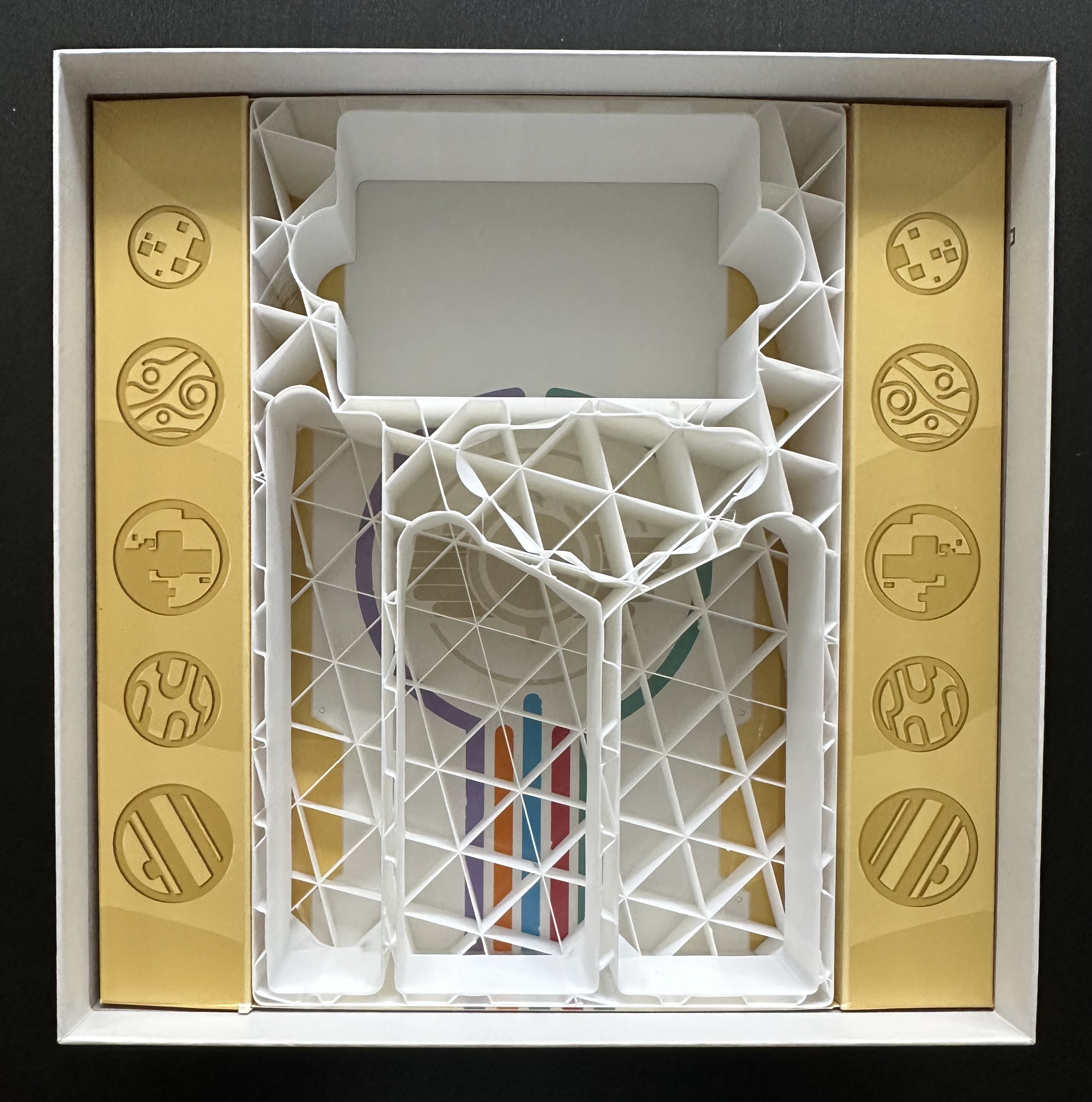

There is also an optional inlay for the box to prevent the trays from rattling around. I printed mine at 0 top and bottom layers, 1 perimeter, and 6% triangle infill. If you decide to skip this, then the Leader token will be loose in the box.
