Age of Galaxy - insert

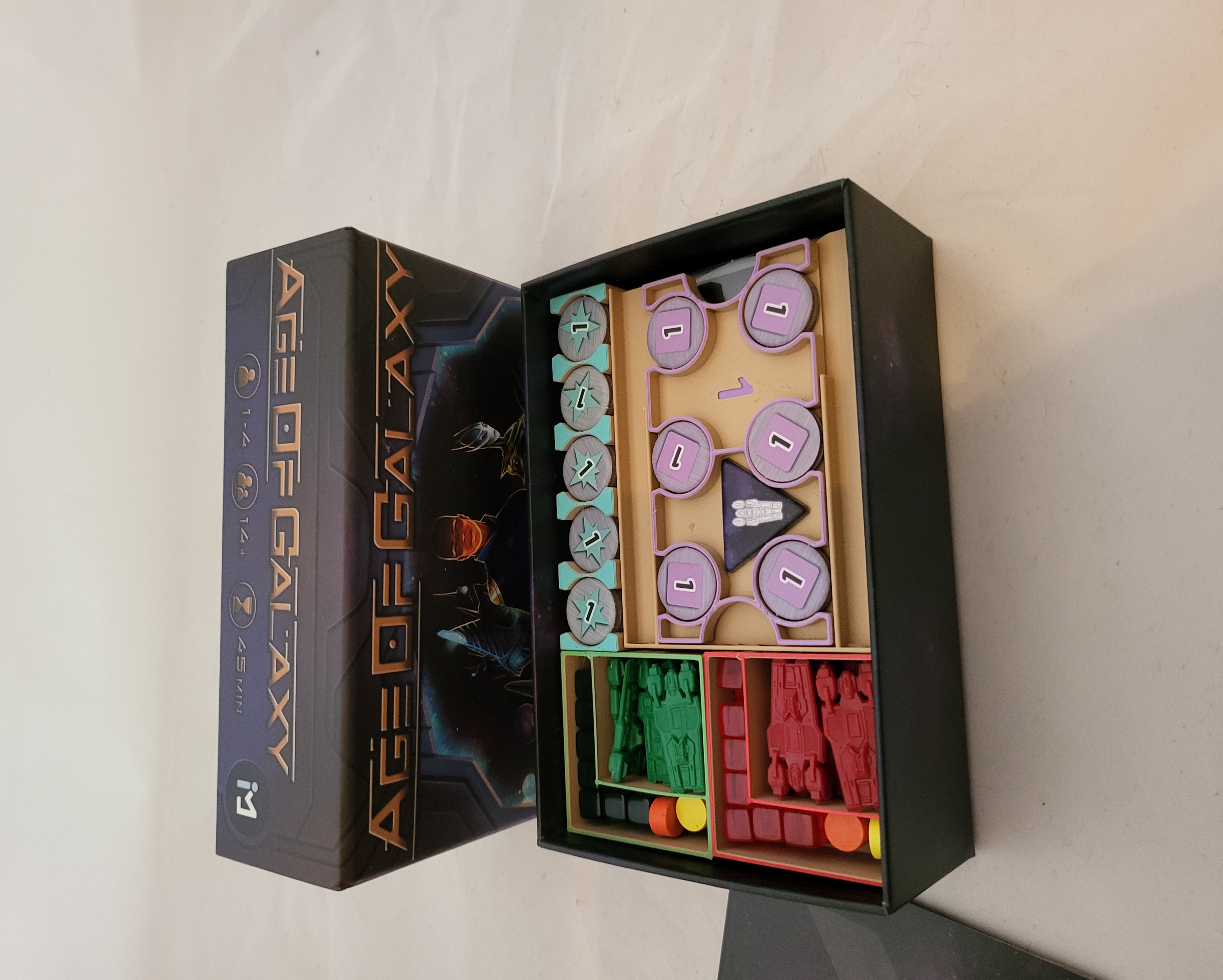

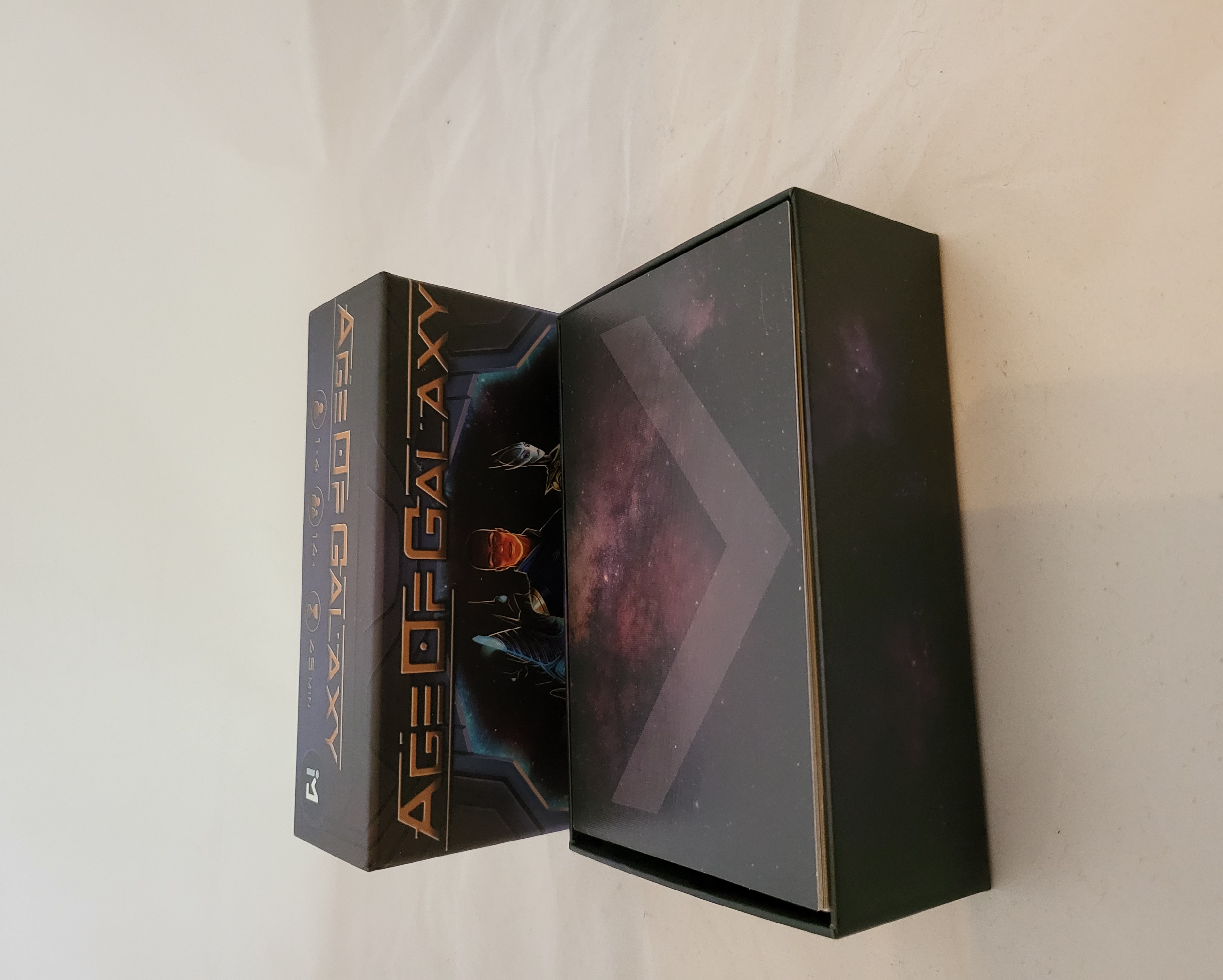

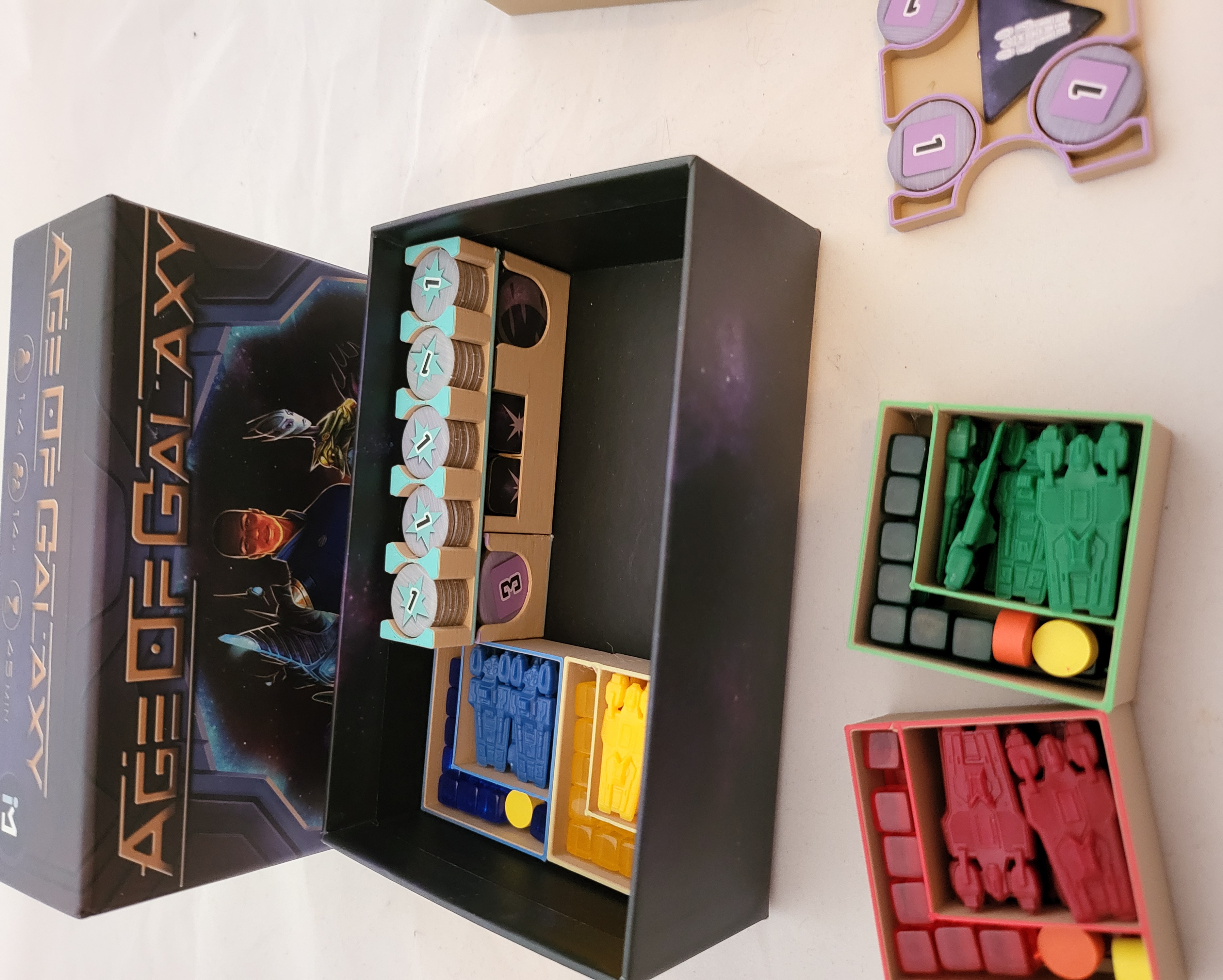

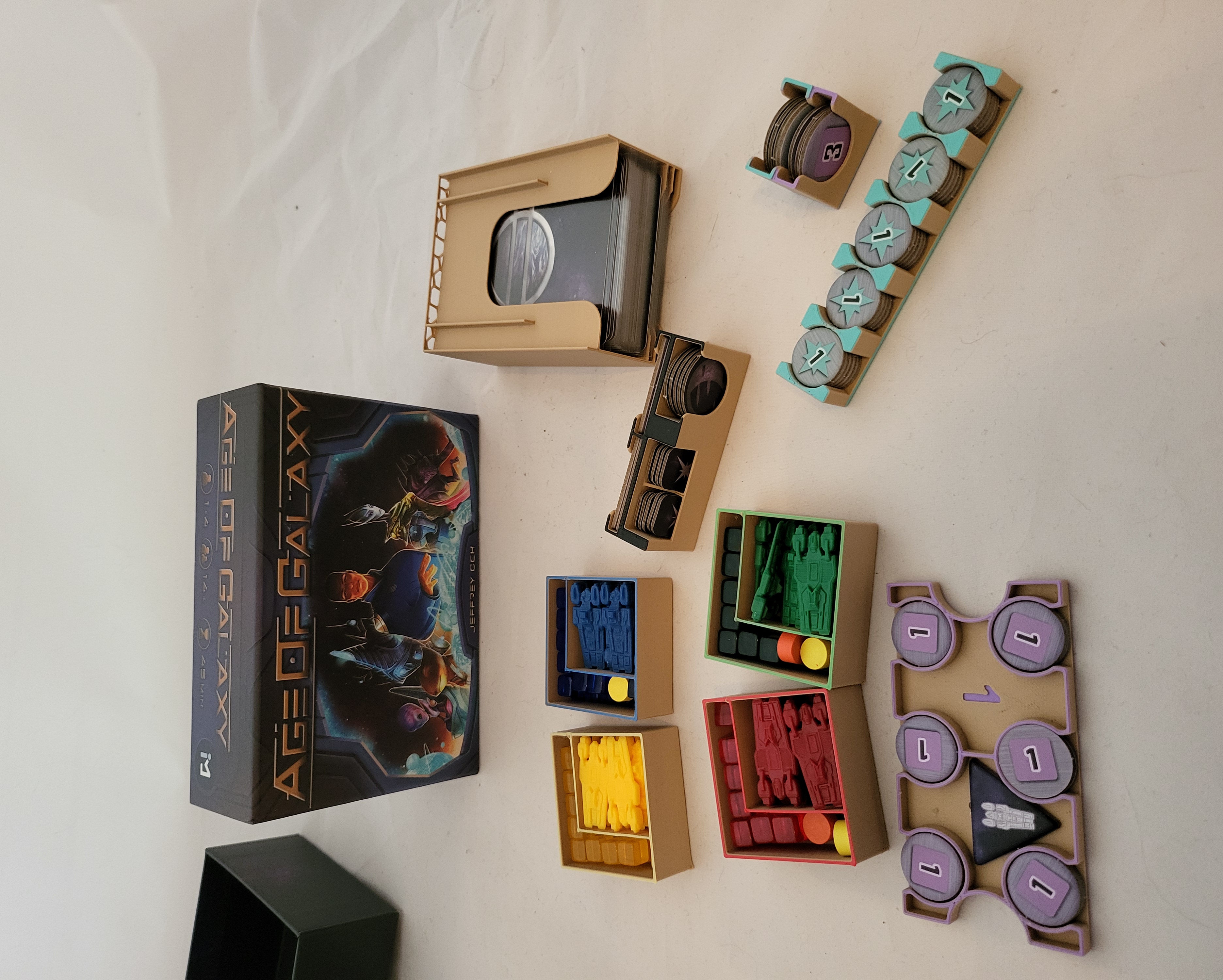

TL;DR: No-lid-lift, suitable for vertical storage, fits sleeved cards (see last page of pdf), fast setup, and teardown insert for the boardgame Age of Galaxy. Pro Tip: shuffle the required components during re-storing into the box for an even faster setup next time.

If you appreciate my work buy me a coffee (or two) :-)

In case you want to sell prints of my design, feel free to join my club for a commercial licence.

At least I would appreciate it if you left a like and after printing provided a rating and a comment - this would help me further improve myself.

As for the other inserts I create, I aim for the following (in priority order):

• Enhance step and tear-down part (goal: setup should never take longer than a refresh of the rules to the game)

• Opted to store the majority of sleeved cards (specific sizes of trays see uploaded pdf)

• The game box can be stored horizontally or vertically

• Try to be as lightweight and resourceful as possible - but functionality wins

• No Support needed

A few key items (further information on printing see uploaded pdf):

• Printing requirement: 0.4 nozzle, Arachne Wall Generation, largest printing object 95 mm

• I normally print without Top/Bottom layers and between 10 and 15% Honeycomb infills and 2 walls to achieve the look you can see in the pics. In case there are icons/information (e.g. card trays), I only print without Top/Bottom layers up to 2mm in height. For the PlayerTrays I would print the bottom solid (it is only 0.6mm height)

• If you use PrusaSlicer/BambuSlicer or forks of it (i.e. I use OrcaSlicer) I suggest that you load the 3mf-files - those are pre-cut and names contain additional printing information

• All those settings result in appr. 90g of filament needed for the whole print

As always, I love suggestions & feedback to improve further.

Have fun printing.
