The White Castle - Insert/Organizer
Please support RiftForge 3D3 by Liking/Boosting their Print on Printables.
TL;DR: No-lid-lift *), suitable for vertical storage, fits sleeved cards (see last page of pdf), separate card trays to put them directly on the table, fast setup and teardown insert for the boardgame The White Castle. Pro Tip: shuffle the required components during re-storing into the box for an even faster setup next time.

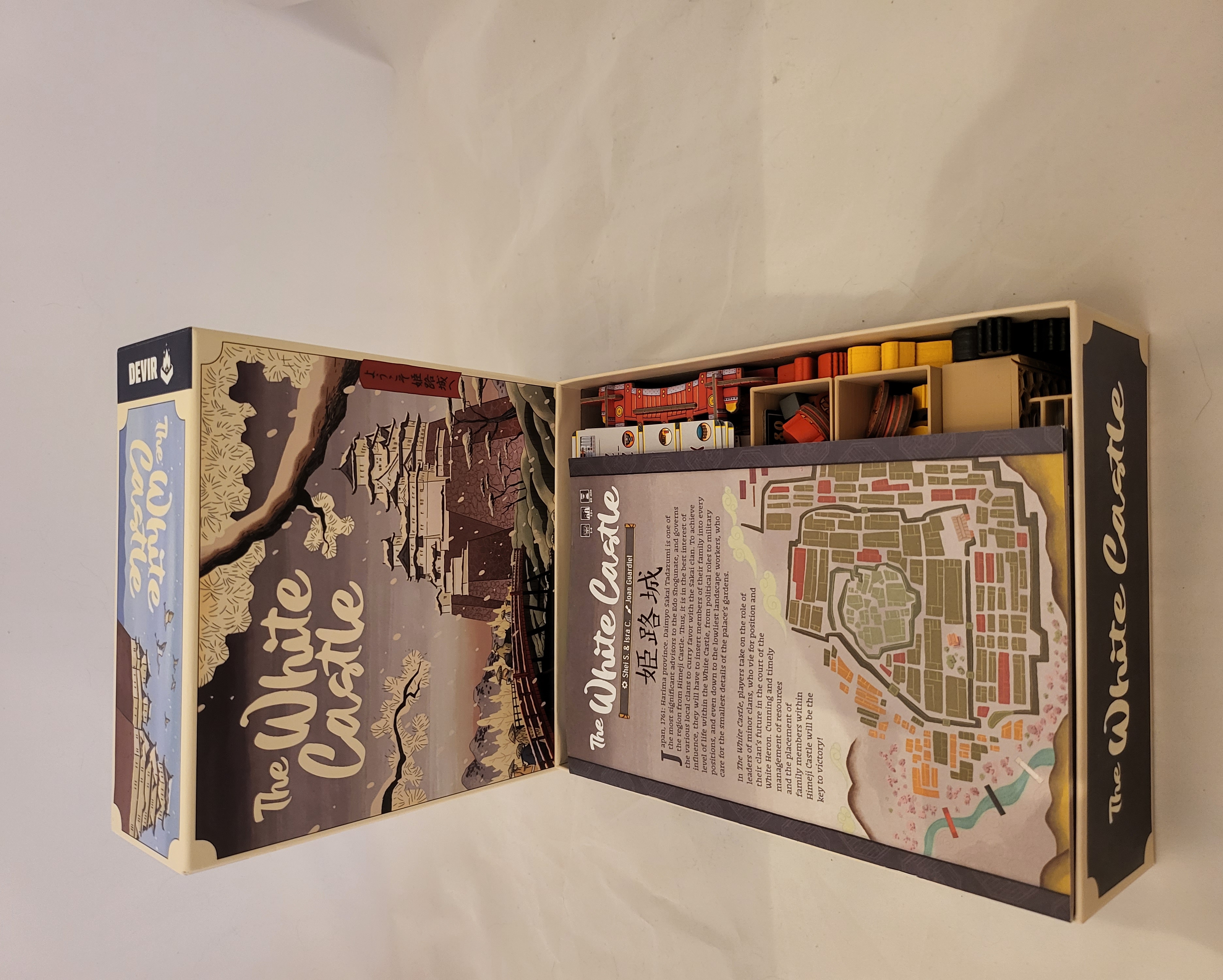

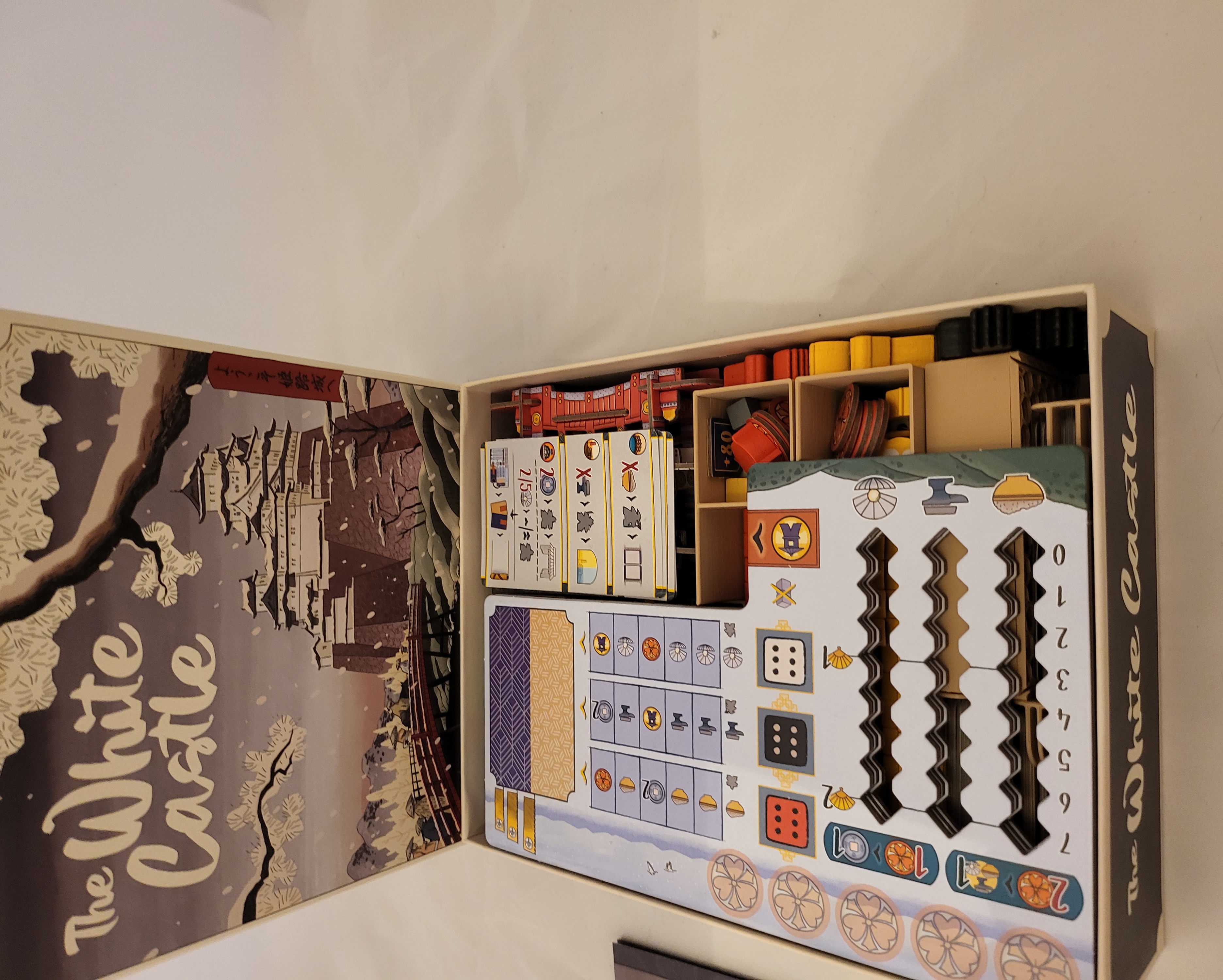

*) In case you have the multi-language version, only one rulebook will fit without lid-lift.
If you are already a member of my printables club - it is very much appreciated. The creation of those designs takes quite some time (and iterations) - if you appreciate my work buy me a coffee (or two) :-)
In case you want to sell prints of my design, feel free to join my club for a commercial licence.
At least I would appreciate it if you left a like and after printing provided a rating and a comment - this would help me further improve myself.
As for the other inserts I create, I aim for the following (in priority order):
• Enhance step and tear-down part (goal: setup should never take longer than a refresh of the rules to the game)
• Opted to store the majority of sleeved cards (specific sizes of trays see uploaded pdf)
• The game box can be stored horizontally or vertically
• Try to be as lightweight and resourceful as possible - but functionality wins
• No Support needed
A few key items (further information on printing see uploaded pdf):
• Printing requirement: 0.4 nozzle, Arachne Wall Generation, largest printing object 173mm
• I normally print without Top/Bottom layers and between 10 and 15% Honeycomb infills and 2 walls to achieve the look you can see in the pics. This time some of the trays even have one wall with 0.6mm
• If you use PrusaSlicer/BambuSlicer or forks of it (i.e. I use OrcaSlicer) I suggest that you load the 3mf-files - those are pre-cut and names contain additional printing information
• All those settings result in appr. 123g of filament needed for the whole print
As always, I love suggestions & feedback to improve further.
Have fun printing.

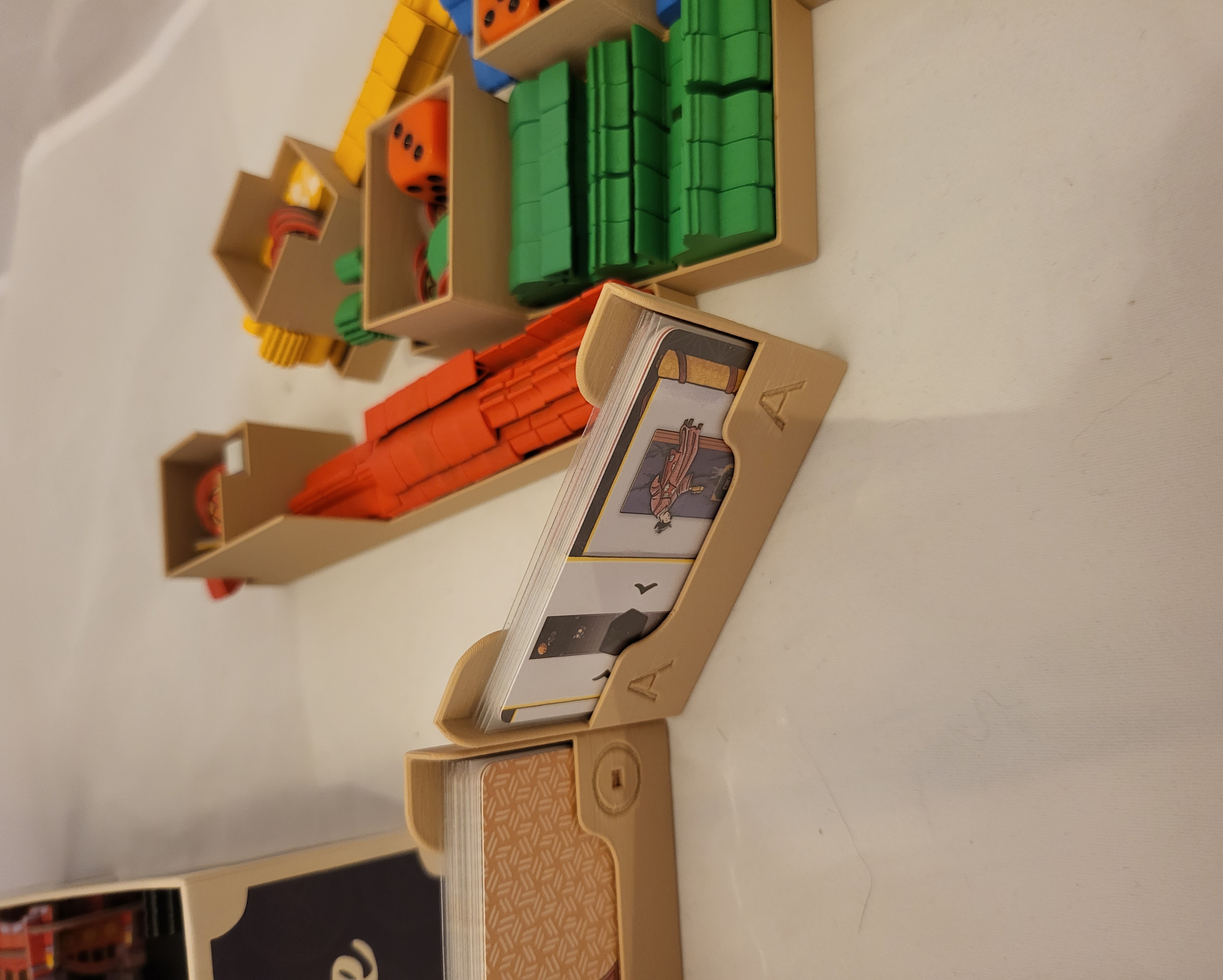

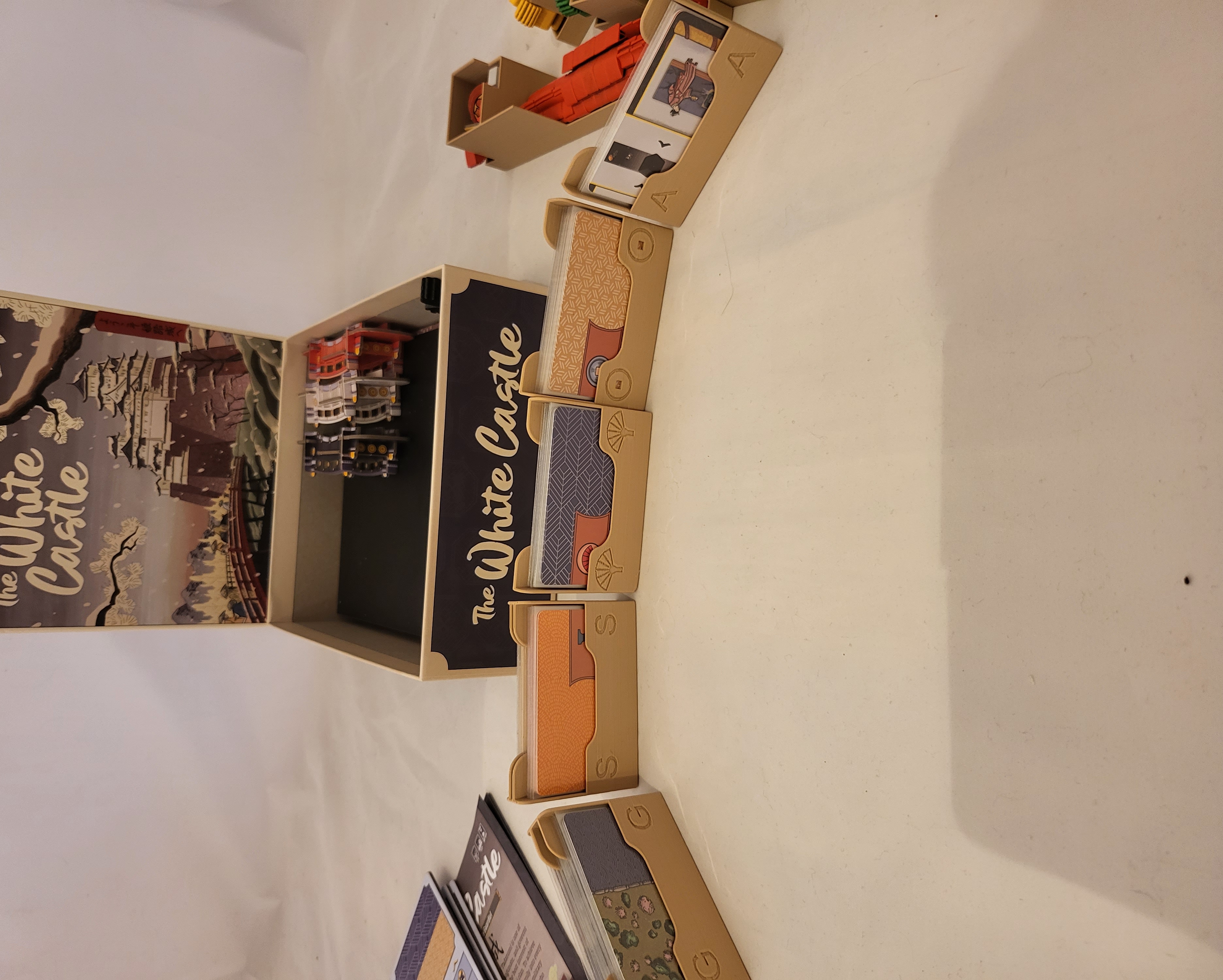

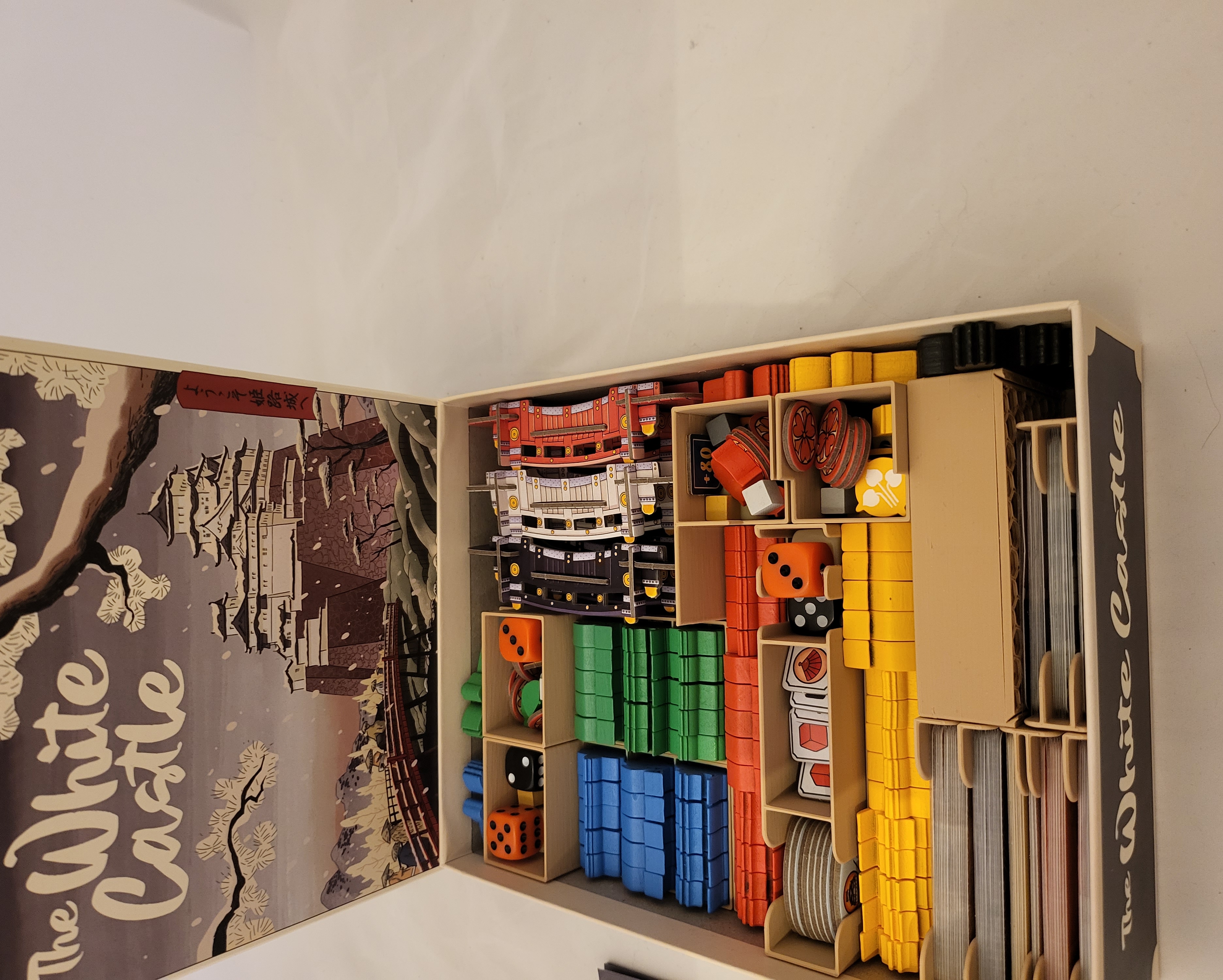

Even though there are great inserts for this challenging box, I started my challenge when there was none available. After one month of exclusivity for my club members, the insert is now free for all. A few key features: * Separate card trays (including markings to identify which cards fit in where during initial filling) for sleeved cards so you can place the required ones directly on the board. * Player trays are designed in a way that they hold the 5 Daimyo-tokens and 3 dice (one for each color) - so you don't have to consult the rulebook on the number of dice based on player count * No lid-lift as long as you only put one rulebook into the box (mainly a topic for the multi-lang version) * There is a pdf for download available which shows what goes where and detailed information regarding dimensions of the card trays. You can find it here: https://www.printables.com/de/model/642860-the-white-castle-insertorganizerRiftForge 3D3 - White Castle insert
