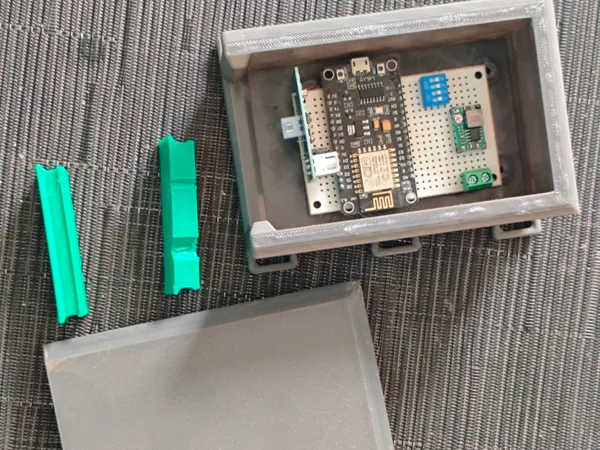

Parametric Weatherproof Project Box
Free
Plan Your Print
Sign in
to track this print from Want to Printed.
✓Needs about 121 g
From the designer's print profile
What it takes
2 plates
4h 36m
121 g PETG, TPU
P1S, H2D, X2D, X1, H2S, P1P, P2S, H2C, A2L, X1E, H2D Pro, X1 Carbon, A1
Plate Details (2)
0.4 mm nozzle, all plates
Plate 1
3h 42m
111 g
PETG · 111 g
Plate 2
54m
10 g
TPU · 10 g
Model Description

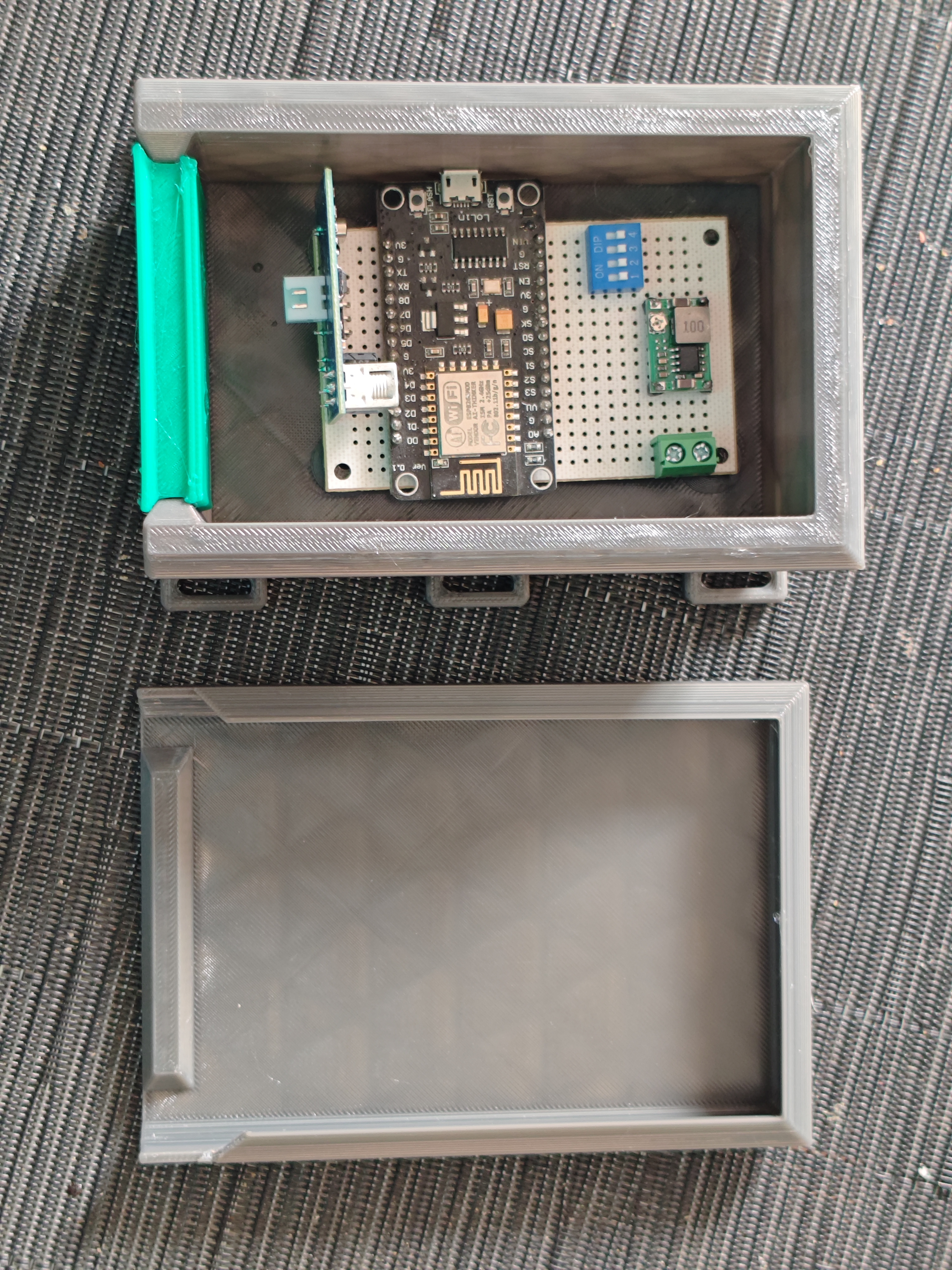

A few months ago I started building ESPHome sensors and I needed to place a few of them outdoors or near a water tank. I went through a few iterations, but came up with this design, It´s parametric, in the sense that I arrived at this shape through parameters, I don´t know if it will survive other shapes.
The standoffs and holes are setup for a STEREN 405 Phenolic board, because that´s what I have, but should be modifiable to whatever you need.

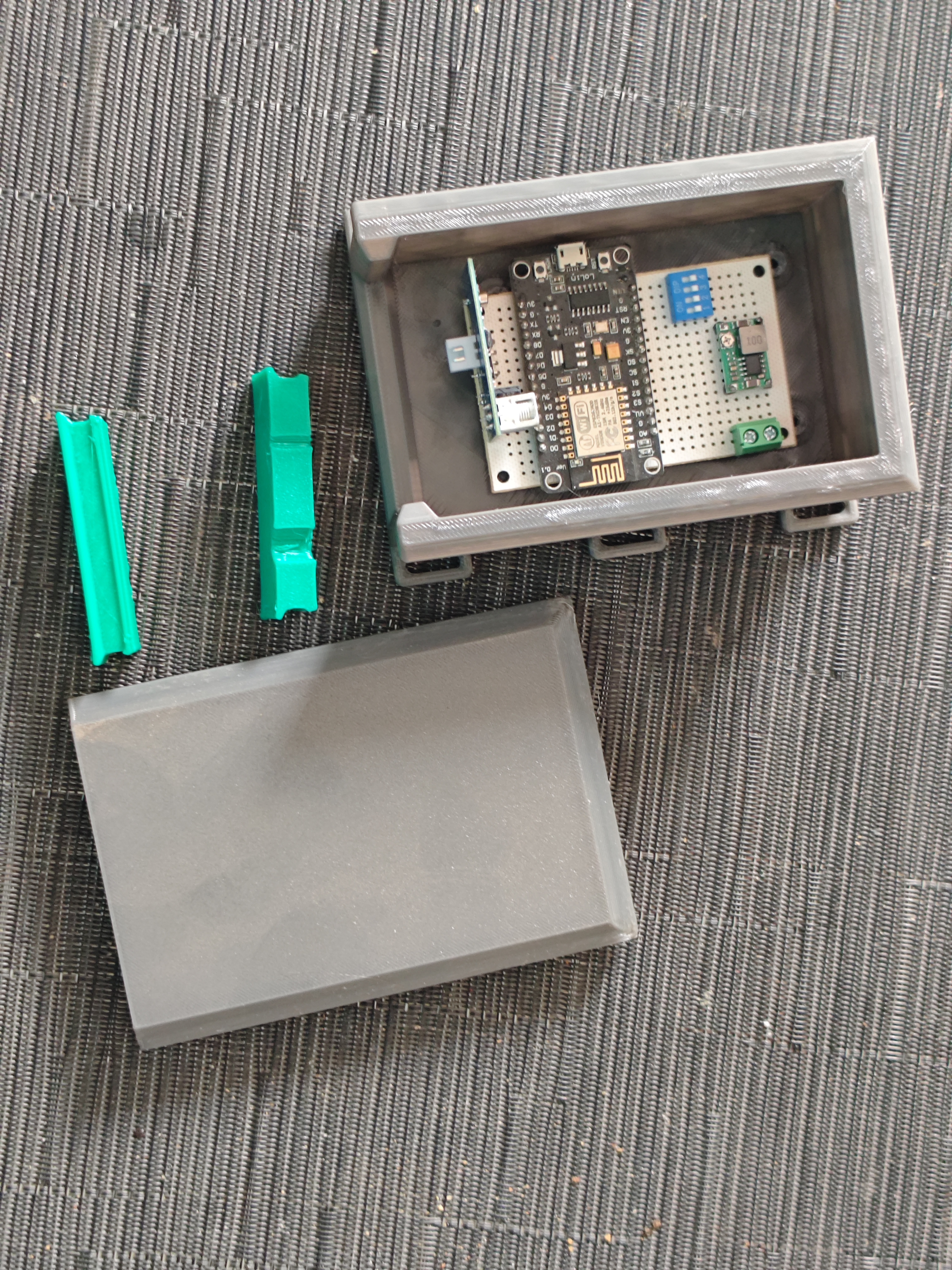

The grommet/seal has 2 holes that should be modifiable to whatever you may need, I used them for data and power cables.
I set mine up vertically and there should be no water ingress whatsoever, however if set up horizontally, there might be.
