HEAT Pedal to the Metal Insert (+HR + TV +RR)

This is an updated version of the insert, bringing improvements while keeping the core geometry unchanged , so if you’ve already printed v1.0 or 1.1, you don’t need to reprint everything (or anything at all, changes are cosmetic, or additive), but I recommend that you print the higher map spacer!

Once I get my hands on Legends I'll re-assess the insert. I want to keep the map layer, and the car layer, so I see a couple of options moving forward:

• Redesign the bottom layer to accommodate all cards and components (optimistic, but would be nice)

• Keep the bottom layer as is, and make some side boxes (sideways, next to the maps) to store the new content

• A combination of 1 and 2, whatever feels most logical to me.

Feel free to share your ideas - I read every suggestion and genuinely take them into account.

I'm really happy with the car layer, so I'd prefer not to redo it - even though I could technically squeeze 3cm out of it (e.g., for horizontal trays). My gut says it'll end up feeling cramped rather than clean.

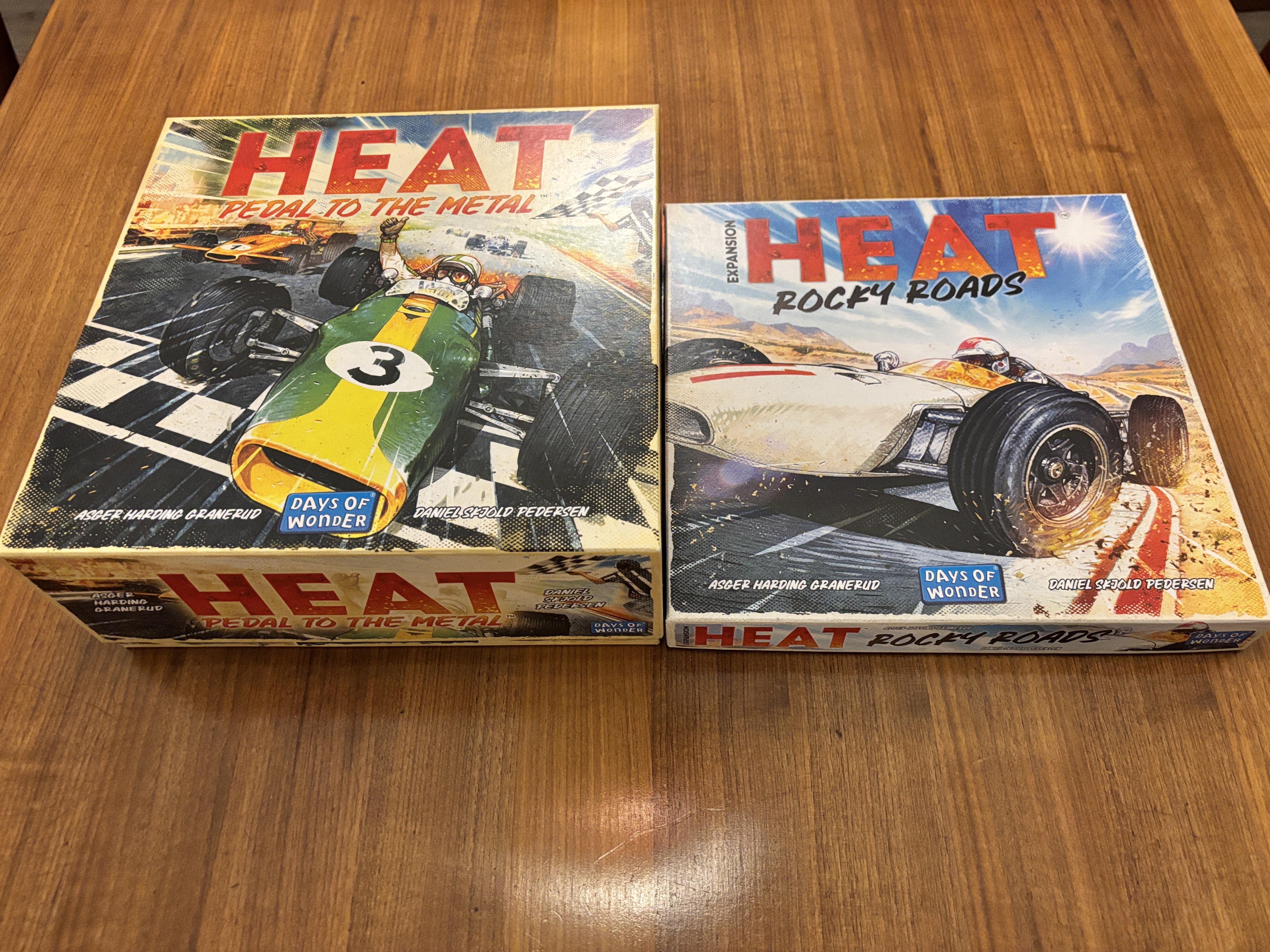

• Rocky Roads support added. The cards fit medium sleeves (I use Arcane Tinmen), though you may need to be a little creative with how you stack.

• The extra compartment has been dropped to make room for the white Rocky Roads car and its cards.

• A higher corner spacer has been added, to support the new map (causing lid lift)

• With all three expansions, the extra Rocky Roads map will cause a small lid lift (equivalent to one map). You can also store it in an expansion box if you prefer a flat lid. My take is more space efficient.

• If you own 0-2 expansions, the freed-up space works well for storing extra tokens or other game accessories.

✅ Adaptive layer height – Smoother prints while keeping print times efficient.
✅ New color profile – Designed to match the HEAT color scheme for a cohesive look.

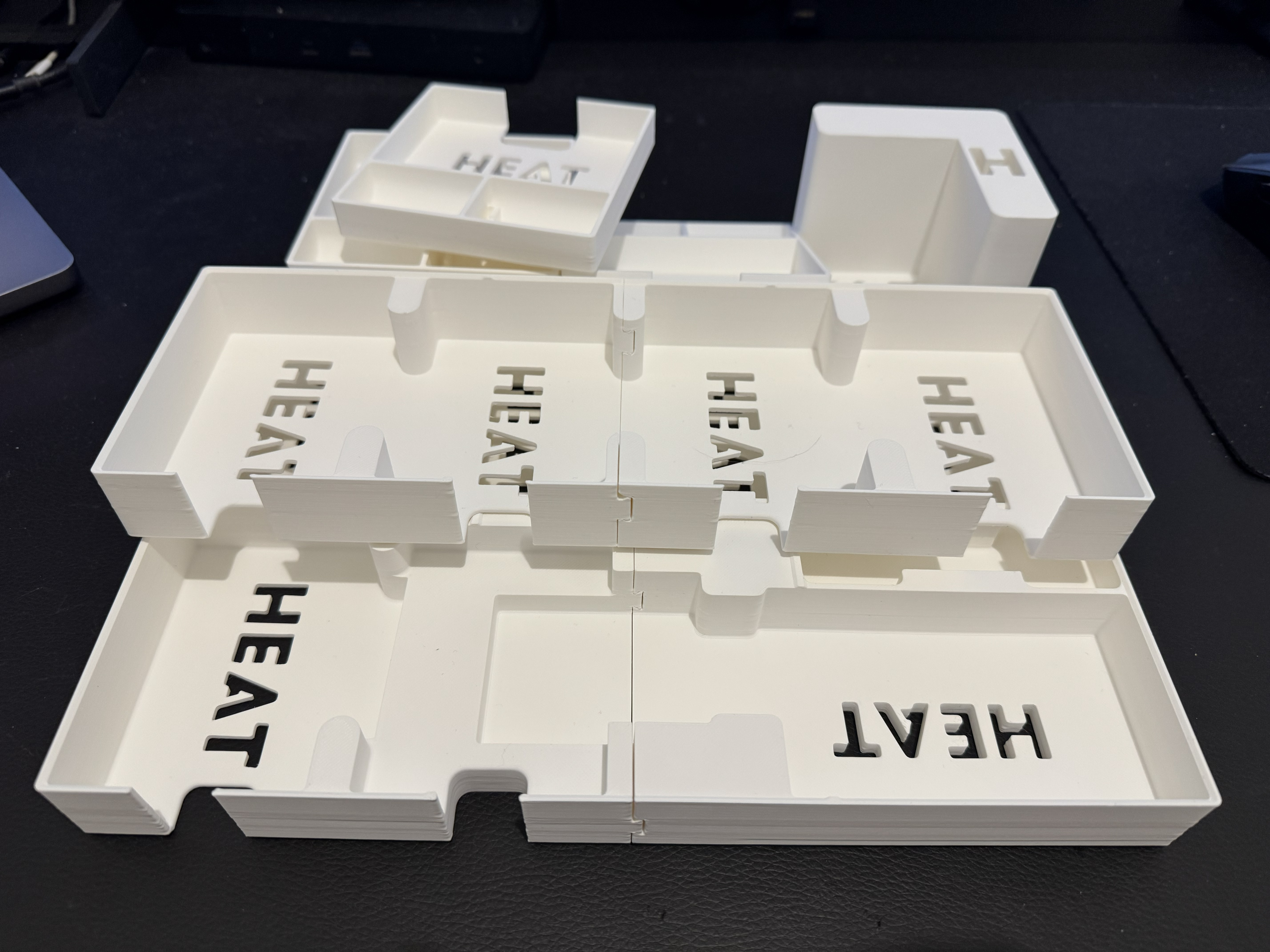

✅ HEAT stencils added to all components – A more thematic finish for the insert!

• Use my color profile to match the HEAT color scheme, with top layers

• Print the player trays in player colors for a personalized look.

• Or just go with plain grey or your favorite color — it still works just as well!

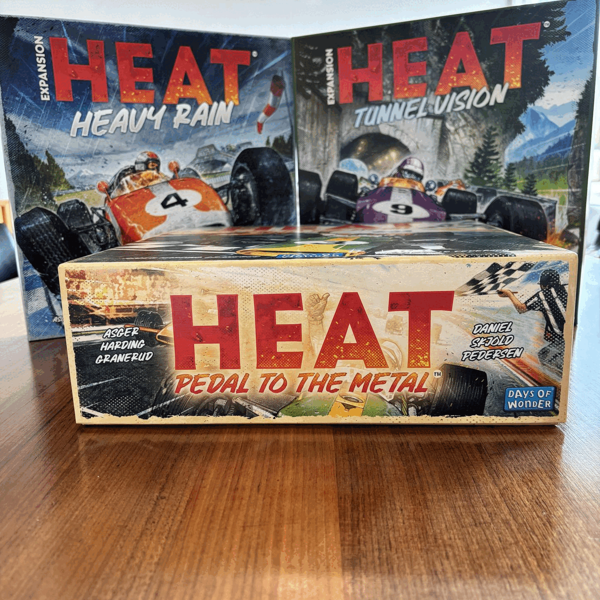

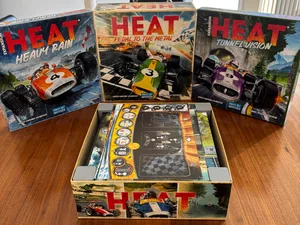

Tired of lid lift or messy setups with Heat: Pedal to the Metal and its expansions? This fully modular 3D-printed insert is designed to fit the base game + Heavy Rain + Tunnel Vision while maintaining a compact and efficient layout .

• A Grow-Into Insert 🏁
• You don’t need to replace the whole insert when expanding your collection.

• Simply swap out the board spacers as you add Heavy Rain and Tunnel Vision .

• Works perfectly for any collection size —whether you own just the base game or all expansions.

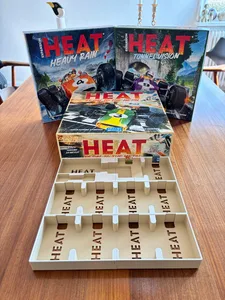

• Layered System for Faster Setup & Teardown:

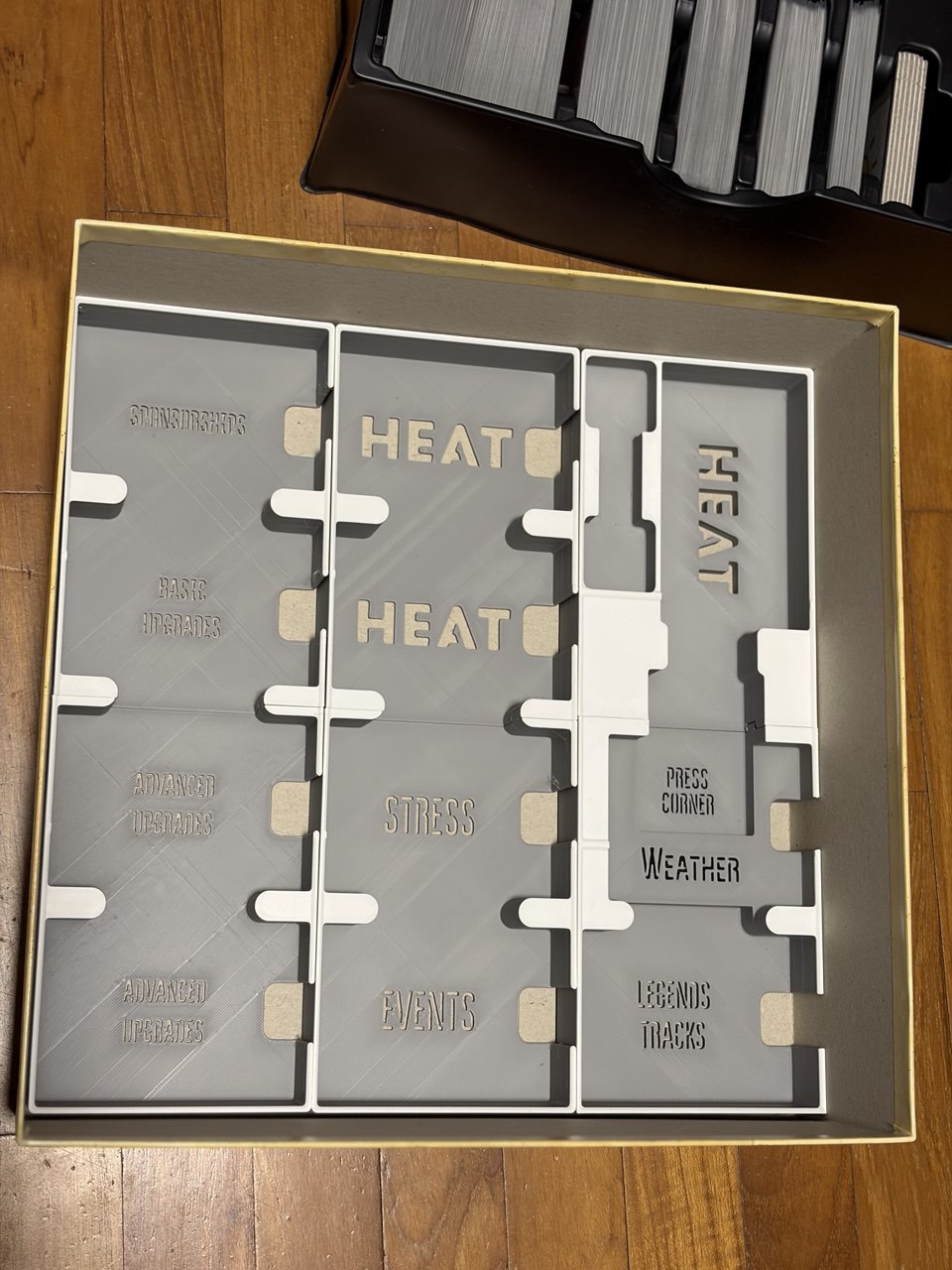

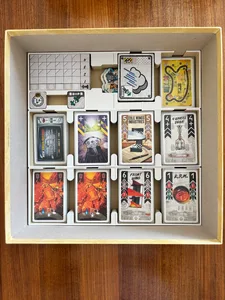

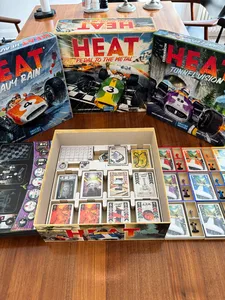

• Bottom Layer (Cards & Components):
• All shared cards and tokens are stored here.

• Heat & Advanced Upgrades are split to keep stacks low.

• Card trays print in two parts – simply snap them together (no glue required).

• Designed for sleeved cards using American Standard Sleeves (tested with Arcane Tinmen Medium Non-Glare sleeves) .

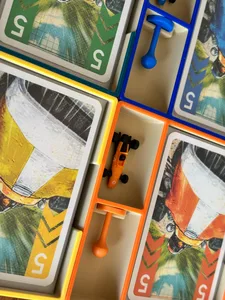

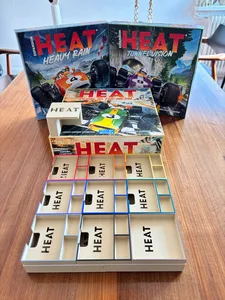

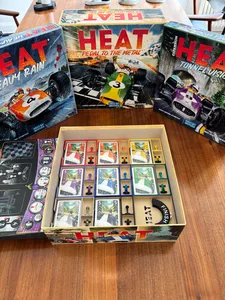

• Middle Layer (Player Trays):
• 8 individual player trays for gear, racing car, and deck.

• Custom gear holder maximizes height usage while keeping the trays low.

• One extra tray (9 slots total) for custom components like a start/finish arch ( this model ).

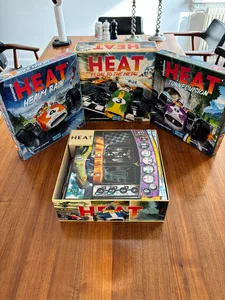

• Top Layer (Boards & Manuals):
• Stored in order: Maps (race boards) → Manuals → Player boards for easy access.

• Includes modular spacers to fixate the boards, preventing movement.

• No Lid Lift – Everything Fits Perfectly
• Designed to hold all expansions without raising the lid.

• Chamfered edges ensure each layer locks into place securely .

• Multiple Spacer Options for Board Storage:
• 4-Corner System (for different collection sizes: No expansions, 1 expansion, or both).

• 1-Corner System (simpler and more practical when using all expansions, reducing parts).

• Card trays print in two parts – simply snap them together (no glue required).

• Print the spacers that match your expansion setup .

• Designed for PLA printing.

This insert is built for gamers who want a clean, expansion-ready, and easy-to-use storage solution . Start with the base game and expand as you go—without ever replacing the insert. Enjoy faster game nights with a streamlined setup & teardown !
