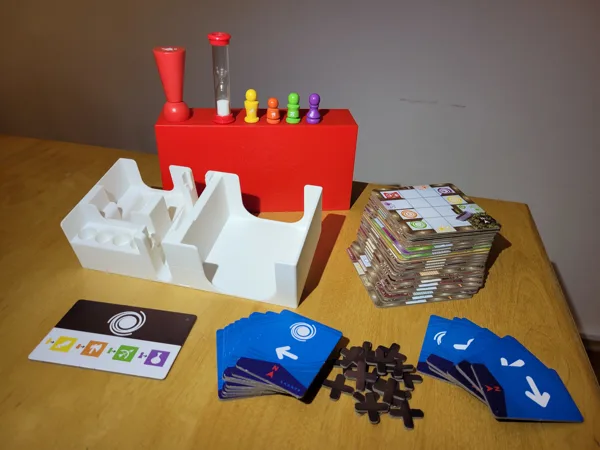

Magic Maze Board Game Box (new edition)

I really like the Magic Maze board game, but the original cardboard box is too big and also badly designed so all the pieces end up scattered over the whole box when traveling.

The storage box from Kabong didn't fit my version of the game (new edition with shaped hero pawns and with "Do Something" pawn looking like an exclamation mark) and also it has large tolerances yielding into the cover does not fit firmly and the tiles inside rattle. So I decided to redesign it.

The storage box was remodeled, but it is heavily inspired by the Kabong's version and also the imprinted logo was reused. Now:

• It fits the new shapes of the figures.

• It has lower inner tolerances to better fit tiles without rattling.

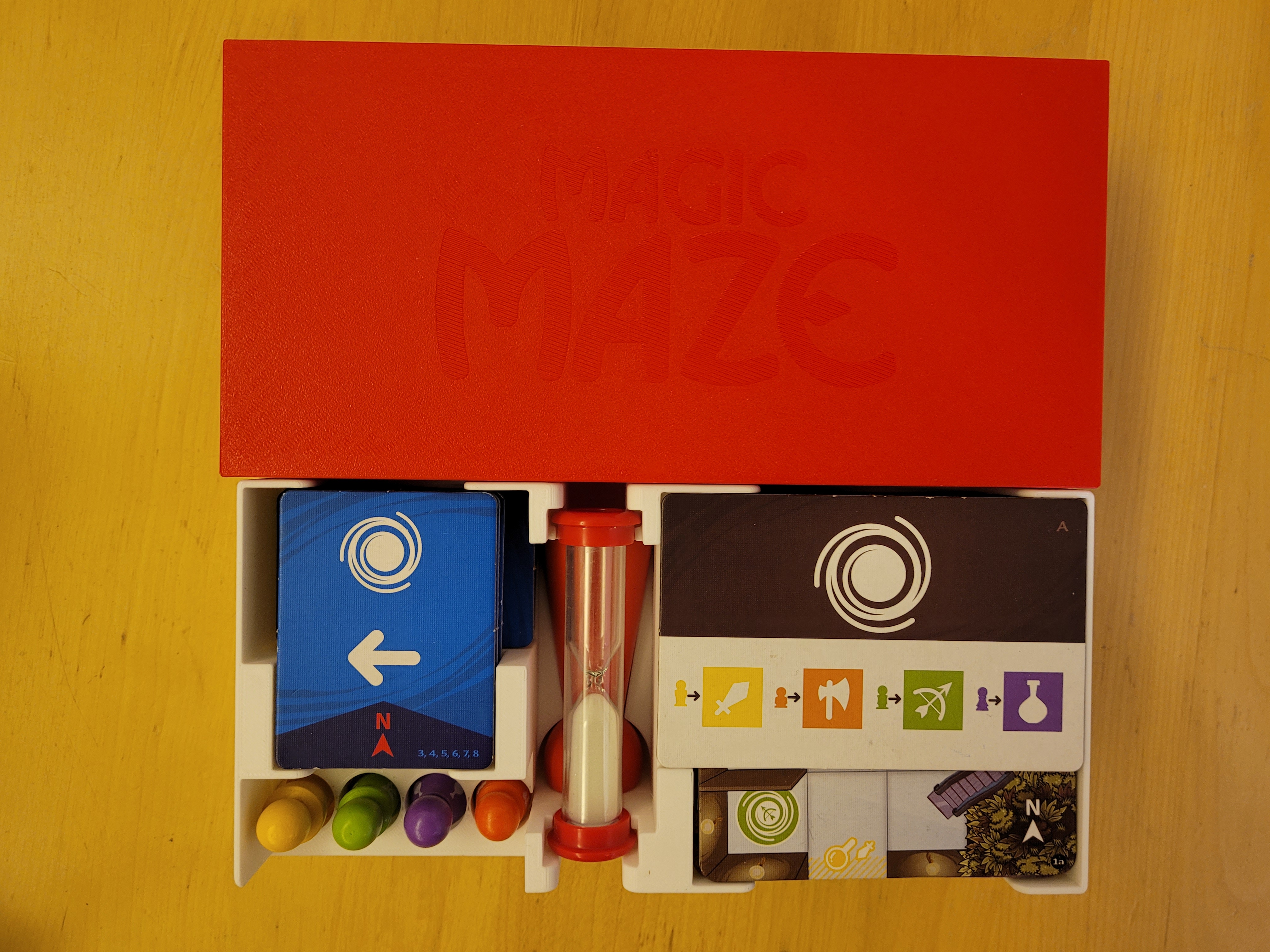

• It has a better-fitting cover with small snap locks.

Source project on OnShape: Magic Maze Storage Box

• v1a : Added cover with no logo and with a deeper logo

• v1: Small tweaks after the initial testing.
• Improved lock shape.

• Added bottom edge to hold the timer card in place.

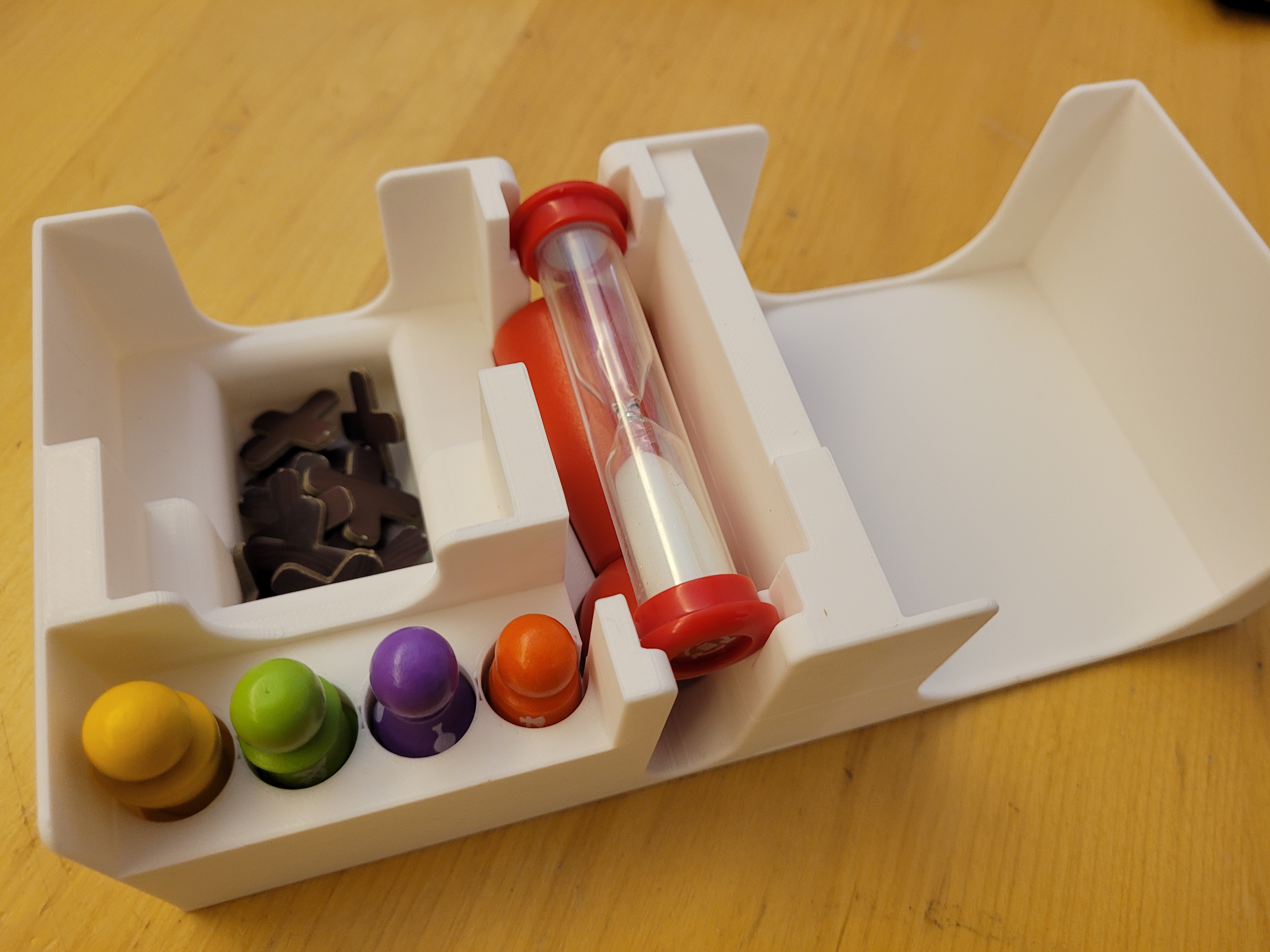

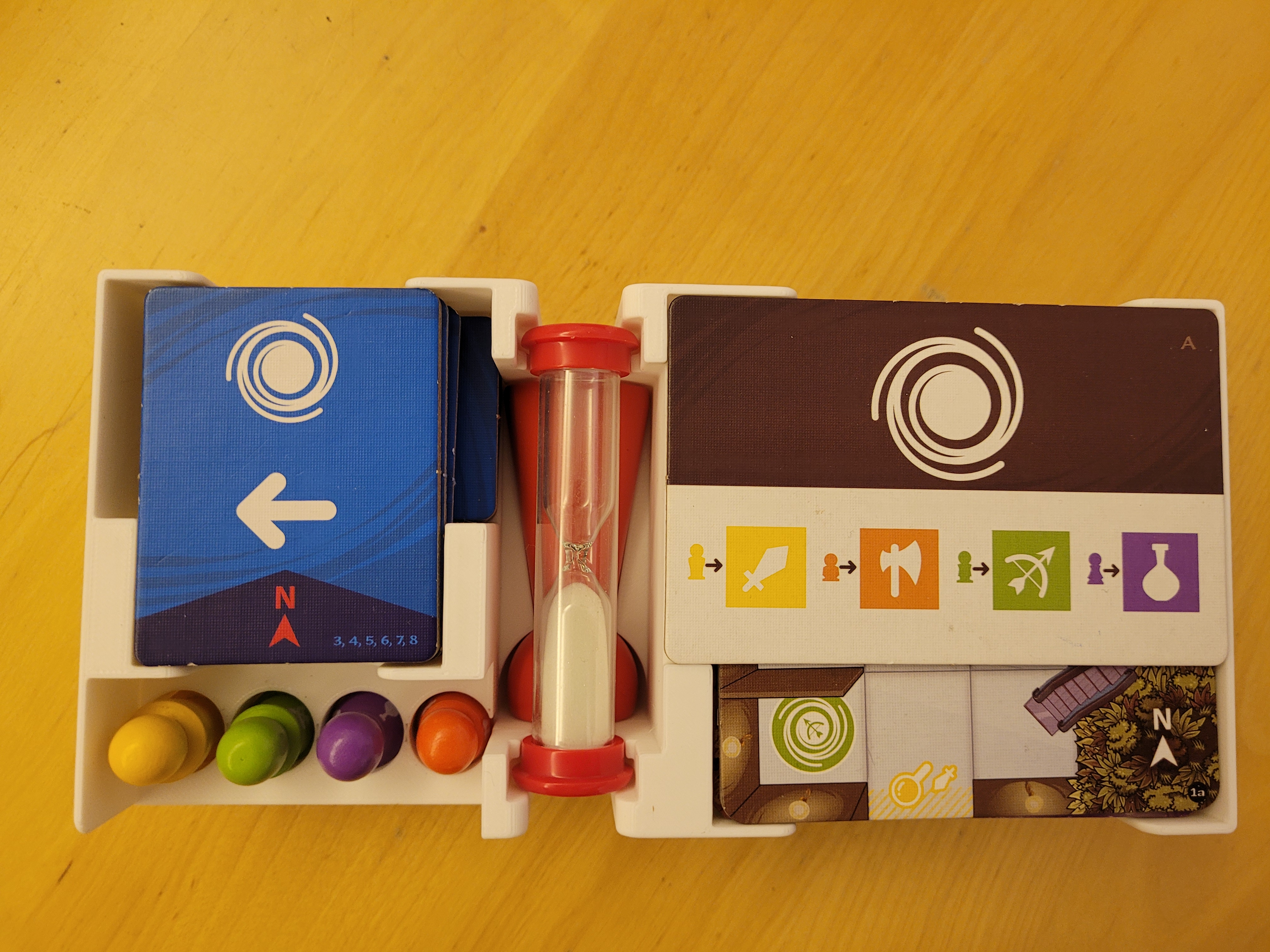

• v0.9: First version (on pictures).

PLA, 5-10% infill, any layer height (printed with 0.25 layer height with 4 solid bottom and 3 solid top layers).
