Skymines Corporations Storage and Quick Setup Insesrt

A remix of this design https://www.thingiverse.com/thing:5765772 by https://www.thingiverse.com/oneirosdream/designs .

This design allows quick storage and set up of the corporations in Skymines. The original was very well-designed, but I found the tolerances between pieces to be a little loose for my liking. Additionally, I wanted the trays to lock into one another so they wouldn't slide about during normal gameplay. I added dovetails to the sides to accomplish this.

I got the tolerances (printed on MK4S) to where I found they could move easily when desired but would slide around on their own. This might vary from printer to printer, so adjusting the XY compensation can account for that on most pieces. Also, they might seem a bit too tight at first, but putting it in and out a few times made for a better fit.

Print 1x:

Skymines_Main_Box

Skymines_Main_Box_Lid

Skymines_Shuttles_Box

Skymines_Shuttles_Box_Lid

Print 4x:

Skymines_Main_Tray

Skymines_Shuttles_Tray

Skymines_Outposts_Tray

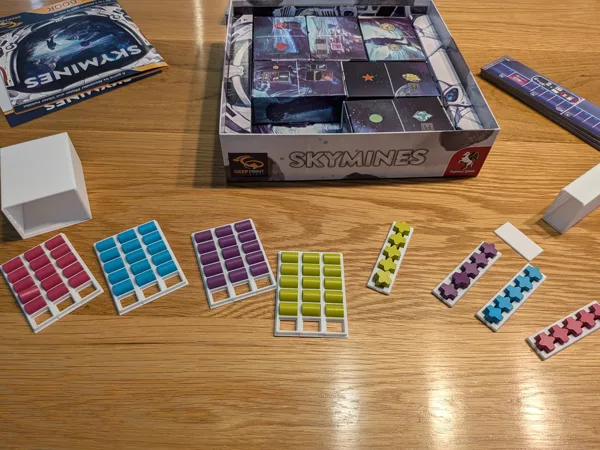

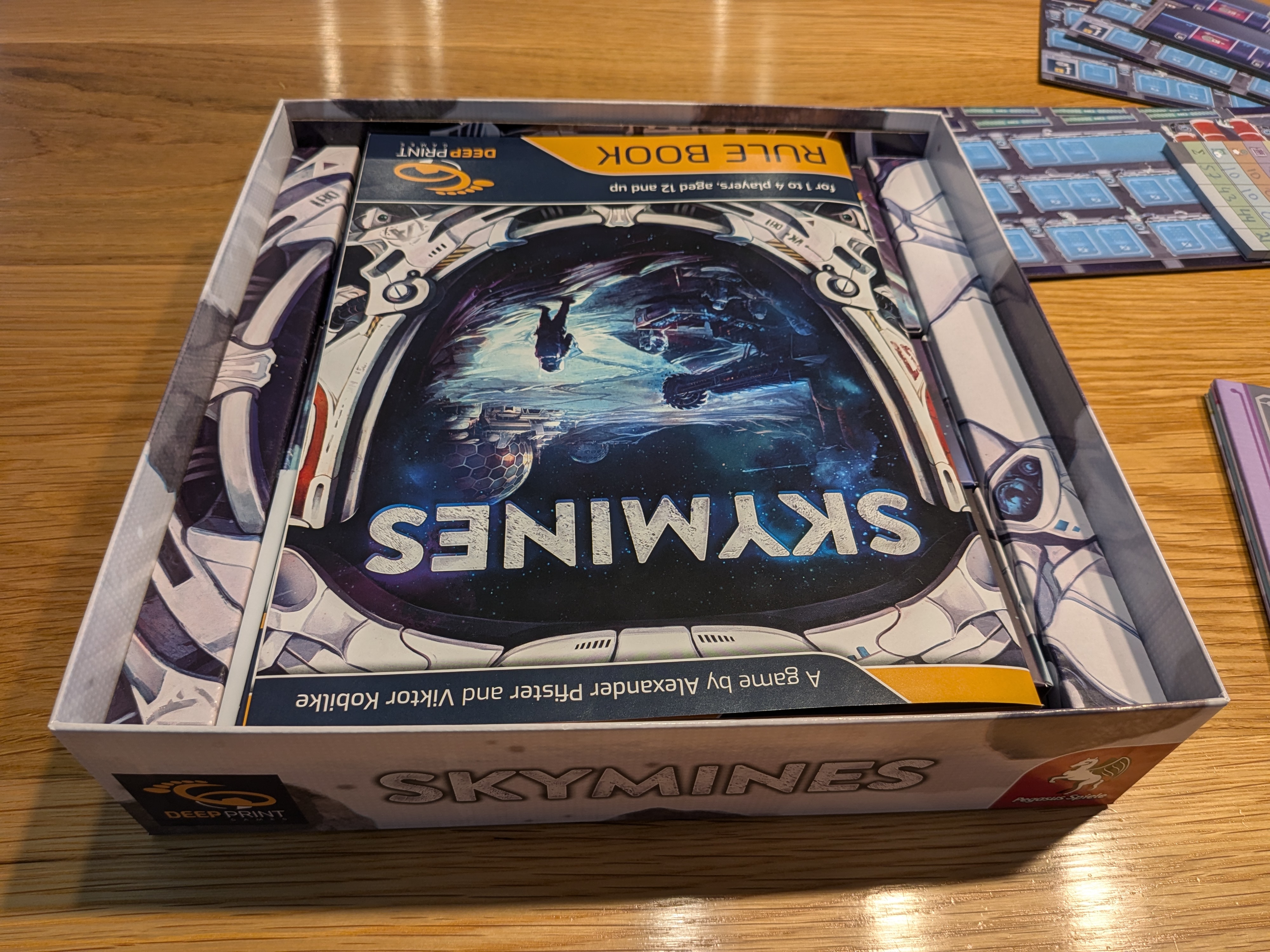

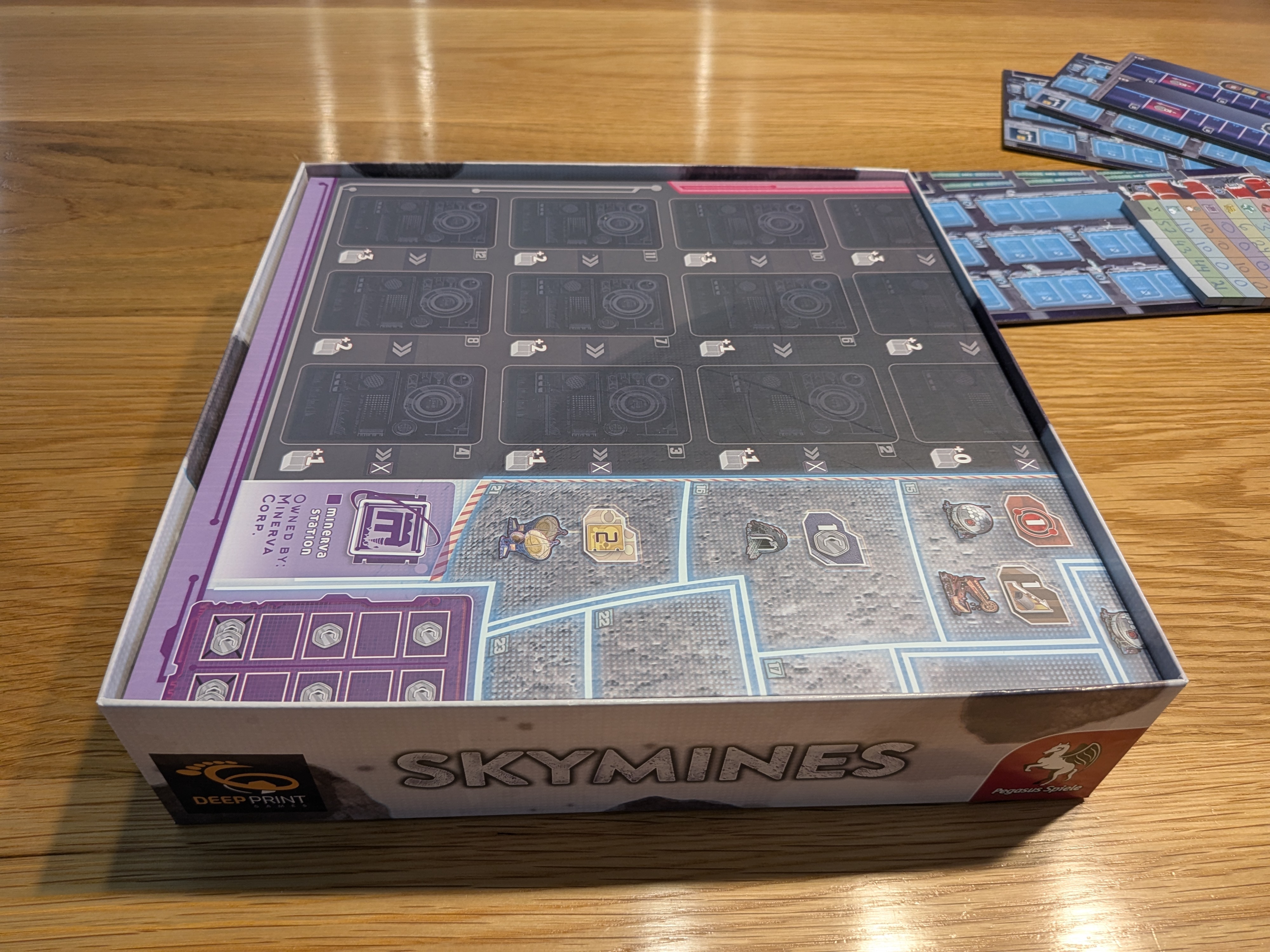

The box has no lid lift when out away in the same way as the original design, which I have recreated in my images. The original designer also included a lid for the main box with symbols on it, which I did not change and should fit my remixed files (I believe I adjusted its XY by +0.05 to give it a tighter fit).
