Customizable Top Loader EDH Deck Box

Remixed to allow box to be EDH sized (100 sleeved cards), since the original parameters of the box were not customizable enough. I also raised the amount the top loader guards come up since it could slip out with some slight pressure, and I raised the amount the top loader top comes in so that the top loader could not be forced through the lid.

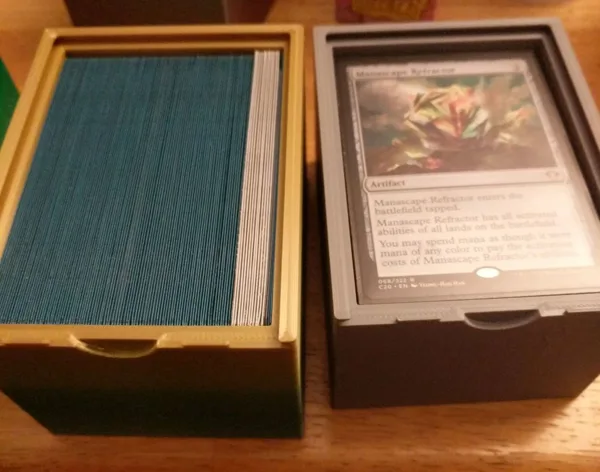

I've uploaded 2 example STLs I've printed, a shorter one which has cards that must be face up/face down (green and gray examples) and a taller one that has cards that can be sideways or face up/face down (multicolored example). They both work with my single (dragon shield and eclipse) sleeved EDH decks and both contain a little extra room for some tokens. I've found I can fit about 5-10, depending on how much I want to squish things.

I've also included the openscad file in case someone wants to further remix/customize. The deckbox for any orientation is using 68 for the deck width and thickness and 93 for the deck height.

3/13/21: I uploaded a v2 of the scad file that allows for a much taller deck box. This allowed me to make a box that stores the deck vertically and (in tinkercad) add a divider to allow a separate storage section while still having the entire box close via a top loader. I've uploaded the example STL I made - the storage container is big enough for a normal sized spindown d20 or a bunch of tokens. This is the purple deck box photo.

7/30/21: Uploaded an additional file containing just the two top loader blockers, since I had some print out poorly when I was messing around with wall count.

7/22/22: Uploaded a v3 of the scad file that reduces the size of the toploader space so that the little braces in front are not necessary to hold in the toploader and then made the toploader braces an toggleable option

3/6/23: uploaded a new v4 version with a bit of a looser fit on the top loader, since v3 fit was a bit too tight

9/6/2023: Added a printable cover that can slide into the top loader slot - 2 versions: with or without window

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

20%

Filament: ttyt 3d PLA Rainbow Silk

Notes:

I actually used my new CR-6, but that's not an option here

Category: Toy & Game Accessories
