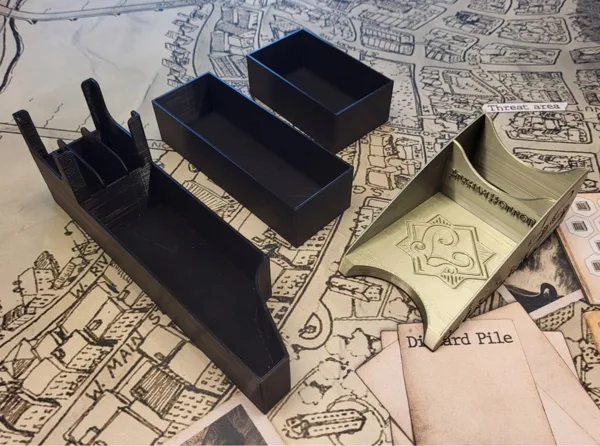

Arkham Horror LCG: Box Trays Fitted to Encounter Deck Tray (New Game Box Size)

for Arkham Horror (2005)

Spinodal_Zeugma + Follow

Card & Deck Holders

Free

View Print on Printables

Please support Spinodal_Zeugma by Liking/Boosting their Print on Printables.

Before you print

✓ Fits sleeved cards

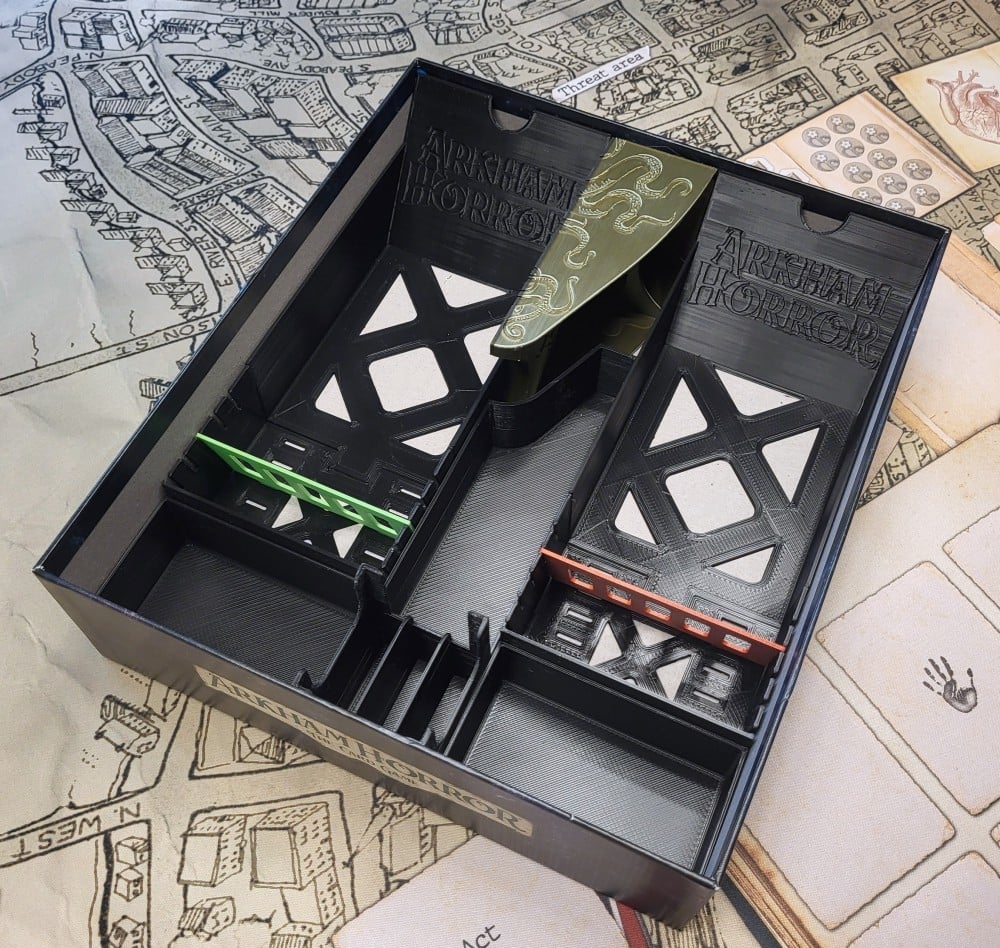

These are storage trays for the new edition boxes of the board game Arkham Horror LCG. Most of the trays are narrow and the same width as the token storage boxes designed by olivvybee (https://www.printables.com/model/397634-token-storage-for-arkham-horror-the-card-game). These work in conjunction with the card storage trays I have created (https://www.printables.com/model/796848-arkham-horror-lcg-card-storage-trays-for-new-game). One tray is wider and designed to go at the end of those card storage trays. This tray will store the Investigator Stands I have made:

https://www.printables.com/model/796845-arkham-horror-lcg-investigator-stand-octopus-arms

https://www.printables.com/model/796844-arkham-horror-lcg-investigator-stand-tentacles

https://www.printables.com/model/796843-arkham-horror-lcg-investigator-stand-octopus-arms

There are two types of narrow trays in this collection:

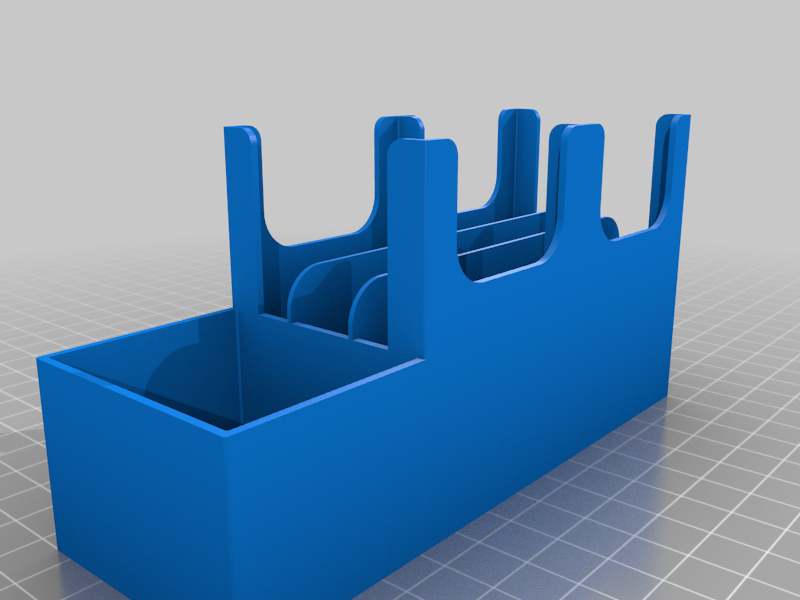

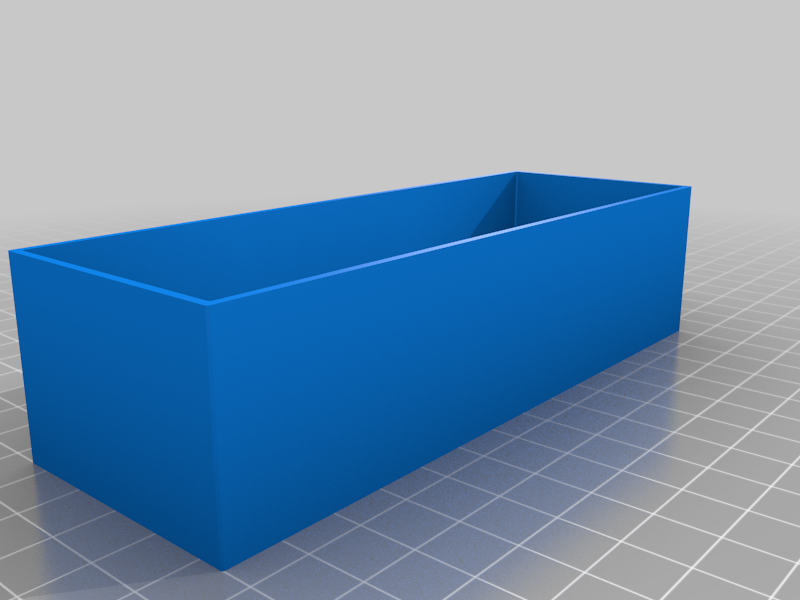

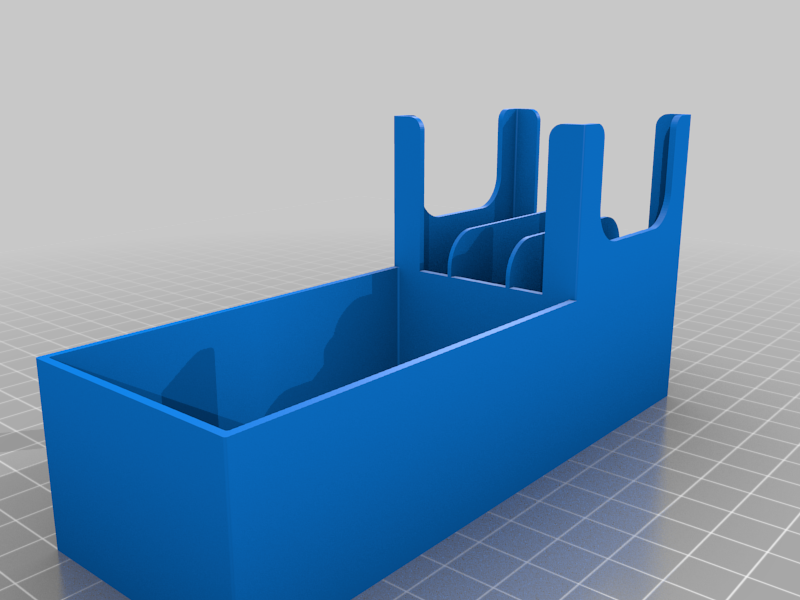

Standard rectangular trays, with the same footprint as olivvybee's token storage boxes. Variants include three or six slots to store the investigator picture cards. The corner posts on these slots keep the game manual off of the investigator cards.

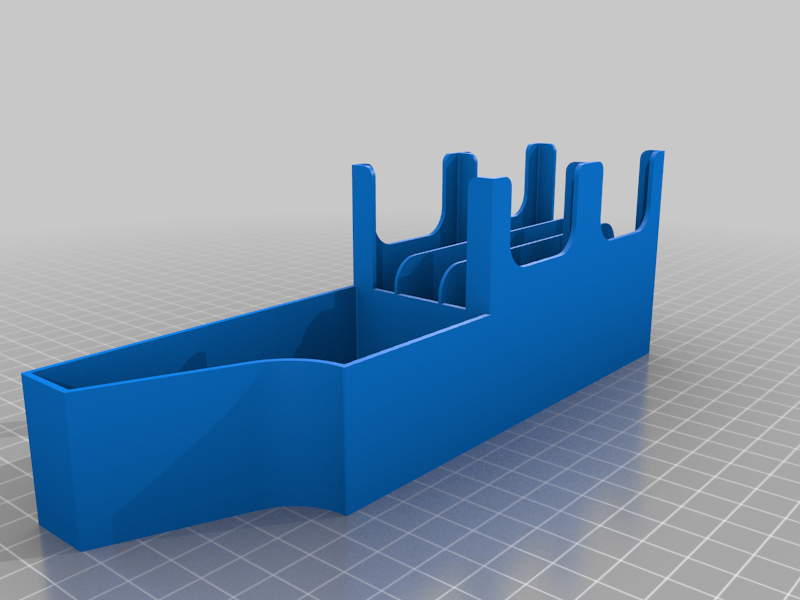

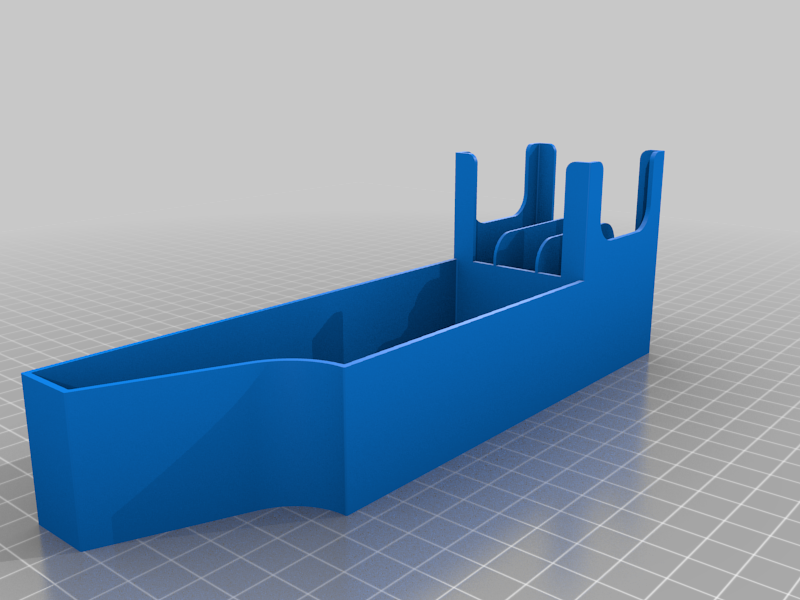

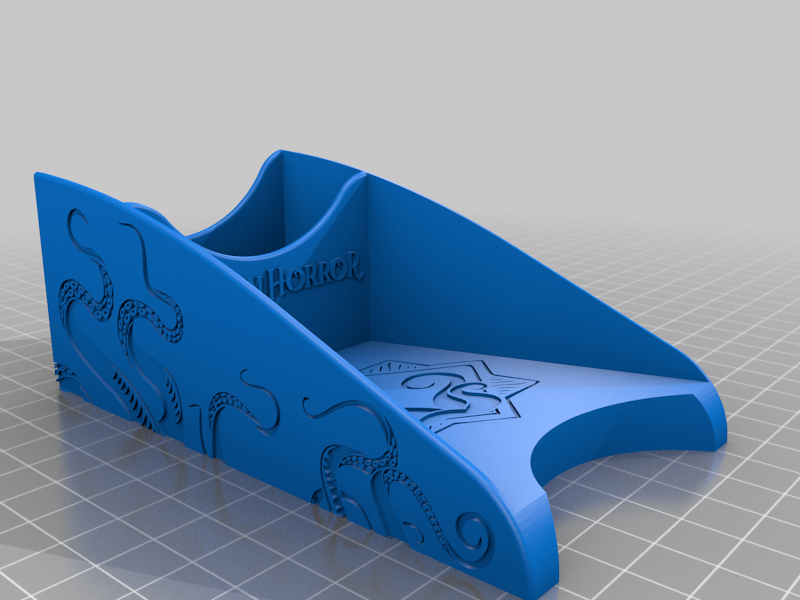

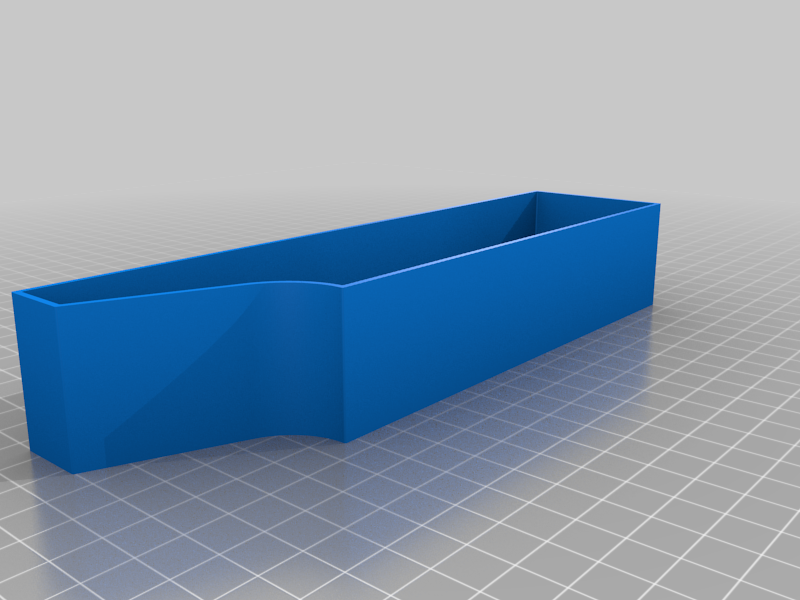

Longer curved trays, designed to fit around the Encounter Deck Draw and Discard tray designed by ksebastiank (Thingiverse 4166561). The Encounter Deck tray has been remixed to narrow the width to better match the height of the other storage components, and it will still hold sleeved cards. I use the curved tray to hold the Chaos Token bag.

Print Settings

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

Supports:

Resolution:

0.8 mm Nozzle; 0.2 mm Layer Height. Encounter Deck Tray: 0.4 mm Nozzle; 0.1 mm Layer Height

Infill:

20%

Filament: eSun; Hatchbox; Amolen PLA+; PLA and wood; PLA Black; Dark Wood; Silk Bronze

Notes:

The Encounter Deck tray was printed with one filament swap.

How I Designed This ===================

The trays were designed in Fusion 360 and exported as .STL files using MeshMixer. The Arkham Horror logo originated from an image on the web, was edited and turned to black and white using Gimp, was then converted to an .SVG file using Inkscape, and then imported into Fusion 360 for extrusion.

The original Encounter Deck tray .STL file by ksebastiank was adjusted using MeshMixer.

Category: Games

thingiverse arkhamhorror arkhamhorrorlcg
